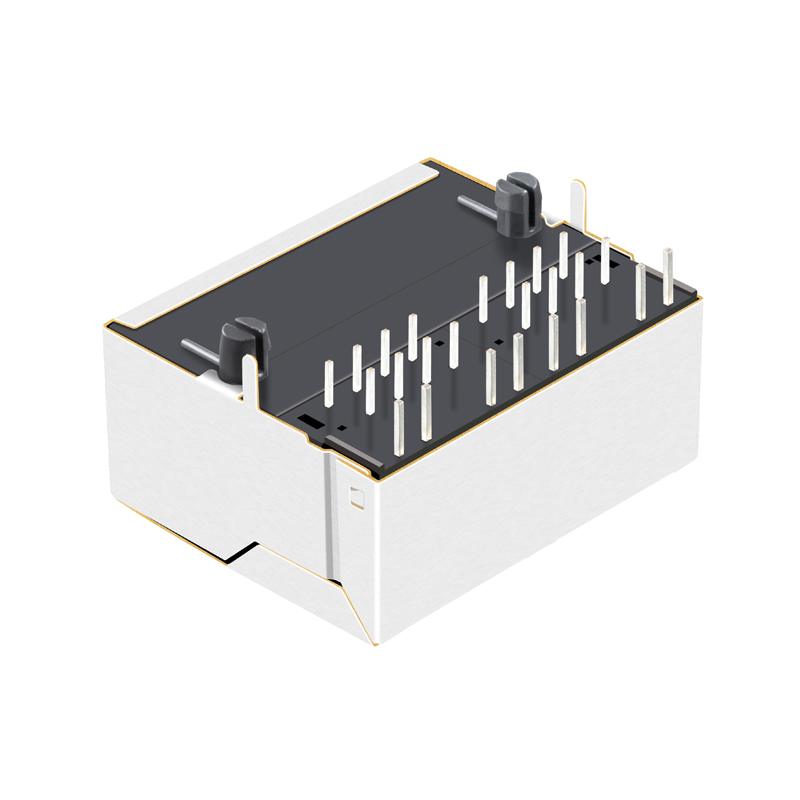

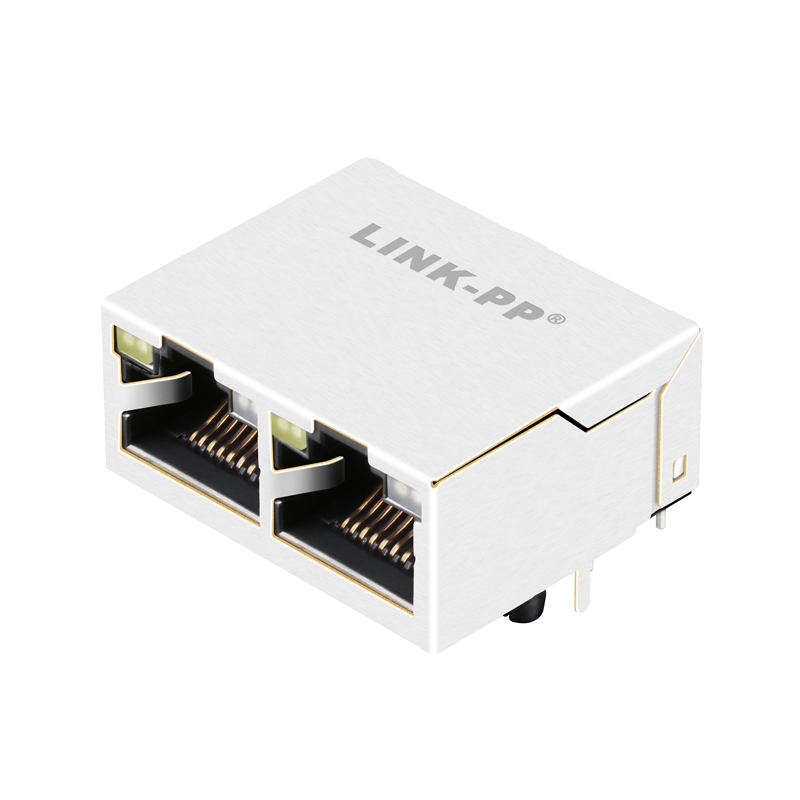

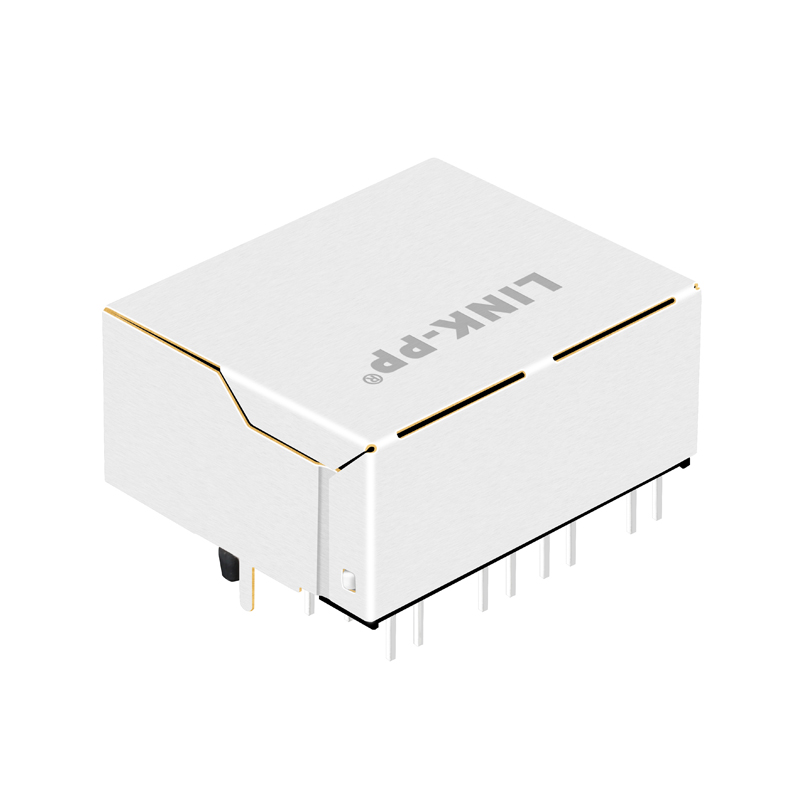

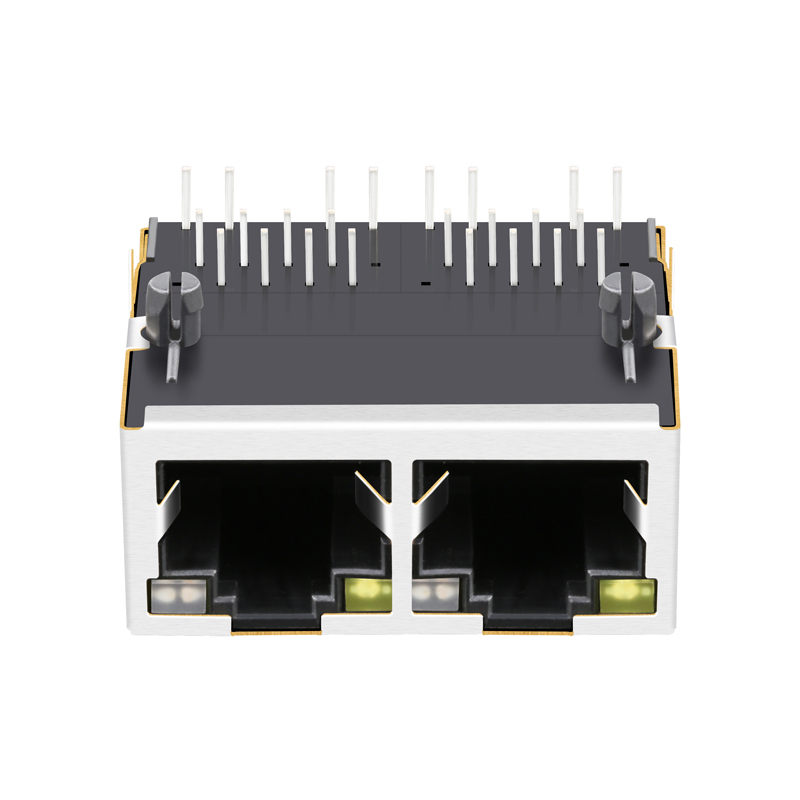

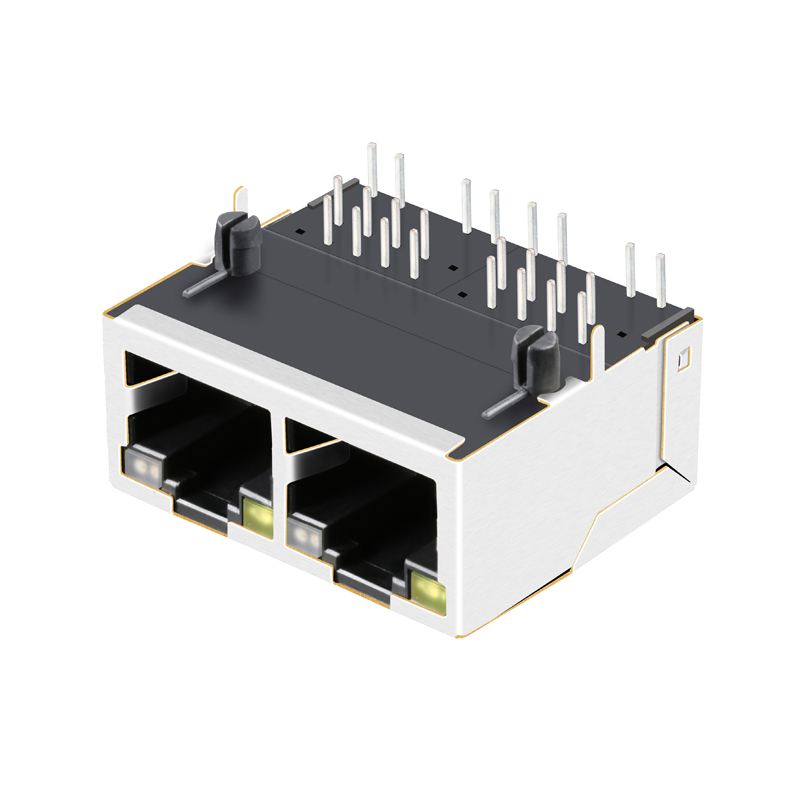

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Send Inquiry

Product Description

Part Number	1840538-3 6610128-1 1840538-4 1840538-2
Application-LAN	ETHERNET(NoN POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	6
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP
Number of Ports	1x2
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	10/100 Base-T
Temperature	0 ~ 70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

What applications are these RJ-45 connectors designed for?

These connectors are optimized for LAN and ETHERNET (Non-PoE) applications operating at 10/100 Base-T speeds.

What is the environmental compliance standard of the 1840538-3 series?

They are RoHS compliant under RoHS-5 standards, utilizing lead-in-solder exemption regulations.

Do these RJ-45 connectors feature internal magnetic components?

Yes, they are shielded magnetic connectors that integrate built-in circuitry, including RX/TX Turns Ratios of 1CT:1 and support for AutoMDIX.

What are the mounting and mechanical specifications?

They feature a side entry mount angle, standard THT solder pin type, PCB retaining T-post, and a Latch UP configuration on FR4 PCB material.

What is the operating temperature range for these parts?

These connectors operate reliably under a standard commercial temperature range from 0°C to 70°C.

What options are available for contact mating plating and LEDs?

The contacts are plated with gold (options of 6u", 15u", or 30u"), and the unit features a Green/Green LED option.
