| Part Number | 5-6610068-7 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIDES41 |
| LED Option | GREEN/GREEN&ORANGE |
| Latch | UP |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

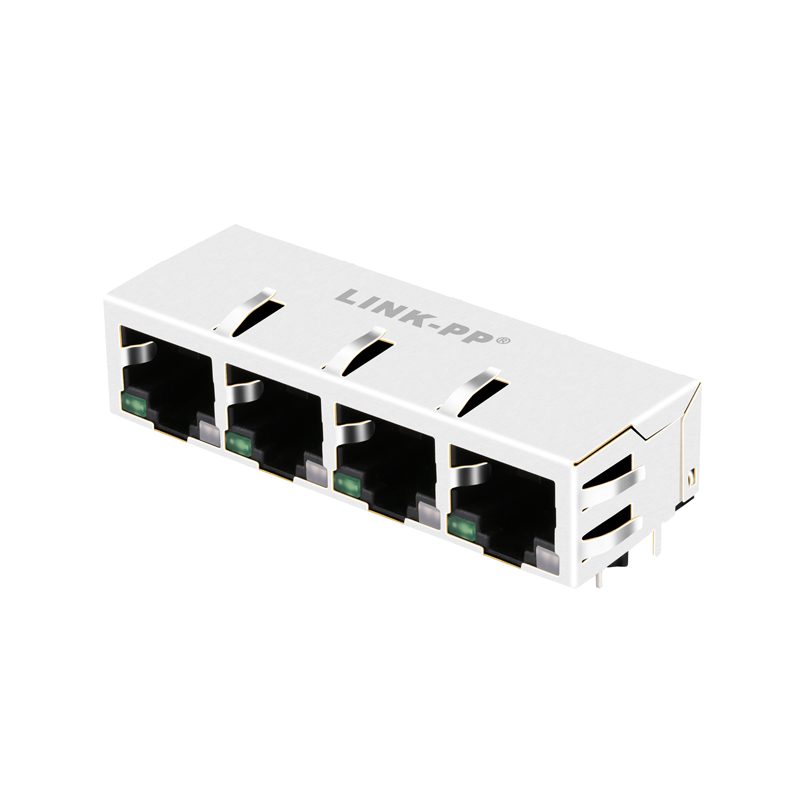

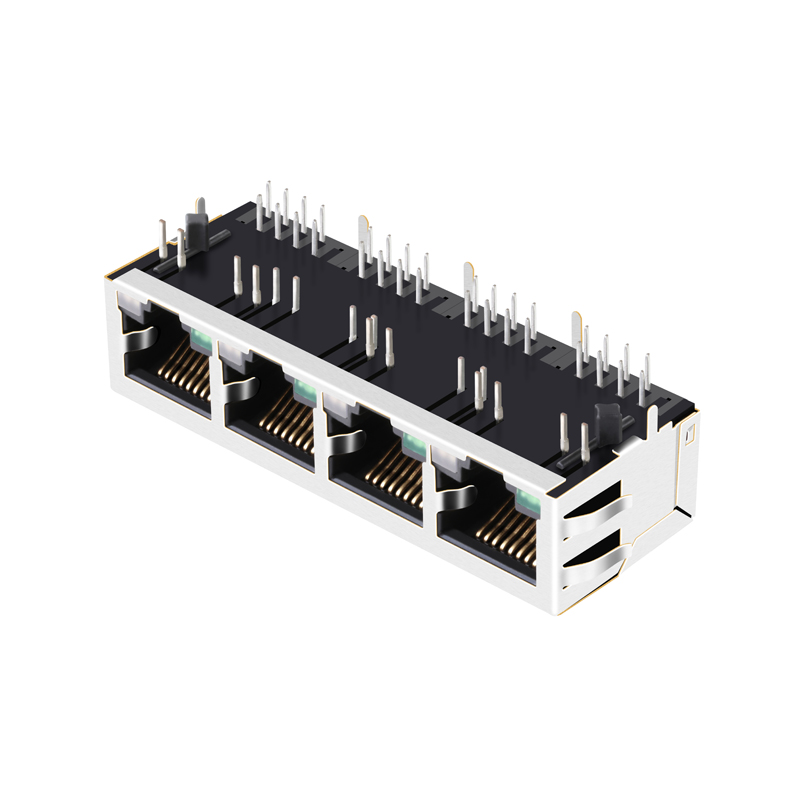

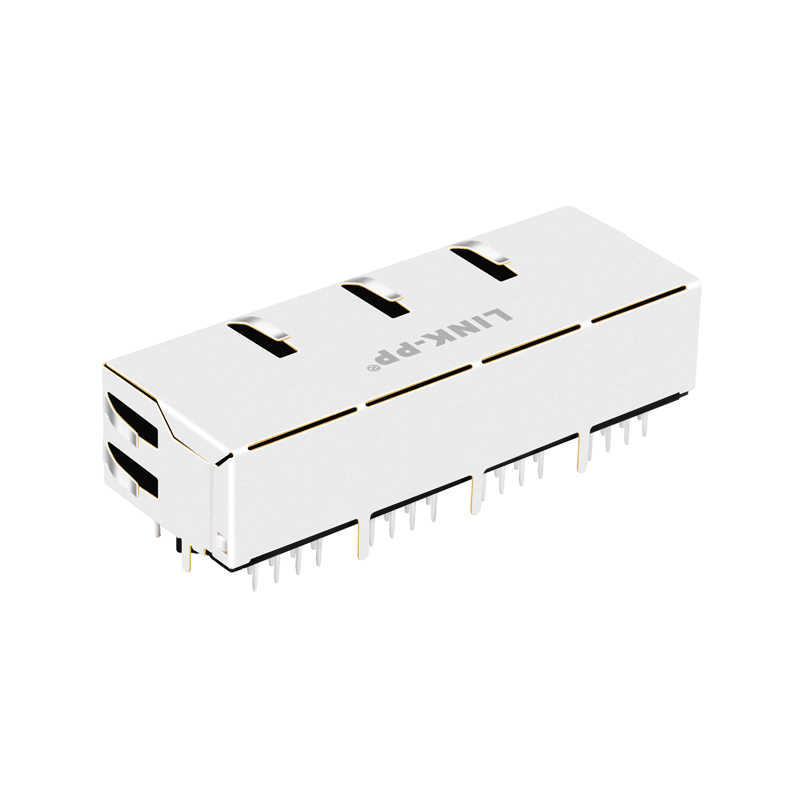

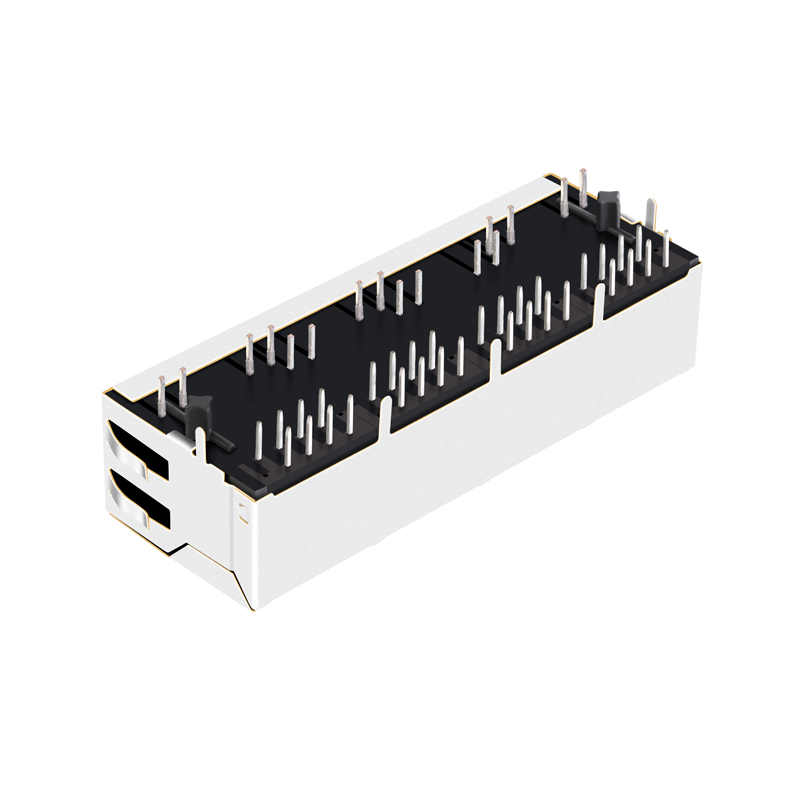

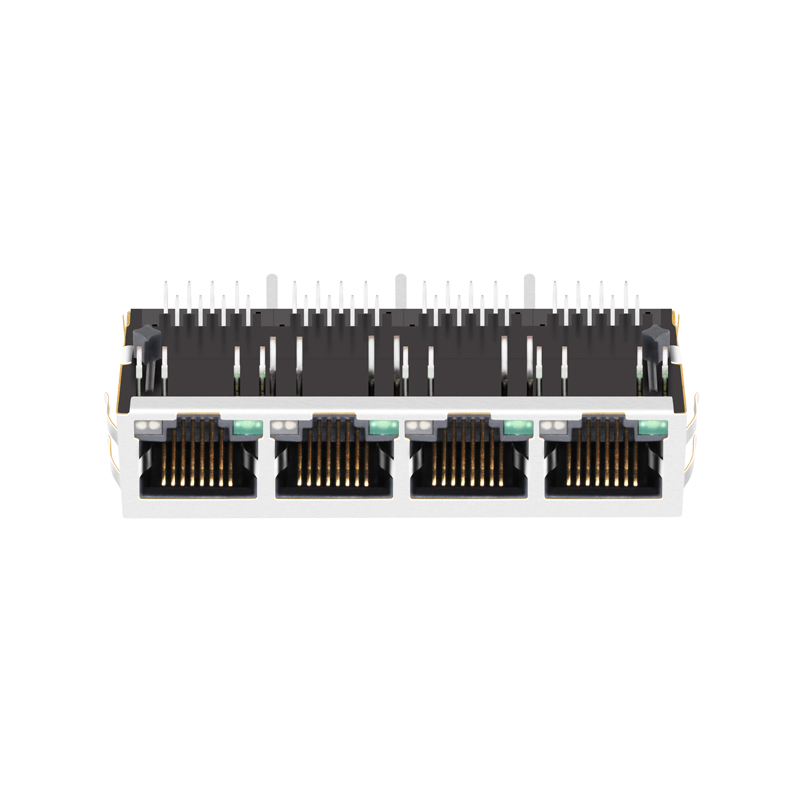

The 5-6610068-7 is a Gigabit Ethernet RJ45 connector designed for 1000 BASE-T transmission speeds. It features a 1X4 modular jack configuration, housing 4 RJ45 ports in a single-row layout.
This connector is configured with a "Tab Up" latch direction. It features LED color indicator options of Green/Green and Orange to show link status and network activity.
The connector is designed to function across multiple environments, supporting temperature ranges from standard commercial grades of 0 to 70°C up to industrial grades of -40 to 85°C.
Yes, it is RoHS compliant under the RoHS-5 standard, which includes lead-in-solder exemption guidelines. It also carries Reach Certification and meets strict environmental policy standards.
The connector uses high-quality FR4 PCB material. The contact mating area features robust gold plating options, available in thicknesses of 6u", 15u", 30u", or 50u" to ensure superior performance and corrosion resistance.
