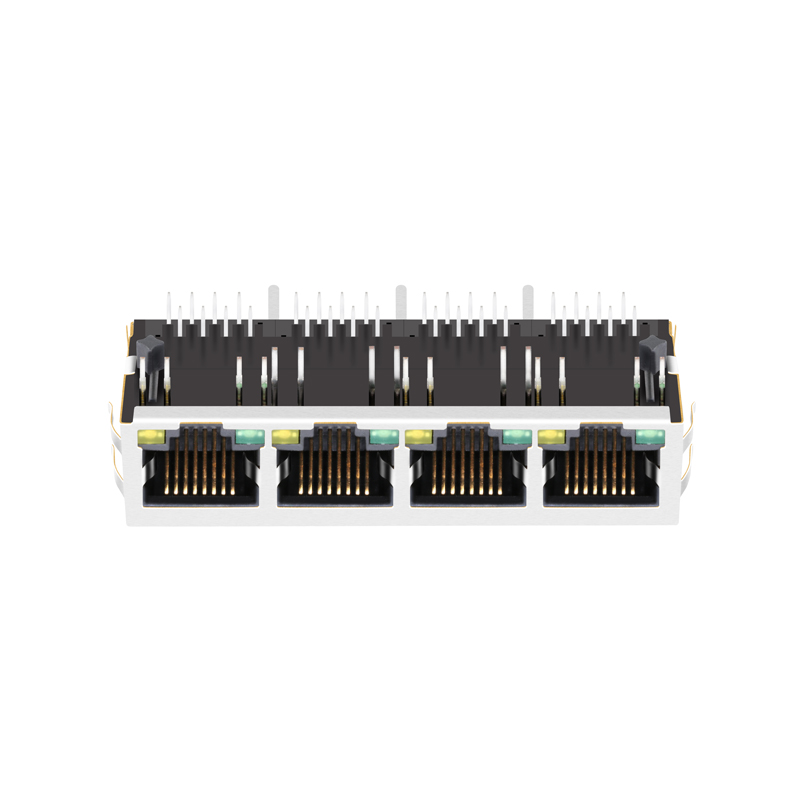

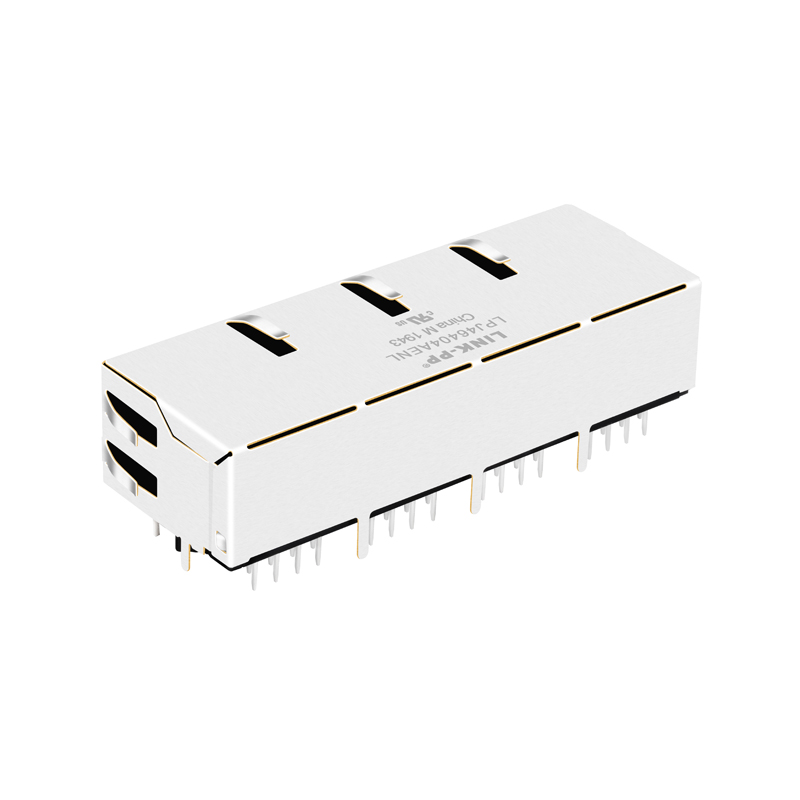

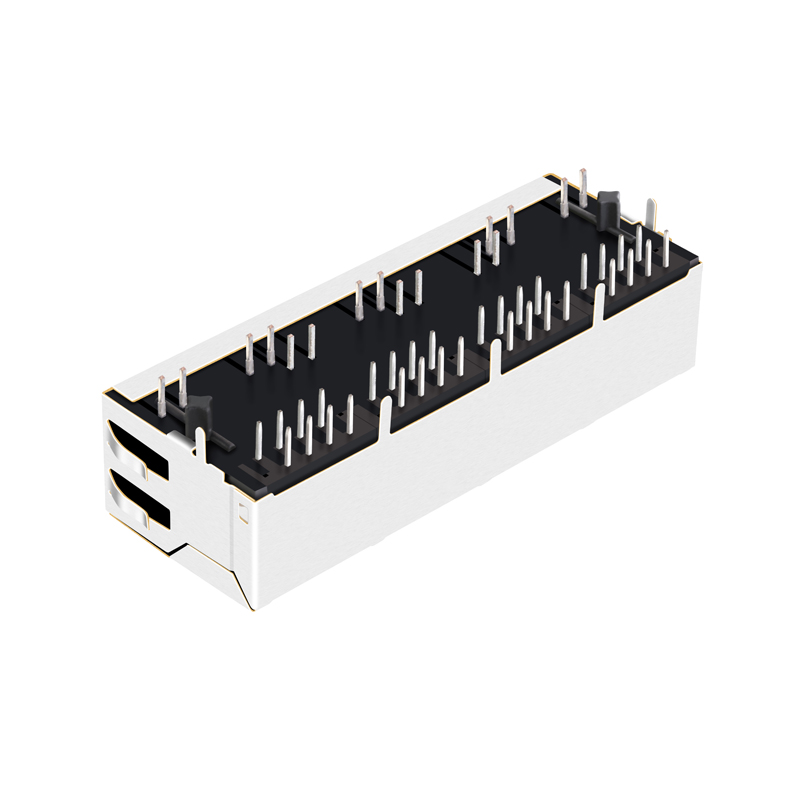

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

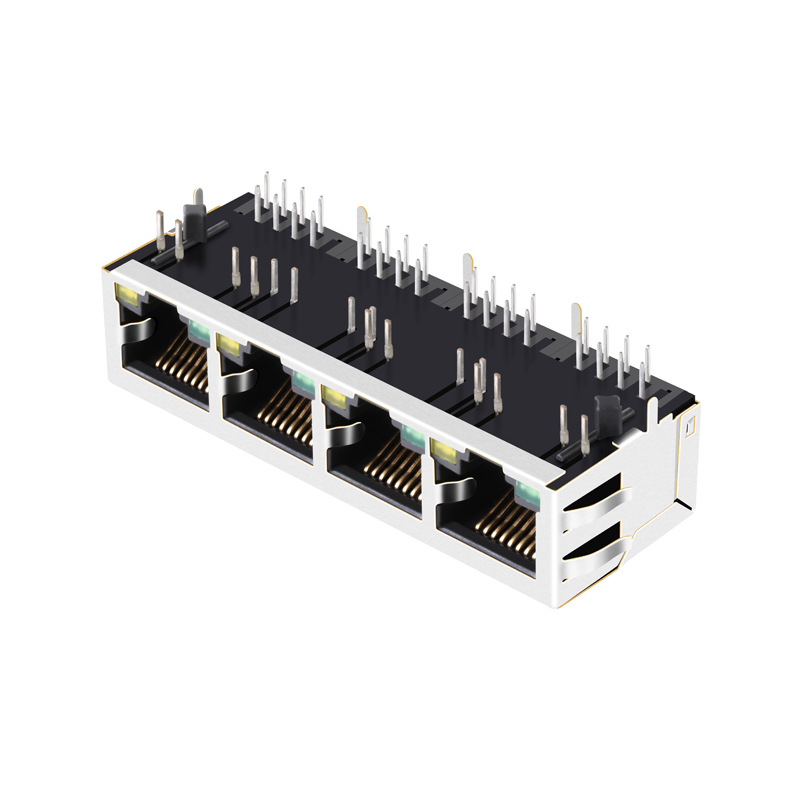

RJ45 Connector Front View

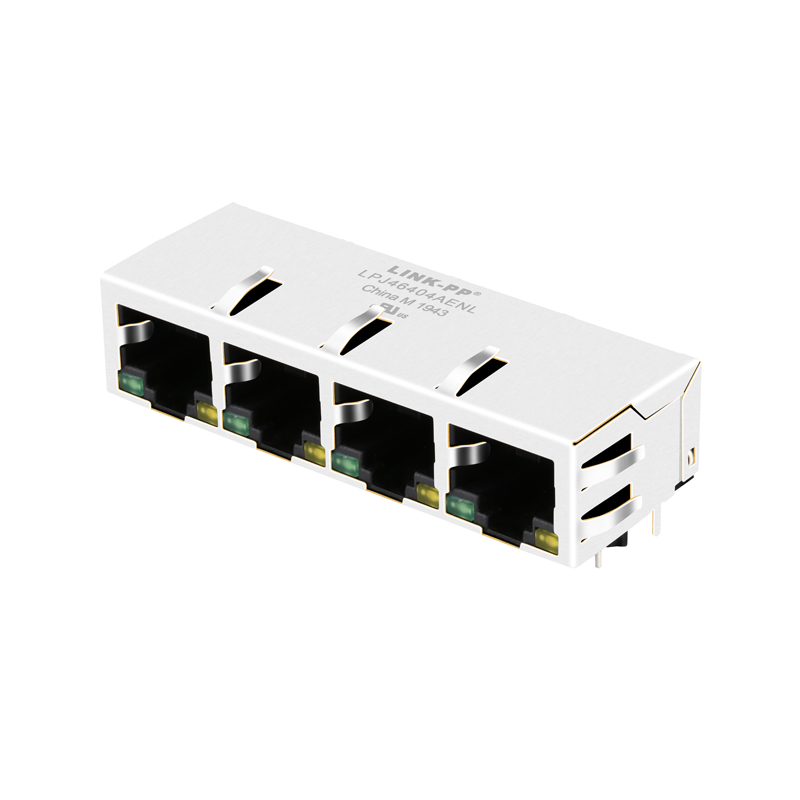

RJ45 Connector Side View

Specification

Item Value
LINK-PP Part Number LPJ46404AENL
Pulse Part Number JXD0-4005NL / JX80-0033NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Dimensional Drawing 1
Dimensional Drawing 2
Schematic Diagram 1
Schematic Diagram 2
PCB Layout Recommendation
Mechanical Details

About Our Components

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Product Offerings:
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter
Manufacturing Environment
Quality Test Equipment
Package Details

Frequently Asked Questions

Are you a manufacturer or trading company?
We are a professional manufacturer specialized in RJ45 connectors and LAN Transformers with over 23 years of industry experience.
Can I request product samples for evaluation?
Yes, we offer 3-5 pieces of free samples for qualification and testing. Small trial batches are also accepted.
Do you provide OEM services?
Yes. We possess strong R&D capabilities to customize layouts based on your specifications, including customized laser printing of your brand mark directly on the component casing.
What is the typical production lead time?
Our highly efficient production lines typically fulfill and ship orders within 30 days. Please verify detailed delivery timelines directly with our sales team.
What is the operating temperature range for these RJ45 connectors?
These connectors are engineered to operate reliably in harsh industrial environments with a temperature tolerance ranging from -40°C to 85°C.
Do these components support PoE (Power over Ethernet)?
The specific LPJ46404AENL model listed is configured for Ethernet (Non-PoE) applications. For components supporting PoE configurations, please reach out for our compatible catalog designs.
