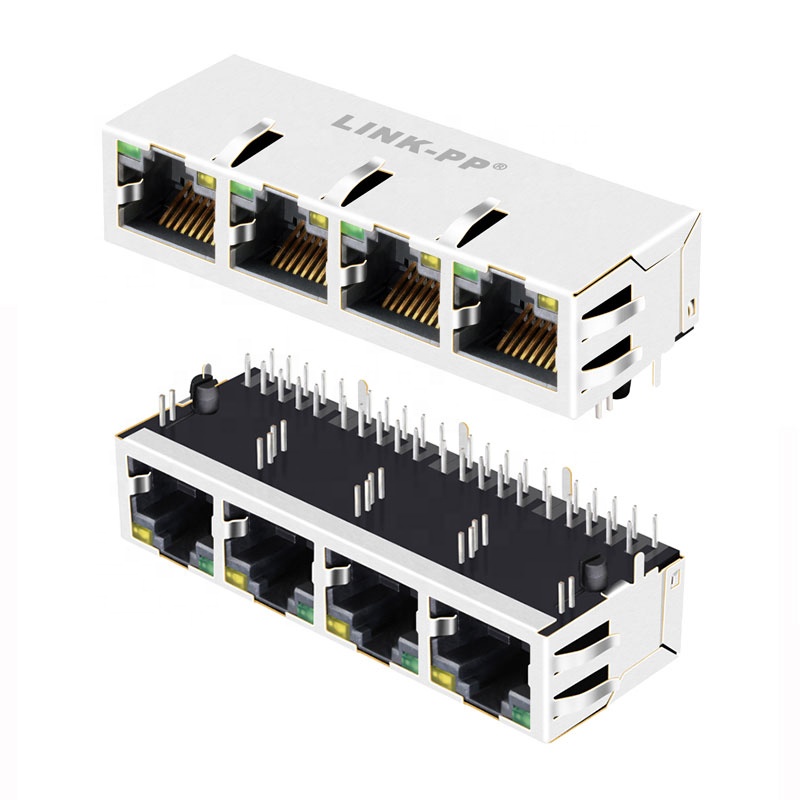

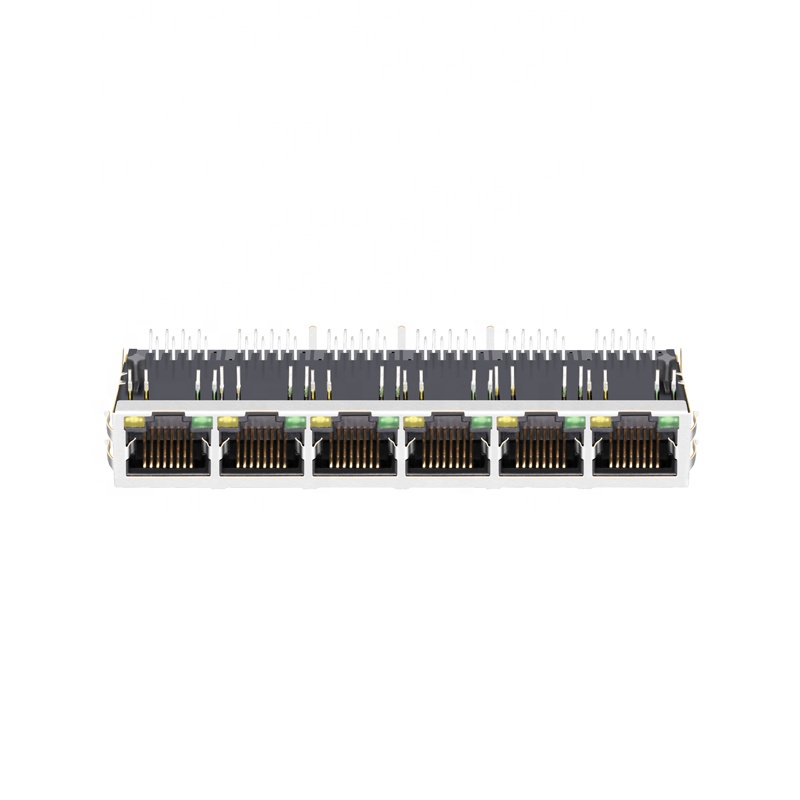

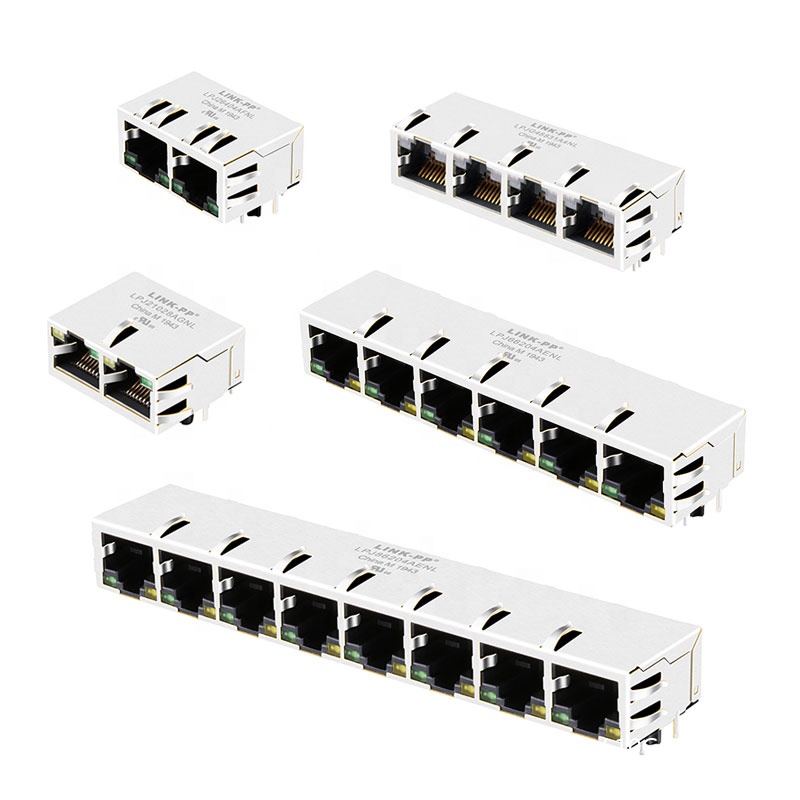

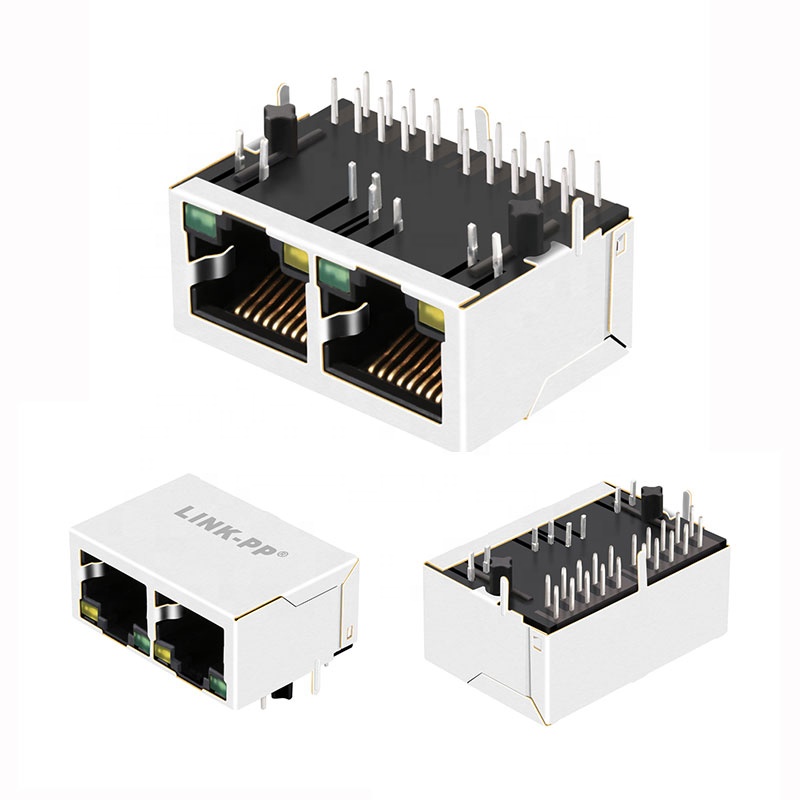

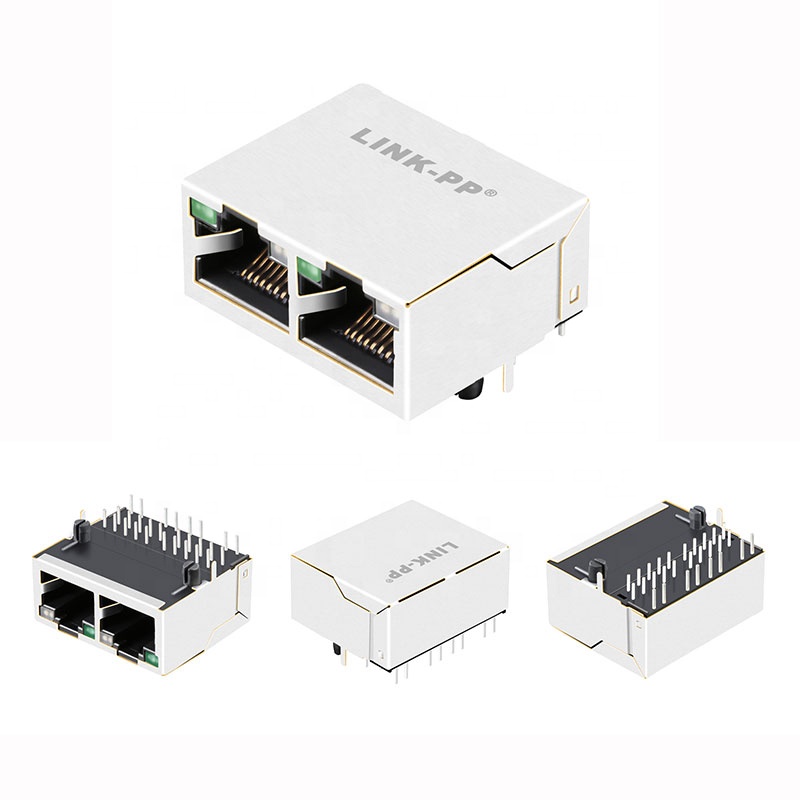

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1 / 5
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors
1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

1x2 1x4 1x6 1x8 Port 100/1000/2.5G/5G/10G Base-T 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a PCB Modular MagJack RJ45 Filtered Connectors

Send Inquiry

Product Description

Product Description
Product Characteristics
✔ RJ45 Connector with integrated transformer / common mode choke.
✔ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
✔ Available in SMT, THT and THT with USB.
✔ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt.
✔ HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
Specification
Item Value
Model Number Integrated Connector Modules
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 1x2 1x4 1x6 1x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C
Packing & Delivery
Package Type
Tray
Carton Size
37 * 30 * 30 cm
Gross Weight
9 kg / carton
Quantity
600 pcs / carton
SPQ
30 pcs
Net Weight
0.015 kg / pc
Packing and Shipping
Product Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Production Process
Frequently Asked Questions
Q What are the main products available?
We specialize in a comprehensive range of networking hardware solutions, including RJ45 Magnetics, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
Q How is product quality guaranteed?
We guarantee quality through strict procedural oversight, ensuring a pre-production sample check before mass production starts, followed by a final inspection of all goods before shipment.
Q What certifications do your manufacturing processes hold?
Our products and production processes are certified to meet international standards including SGS, ISO9001:2008, UL, REACH, and CE.
Q What delivery terms do you accept?
We accept a wide range of global delivery options including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
Q Which payment methods and currencies are supported?
We accept payments in USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Supported payment types include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
Q In what languages can your support team assist clients?
Our international support team can assist you in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
