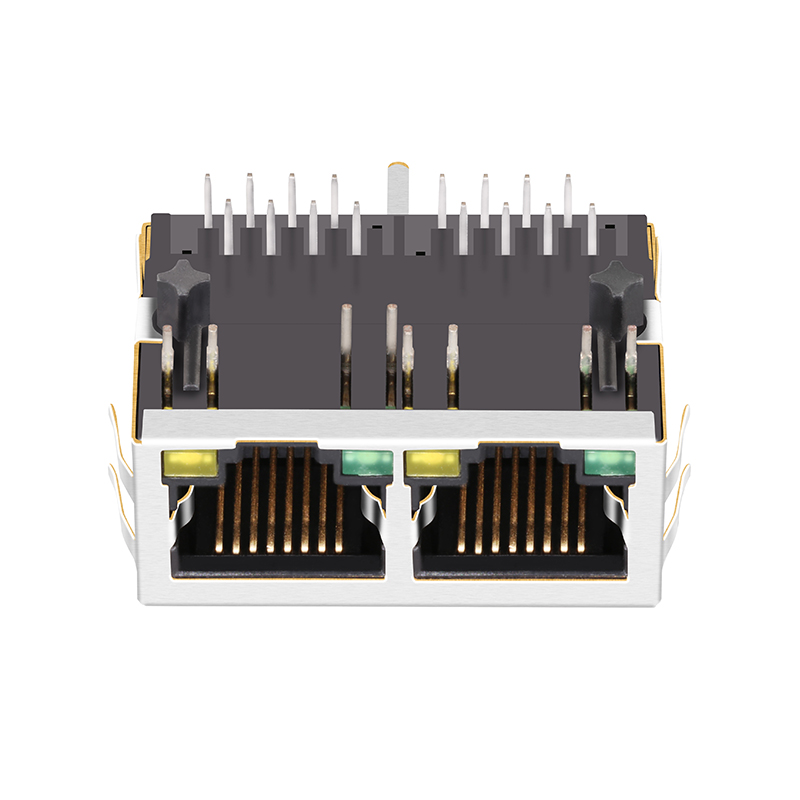

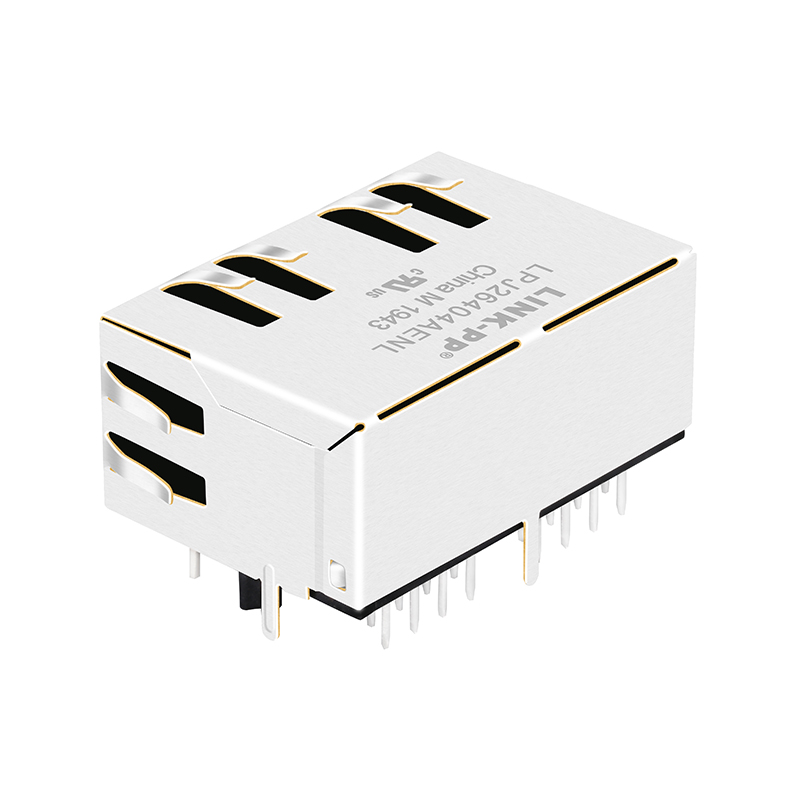

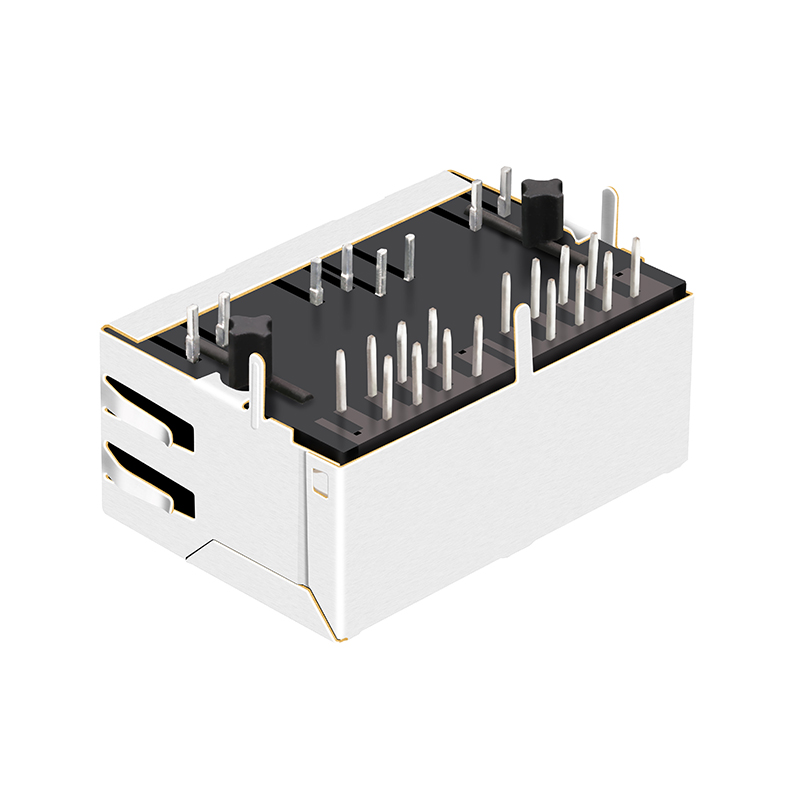

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

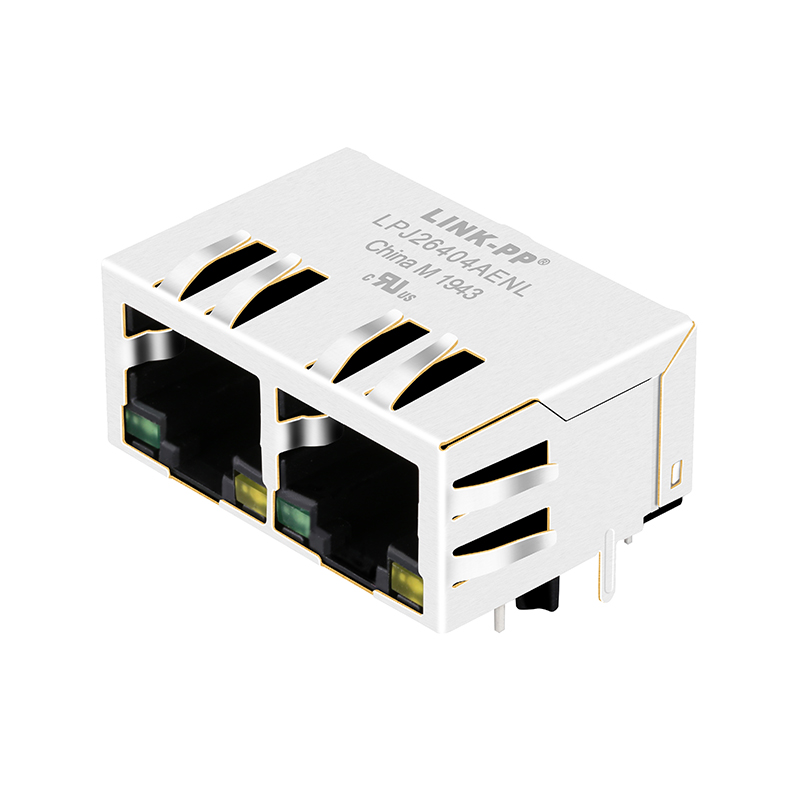

Product View 1

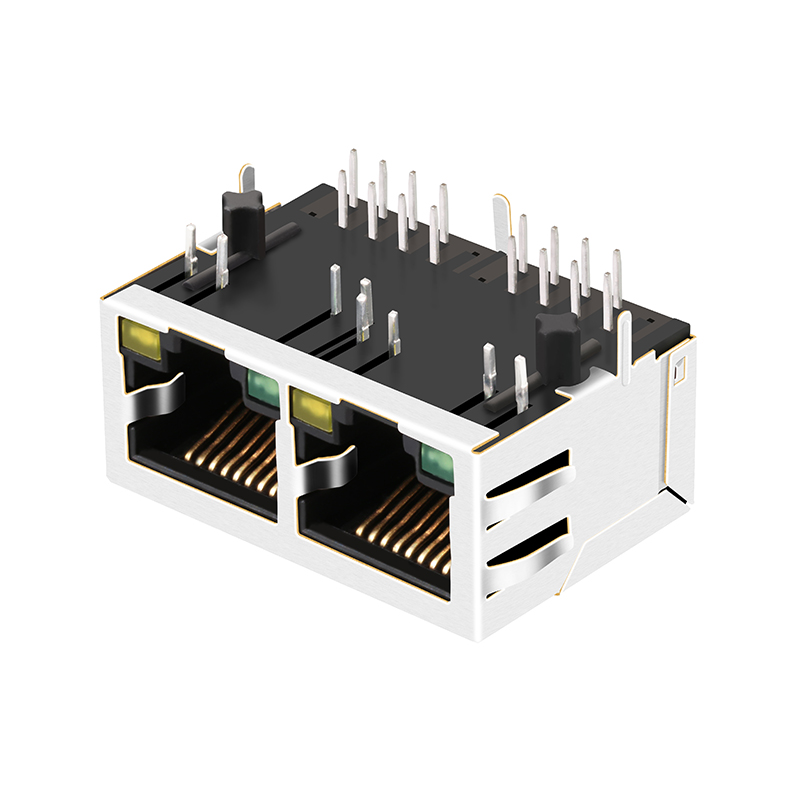

Product View 2
Specification
Item Value
Part Number LPJ26404AENL
Pulse Part Number JXD0-2005NL / JXR8-1001NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00μin (0.152μm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Main Product Categories
■
10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
■
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
■
T1/E1, T3/DS3/E3/STS-1 interface line transformer
■
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Certificate Image 1
Certificate Image 2
Certificate Image 3
FAQ
Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Is OEM service available?
Yes. We have rich experience and good capability to turn your design and idea into real products, including printing your brand on the products.
How about the lead time?
We have a highly efficient team and advanced equipment. Usually we can ship within 30 days. For custom requirements, please confirm specific timelines with our team.
What certifications do your products have?
Our manufacturing and products comply with rigorous standards including ISO9001:2000, RoHS, REACH, CE, and UL certifications.
What are the primary applications for these connectors?
Our magnetic components and RJ45 connectors are widely used in networking and communication equipment such as HUBs, switches, routers, PC mainboards, and VoIP systems.
