| Item | Value |
|---|---|

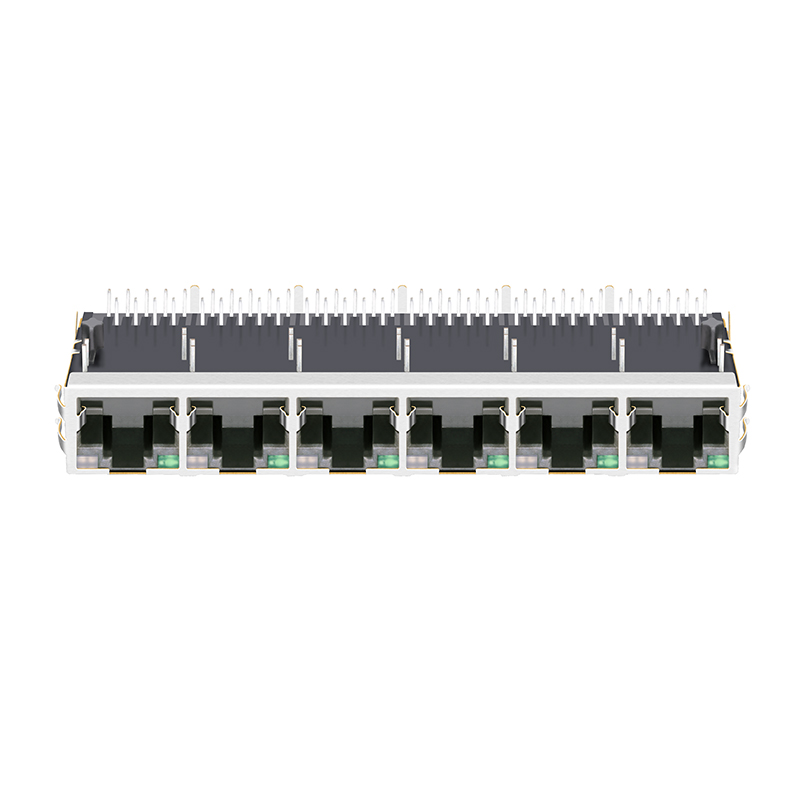

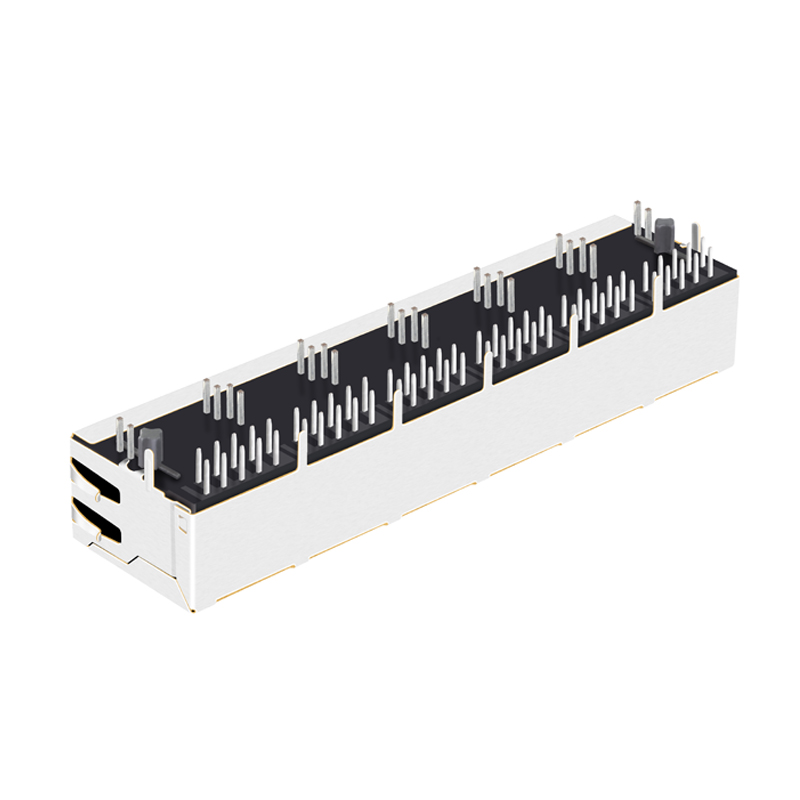

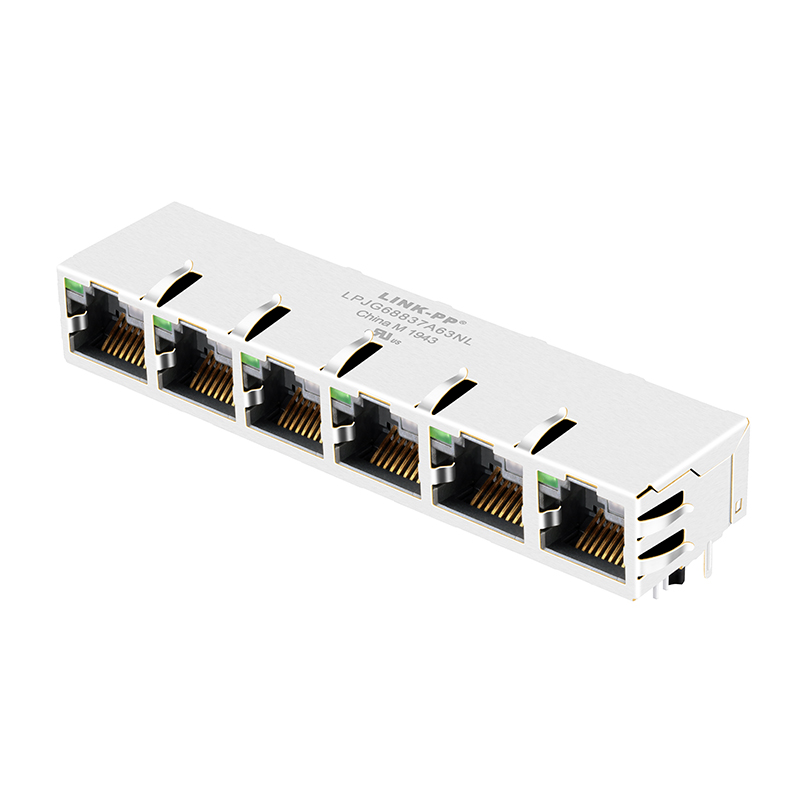

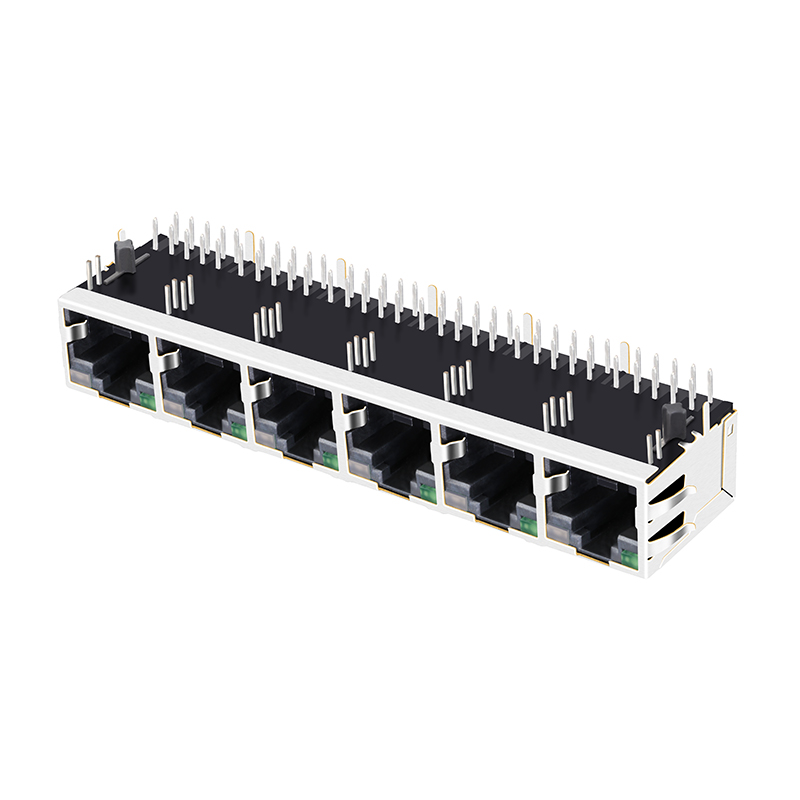

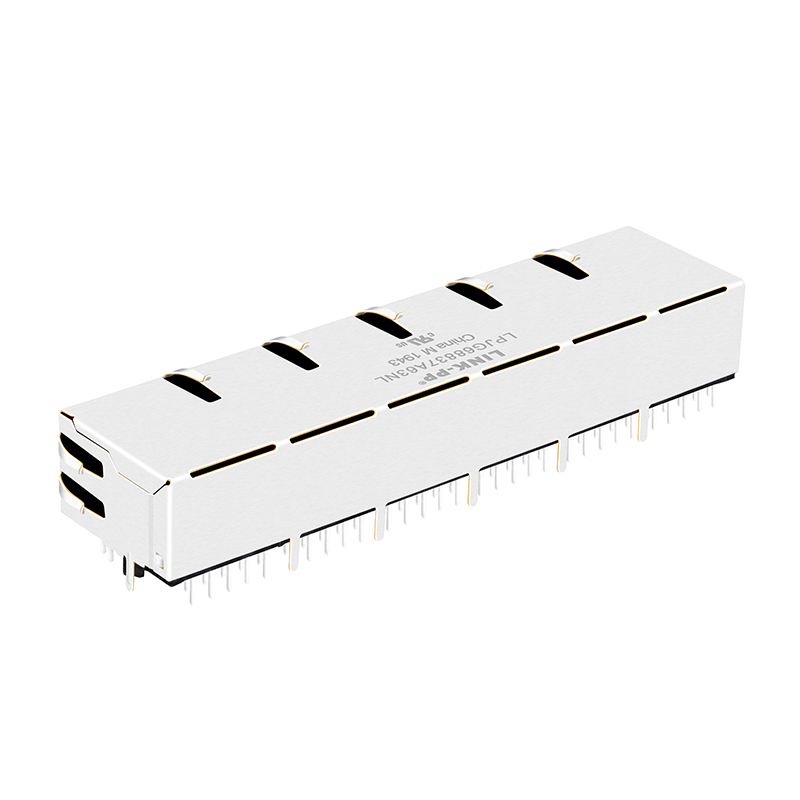

| Part Number | LPJG68837A63NL |
| Pulse Part Number | JG0-0070NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | Ethernet(Non_PoE) |
| Speed | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green/Green&Orange Led |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, Emi Finger |
| Number of Ports | 1x6 Port |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. The company owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
