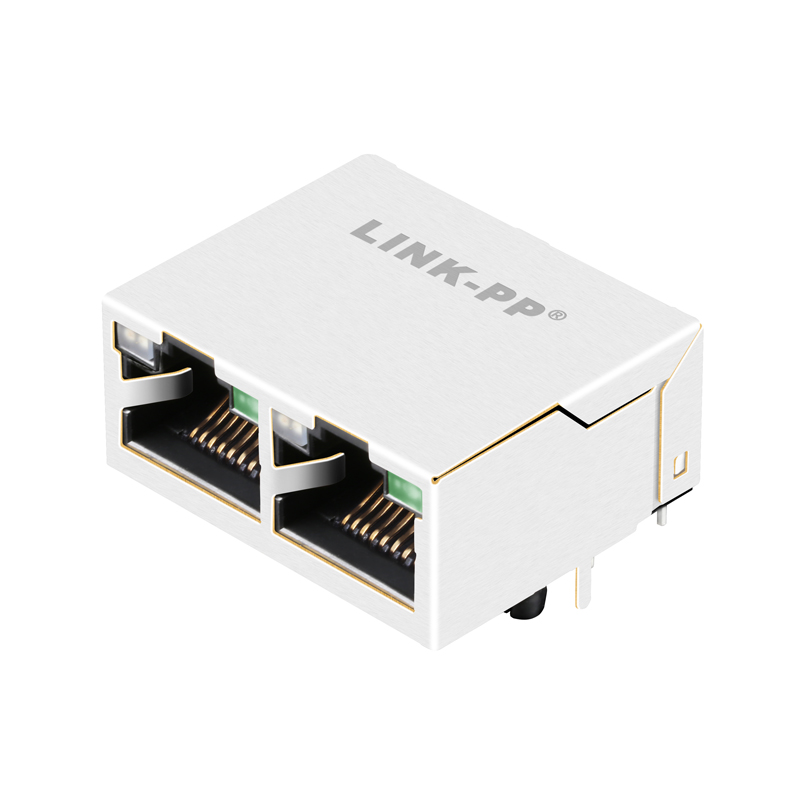

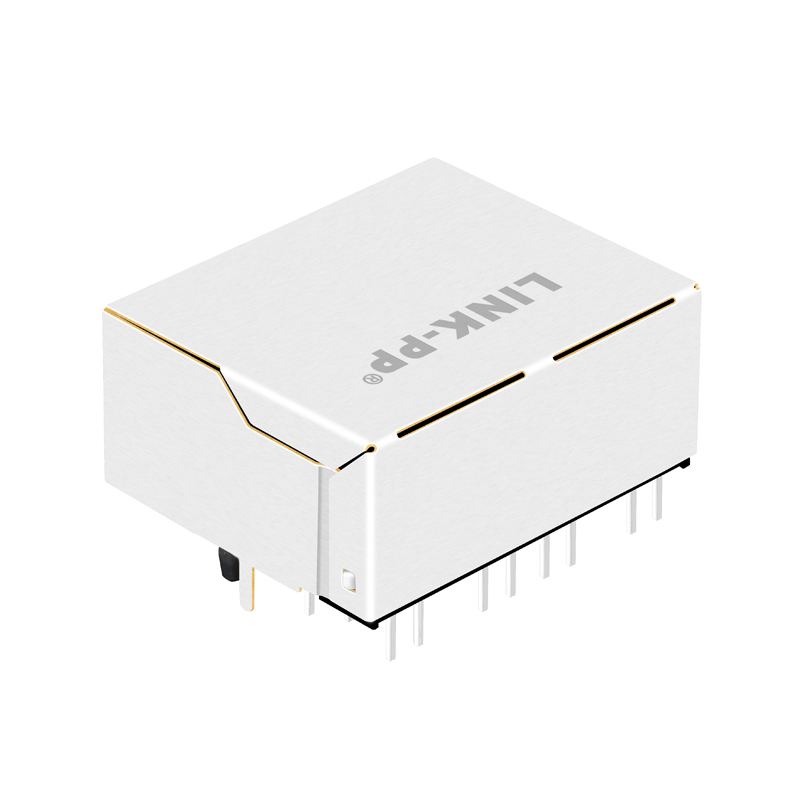

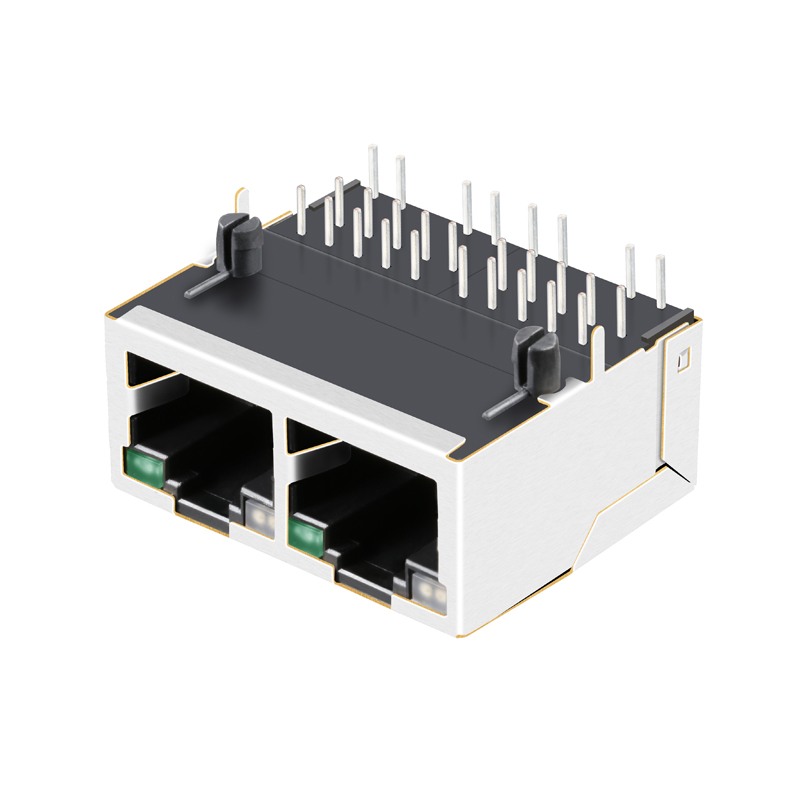

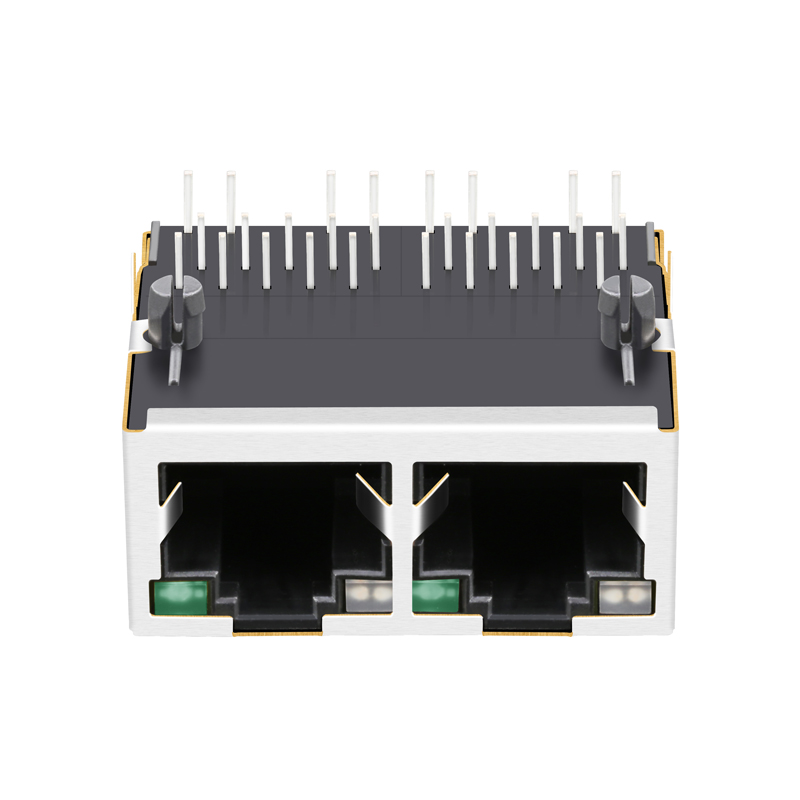

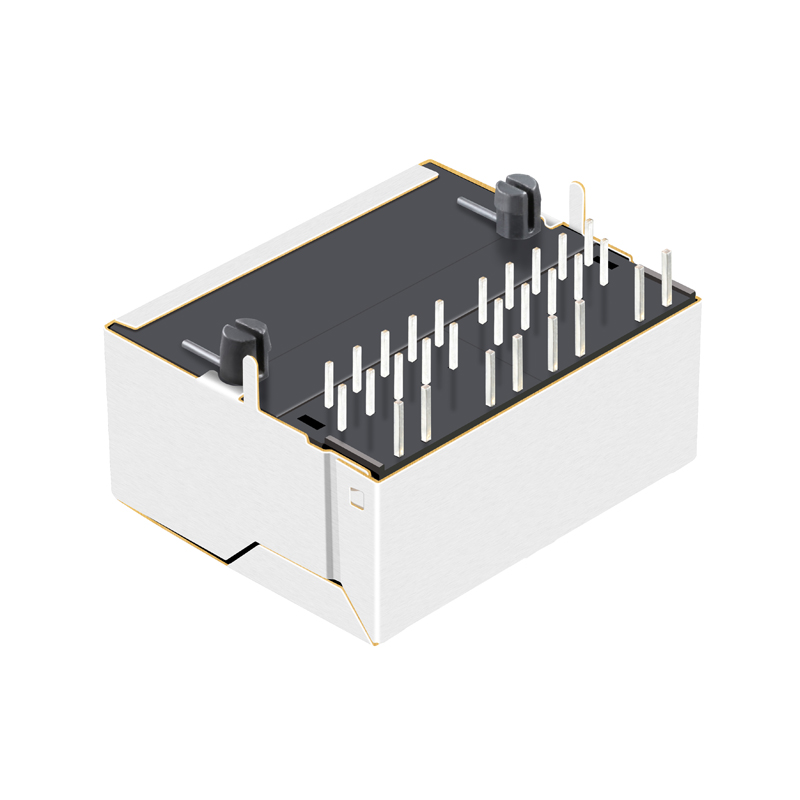

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
| Part Number |
5-6610197-1 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/YELLOW |
| Latch |
UP |
| Number of Ports |
1X2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price & Service
- More Competitive Price Than Competitors
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT
10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
Frequently Asked Questions (FAQ)
What is the interface speed and configuration of part number 5-6610197-1?
It is a 10/100 BASE-T Fast Ethernet RJ45 female connector designed as a 1X2 Harmonica Jack with a Tab-Up latch configuration.
What are the temperature parameters supported by this RJ45 connector?
This connector supports standard operation temperatures from 0 to 70°C and extended industrial ranges from -40 to 85°C.
Are there integrated LEDs in this connector?
Yes, this 1X2 Harmonica Jack is equipped with Green/Yellow LED options for convenient system status signaling.
What mounting technology does the 5-6610197-1 connector use?
It uses Through-Hole Technology (THT) solder mounting with a side entry (right angle) PCB orientation and a T-post retaining design.
Is the connector RoHS compliant?
Yes, the component is RoHS-5 compliant with a lead-in-solder exemption.
What are the contact mating area plating options?
It features high-quality Gold plating options including 6u", 15u", 30u", or 50u" depending on application demands.
