PCB Board for RJ45 Connector 8p8c Socket 0899-1X1R-Y6

Product Description

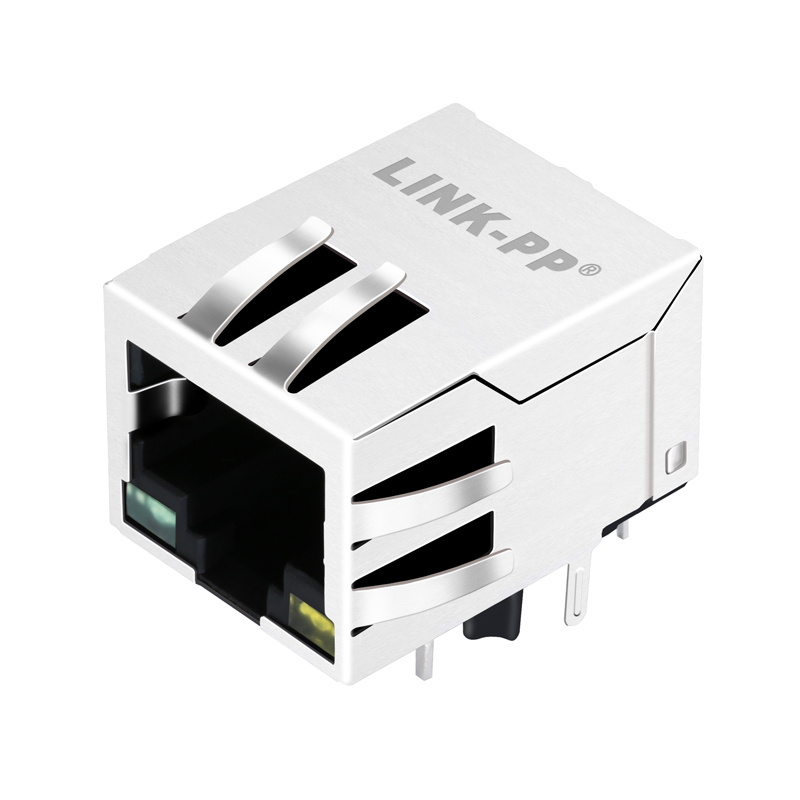

Product Image 1 Product Image 2
PCB Board For RJ45 Connector 8p8c Socket 0899-1X1R-Y6
Products Description
Item RJ45 Female Connector
Bothhand Part Number 0899-1X1R-Y6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up/Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Options
Lan Transformer Options
Send Inquiry To Get Latest Price List
Product Display 1

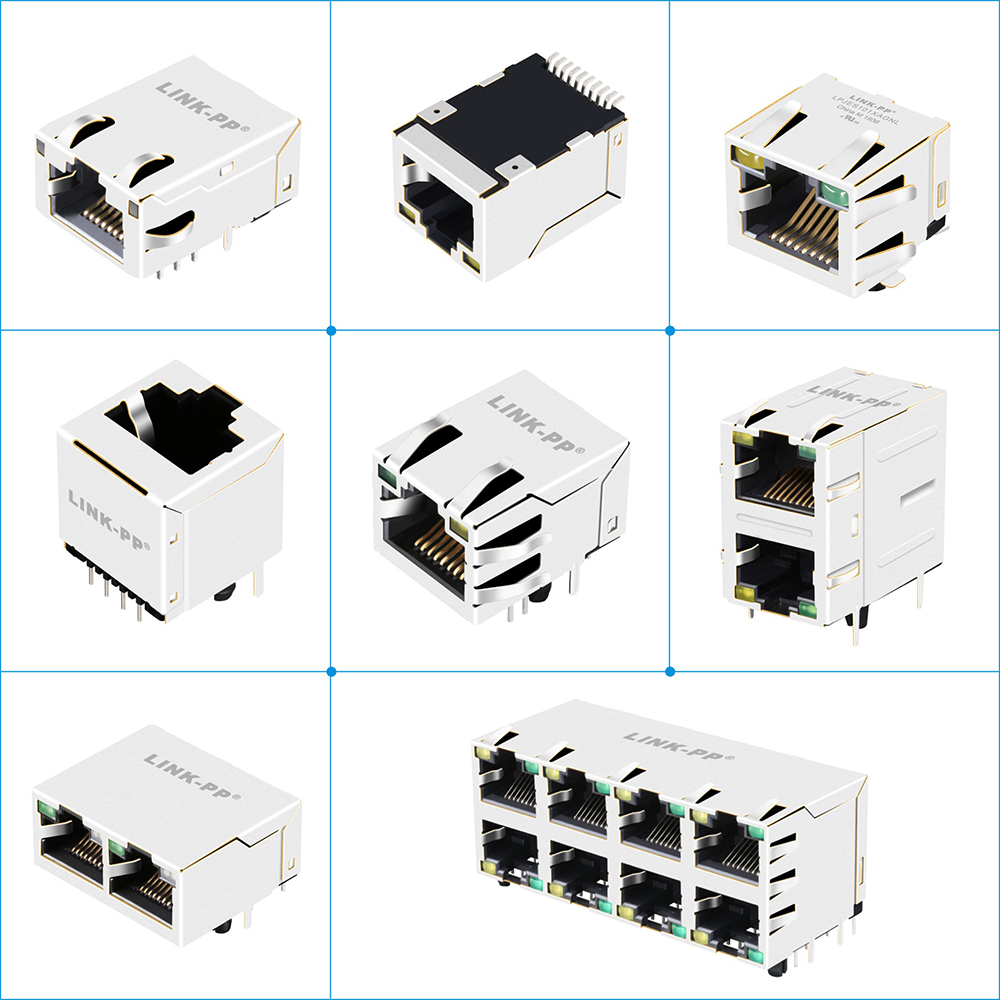

Product Display 2
Product Display 3
Dimensional Drawing
Why Choose Us
Feature 1
Feature 2
Feature 3
Feature 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support. Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Factory Area 1
Factory Area 2
Factory Area 3
Factory Area 4
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping cost.
3. What is your delivery time?
Ready items are shipped directly from stock, and it takes 15-30 days for mass production orders.
4. What after-service can you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details.
6. What is your advantage?
We have over 19 years of manufacturing experience and act as a reliable partner to leading global technology corporations.
