Product Description

Ethernet RJ45 Network Female Jack

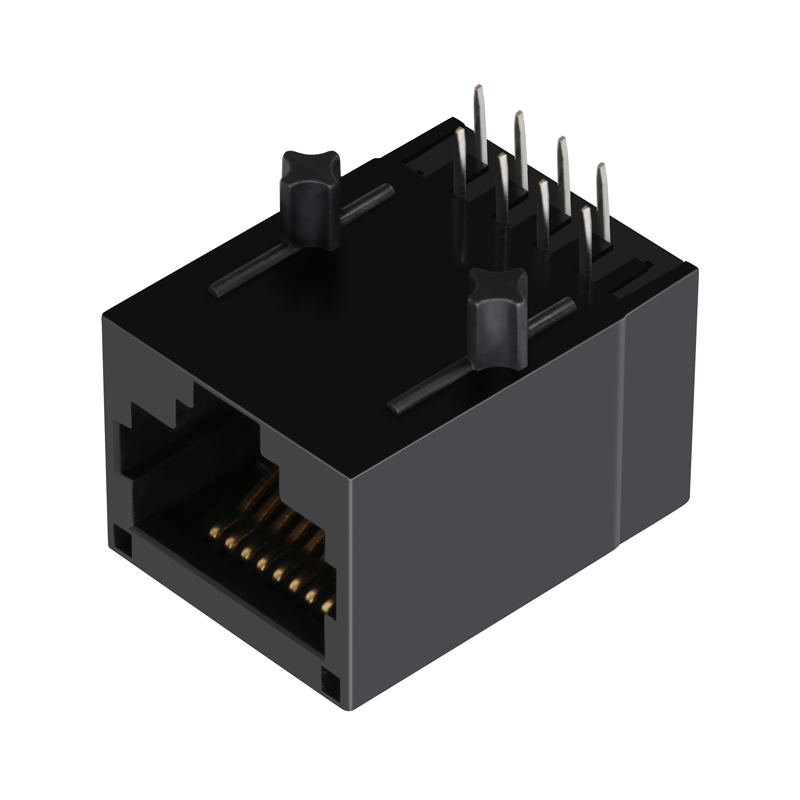

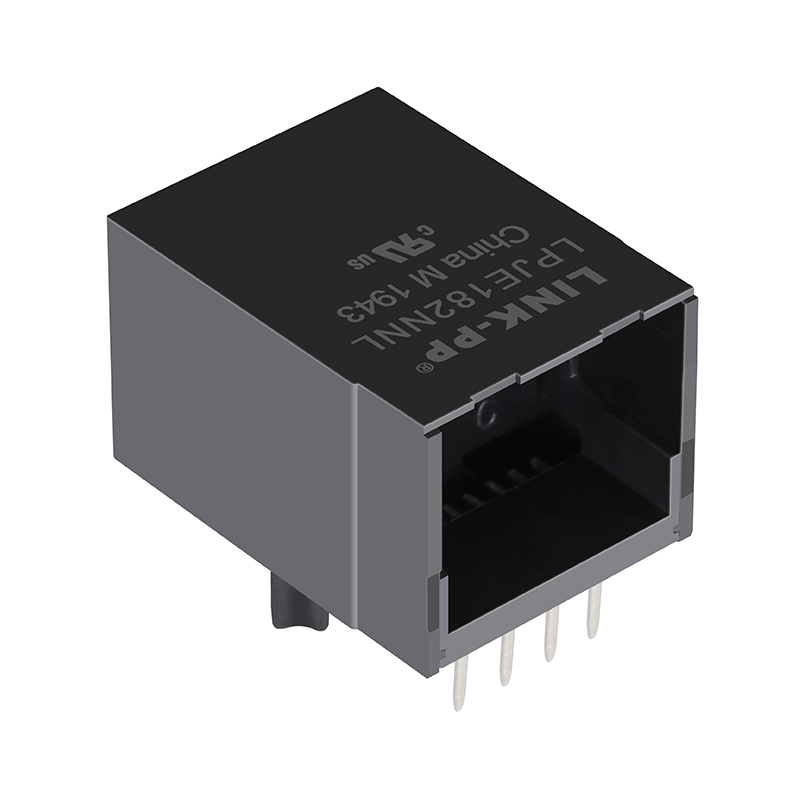

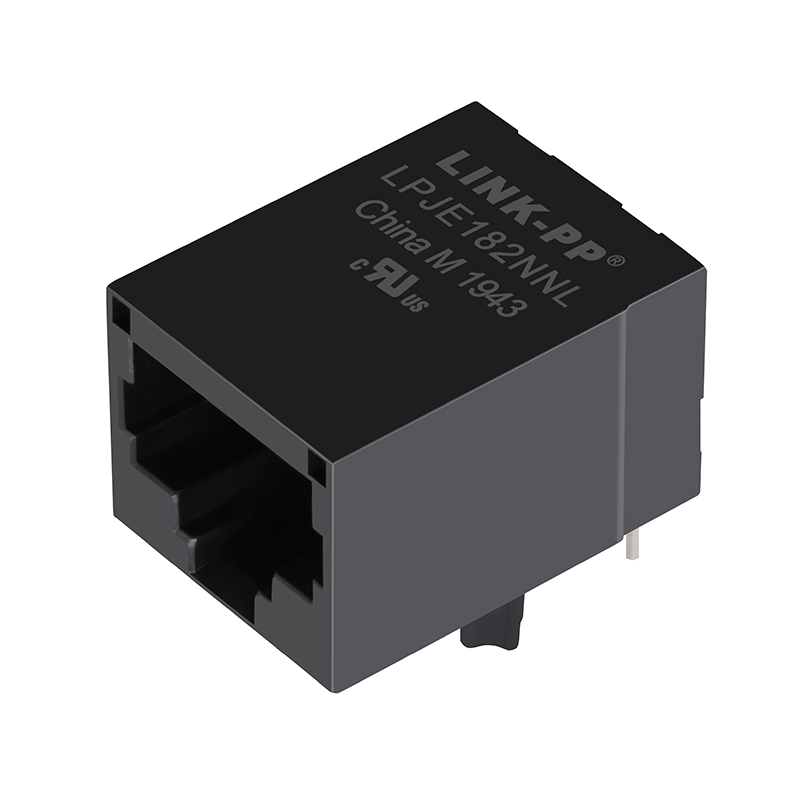

Without Magnetics 8P8C Ethernet RJ45 Network Female Jack
Products Description
Item RJ45 Modular Jack
Part Number LPJE182NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

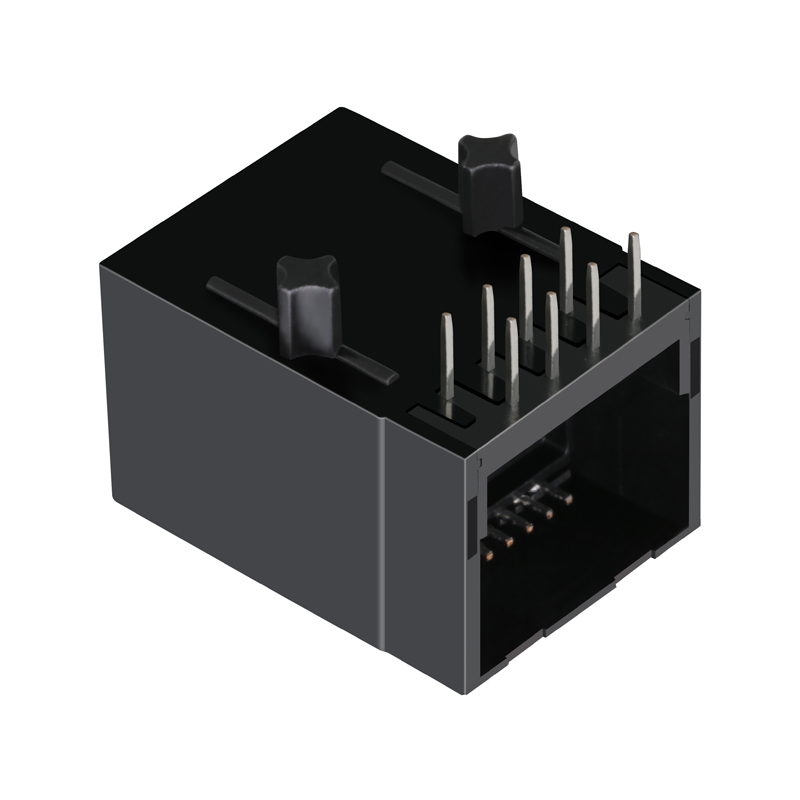

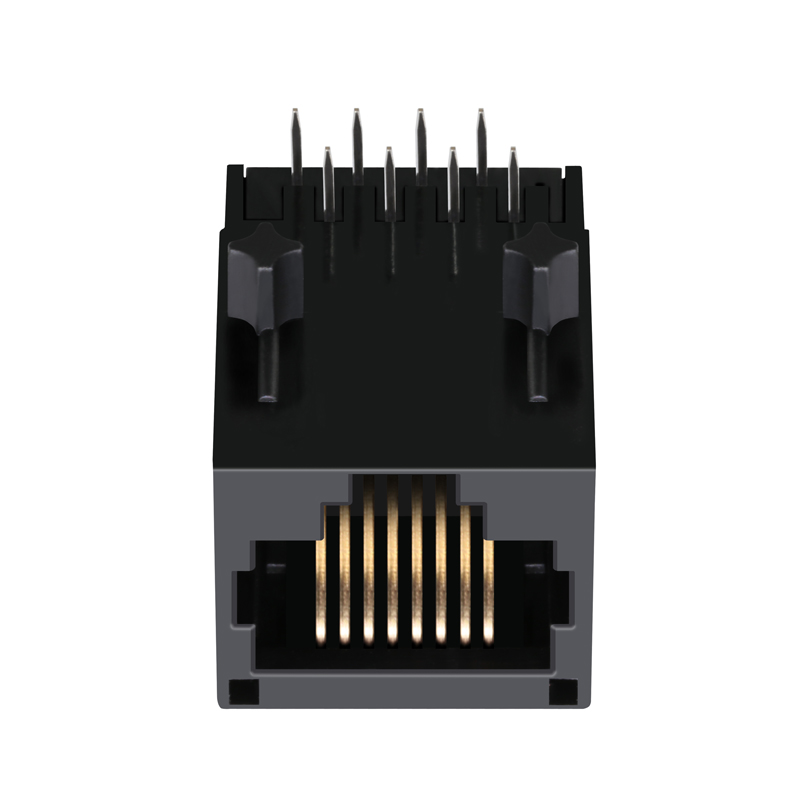

Product Angle View 1 Product Angle View 2 Product Angle View 3
Dimensional Drawing 1 Dimensional Drawing 2 PCB Layout details Schematic Details
