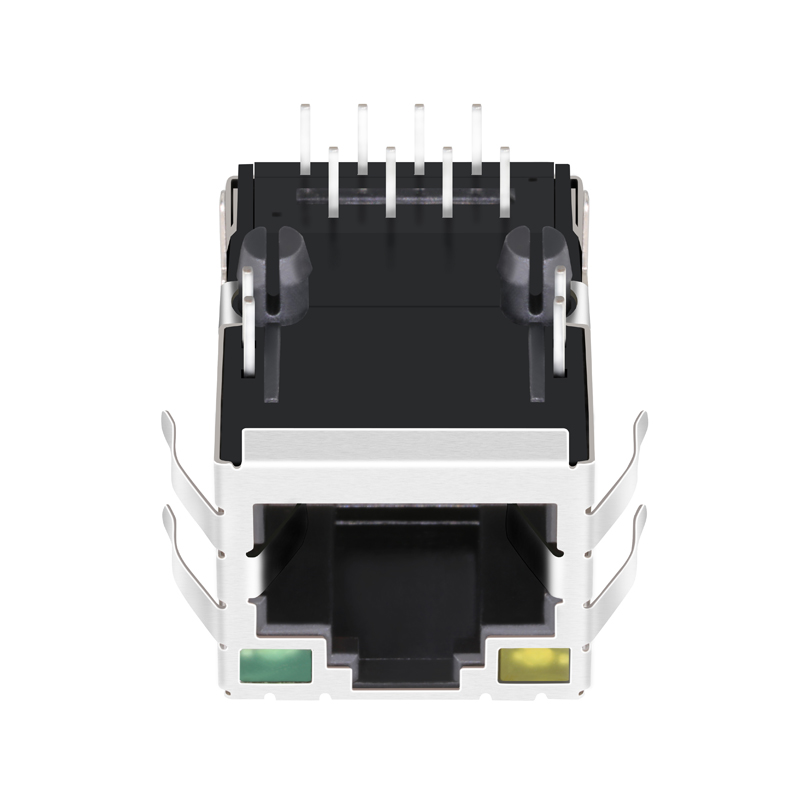

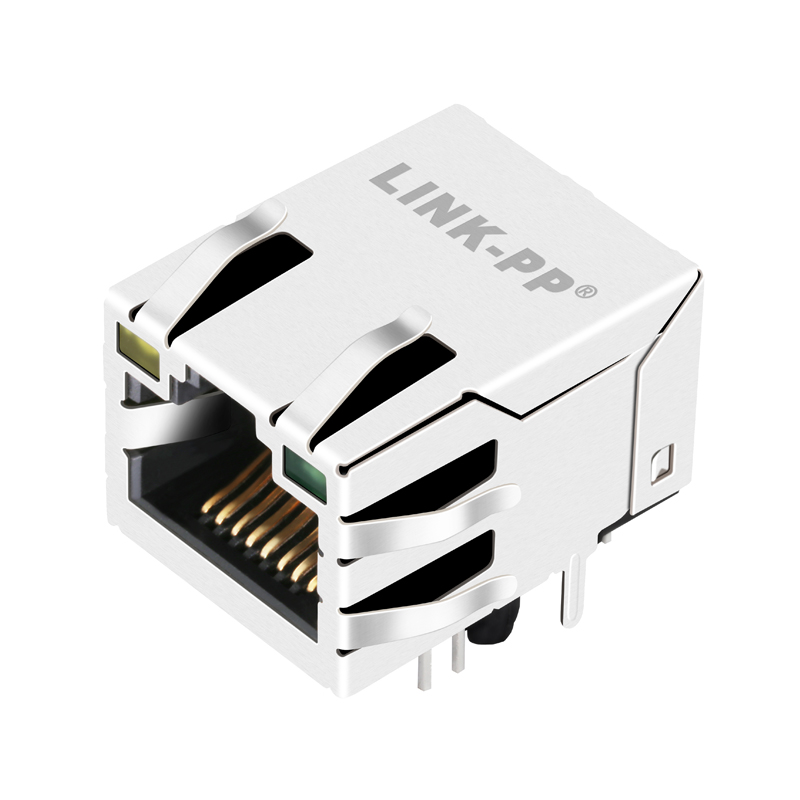

Entry Through-Hole PCB Mounting RJ45 Connector ARJ045-010156

Product Description

RJ45 Connector Overview
Entry Through-Hole PCB Mounting RJ45 Connector ARJ045-010156
Products Description
Item RJ45 Female Connector
Compatible With ARJ045-010156
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed Without Magnetics
Latch Down/Up
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Products Guide
Product Categories Matrix
Technical Specifications and Dimensions

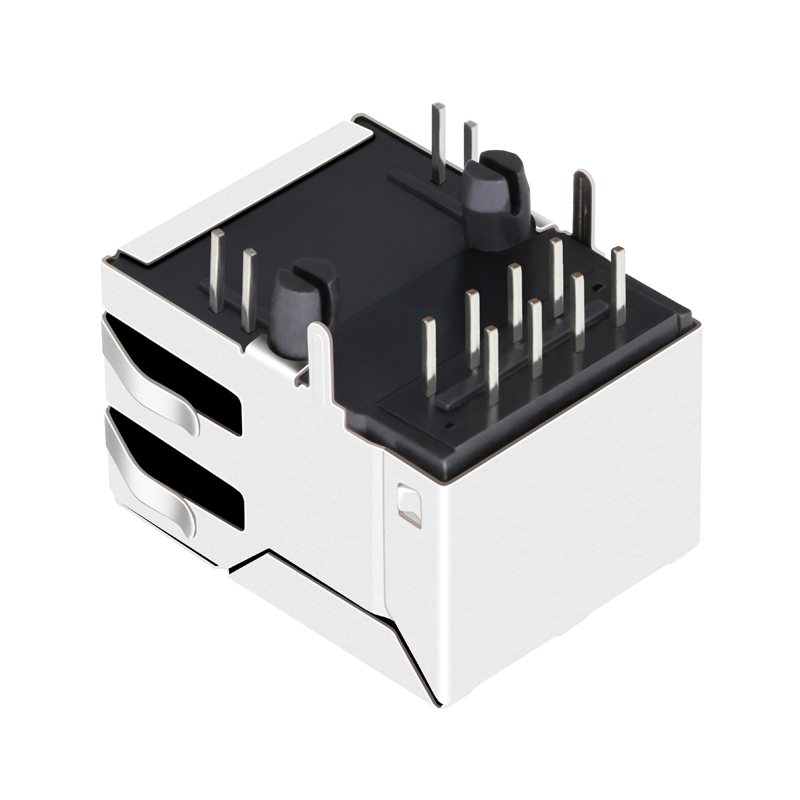

Product Detail View 1

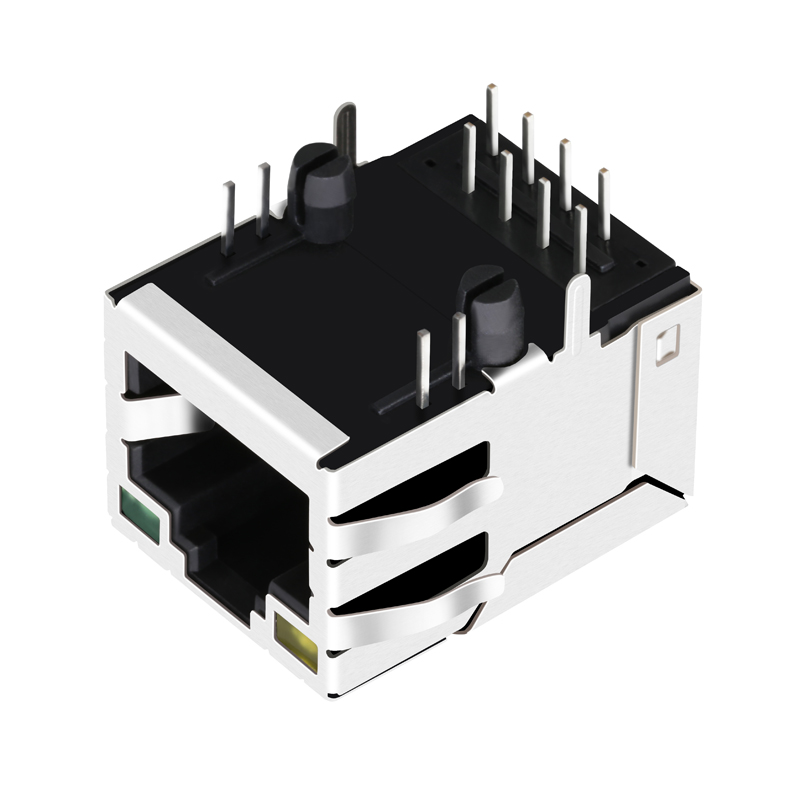

Product Detail View 2

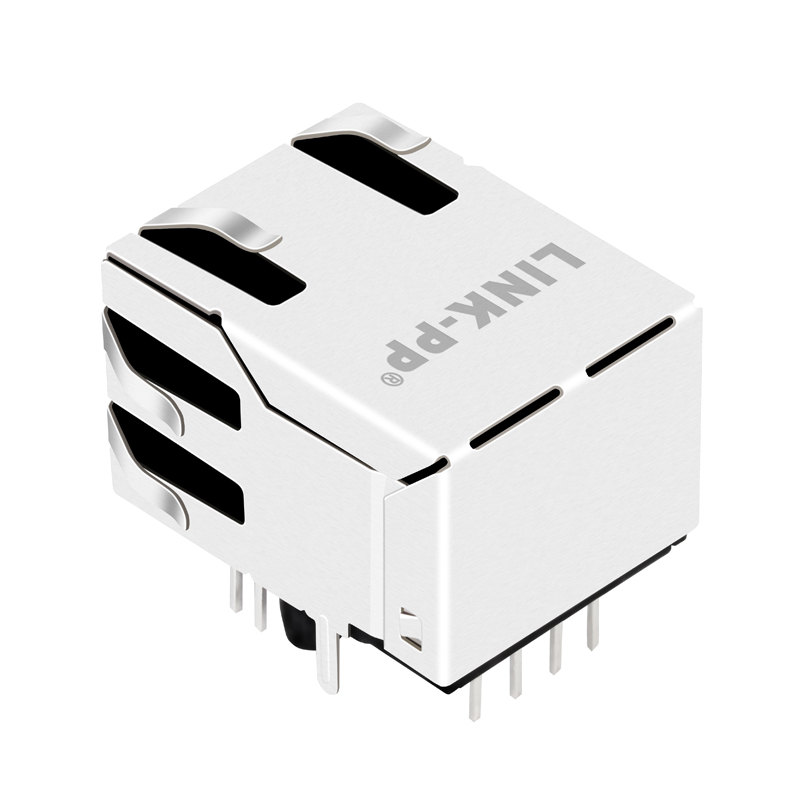

Product Detail View 3
Quality Control Testing
Testing Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Facility 1
Manufacturing Facility 2
Warehouse and Logistics
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, though the shipping fee should be covered by your side.
3. What is your delivery time?
For items in stock, they are ready to ship. For mass production orders, the lead time is typically between 15 to 30 days.
4. What after-sales service can you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so that we can proceed with a detailed discussion.
6. What is your manufacturing advantage?
We have over 19 years of professional production experience and have been a trusted partner to global industry leaders for many years.
Product Quality Standards
