LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

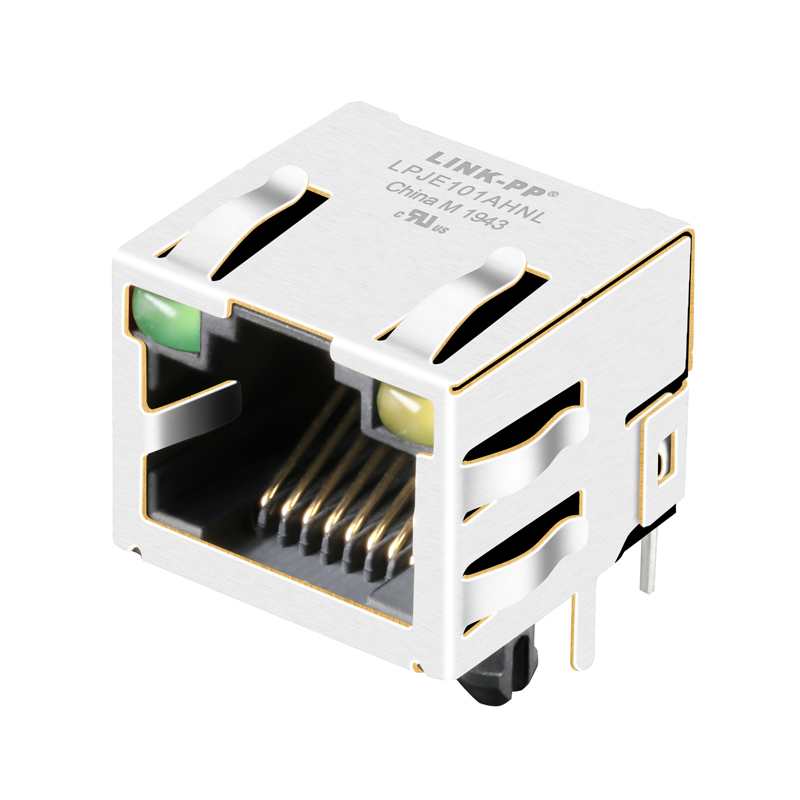

Product Image 1

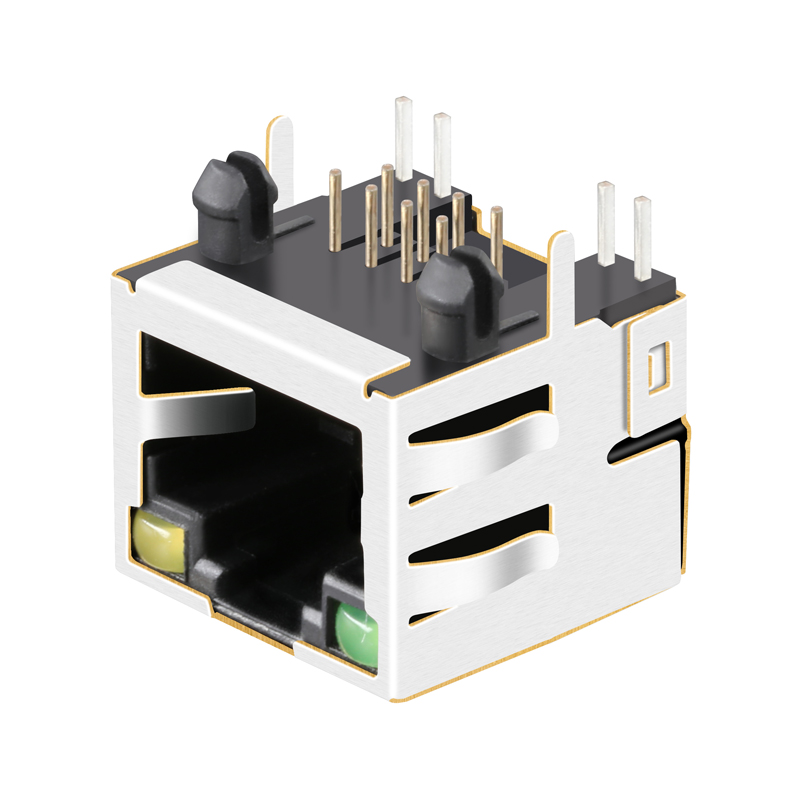

Product Image 2
Specification
Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery
Package Type
Tray
Carton Size
54.5*28.5*27 cm
Gross Weight
13.1 kg/carton
Quantity
3000 pcs/carton
SPQ / N.W
100 pcs (0.004 kg/pcs)
Packaging details

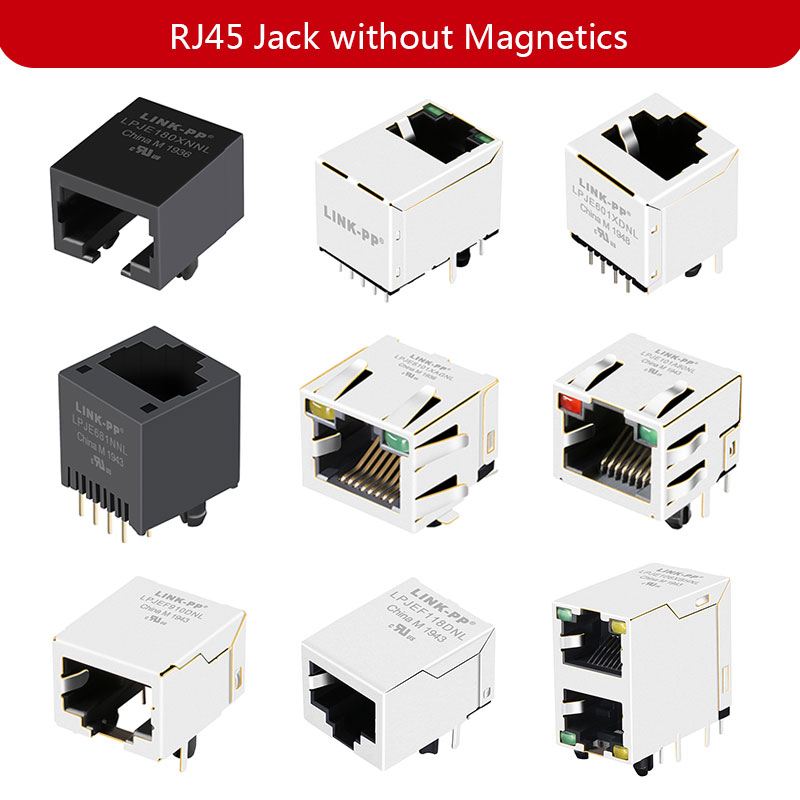

Facility Image 1
Facility Image 2
Facility Image 3
Facility Image 4
Facility Image 5
Facility Image 6
Frequently Asked Questions
What type of connector is the LPJE101AHNL?
The LPJE101AHNL is a single-port RJ45 connector designed for Through Hole mounting with a 90° Angle (Right Orientation) configuration.
Does this connector feature built-in magnetics?
No, this model is designed for applications without magnetics.
What are the LED colors on the LPJE101AHNL?
It features a dual-color LED interface configured with Yellow and Green indicators.
What is the operating temperature range?
The connector is built to perform in industrial conditions with an operating temperature range of -40°C to 85°C.
What shielding and contact characteristics does it have?
It has a shielded body with EMI fingers for interference protection. The contacts feature gold plating with a finish thickness of 6.00µin (0.152µm).
What is the packaging configuration for shipping?
The standard packaging is tray-based. It has a Standard Package Quantity (SPQ) of 100 pcs, and a single carton contains 3,000 pcs with a gross weight of 13.1kg.
