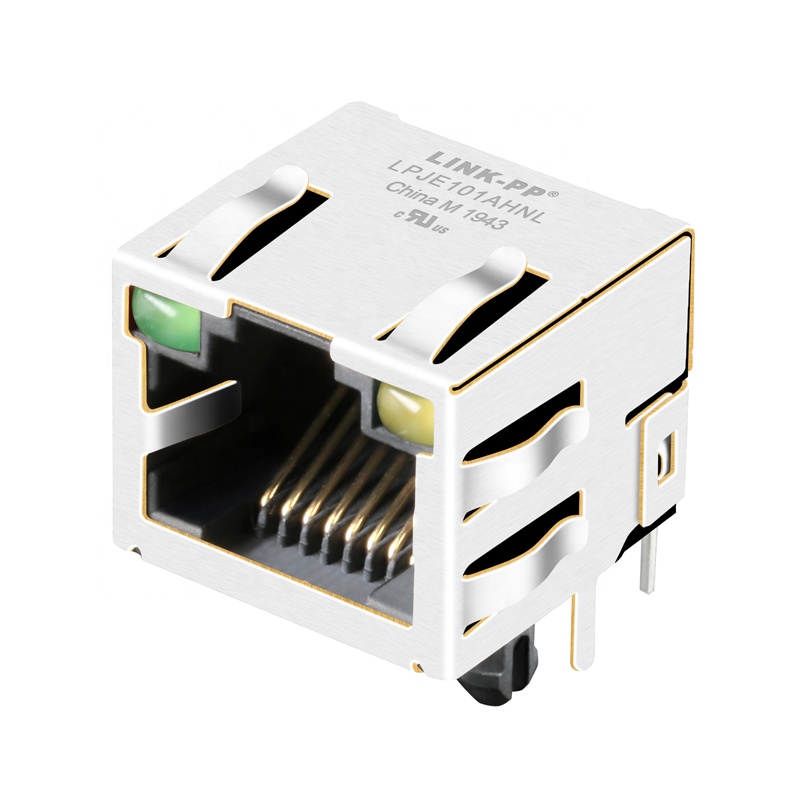

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
| Part Number |
1116173-4 |
| Alternative Part Number |
LPJE101AHNL |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Package Height (Inches/mm) |
0.516/13.10 |
| Package Length (Inches/mm) |
0.620/15.75 |
| Package Width (Inches/mm) |
0.640/16.26 |
| Configuration TX/RX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
- |
| Diodes |
No |
| Latch |
Up |
| LED Option |
Green/Yellow LEDS |
| Number of Ports |
1X1 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Speed |
- |
| Temperature |
-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.

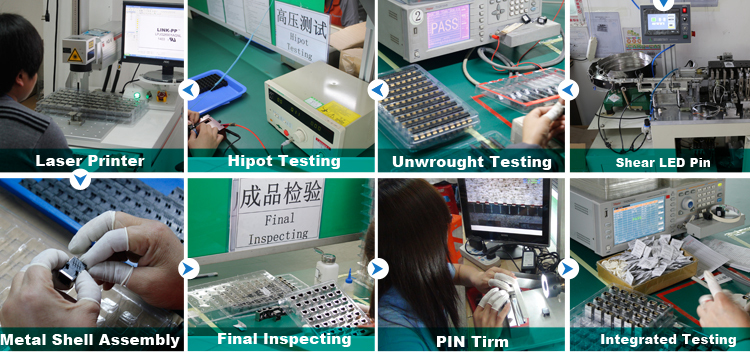

- 100% Tested (Not Just Batch Tested)
- OEM Partner of major brands for 9 Years
- Trusted by leading global electronics enterprises
- Preferred Supplier for advanced processing platforms
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than other industry standard brands
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By major logistics carriers
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
Preferred Supplier Of major global enterprises. Quality Guarantee: 6 Years.
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Frequently Asked Questions (FAQ)
Q: What is the application of this RJ45 Modular Jack?
This through-hole networking RJ45 modular jack is designed for Ethernet (Non-PoE) applications, offering robust and reliable connectivity.
Q: What are the packaging dimensions of this connector?
The package dimensions are 0.516 inches (13.10 mm) in height, 0.620 inches (15.75 mm) in length, and 0.640 inches (16.26 mm) in width.
Q: What kind of LED option does this RJ45 Jack offer?
This modular jack features a Green/Yellow LED configuration, providing clear status signals for networking operations.
Q: What is the operating temperature range?
It is designed to work efficiently within a wide temperature range from -40°C up to 85°C.
Q: Is this connector compliant with international environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and manufactured under strict environmental and quality regulations.
Q: What is the gold plating thickness on the contact mating area?
The contact mating area is available with gold plating options of 6u", 15u", or 30u" to ensure excellent electrical conductivity and wear resistance.
