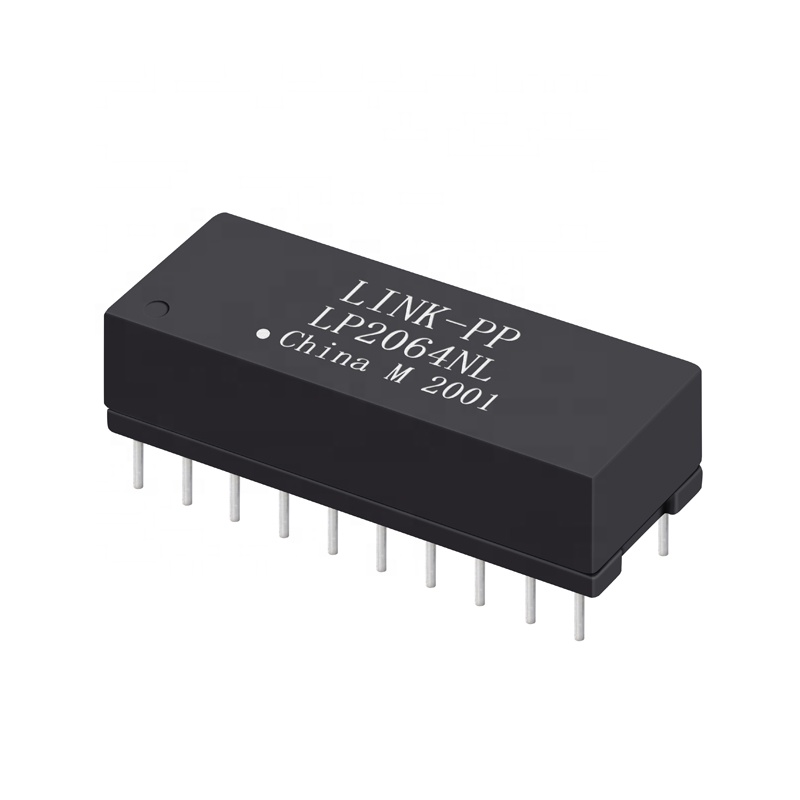

THT Dual Port 10/100 BASE-T Telecom Lan Transformer LP2064NL

Product Description

Telecom Lan Transformer
THT Dual Port 10/100 BASE-T Telecom Lan Transformer LP2064NL
Products Description
Item Lan Transformer
Replaceable Brand Model LP2064NL
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Dual Port
Speed 100 Base-t
Cores per Port 8
Pin Number 20 Pin
Mounting Type THT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Details
Lan Transformer Dimensions
Lan Transformer Structure
Lan Transformer Pinout

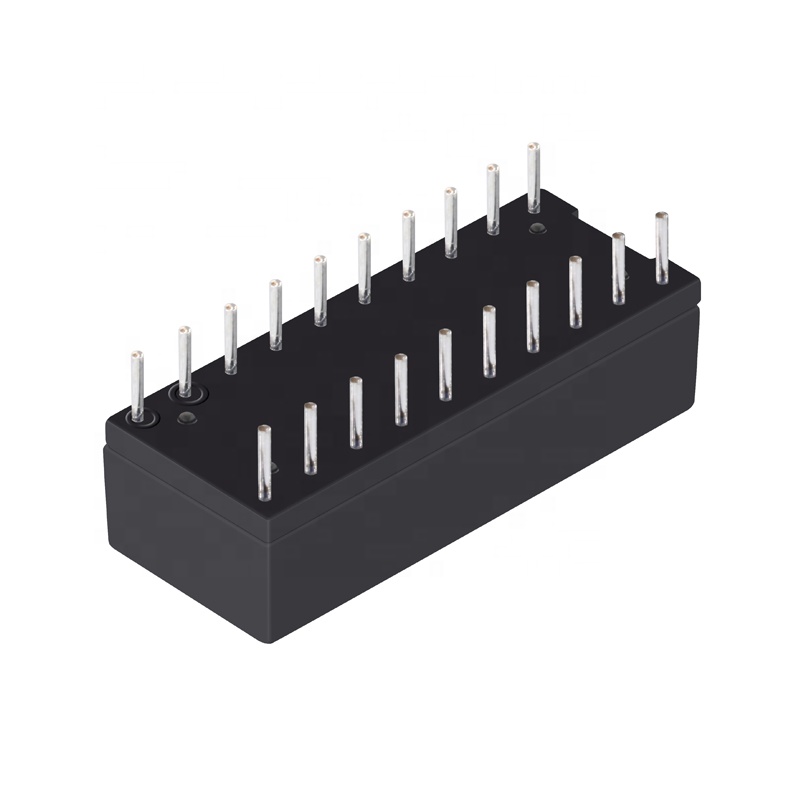

Lan Transformer Back View
Product Specifications Diagram
Circuit Schematic
Why Choose Us
Quality Assurance
Advanced Equipment
Global Supply
Professional Support
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term friend.
Production Workshop
Testing Laboratory
Warehouse Storage
Certifications Display
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3 What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5 Can you accept OEM/ODM order?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6 What is your advantage?
19 years of production experience and we have been partners with industry leaders for many years.
