In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

LAN Transformer Feature Image

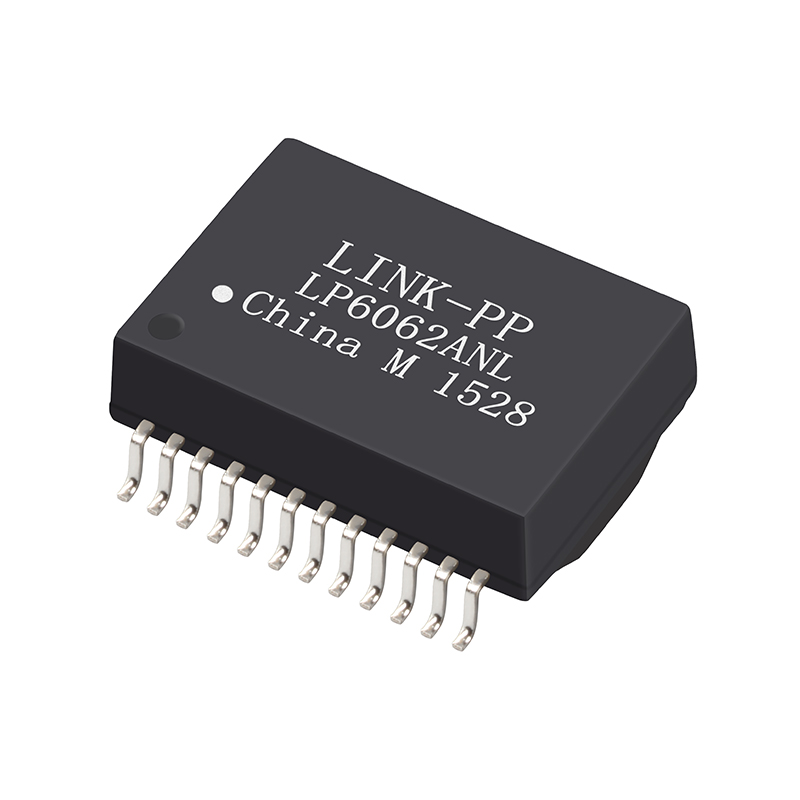

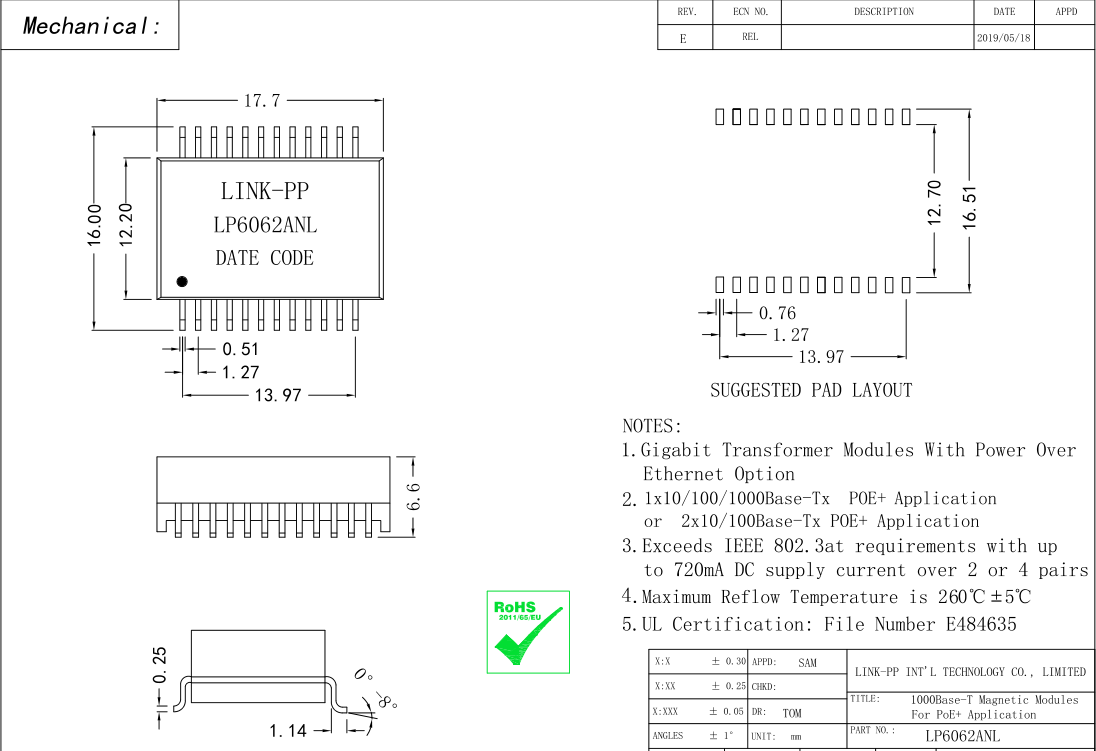

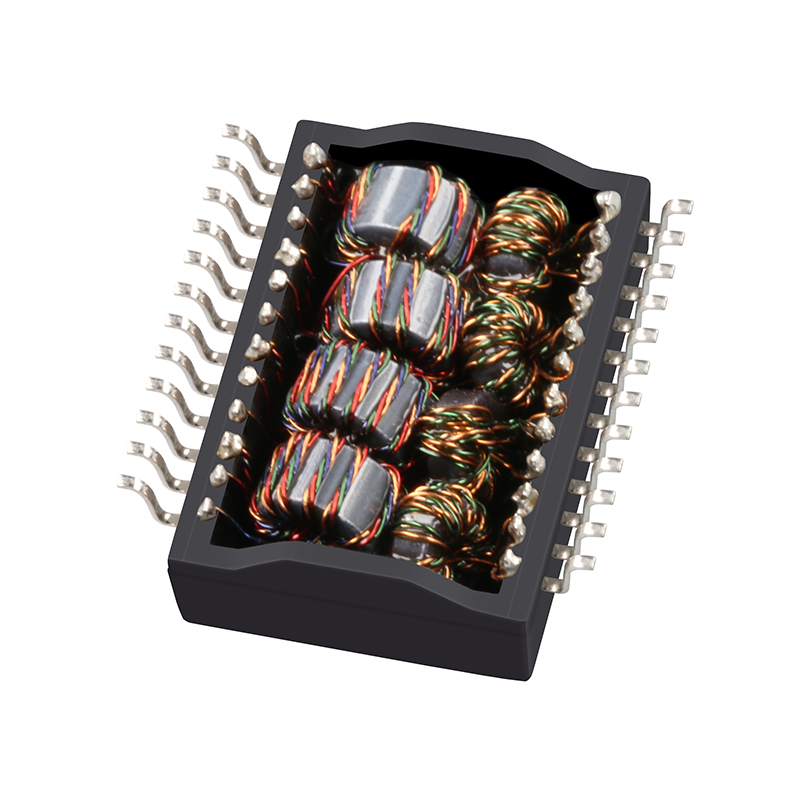

Product View 1 Product View 2 Product Diagram
LAN Transformer Application Image

Product Specifications

Item Value
Place of Origin China
LINK-PP Part Number: LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40°C TO +85°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Packaging Detail Image
📦
Package Details
N.W/pcs: 0.004kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 37*37*25cm | G.W/carton: 5.8kg

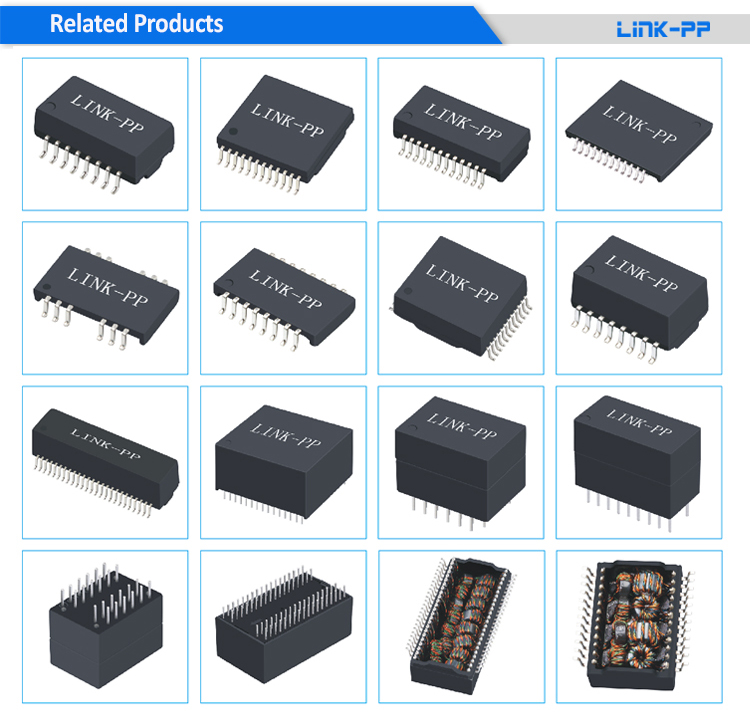

Production Process 1 Production Process 2 Quality Control

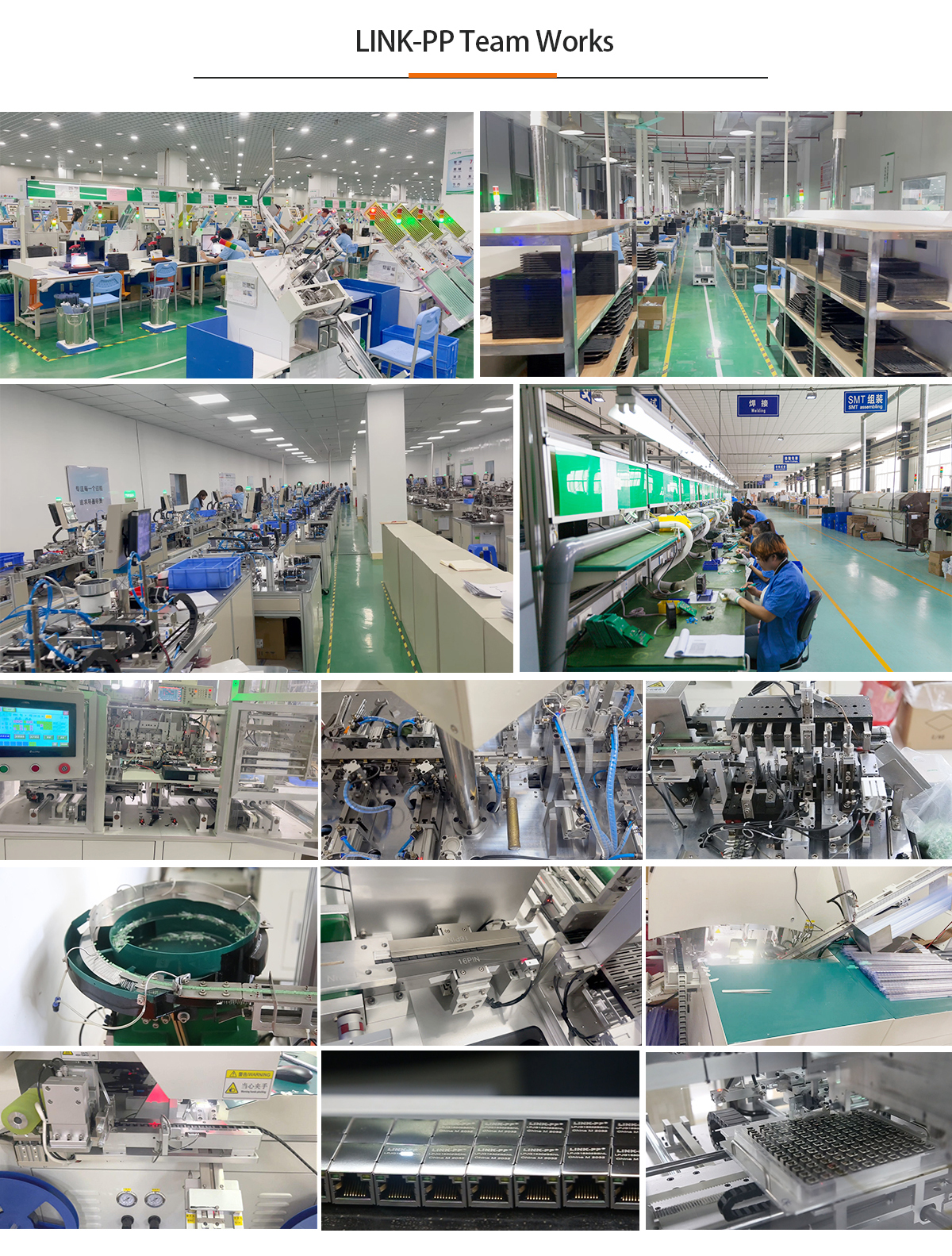

Testing Equipment 1 Testing Equipment 2 Warehouse
Certification Showcase
Frequently Asked Questions
Q What is the primary application for the LP6062ANL LAN transformer?
The LP6062ANL is designed specifically for Ethernet (PoE+) applications supporting Gigabit speeds (10/100/1000 Base-T) in a single-port configuration.
Q Is this part compatible with other standard industry equivalents?
Yes, the LP6062ANL LAN transformer is compatible and serves as an equivalent to the Halo part number TG1G-S012NZRL.
Q What is the operational temperature range for this component?
The component supports an industrial operating temperature range from -40°C up to +85°C.
Q What are the turns ratio and pin specifications?
It features a Turns Ratio of 1CT:1CT (RX/TX), a T, C, S configuration, and a 24-Pin layout optimized for Surface Mount (SMD) installations.
Q How is the product packaged for delivery?
The components are packaged in Tape & Reel format, with 400 pieces per reel (SPQ) and 1,600 pieces per master carton.
