H81621S 10/100 Base-T SMD Lan Filter Ethernet Transformer

Product Description

H81621S 10/100 Base-T SMD Lan Filter Ethernet Transformer
SMD Lan Filter Ethernet Transformer
Products Description
Item Lan Transformer
Replaceable Brand Model H81621S
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-t
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0°C To 70°C / -40°C To 85°C
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

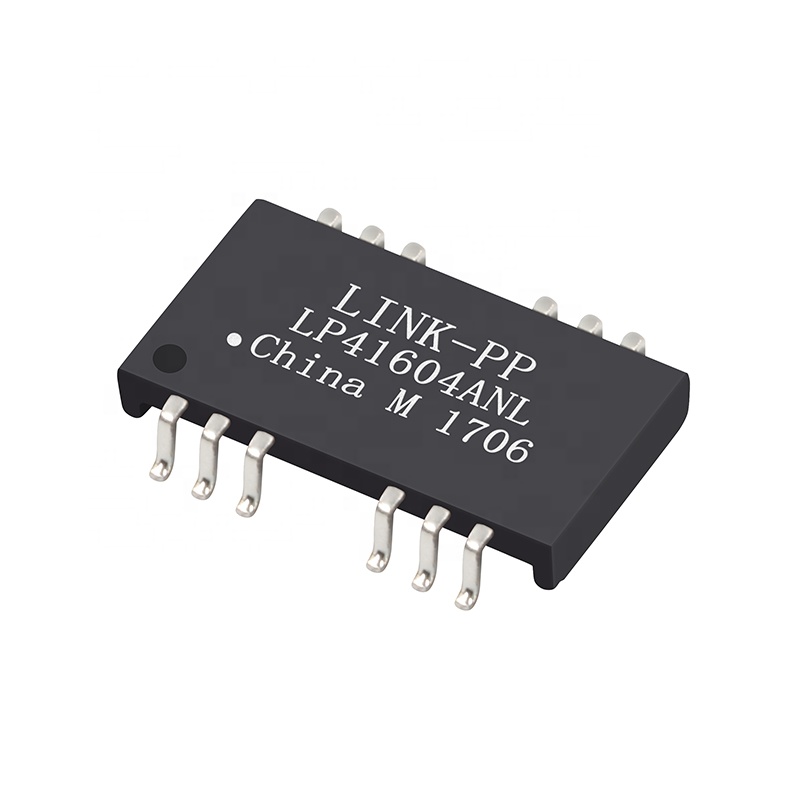

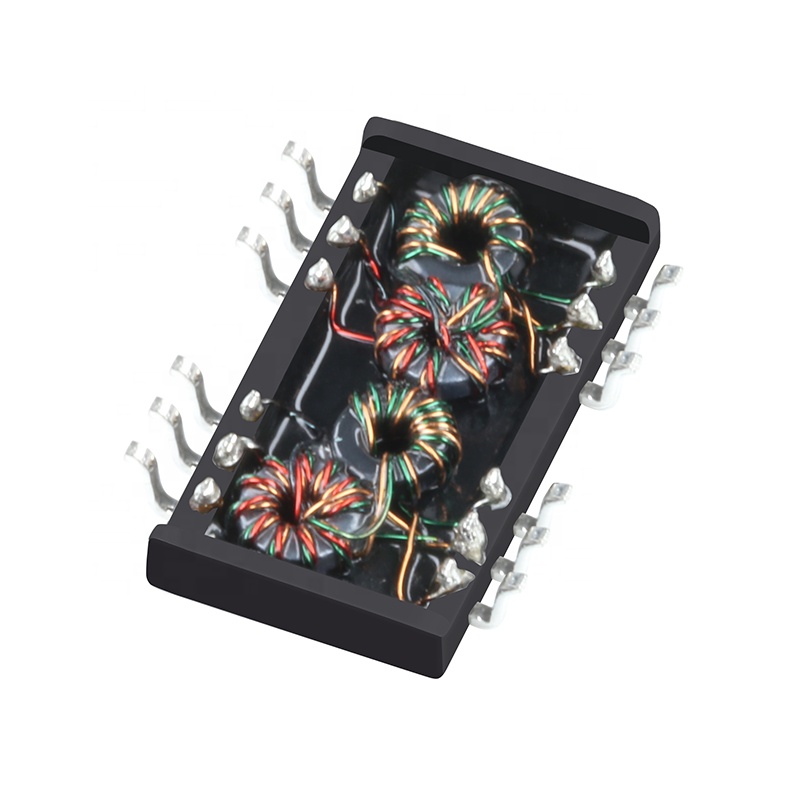

Product View 1 Product View 2 Product View 3 Product View 4 Product View 5
Product Specification Drawing Product Schematic Diagram
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, and we own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components alongside strong technical support.

Main Products:
10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter.

Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, covering markets including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Facility 1 Facility 2 Facility 3 Facility 4
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
3. What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your requirements.
6. What is your advantage?
We have over 19 years of production experience and have been a trusted partner to global technology industry leaders for many years.
