10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
1 / 5
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002
10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Send Inquiry

Product Description

Product Description

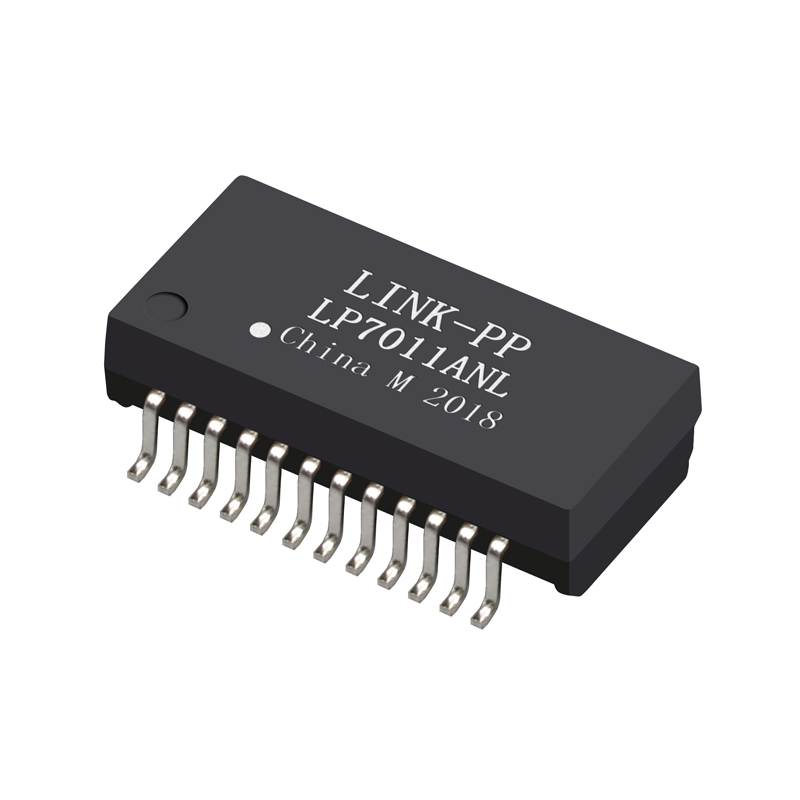

Product Image 1
Product Image 2
Specification
Item Value
Place of Origin China
Part Number LP7011ANL
Pulse Part Number XF-GH-002
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE)
Number of Ports Single Port
Speed 10G Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Packing & Delivery

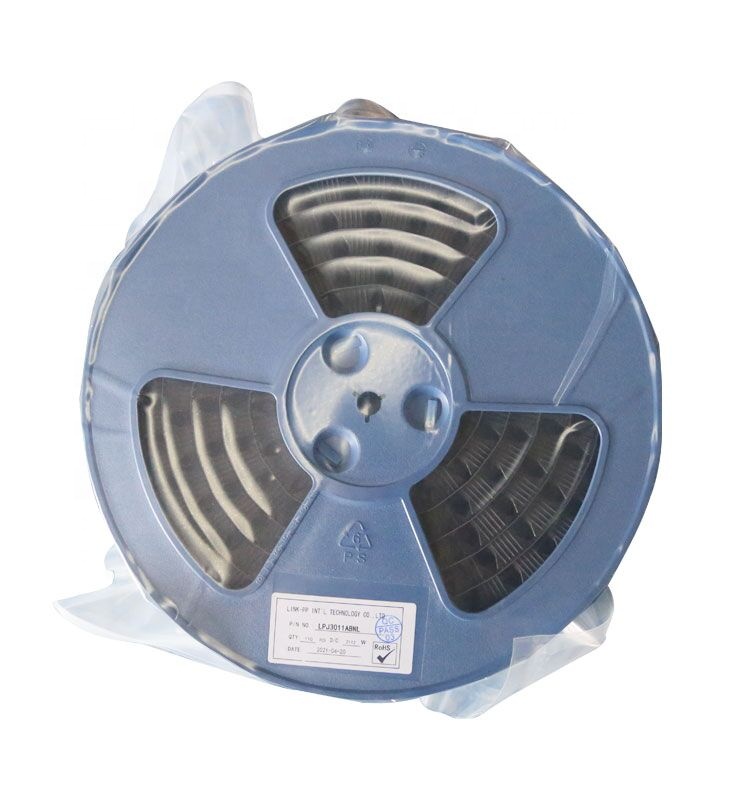

Packing Image
Package Details:

N.W/pcs: 0.004kg

Package: Reel

SPQ: 400pcs

Qty/carton: 1600pcs

Carton size: 36*35.5*23cm

G.W/carton: 5.9kg

Manufacturing Facilities
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and testing equipment. With abundant productive capacity, we deliver high-quality goods with short lead times. We provide professional complete solutions for magnetic components and strong technical support. The products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Factory Image 1
Factory Image 2
Factory Image 3
Factory Image 4
Factory Image 5
Factory Image 6
Factory Image 7
Frequently Asked Questions
What is the speed rating and standard for the LP7011ANL transformer?
The LP7011ANL is designed for high-performance networking, supporting 10G Base-T Ethernet transmission speeds.
Does this Lan Transformer support Power over Ethernet (PoE)?
Yes, the primary application for this LAN transformer is Ethernet with PoE configuration.
What is the operating temperature range for the LP7011ANL?
It is built to operate reliably under extreme conditions, with an operating temperature range of -40℃ to +85℃.
What are the mounting and packaging options for this model?
This component is designed for Surface Mount (SMD) and is delivered in Tape & Reel packaging for automated pick-and-place assembly.
How many pins and cores does this single-port Lan Transformer have?
The LP7011ANL features 24 pins and includes 8 cores per port, with a turns ratio configuration of 1CT:1CT (RX/TX).
