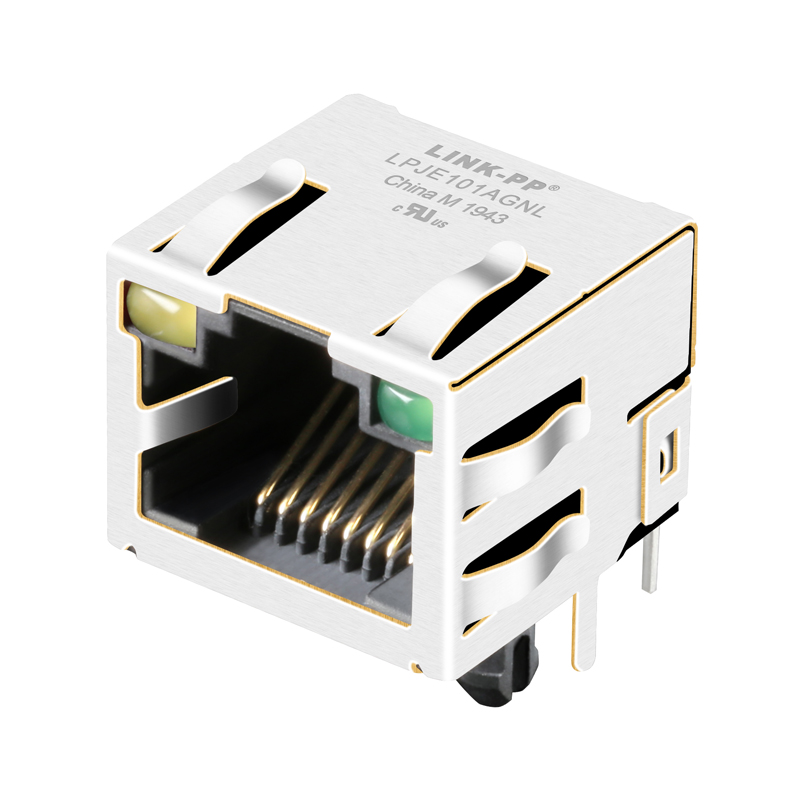

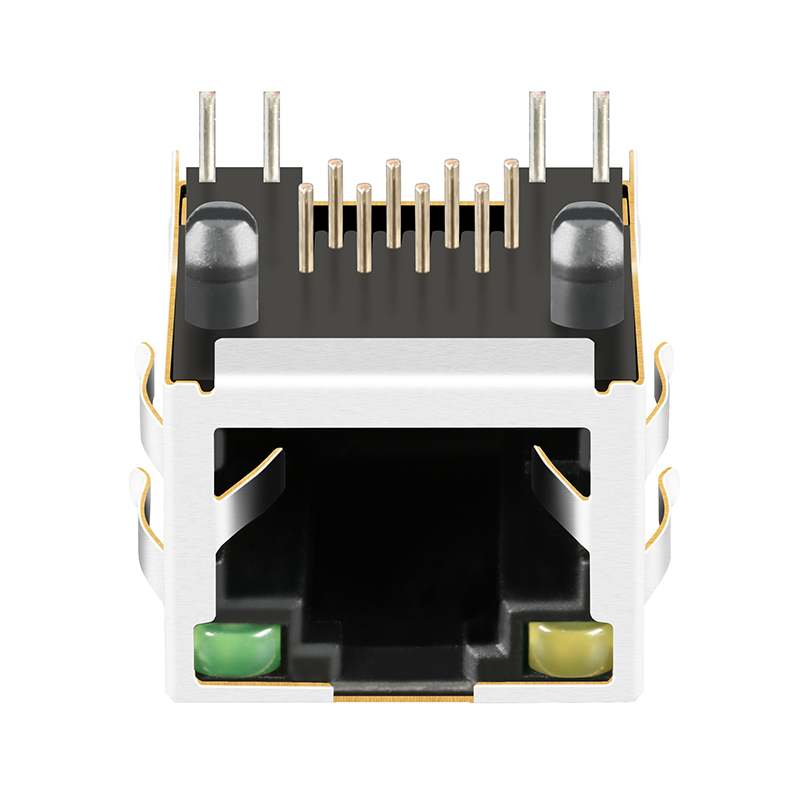

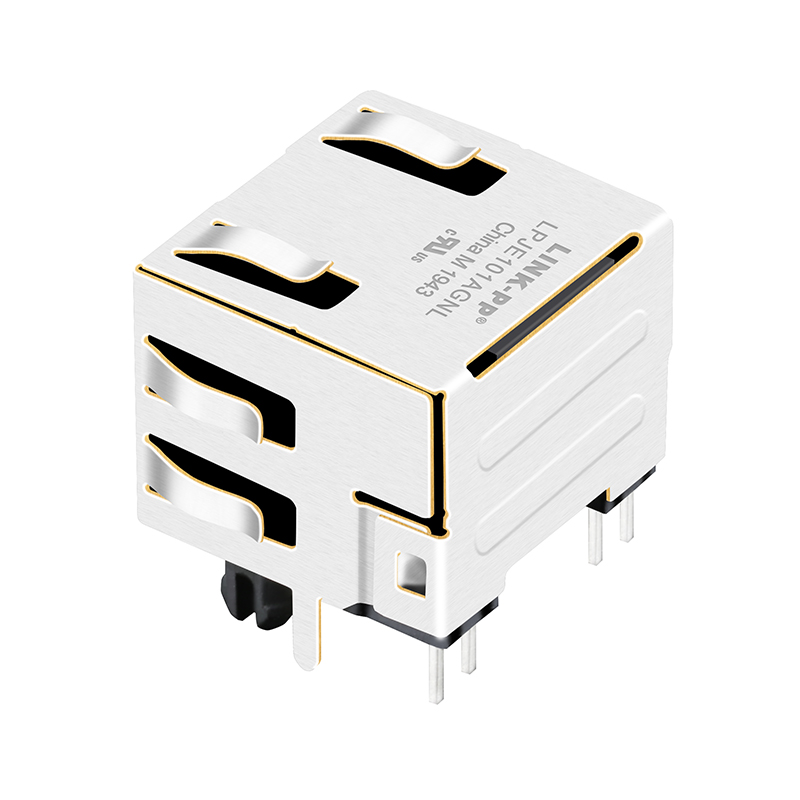

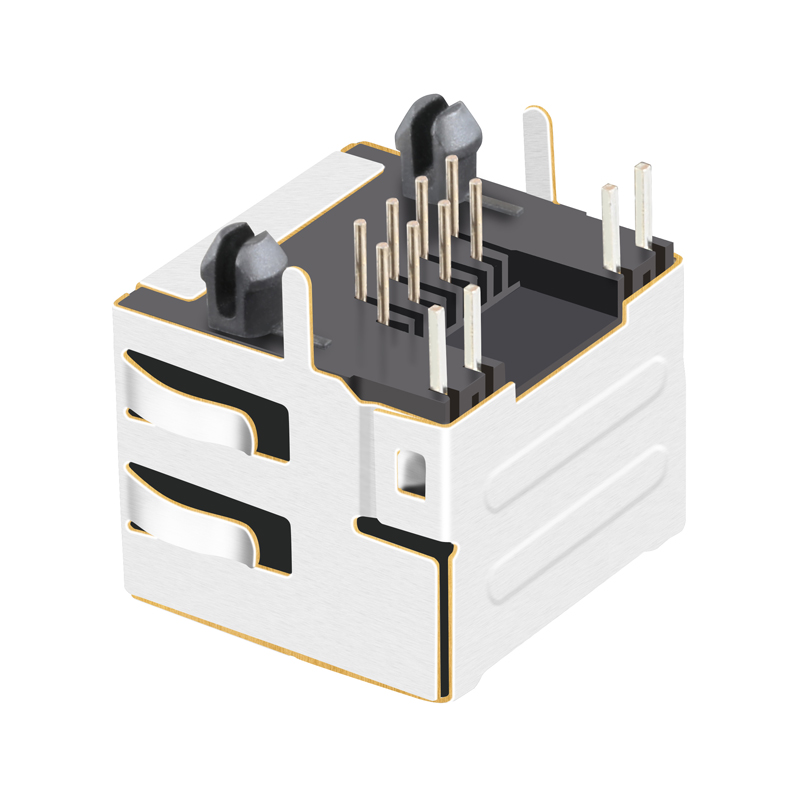

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

1 / 5

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

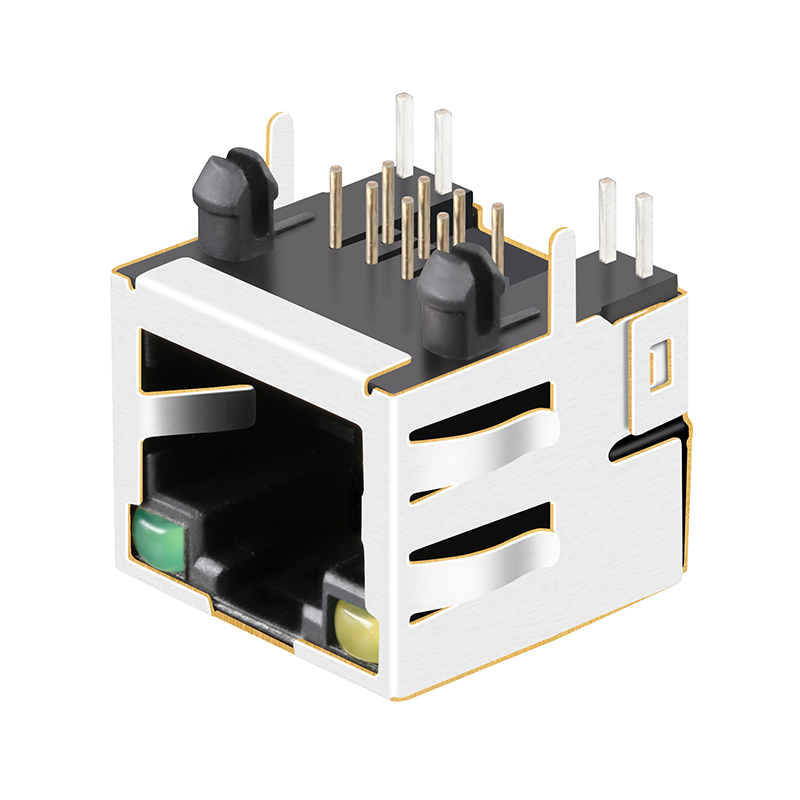

Product Description

Specification

item	value
Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Applications-Lan	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Number of Cores per Jack	-
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.

Production & Quality Capabilities

Characteristics

RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

Frequently Asked Questions

How is product quality guaranteed?

We always perform a strict pre-production sample evaluation before proceeding to mass production, and conduct a comprehensive final inspection prior to every shipment.

What types of components can I purchase from your catalog?

You can purchase a wide selection of network components, including RJ45 Magnetics, LAN Transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

What are your manufacturing qualifications?

We are a highly specialized manufacturer focusing on RJ45 connectors and LAN transformers with 19 years of dedicated experience. Our operations and facilities are certified by SGS, ISO9001:2008, UL, REACH, and CE.

Which standards do the RJ45 connectors comply with?

Our connectors comply with major international standards including IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt.

What delivery terms are accepted for orders?

We accept a variety of delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.

What payment methods and currencies are supported?

We support payments in major currencies including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Accepted payment modes include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
