| Part Number | RJGE-12M6170DJP |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | 2X6 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000/10G BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
What is the speed range supported by the RJGE-12M6170DJP connector?
This connector supports high-speed data transmission rates of 10/100/1000 Base-T up to 10G Base-T Ethernet speeds, making it ideal for Gigabit and ultra-high-speed network interfaces.
Does this stacked RJ45 jack support Power over Ethernet (PoE)?
No, the RJGE-12M6170DJP is designed specifically for Non-PoE Ethernet applications.
What are the operating temperature limits for this device?
It operates reliably across standard temperature ranges from 0 to 70°C, and is also available in an industrial-grade temperature option from -40 to 85°C.
What options are available for the contact mating area plating and LEDs?
The contact mating area comes with Gold plating options of 6u", 15u", or 30u". Additionally, the connector can be ordered with or without integrated LEDs according to your board requirements.
What configuration and latch options does this product offer?

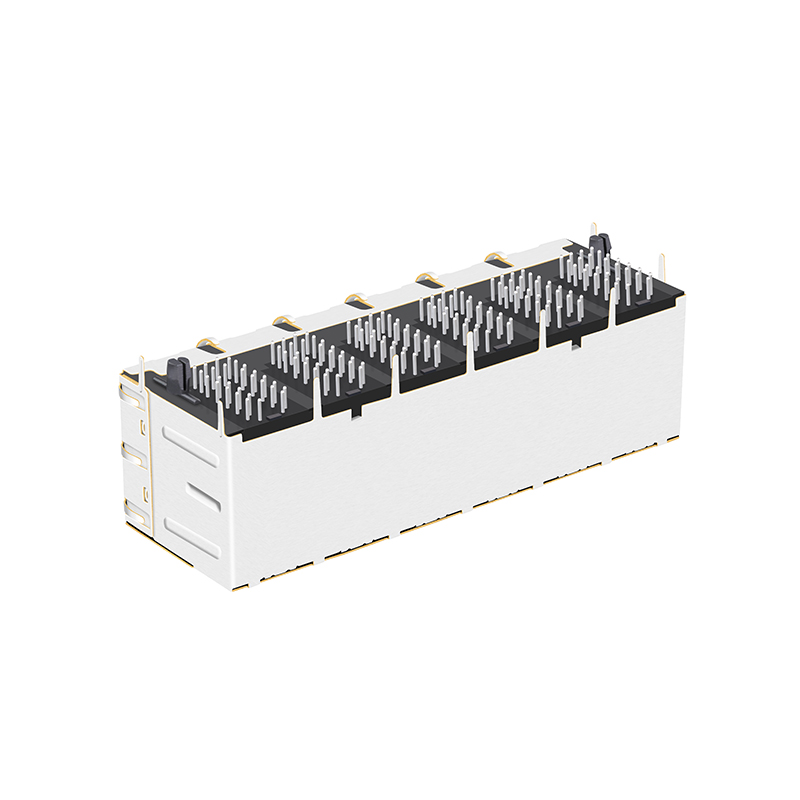

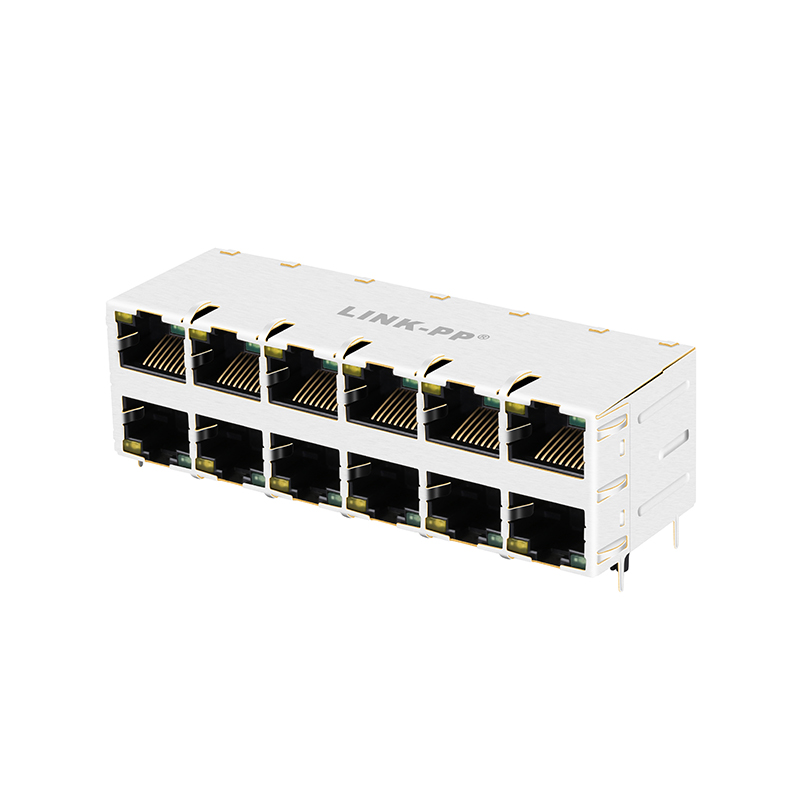

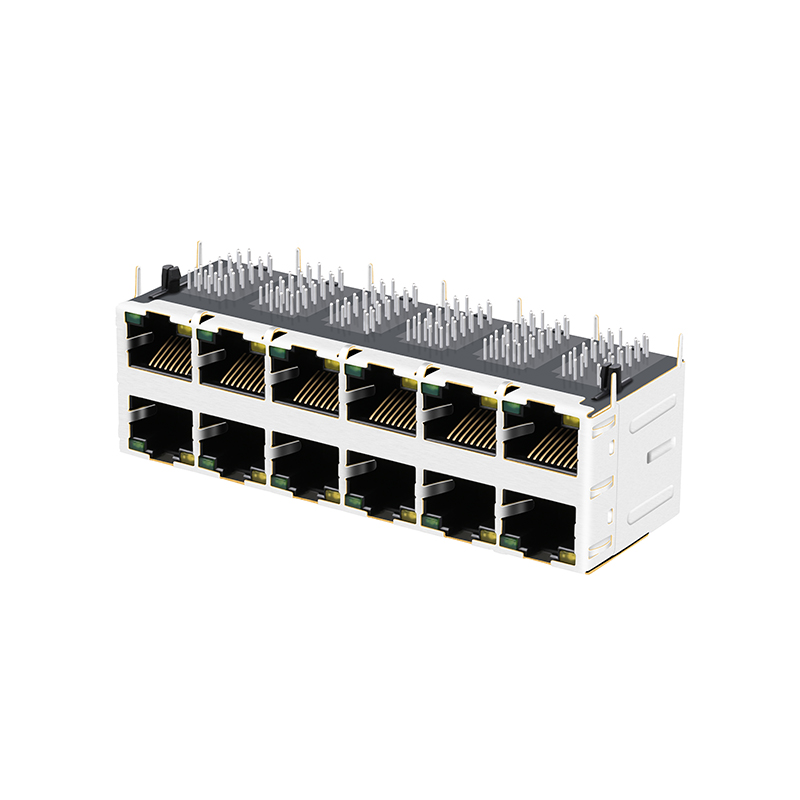

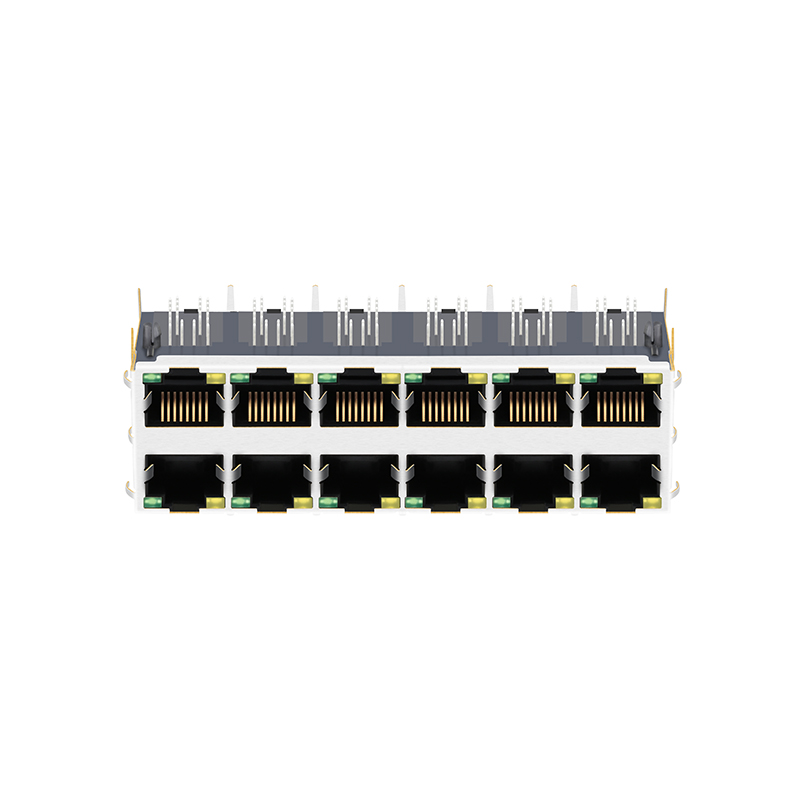

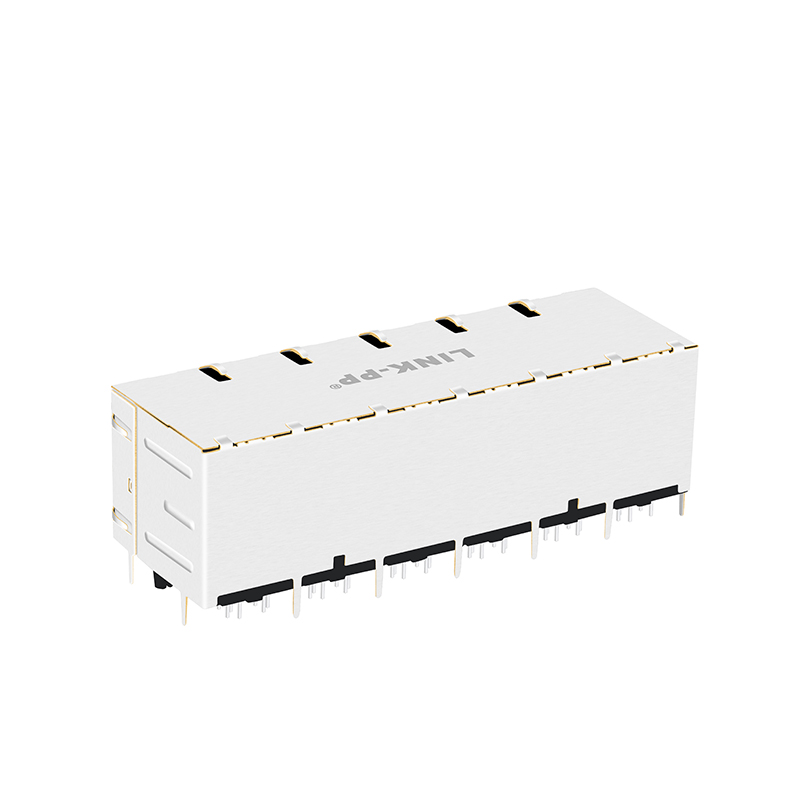

It features a 2x6 port configuration (12 ports total) with a Side Entry mount angle, THT solder pin type, FR4 PCB material, and is available in Up/Down latch configurations.
Is this RJ45 connector compliant with standard environmental regulations?
Yes, it is RoHS compliant (RoHS-5 with lead-in-solder exemption) and adheres to global environmental policies, ensuring safe and eco-friendly usage.
