| Part Number | LPJG47036AWNL |
| Application-LAN | ETHERNET(POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN |
| Latch | UP/DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Shielding | Shielded |
| Speed | 2.5G BASE-T |
| Temperature | -20~+70℃ |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
This connector supports high-speed 2.5G BASE-T Ethernet applications, making it ideal for high-bandwidth networking requirements.
Yes, the application range for this connector is designated for Ethernet (PoE) installations to deliver power and data concurrently over one cable.

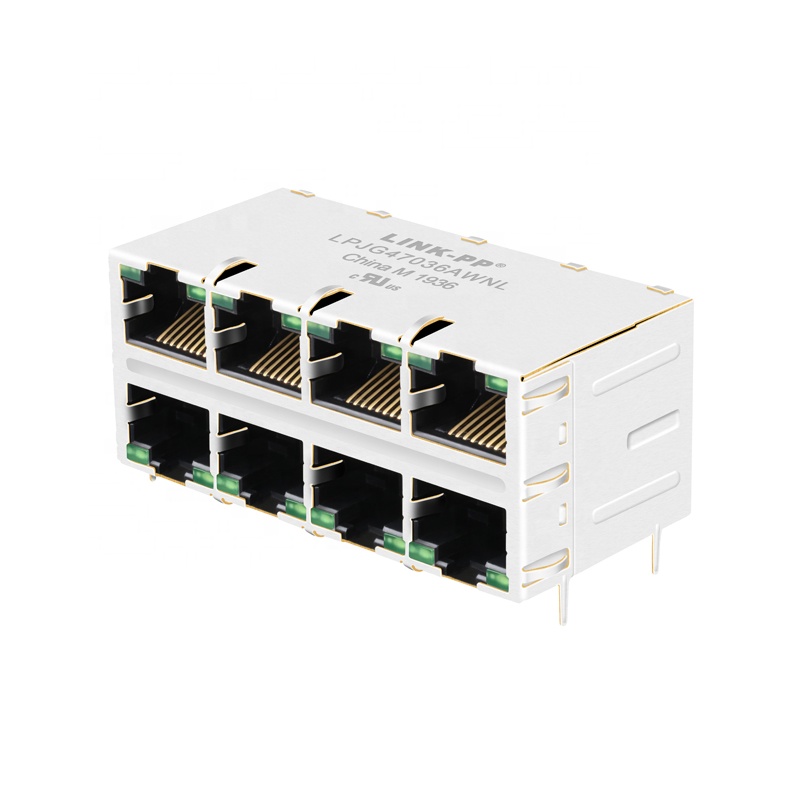

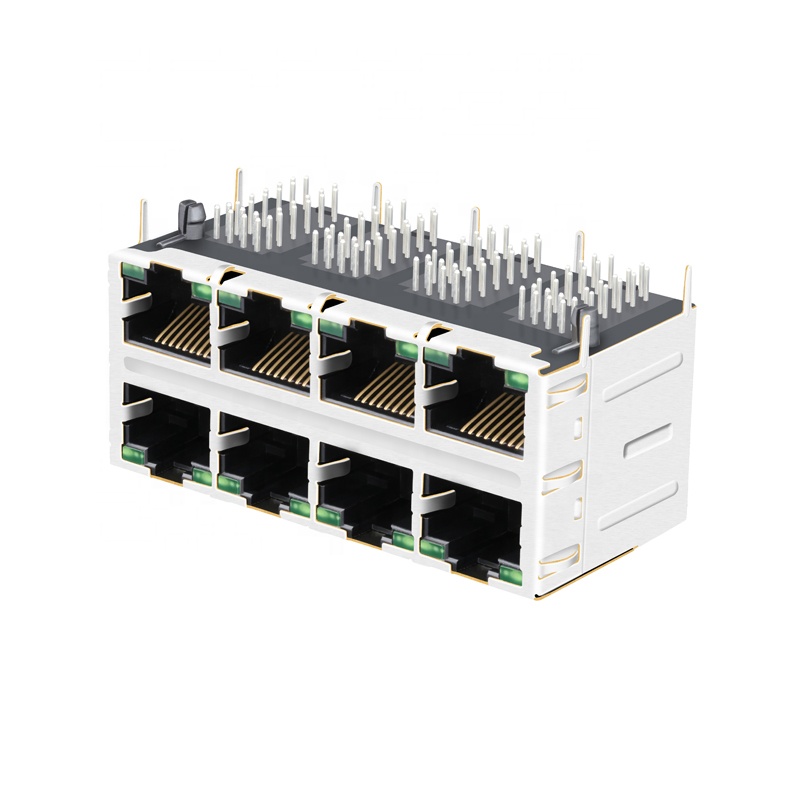

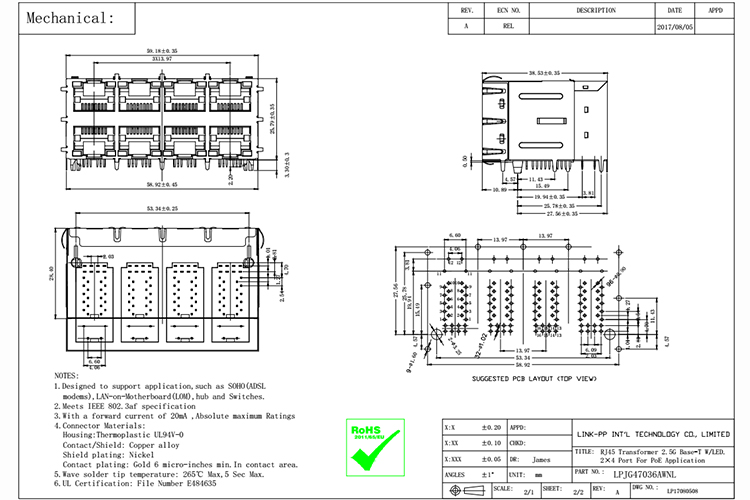

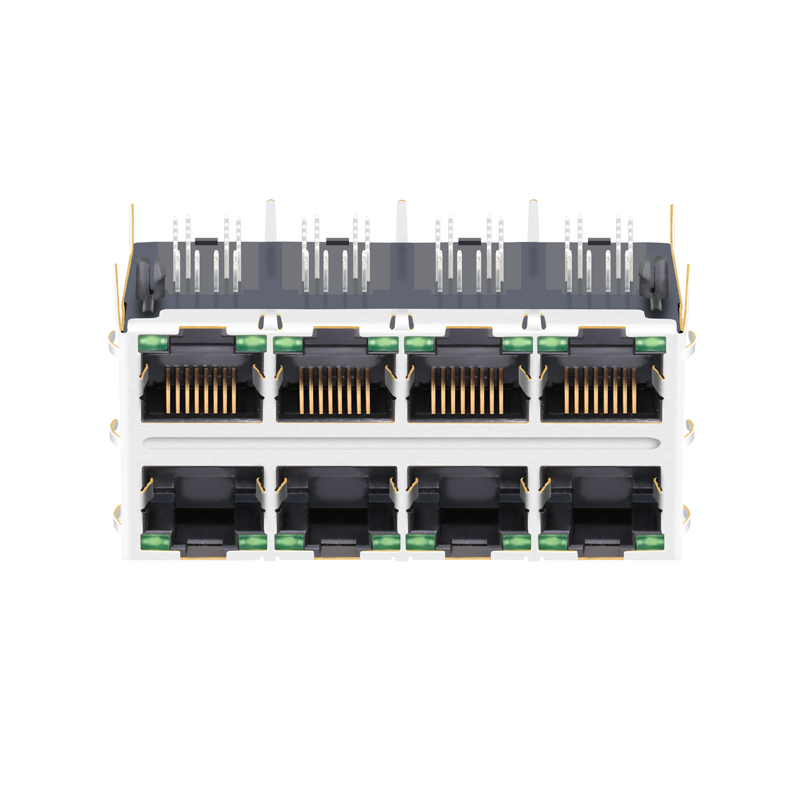

It features a 2x4 port layout configuration with side-entry mounting on the PCB. The design supports an up/down latch style with THT solder terminal pins.
The connector is designed to function reliably within a temperature range of -20°C to +70°C.
It is fully shielded and comes equipped with EMI tabs to ensure robust signal integrity and shield against electromagnetic interference.
Yes, this component is RoHS compliant, meeting environmental compliance criteria (RoHS-5 with lead in solder exemption).
