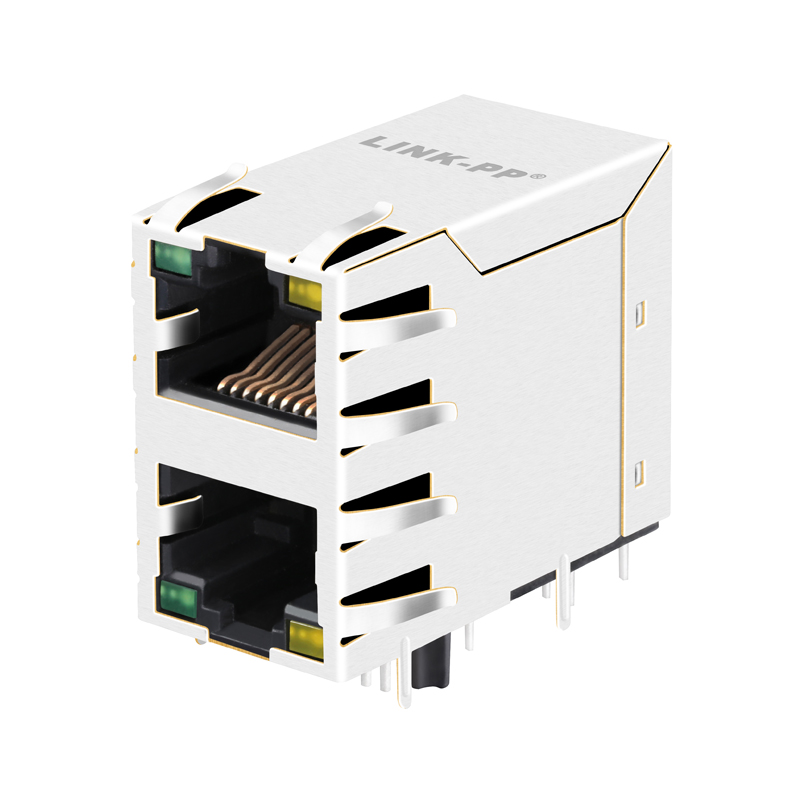

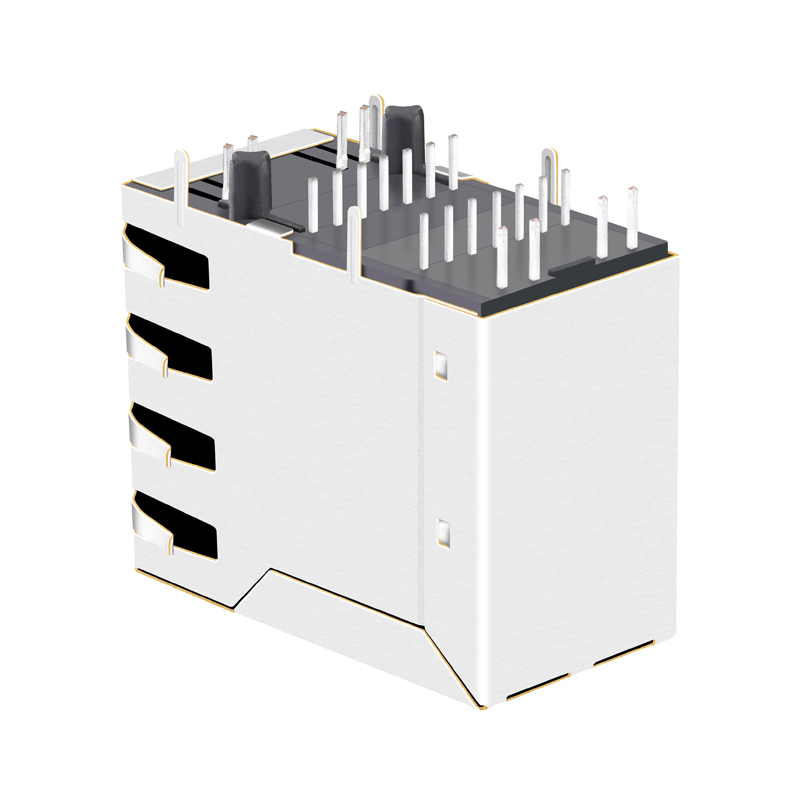

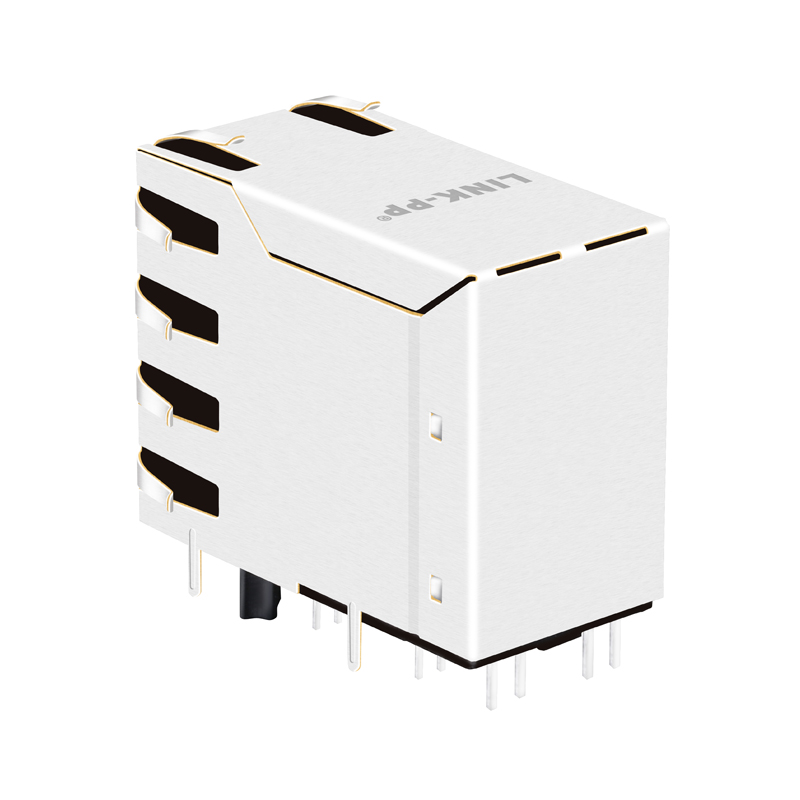

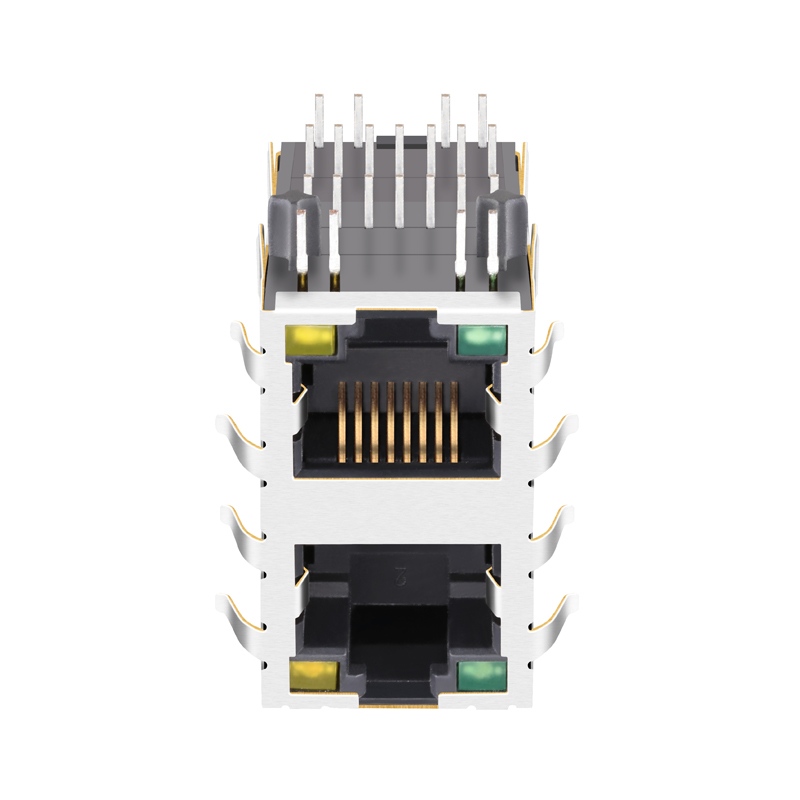

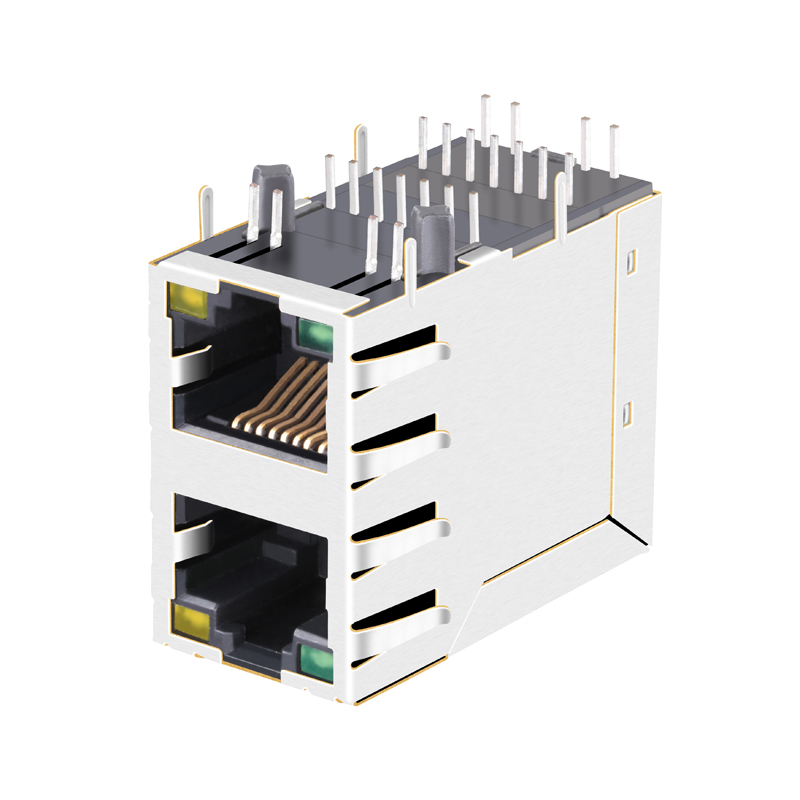

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

1 / 5

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

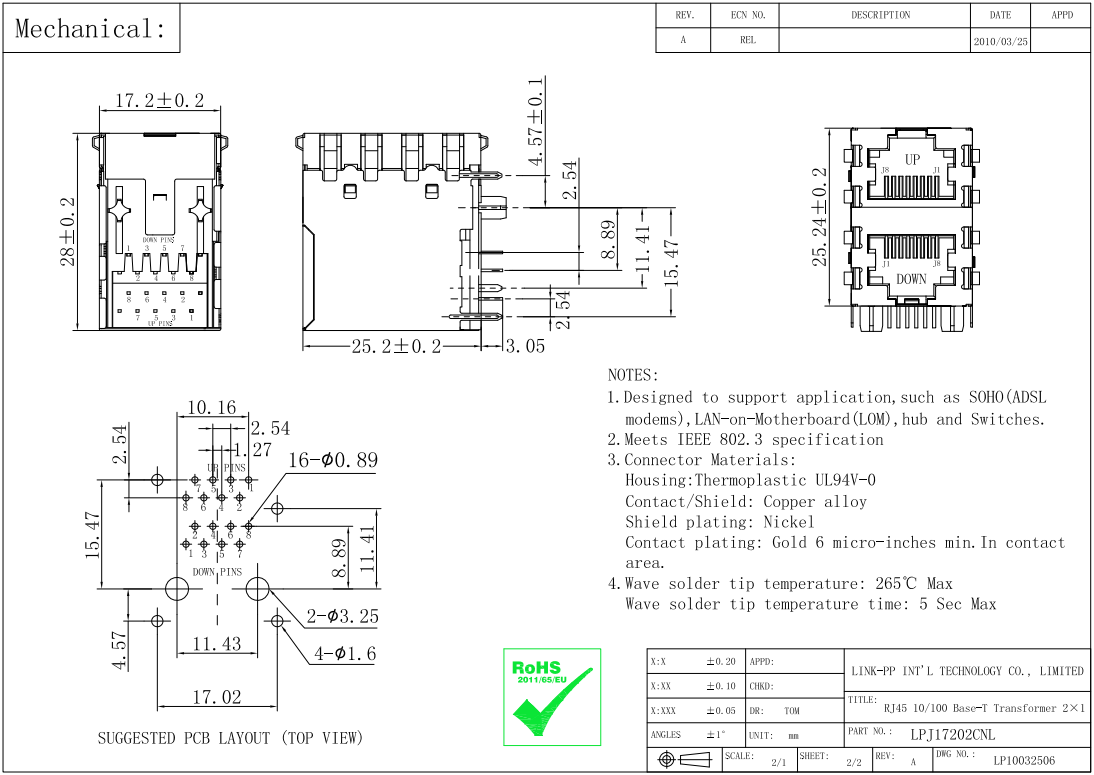

China Manufactures 2x1 Port Shielded RJ45 Modular Jack Specifications

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number	LPJ17202CNL
Cross Reference Part Number	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	Without
Latch	TAB DOWN / Up
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Partner for Leading Brands for 9 Years
Trusted Supplier for Industry Leaders
Preferred Supplier of Major Chipset Manufacturers
Quality Guarantee: 6 Years

Competitive Price And Service

Highly Competitive Pricing Globally
Standard Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom Designs to Meet Client Requirements
Highly Discounted Worldwide Shipping Rates

Frequently Asked Questions

What are the primary specifications of this RJ45 connector?

This is a 2x1 Port Shielded RJ45 Modular Jack with 10/100 Base-T integrated magnetics. It is designed without LEDs, supports Tab Down/Up configuration, and is fully RoHS compliant.

What is the operating temperature range for this modular jack?

This connector is built to perform in industrial environments, supporting an operating temperature range of -40°C to +85°C.

Does this RJ45 connector support Power over Ethernet (PoE)?

No, this particular configuration is designed for Non-PoE Ethernet applications.

What certifications does the product hold?

Our manufacturing and products are certified under ISO 9001:2008 standards, UL Certification, REACH Certification, and RoHS Compliance.

What options are available for the contact mating area plating?

We offer multiple gold plating options to suit different application requirements, including 6u", 15u", and 30u" Gold plating.

Can I request samples before placing a bulk order?

Yes, free samples are available for quality evaluation and testing purposes. Standard bulk production lead time is typically 2-3 weeks after order confirmation.
