Send Inquiry

Product Description

Product Description

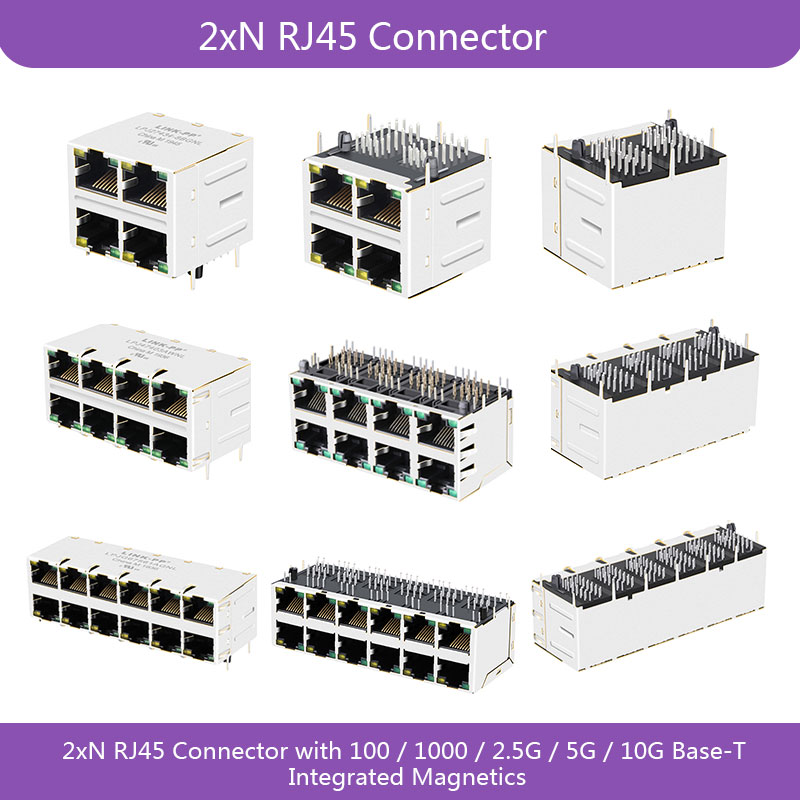

RJ45 Connector Overview

Key Characteristics

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Product Specifications
Parameter Value
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE / Non-PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, EMI Finger
Number of Ports 2x1, 2x2, 2x4, 2x6, 2x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Package Type
Tray
Carton Size
32 * 30 * 31 cm
Gross Weight
8.5 kg / carton
Qty per Carton
1200 pcs
SPQ
50 pcs
Net Weight
0.007 kg / pcs
Packaging Details
Manufacturing Facilities
Production Line 1
Production Line 2
Testing Area 1
Testing Area 2
Warehouse
Equipment Setup
Precision Assembly
Frequently Asked Questions
How is product quality guaranteed?
We strictly follow standard quality processes, which always include preparing a pre-production sample before starting mass production, along with a mandatory final inspection prior to shipment.
What types of products are available in this catalog?
The product line includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
What standards and certifications do these connectors comply with?
The products are manufactured under certifications including SGS, ISO9001:2008, UL, REACH, and CE. They are compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt standards.
What speeds and PoE capacities do these RJ45 connectors support?
These connectors support integrated transformers / common mode chokes with Power over Ethernet (PoE) capacities up to 50 Watts, and Ethernet speeds ranging from 10/100/1000 Base-T up to 10 Gbit/s.
What are the operating temperature ranges for these devices?
They are designed to operate under diverse thermal conditions, offering options for standard temperature ranges of 0°C to 70°C or industrial grade ranges of -40°C to +85°C.
What are the accepted delivery terms and payment options?
Accepted Delivery Terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Supported payment methods include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
