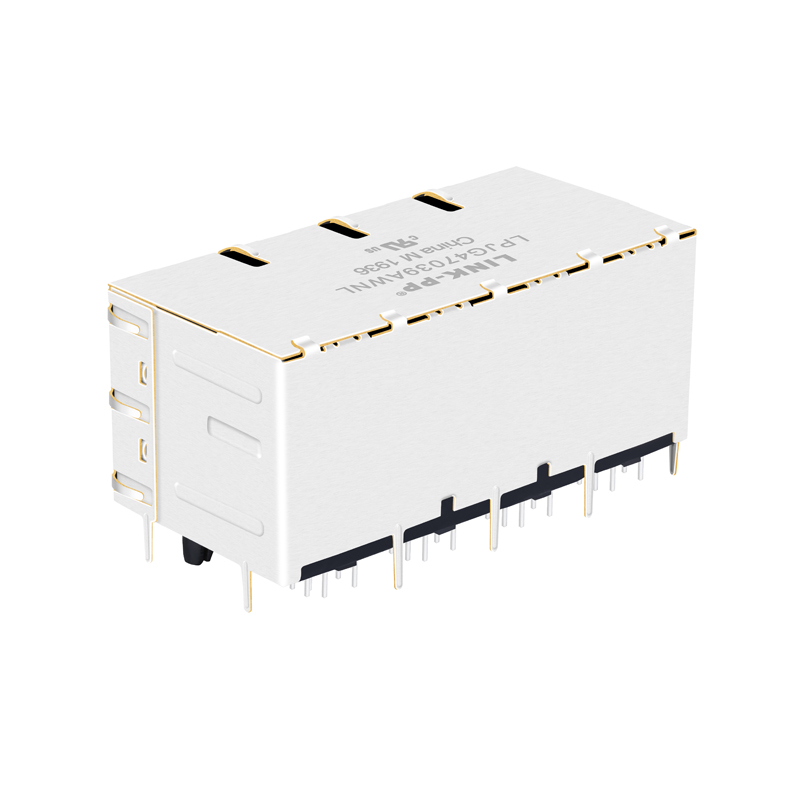

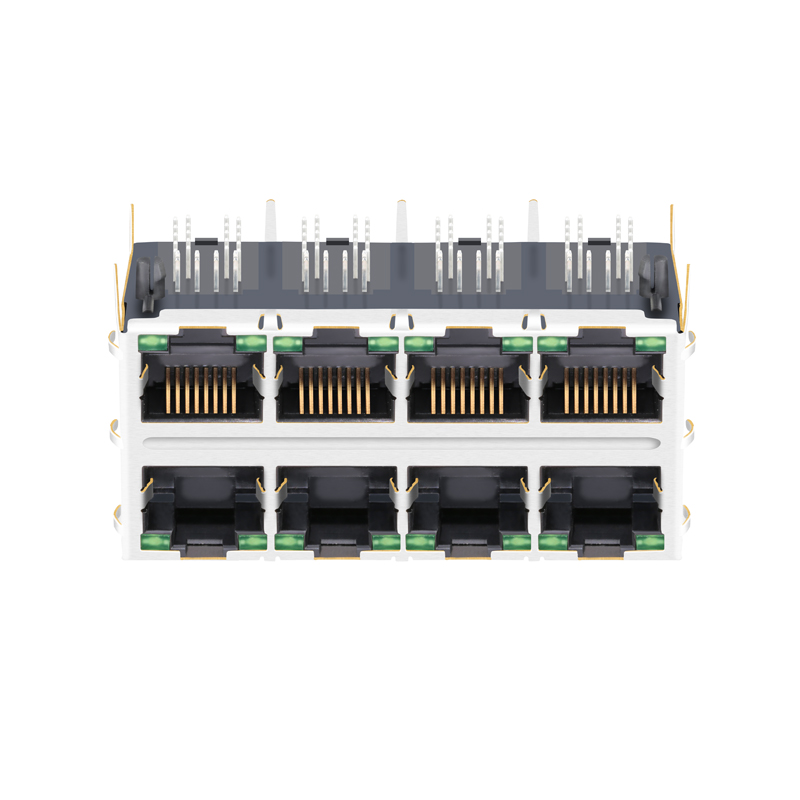

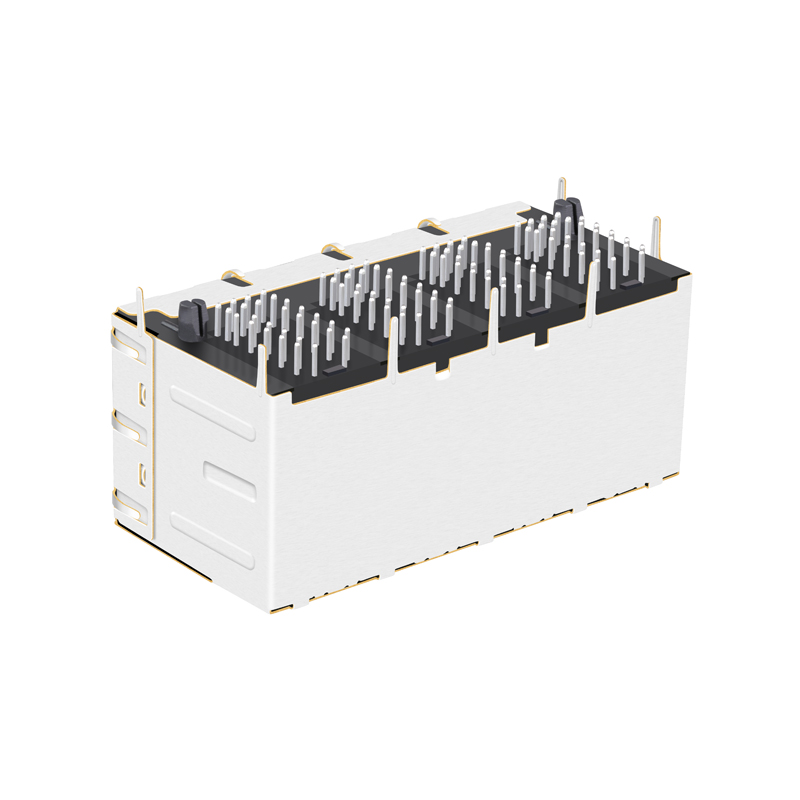

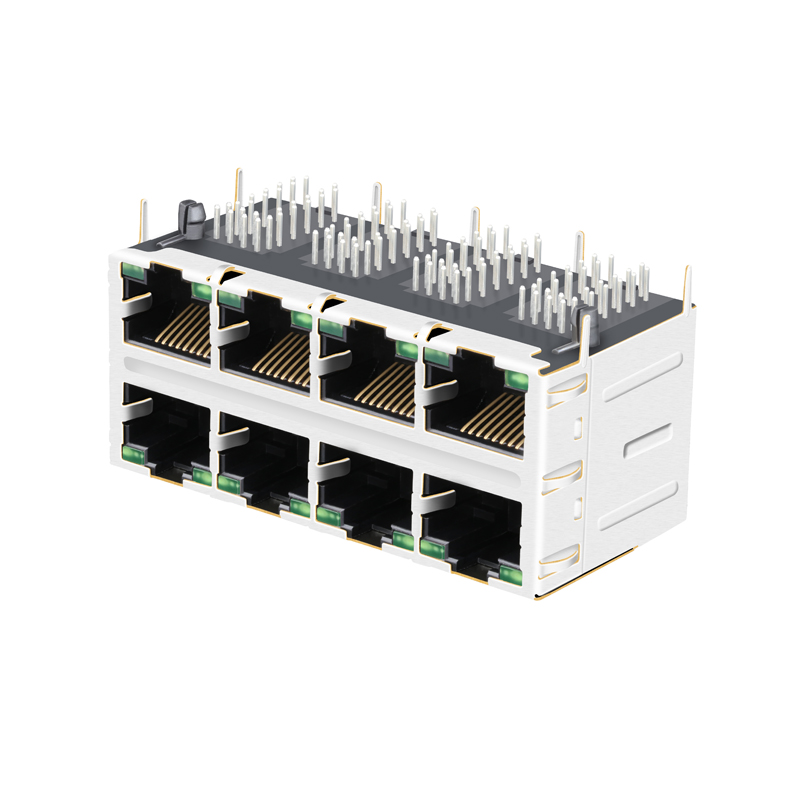

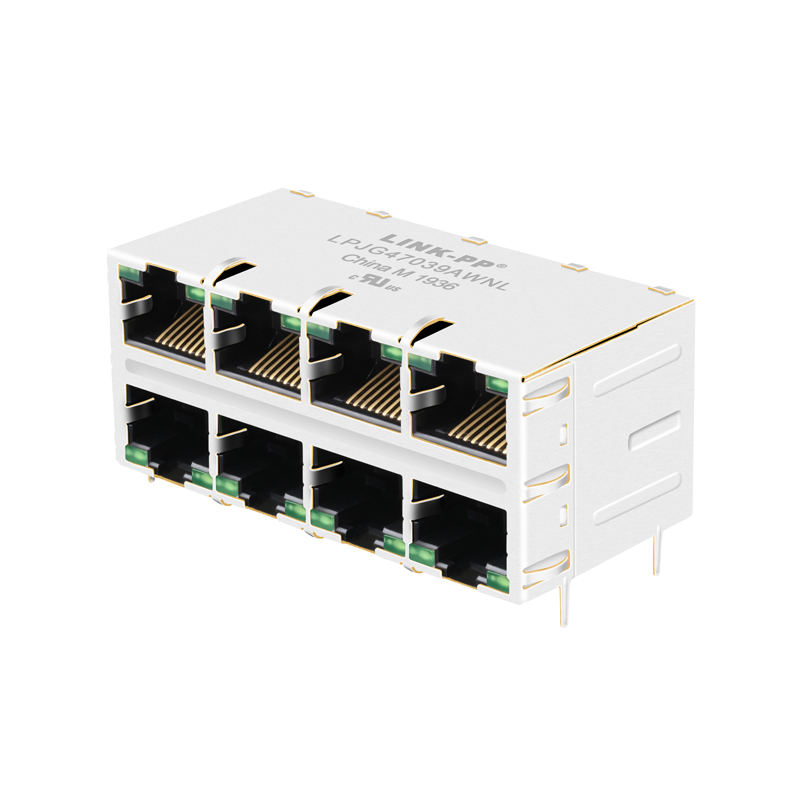

| Item | RJ45 Female Connector |
| Part Number | LPJG47039AWNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | 2x4 Port |
| Speed | 2.5G Base-T |
| Latch | Both |
| Cores per Port | 10 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer free samples to test quality, but shipping costs must be covered by the customer.
We are ready to ship immediately for stock items. For mass production orders, the delivery time takes between 15 to 30 days.
We offer a one-year warranty period and 24-hour online technical support to assist with any questions.
Yes, we support OEM/ODM services. Please send us an inquiry with your specifications so we can initiate a detailed discussion.
We have over 19 years of dedicated production experience and have partnered with major international technology providers for many years.
