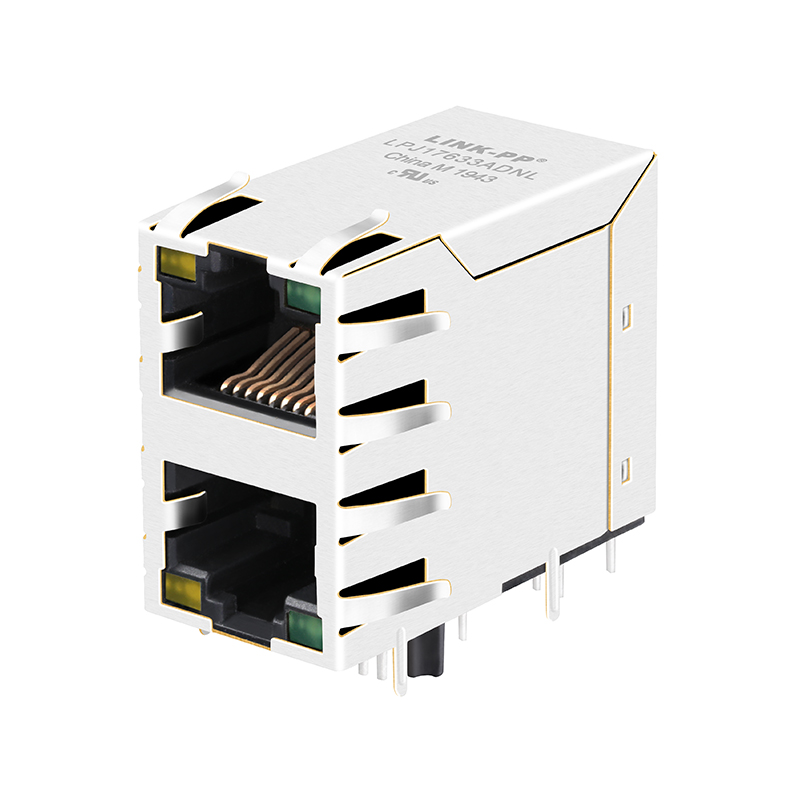

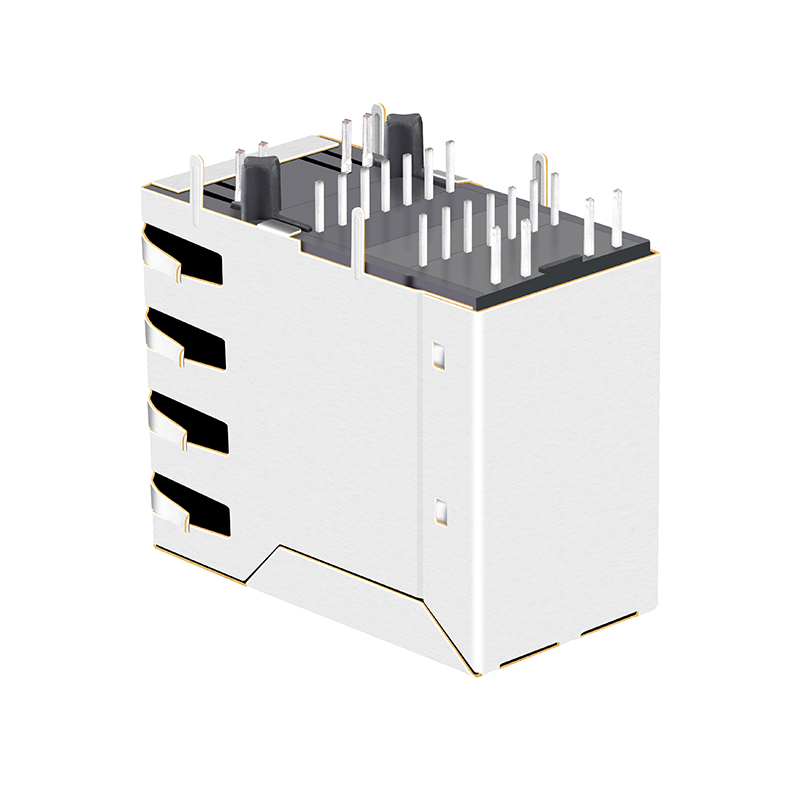

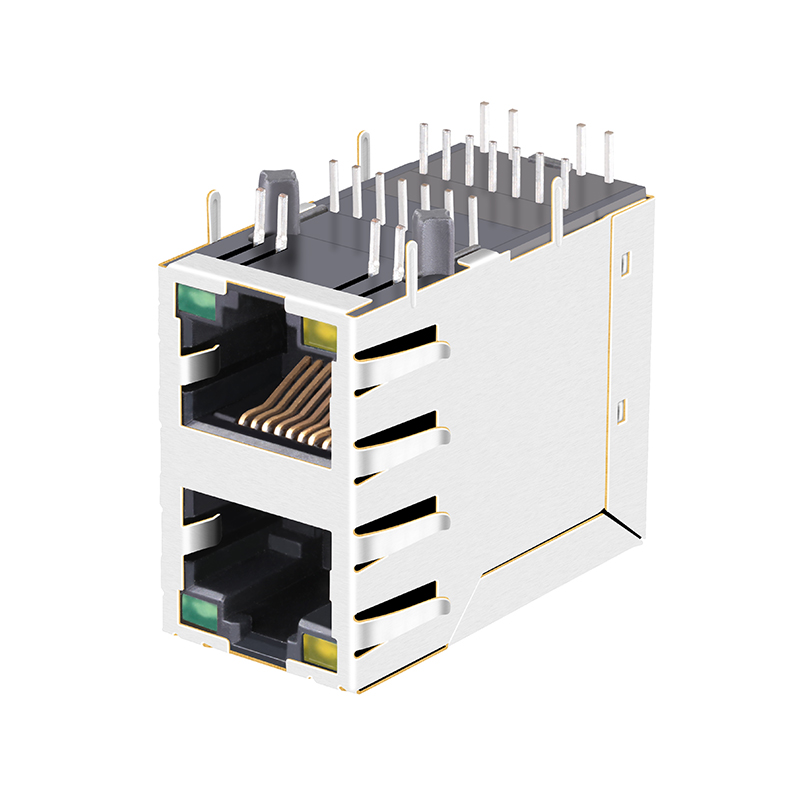

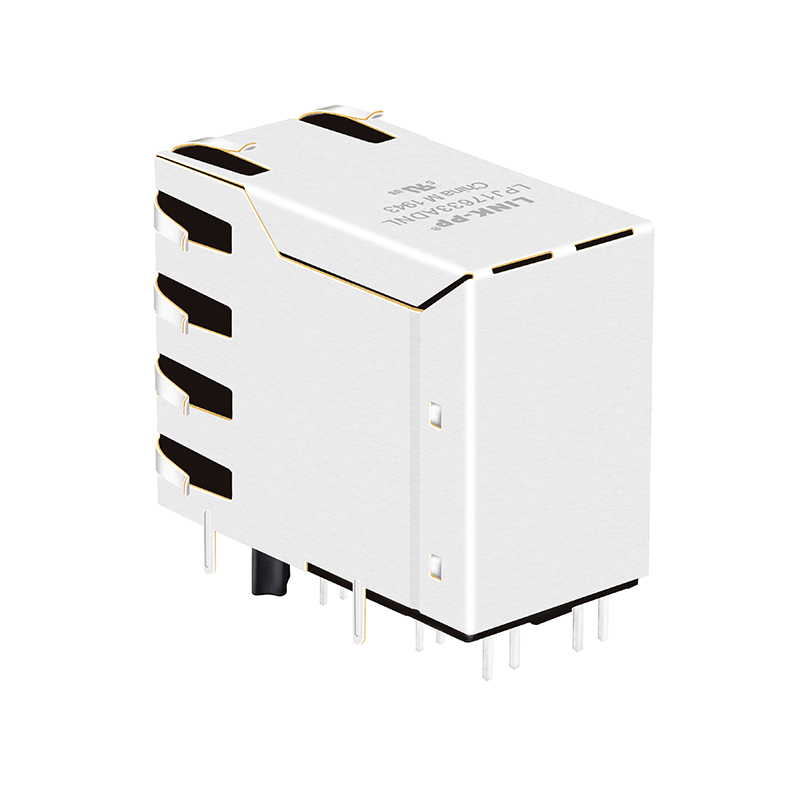

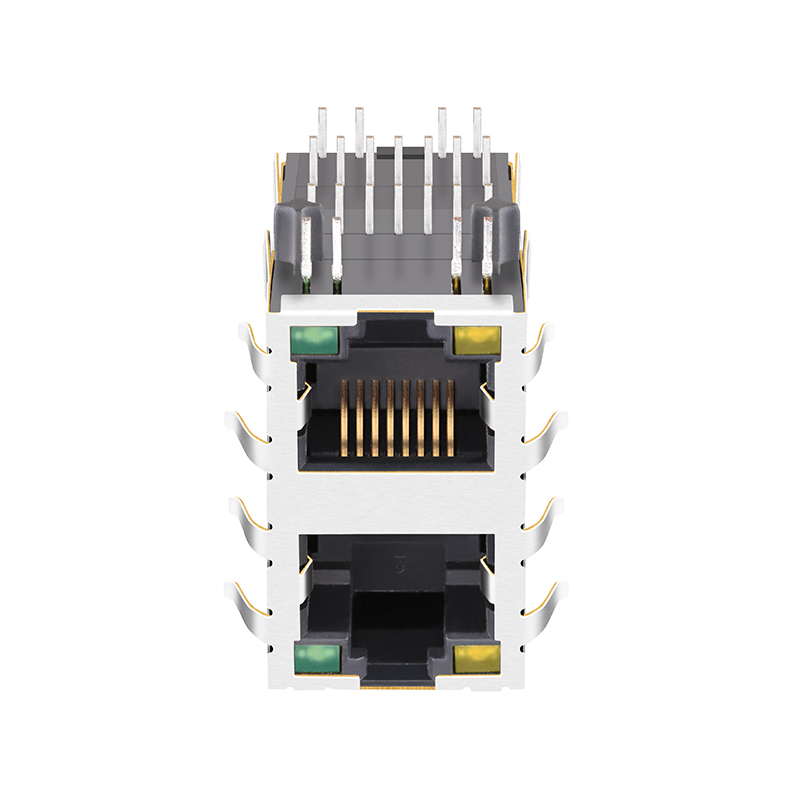

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

1 / 5

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Send Inquiry

Product Description

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Part Number	0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN	ETHERNET(NON PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	Yellow/Green LEDS
Latch	UP/Down
Number of Ports	2x1 Port
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T Magnetics
Temperature	-40 TO 85°C / 0 TO 70°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
Quality Guarantee: 6 Years

Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS DEDEX Or TNT

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack

Frequently Asked Questions

What applications are the 0845-2D1T-H5, 0845-2D1T-S4, and RM3-ZZ-0020 modular jacks suitable for?

These modular jacks are designed for non-PoE Ethernet LAN applications, offering stable 10/100 Base-T network speeds.

What are the environmental temperature specifications for these RJ45 connectors?

These connectors support operating temperature ranges of -40°C to 85°C and 0°C to 70°C, making them suitable for standard and industrial-grade environments.

Do these RJ45 modular jacks feature integrated LED configurations?

Yes, they are equipped with Yellow and Green LED indicators to provide real-time connection status.

Are these products RoHS compliant?

Yes, they comply with RoHS standards (specifically RoHS-5 with lead in solder exemption).

What plating options are available for the contact mating area?

The contact mating area features high-quality Gold plating options of 6u", 15u", or 30u" to ensure superior conductivity and long-term durability.
