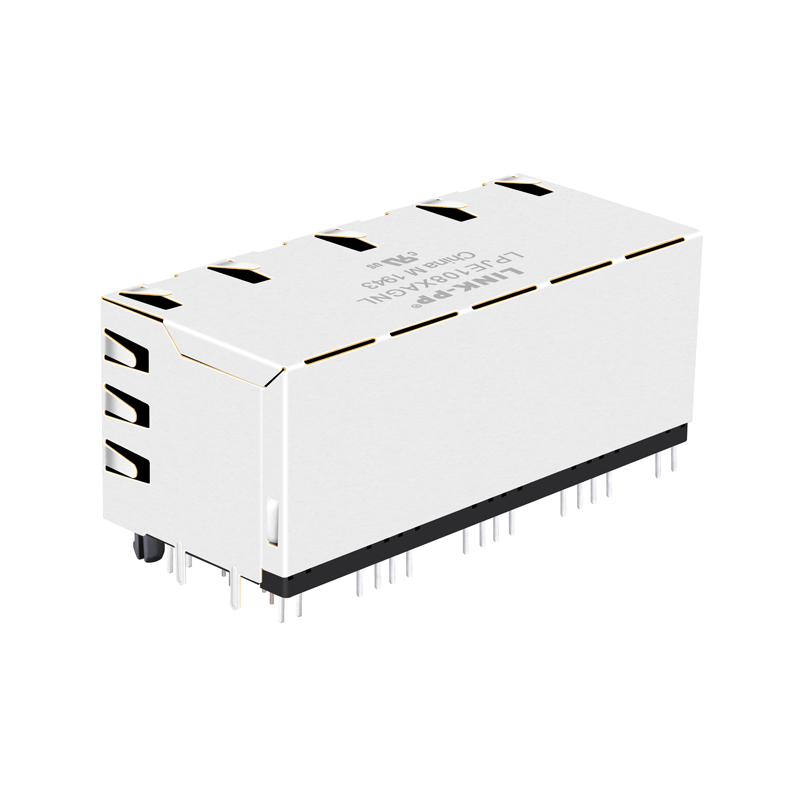

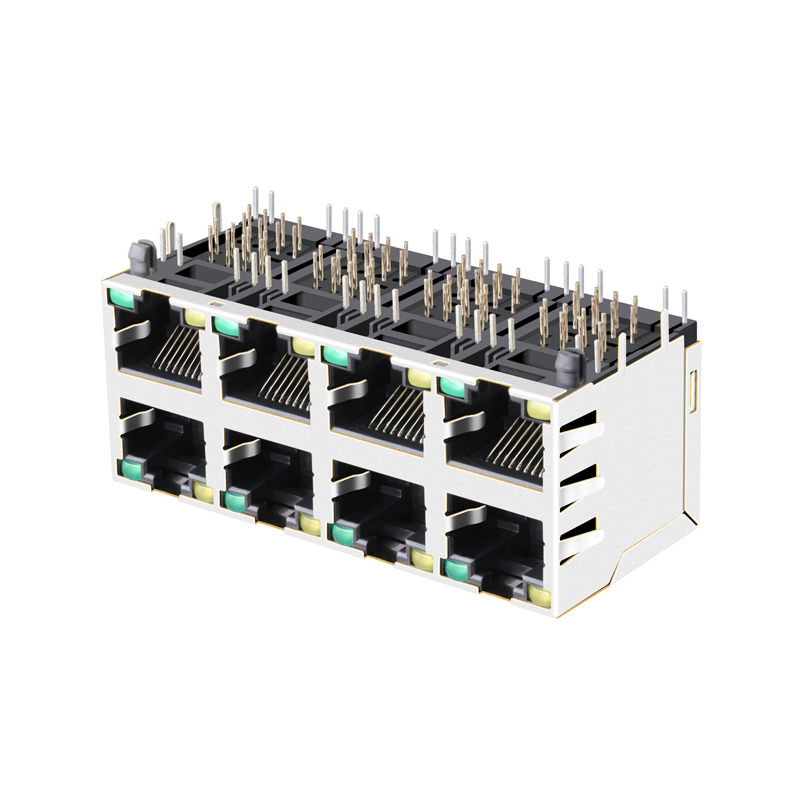

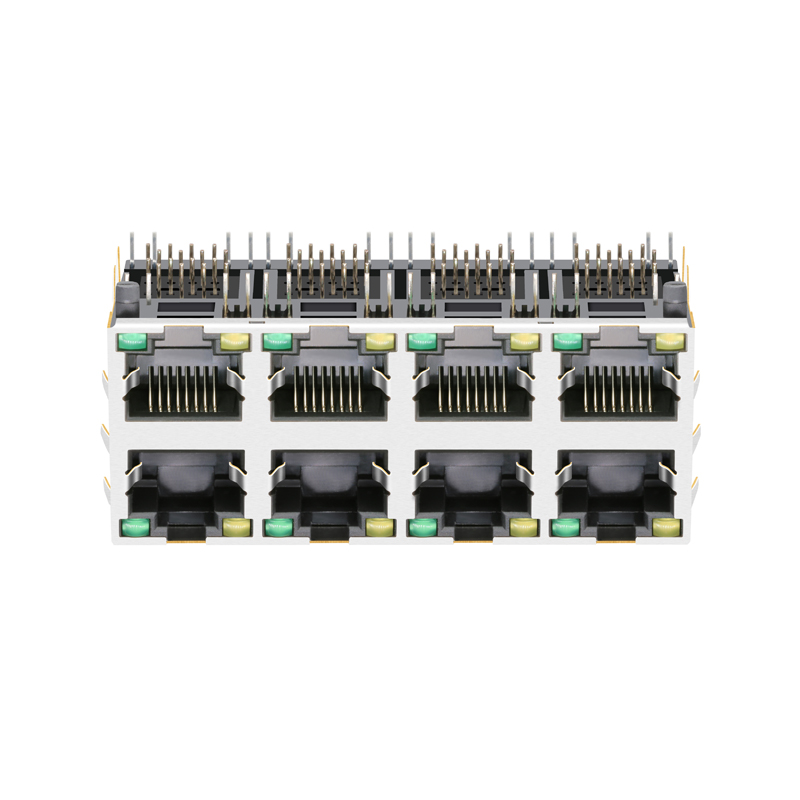

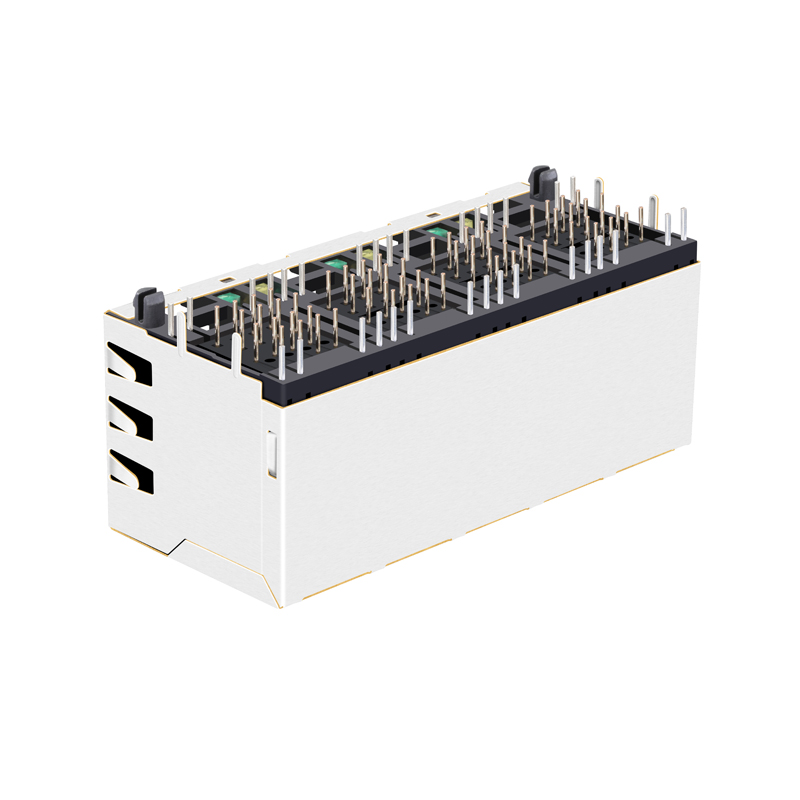

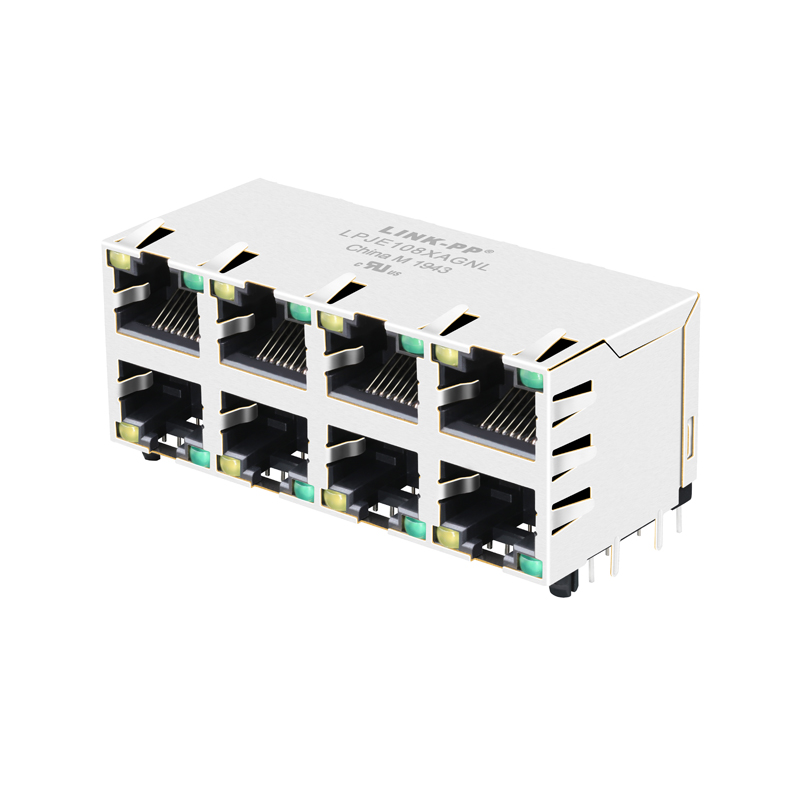

10118077-523B010LF 2x4 Ports Ethernet Female RJ45 Jack Without Magnetics

Product Description

Ethernet RJ45 Jack Connector Range
10118077-523B010LF 2x4 Ports Ethernet Female RJ45 Jack Without Magnetics
Products Description
Item RJ45 Female Connector
Part Number LPJE108XAGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 2x4 Port
Speed Without Magnetics
Latch Both (Up&Down)
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Details Overview
Product Categories and Variations Available Below
Product Options Matrix
Technical Specifications & Dimensions
Technical Drawing Structure
Dimensions Spec Sheet
Recommended Layout View
Quality Control & Logistics Packaging
Testing Procedures
Packaging Methods
Delivery Preparation
Company Profile
Established in 1997, the company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Plant Overview
Production Line Workflow
Testing Laboratory Facilities
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, producing RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and related products.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered on your end.
Q What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please contact us with your details so we can discuss your requirements.
Q What is your advantage?
We bring 19 years of dedicated production experience to the industry, serving as long-term trusted partners for leading global technology firms.
