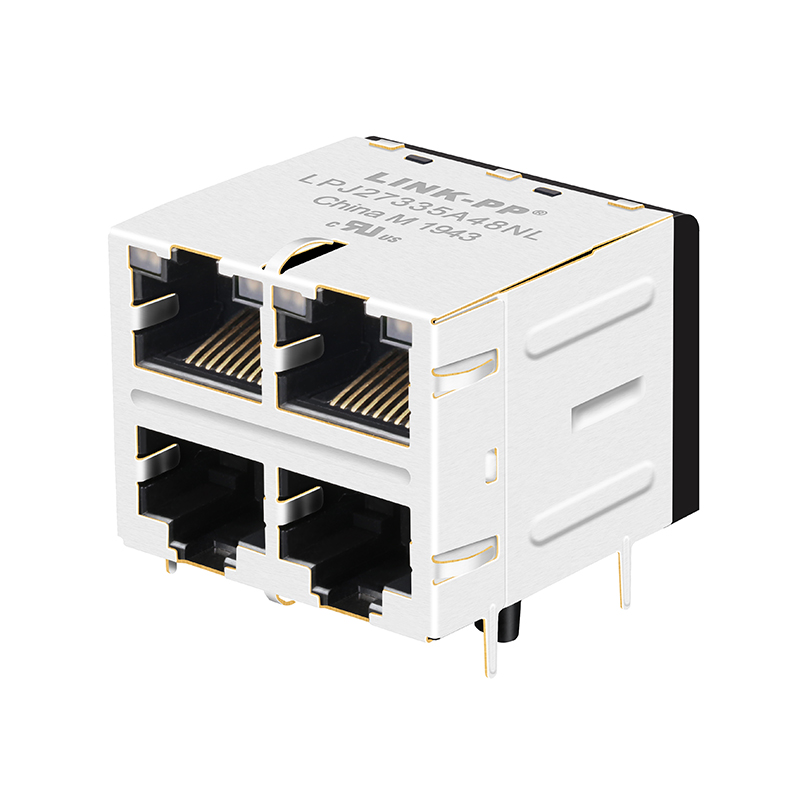

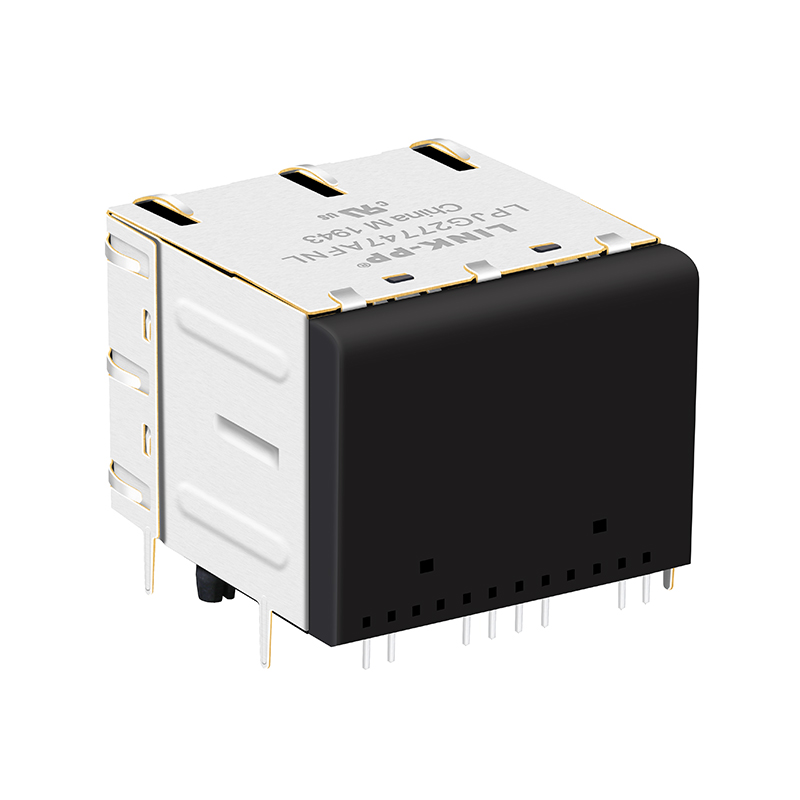

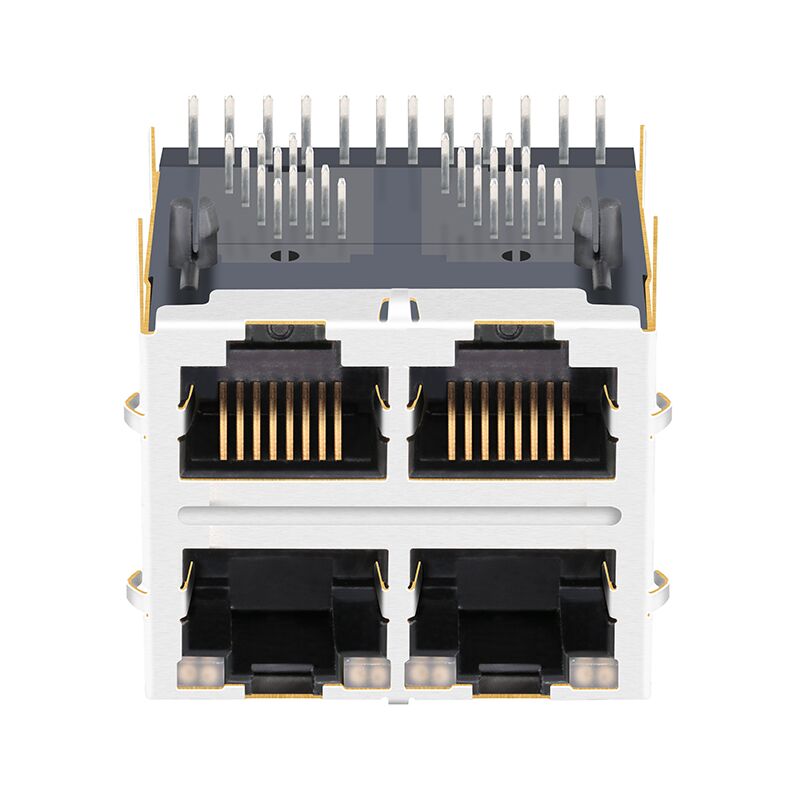

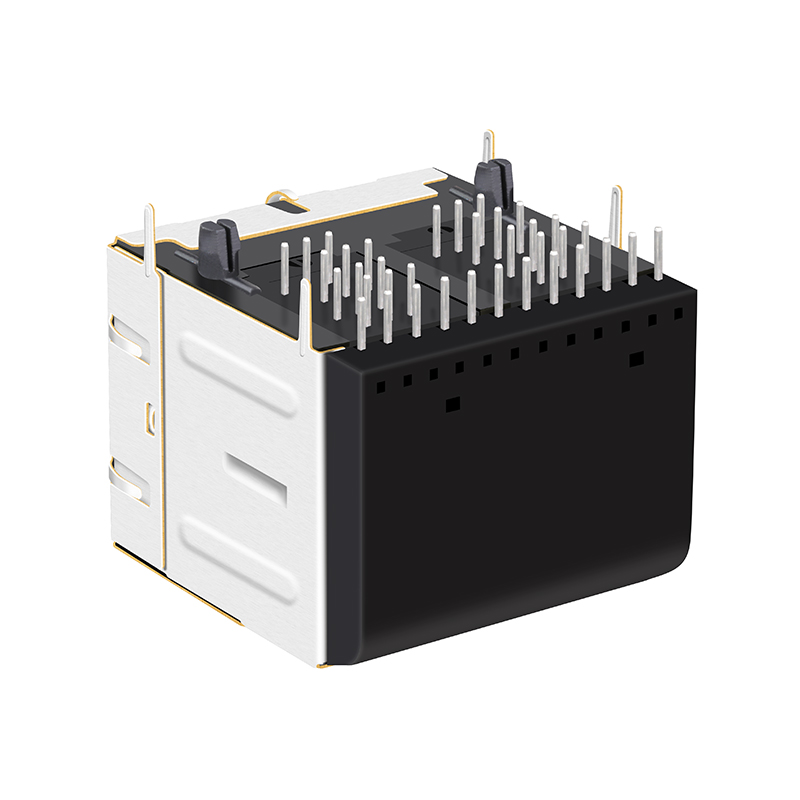

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
1 / 5
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks
JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

JX20-0252NL 2X2 Port Led Light 8P8C Integrated Magnetic Modular Magjack RJ 45 Connector Jacks

Send Inquiry

Product Description

Product Image 1

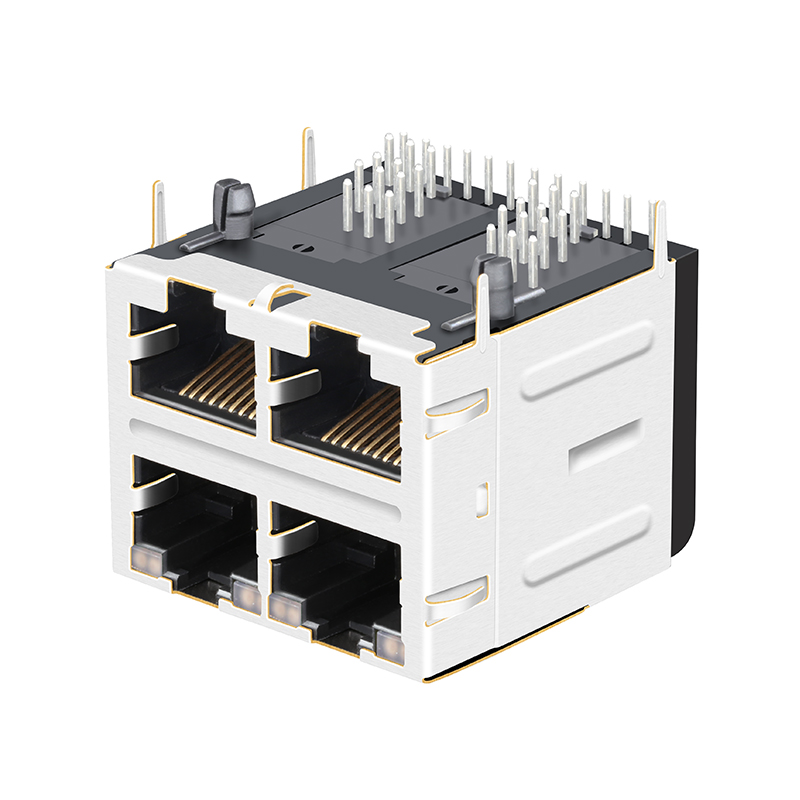

Product Image 2
Specification
Item Value
LINK-PP Part Number LPJ27335A48NL
Pulse Part Number JX20-0252NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green&Orange/Green&Orange Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 2x2 Port
Features Board Guide
Tab Direction Both
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Facility 1
Production Facility 2
Production Facility 3
FAQ
Q Are you a manufacturer or trade company?
We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Q Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q Is OEM available?
Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on the products.
Q How about the lead time?
We have a very professional team with high quality, usually we can ship within 30 days. For specific order details, please consult our team.
Q What is the operating temperature range for these connectors?
These RJ45 connectors support an industrial operating temperature range from -40°C to 85°C, ensuring reliable performance in various environmental conditions.
Q What application speeds are supported?
This specification supports 10/100 Base-T, AutoMDIX. We also provide solutions range from 10M up to 10G LAN applications.
