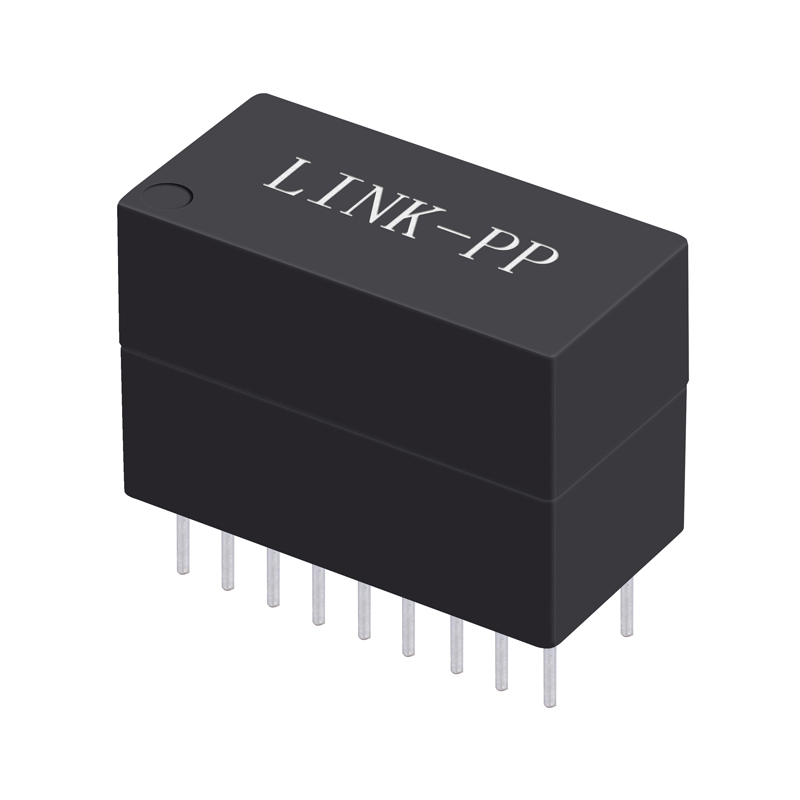

100 Base-T Single Port Through Hole Magnetics Transformer BD16A01

Product Description

RJ45 Connectors, Lan Transformers, SFP Cage, SFP Modules
100 Base-T single port through hole Magnetics Transformer BD16A01
Products Description
Item Lan Transformer
Replaceable Brand Model BD16A01
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 100 Base-t
Cores per Port 4
Pin Number 12 Pin
Mounting Type Dip
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Details 1
Lan Transformer Details 2
Lan Transformer Details 3
Lan Transformer Details 4
Lan Transformer Details 5
Lan Transformer Structure Dimension
Lan Transformer Schematic Diagram
Why Choose Us
Quality Standard Certifications
Advanced Test Equipment
Reliable Factory Operations
Global Delivery Logistics
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owns advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products:

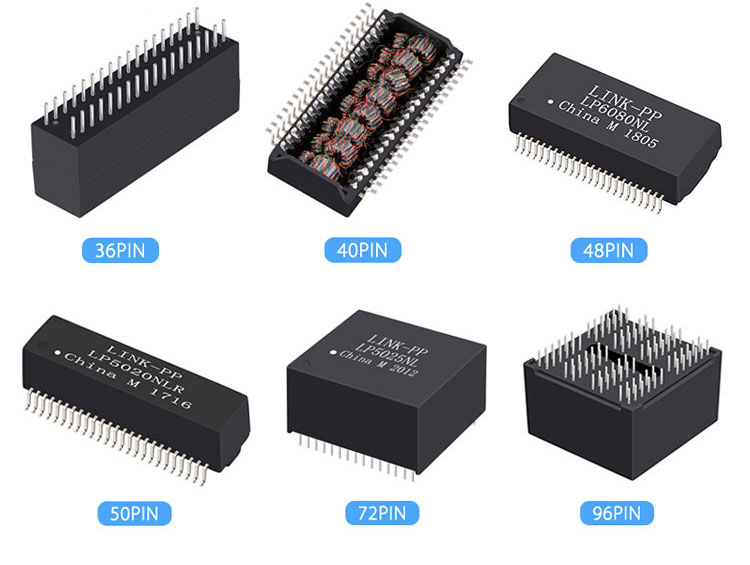

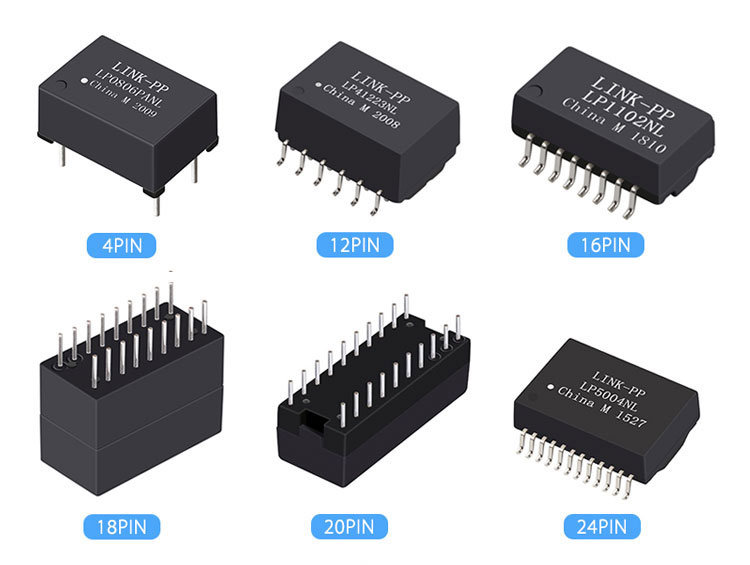

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Main Customer:
ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm friend.
Manufacturing Floor View 1
Manufacturing Floor View 2
Quality Testing Process 1
Quality Testing Process 2
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are Intel's and Jabil's partner for many years.
