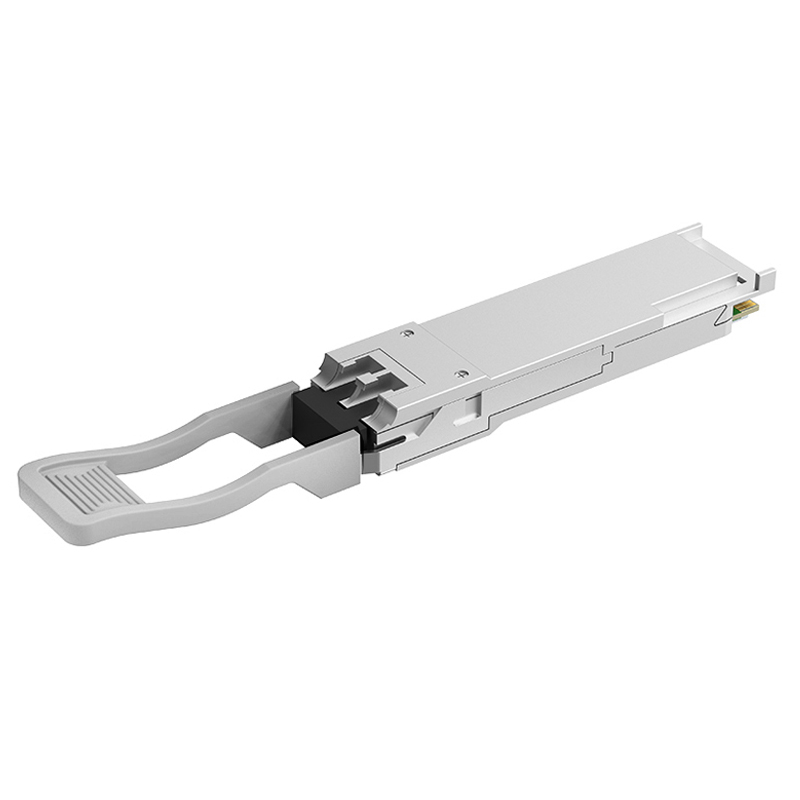

| Item | QSFP-40G-SR-BD |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40Gbps |
| Wavelength | 832nm - 918nm |
| Max Cable Distance | 300m@OM3 |
| Media | MMF |

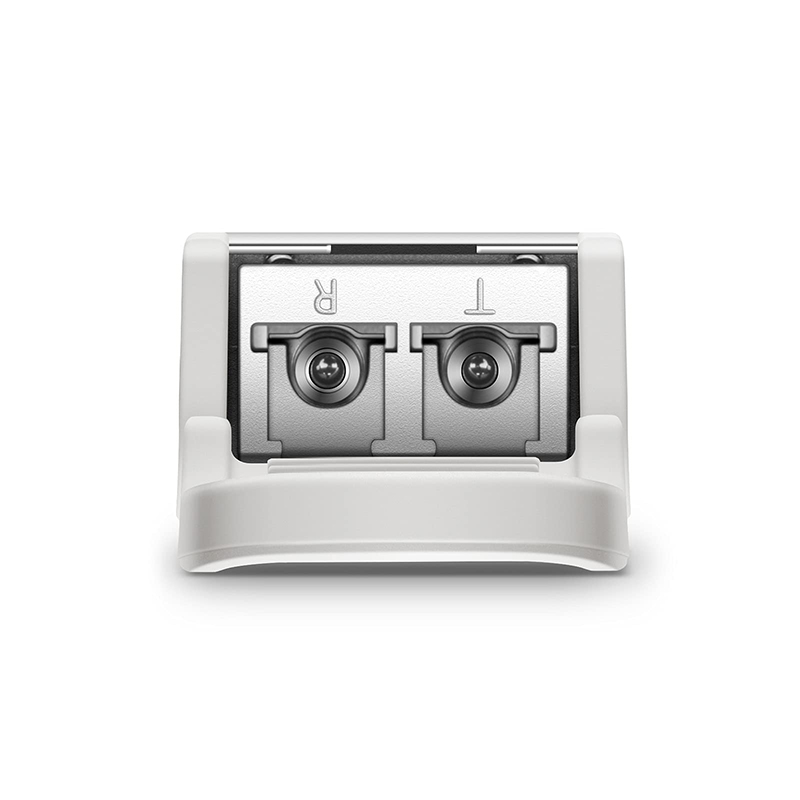

| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -4~5dBm |
| Receiver Sensitivity | <-6dBm |
| Power Consumption | ≤3.5W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | 40G Ethernet, IEEE802.3ba-2010, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Providing end-to-end DWDM devices with almost all optical elements - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Providing high reliability and performance products with mature, efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, providing the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test the quality, but you will need to pay the shipping fee.
Items are ready to ship for stock orders, and it takes 15-30 days for mass production.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your requirements.
We bring 19 years of production experience and have been a trusted partner for major international industry companies for many years.
