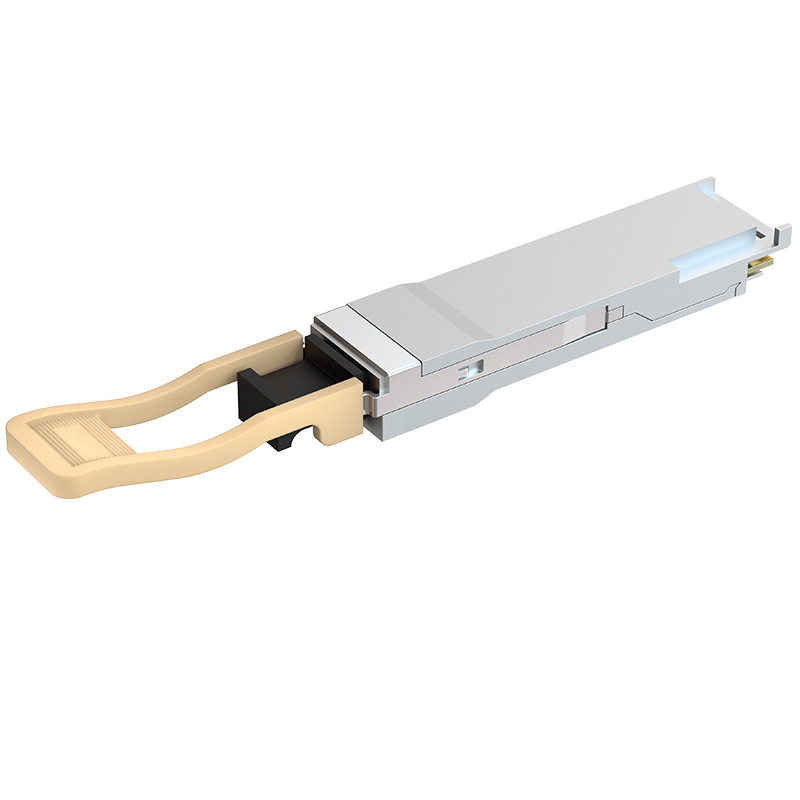

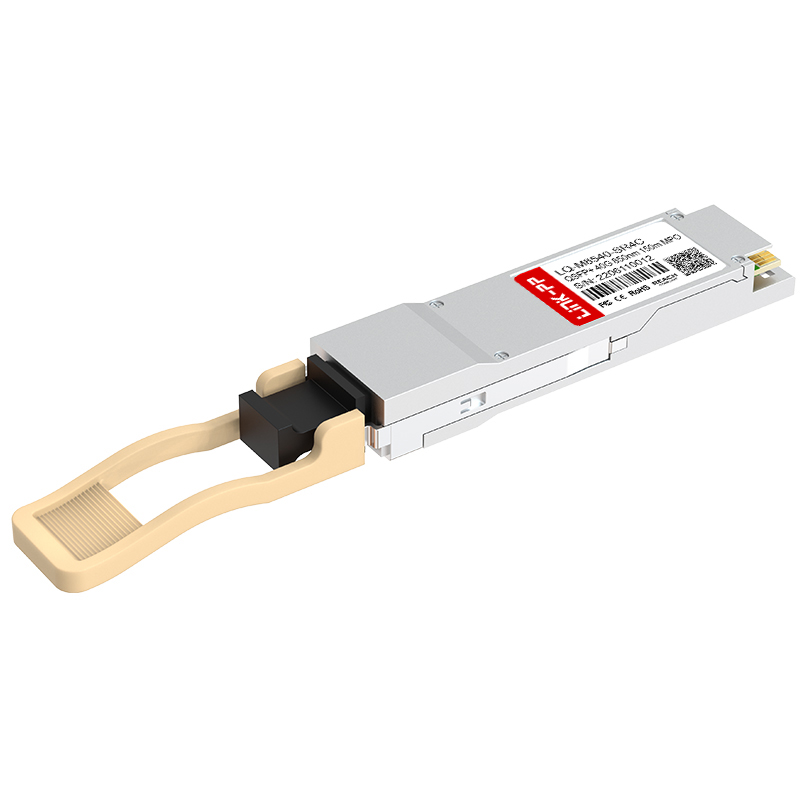

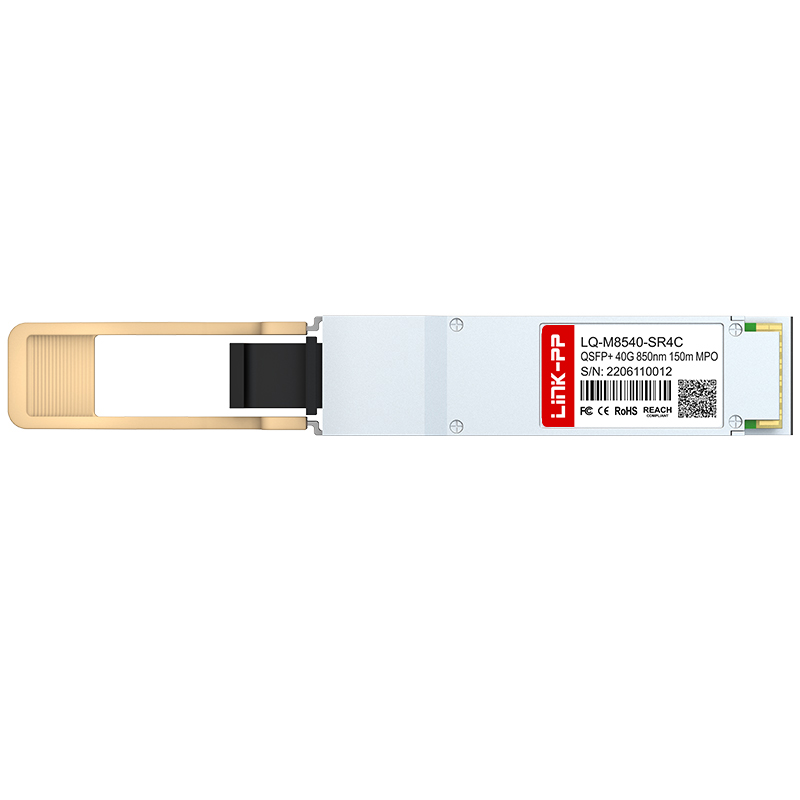

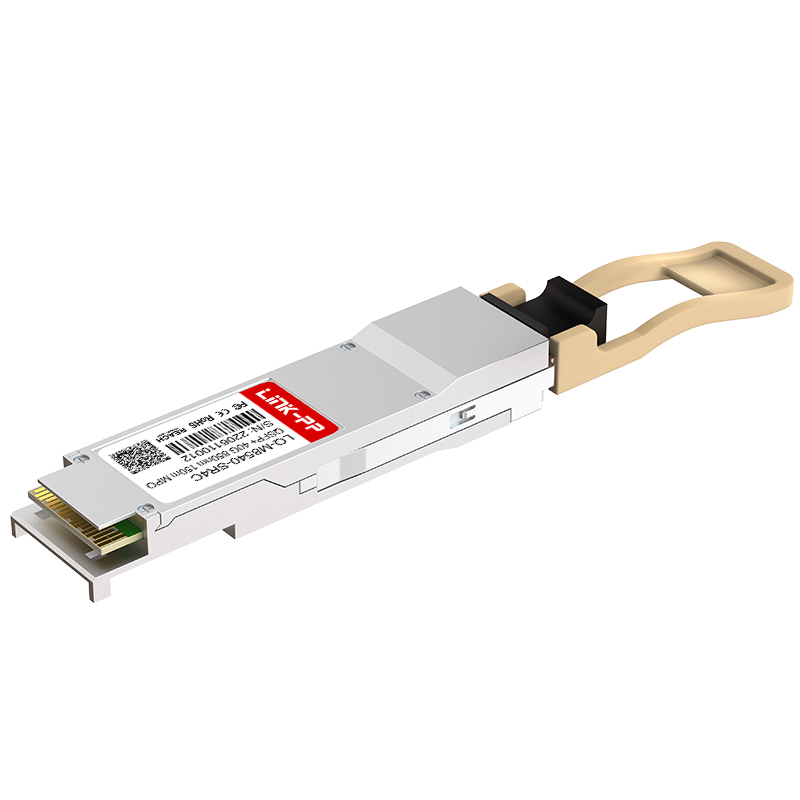

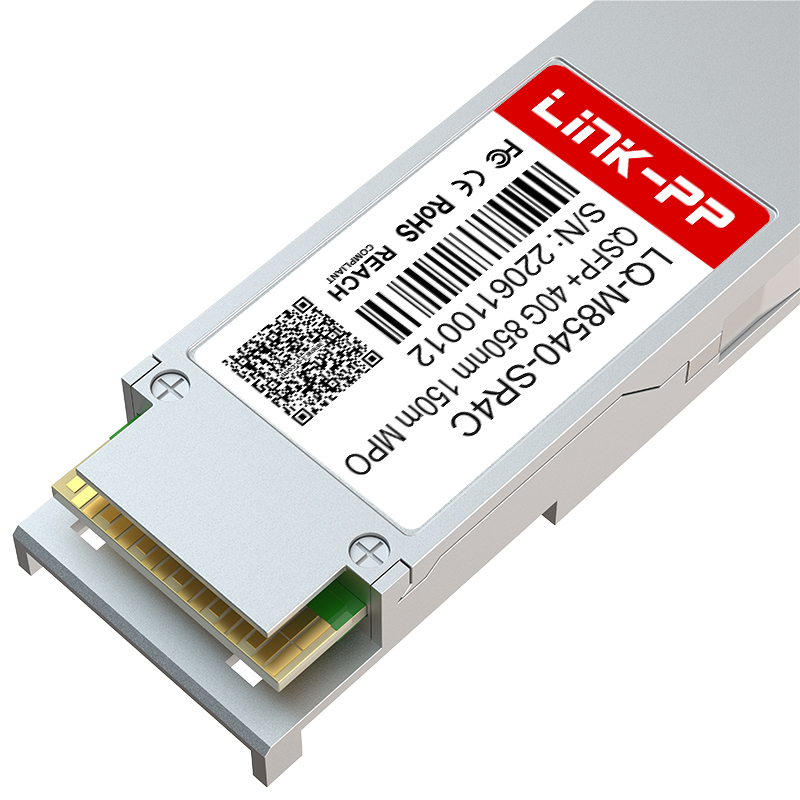

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
1 / 5
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m

Send Inquiry

Product Description

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
Products Description
Item 40G Optical Modules
Replaceable Part Cisco, HW, Arista, Juniper, Brocade, Intel, etc
Part Status Active
Form Factor QSFP+
Max Data Rate 41.25Gbps (4x 10.3125Gbps)
Wavelength 850nm
Max Cable Distance 150m@OM4/100m@OM3
Media MMF
Connector MTP/MPO-12 Male
Optical Component VCSEL/PIN
TX Power -7.1~1.9dBm
Receiver Sensitivity < -10.3dBm
Powerbudget 3.5dB
Receiver Overload 2.4dBm
Power Consumption ≤1.5W
Extinction Ratio >3dB
DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Warranty 5 Years
Sample Available
