SS-7188VS-A-NF-50 HL-5202-88-111xxx XRJV-S-01-8-8-2 Vertical RJ45 Jack without Magnetics

Product Description

Product Categories

SS-7188VS-A-NF-50 HL-5202-88-111xxx XRJV-S-01-8-8-2 Vertical RJ45 Jack without Magnetics

Products Description
Item RJ45 Female Connector
Bothhand Part Number SS-7188VS-A-NF-50 / HL-5202-88-111xxx / XRJV-S-01-8-8-2
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

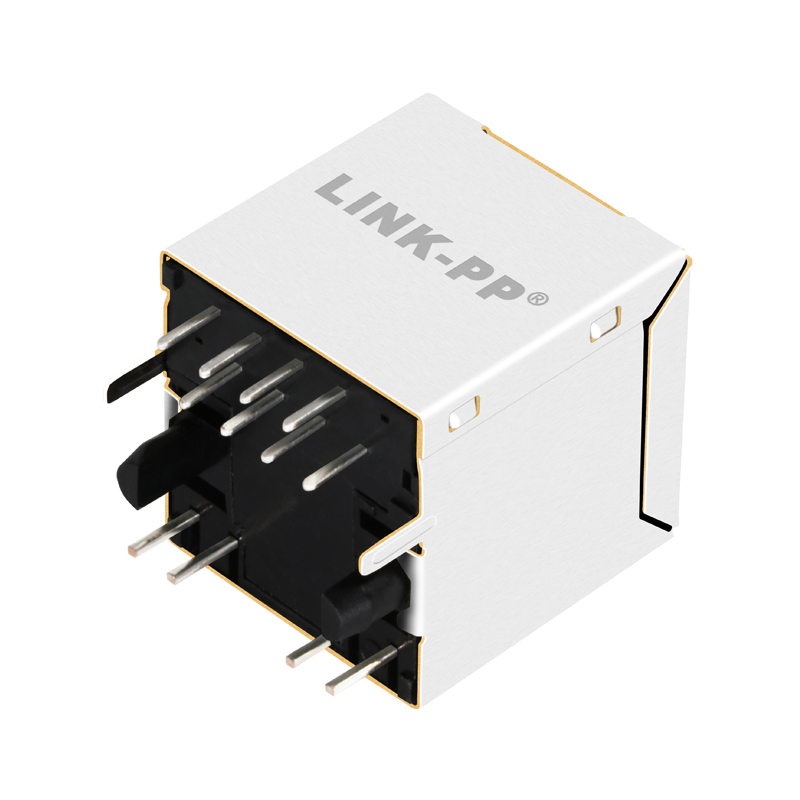

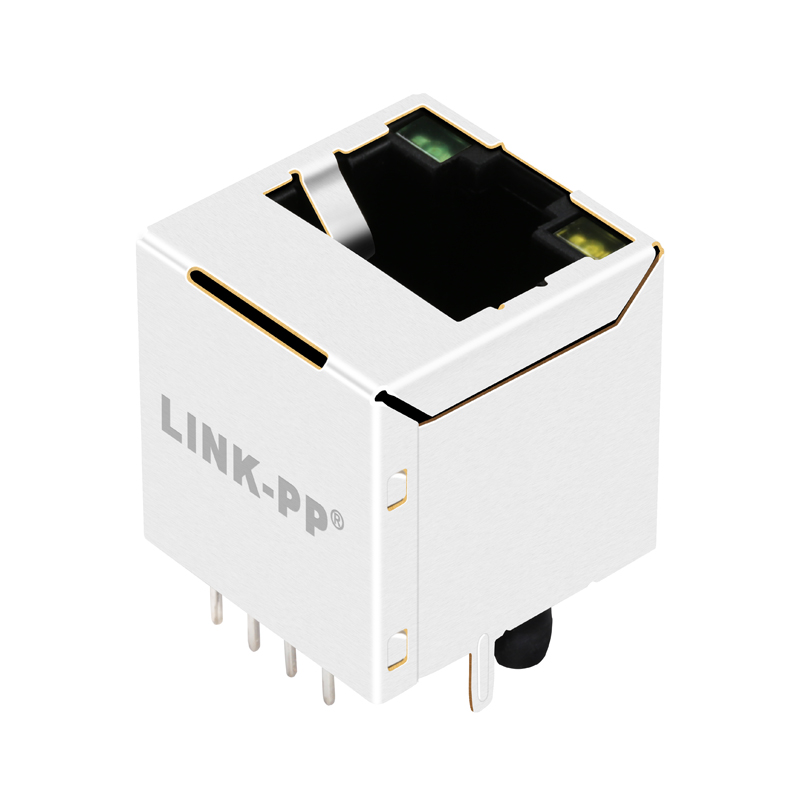

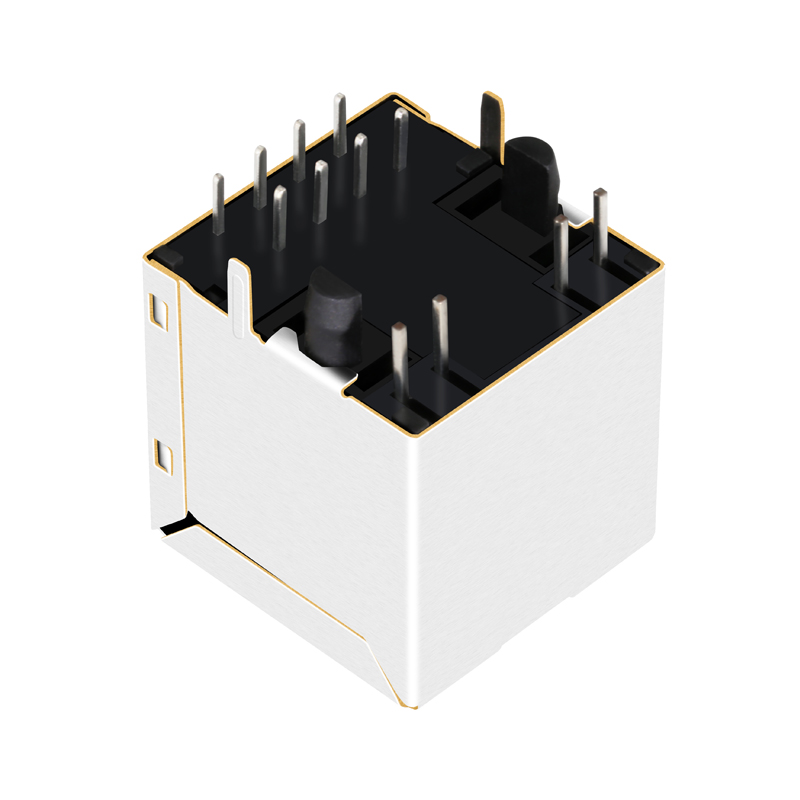

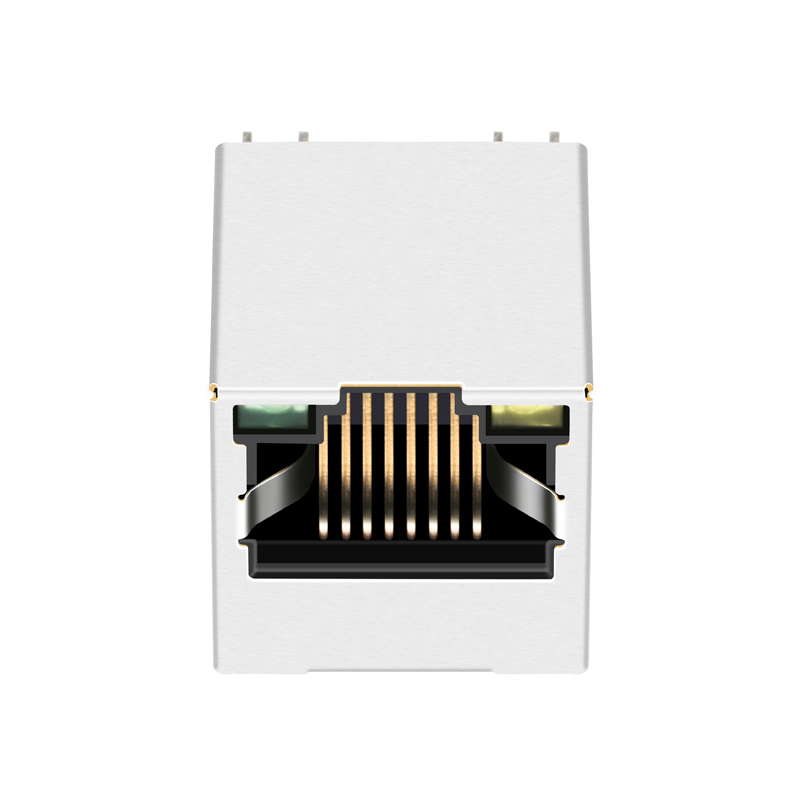

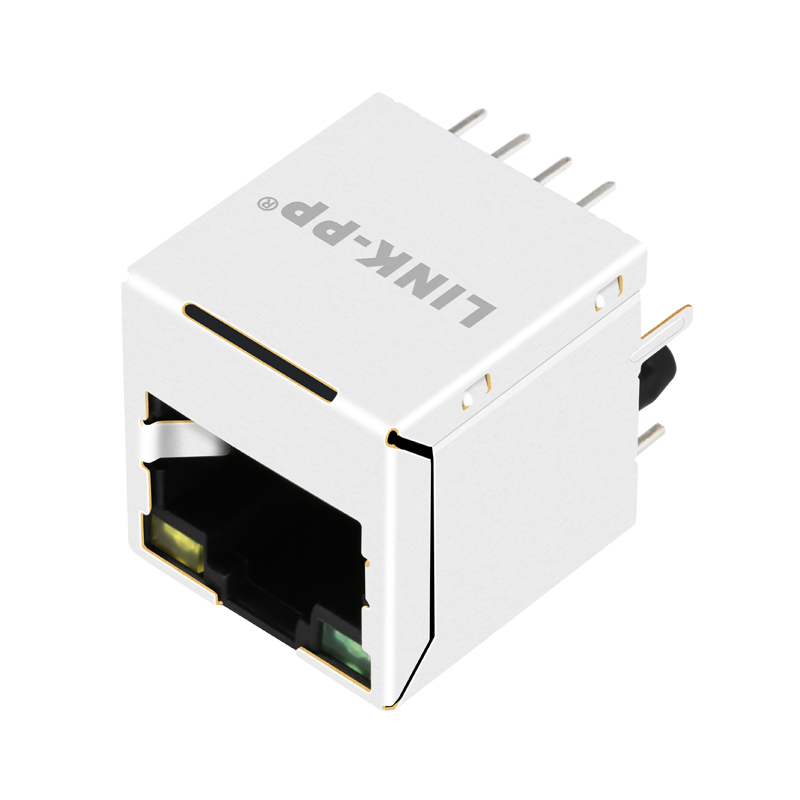

Product View 1 Product View 2
Dimension View 1 Dimension View 2 Dimension View 3 Dimension View 4
Click Below Products Link To Get More
Product Collection
Production Detail 1 Production Detail 2 Production Detail 3 Production Detail 4 Production Detail 5 Production Detail 6
