Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1

Product Description

RJ45 Connector Range Overview
LAN Transformer Range Overview
Send Inquiry To Get Latest Price List

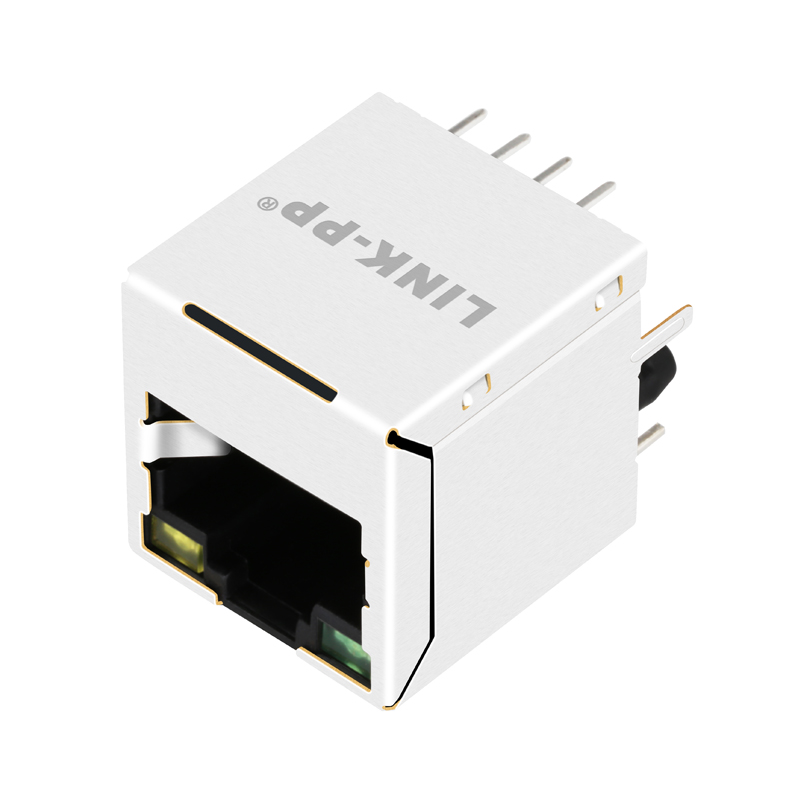

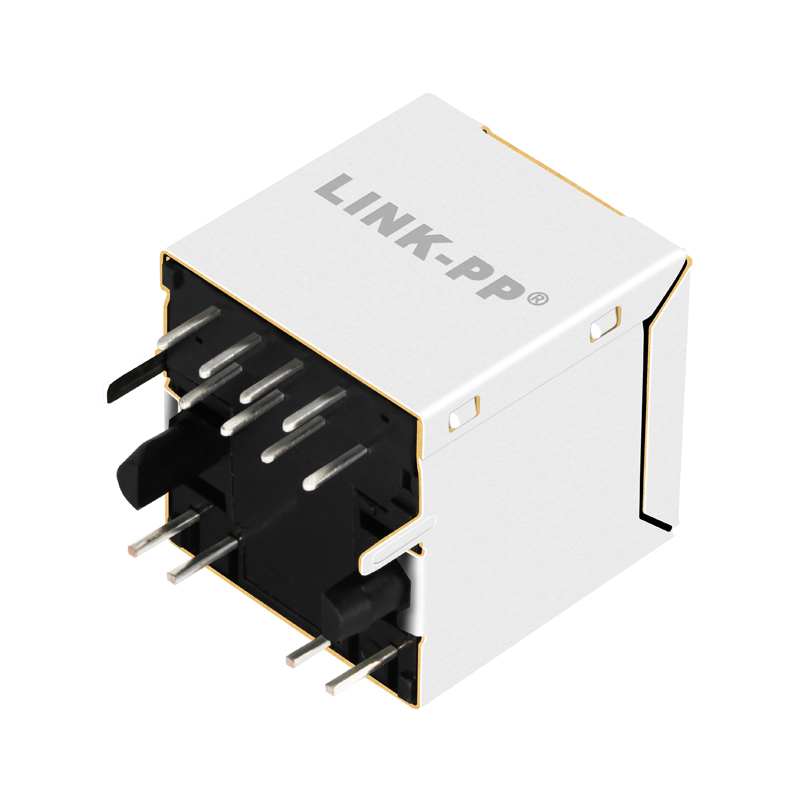

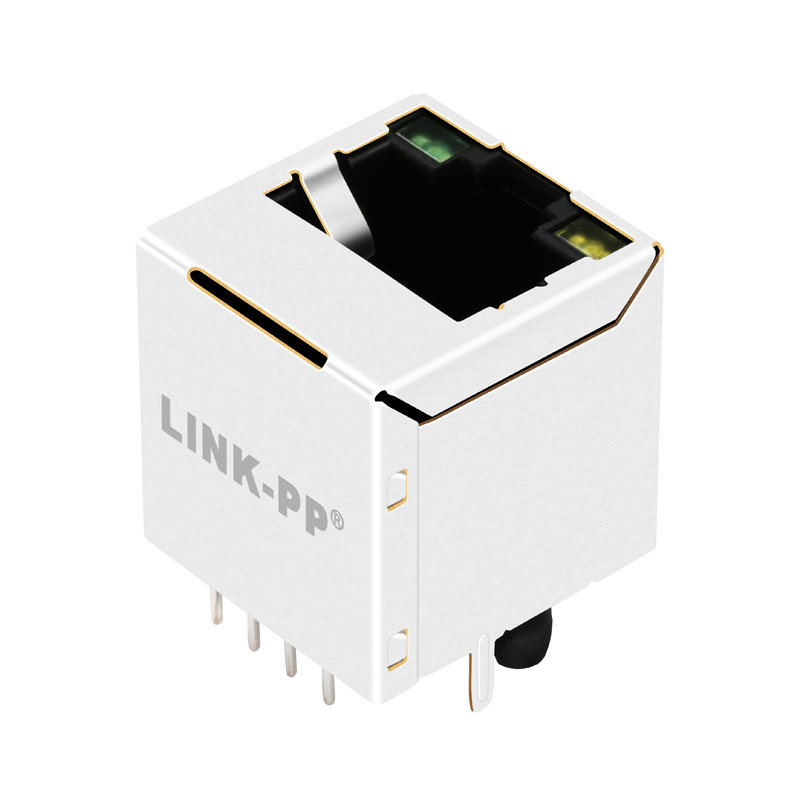

Ethernet RJ45 Vertical Jack Female Connector Side View Ethernet RJ45 Vertical Jack Female Connector Angled View
Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1

Products Description

Item RJ45 Female Connector
Part Number 1840453-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up And Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

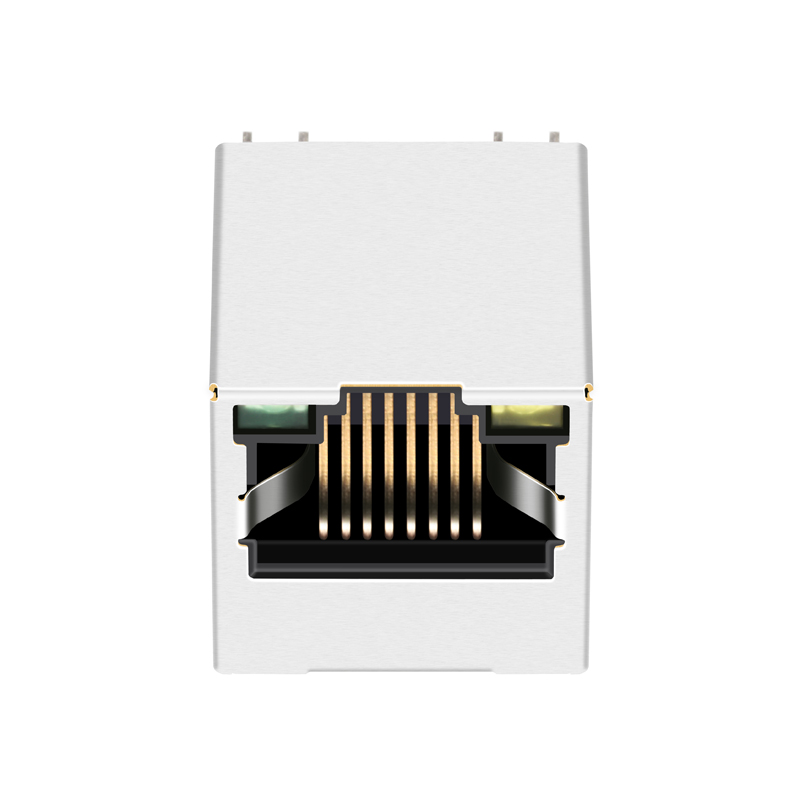

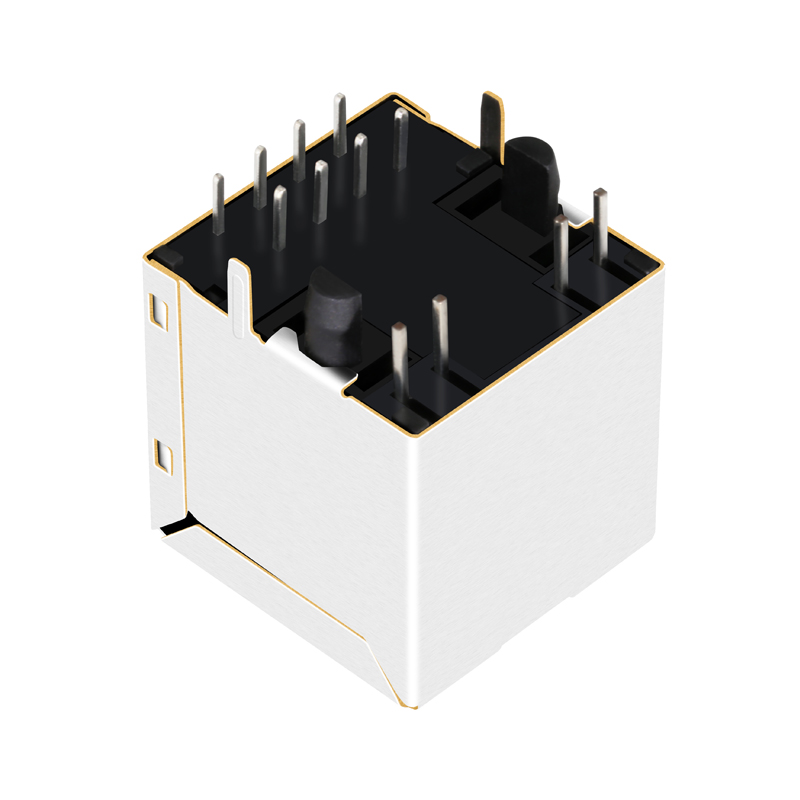

RJ45 Socket Dimensions RJ45 Female Jack Design Diagram RJ45 Port Detail View Vertical RJ45 Mount Pins Ethernet Jack Side Profile Magnetic RJ45 Female Socket Inside View Female Connector Front Interface
RJ45 Detailed Specifications Drawing

Why Choose Us

Strict Quality Control Standards Advanced Automatic Production Lines Professional Testing Equipment Comprehensive Global Certifications

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE, and UL, owning advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2,000 staff at present. With the abundant productive capacity of 3,000K per month, we are able to deliver goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.

We have exported our products to more than 30 countries and regions worldwide, covering major destinations including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher standards will convince you to establish a long-term partnership with us.

Production Workshop View 1 Production Workshop View 2 Quality Inspection Center Advanced Automated Machinery

Frequently Asked Questions

1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you would be responsible for the shipping fees.
3. What is your delivery time?
We have products ready to ship for standard stock items, and the typical lead time for mass production ranges from 15 to 30 days.
4. What after-sales service can you offer?
We offer a one-year warranty period and provide 24-hour online technical support to assist you with any inquiries or installation help.
5. Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please feel free to send your inquiry containing detailed specifications so we can discuss them further.
6. What is your advantage?
We bring over 19 years of dedicated production experience in the field of networking components and maintain long-term partnerships with leading global enterprises.
Quality Certification Badges
