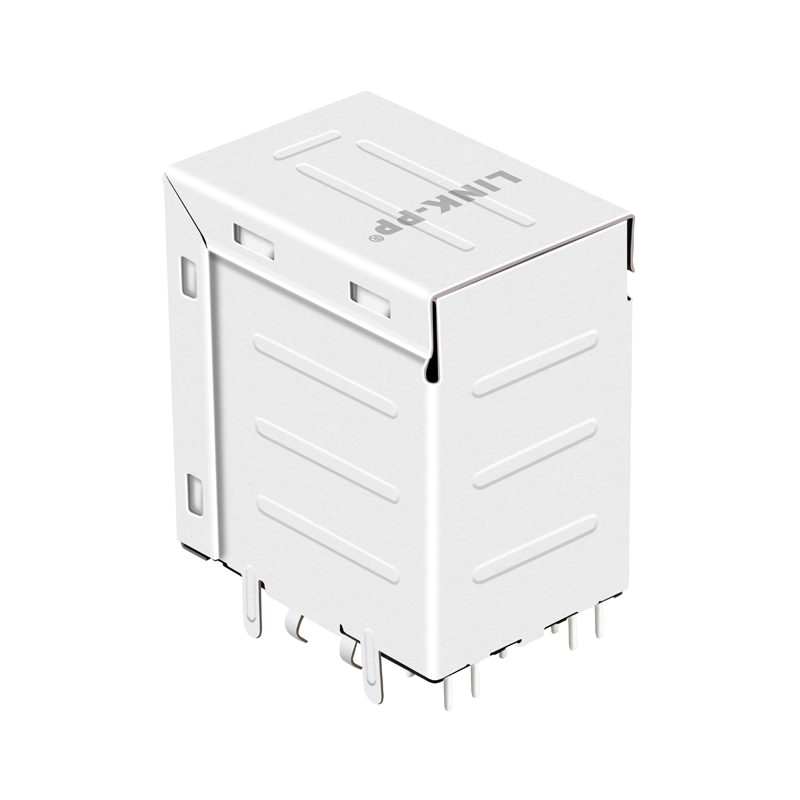

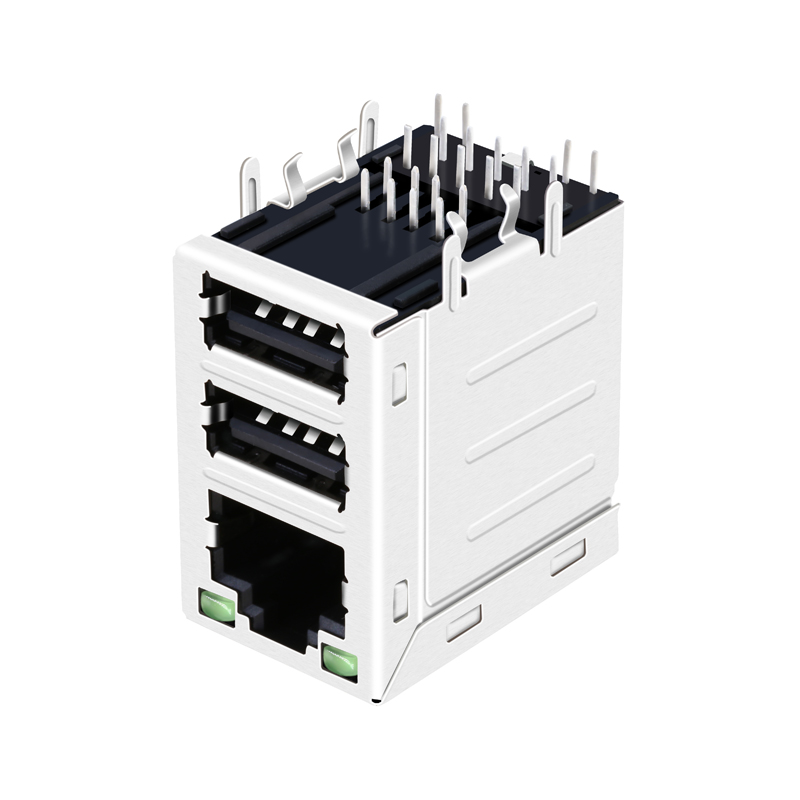

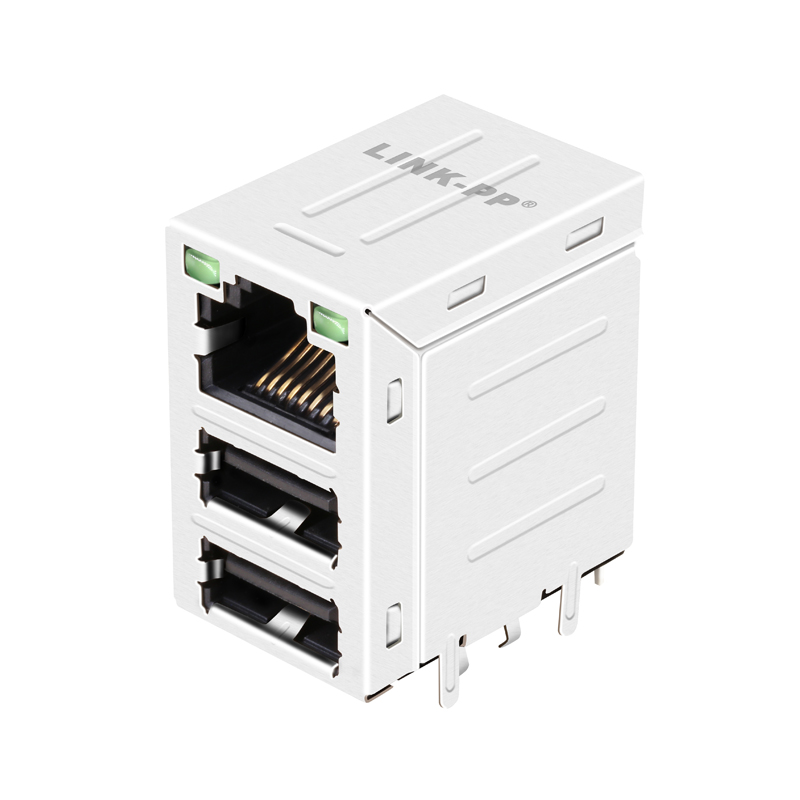

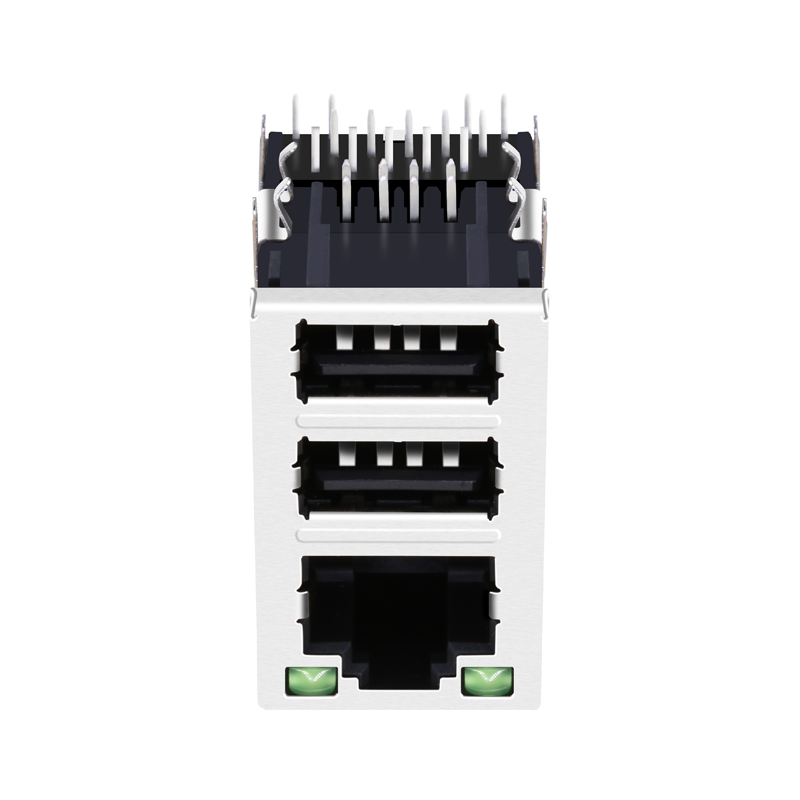

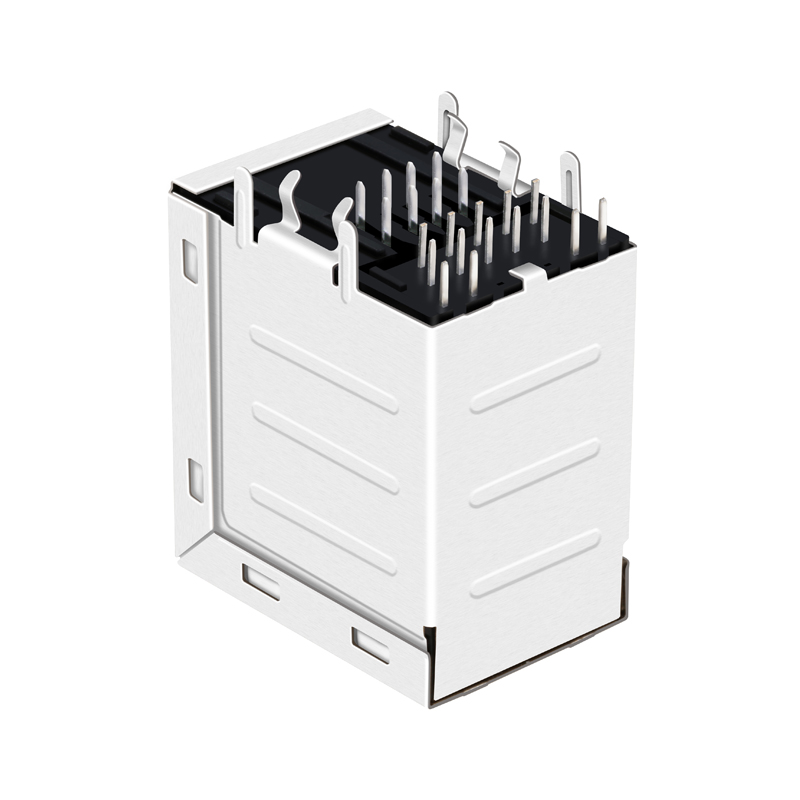

USB 3.0 to RJ45 Connectors HR981121C

Product Description

USB 3.0 to RJ45 Connectors
USB 3.0 to RJ45 Connectors HR981121C
Products Description
Item RJ45 Female Connector
Compatible With HR981121C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Diagram
☞ More Associated Product Series ☞
Related RJ45 Connectors Overview
Connector Detail 1
Connector Detail 2
Connector Detail 3
Manufacturing Detail 1
Manufacturing Detail 2
Manufacturing Detail 3
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading provider of Ethernet RJ45 connectors and LAN transformers.
Production Facility 1
Production Facility 2
Production Facility 3
FAQ
Q1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee would be covered by your side.
Q3 What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes between 15 to 30 days.
Q4 What after-service support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5 Can you accept OEM/ODM orders?
Yes, we can. Please contact us directly with your specifications so we can initiate a detailed discussion.
Q6 What is your core advantage?
We possess over 19 years of professional production experience and have partnered with major global technology leaders for many years.
