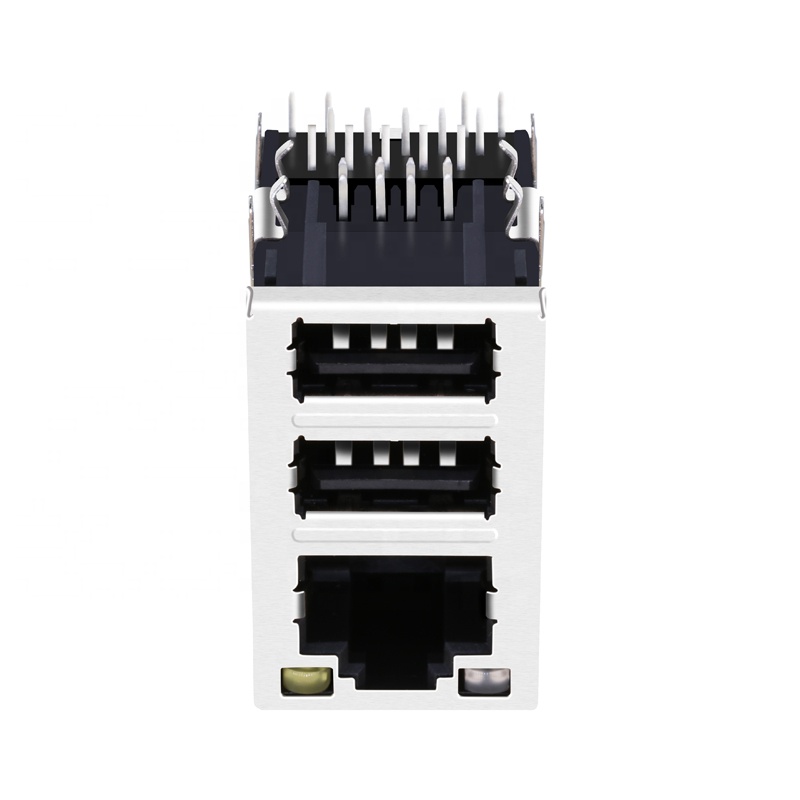

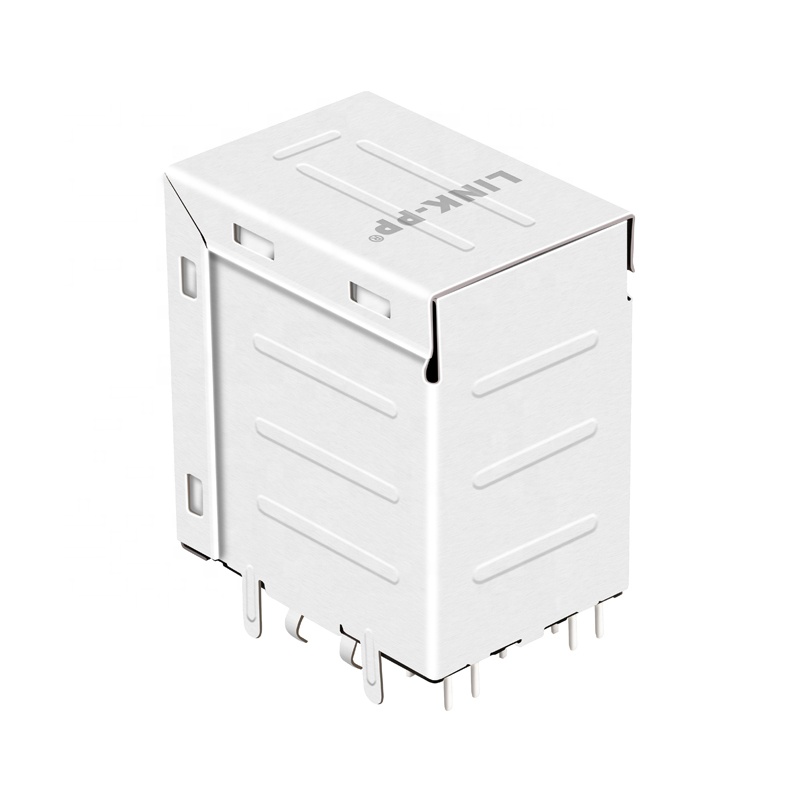

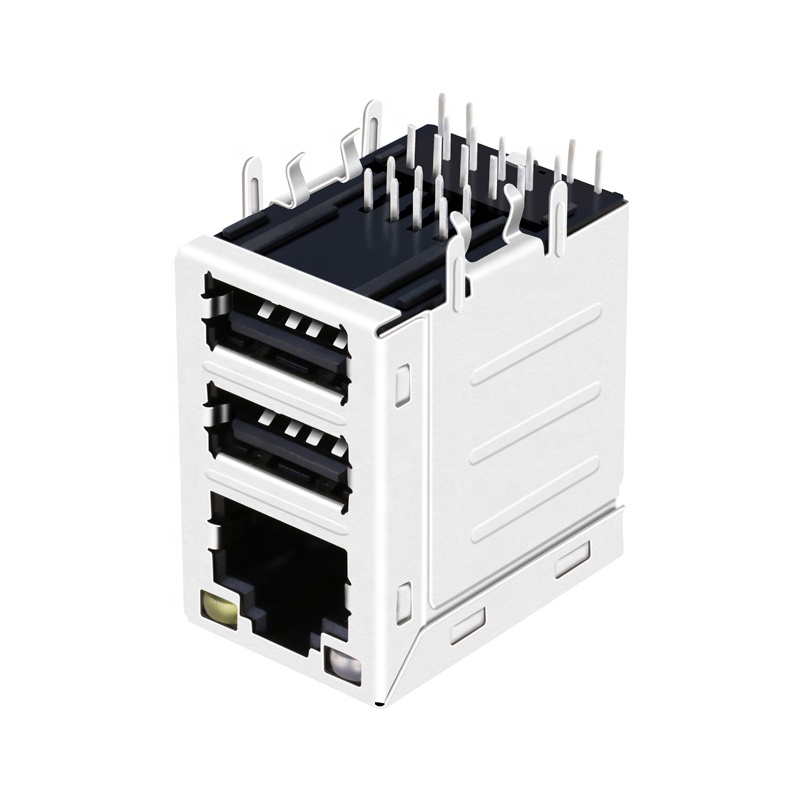

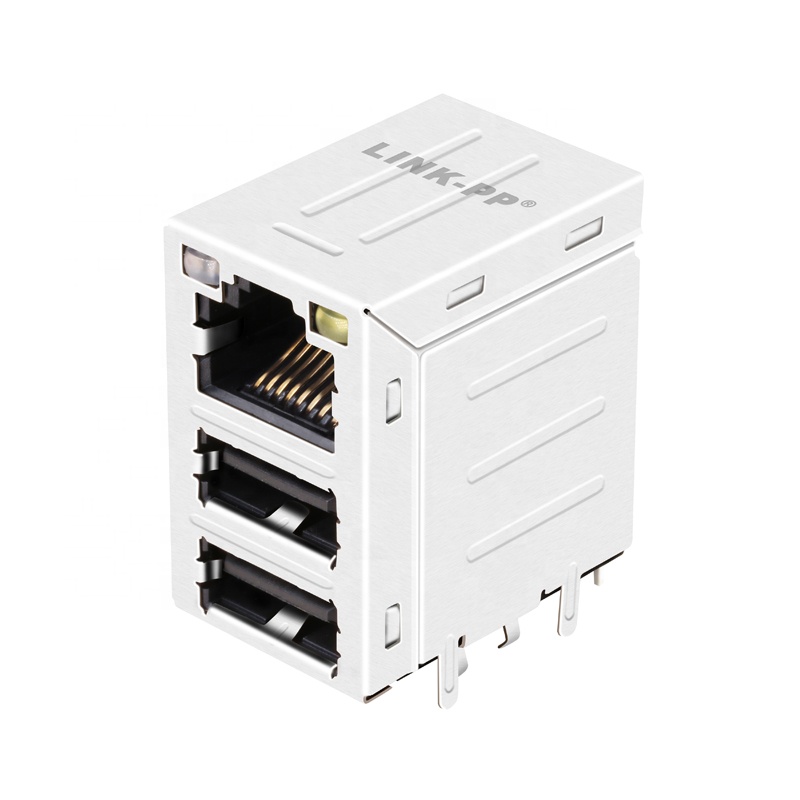

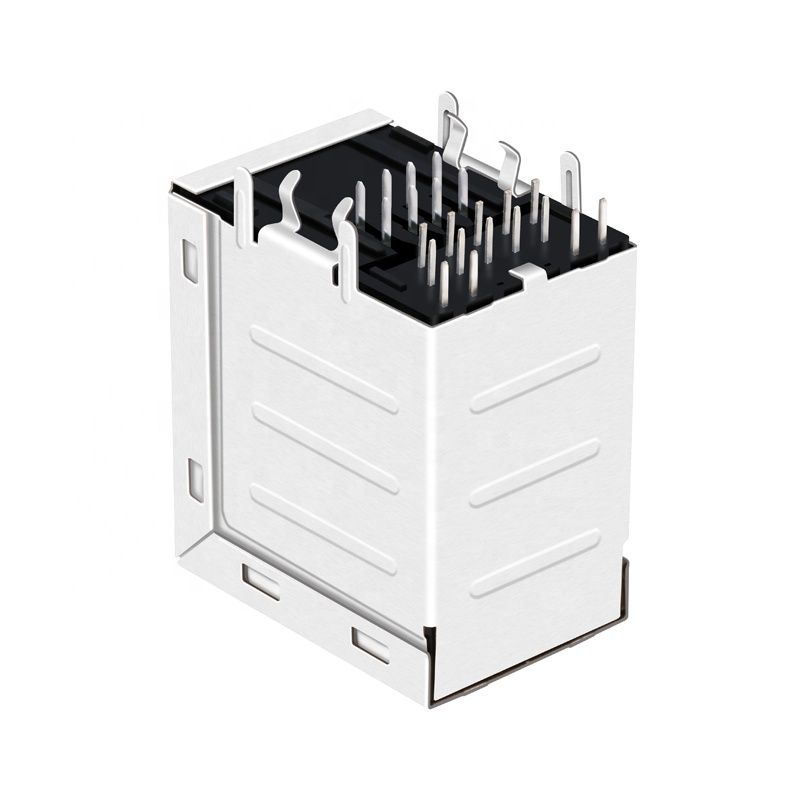

| Item | RJ45 Female Connector |
| Part Number | RU1-161A9WGA |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 12 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our facility features advanced manufacturing units and high-precision testing equipment. Established in 1997, our workforce consists of approximately 2000 employees. With a monthly production capacity of 3000K units, we ensure short delivery lead times alongside professional technical support and comprehensive solution development.
Main Products:
• 10/100/1000M LAN pulse transformer and filter
• RJ45 connector with 10/100/1000M magnetic
• T1/E1, T3/DS3/E3/STS-1 interface line transformer
• ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely integrated into networking and communication equipment like HUBS, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems. We supply globally to over 30 countries and regions including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering department is dedicated to designing and custom manufacturing tailored solutions according to unique specifications.
