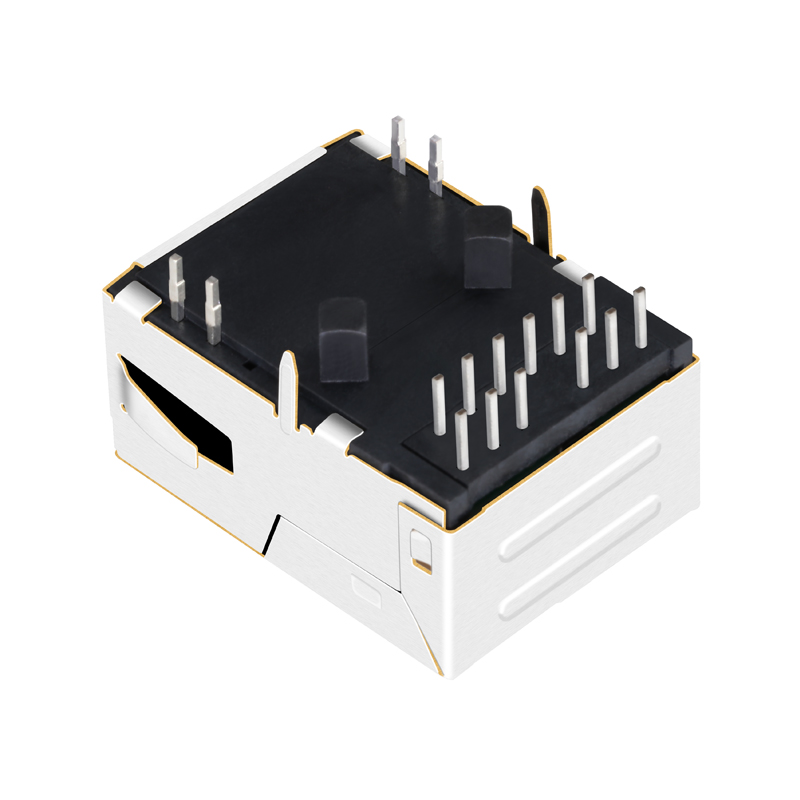

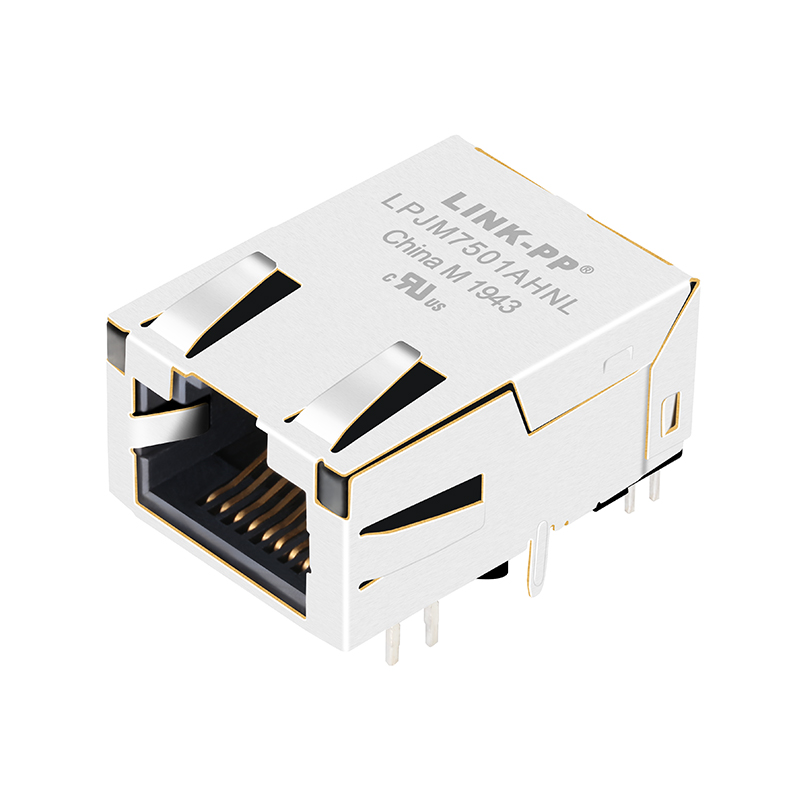

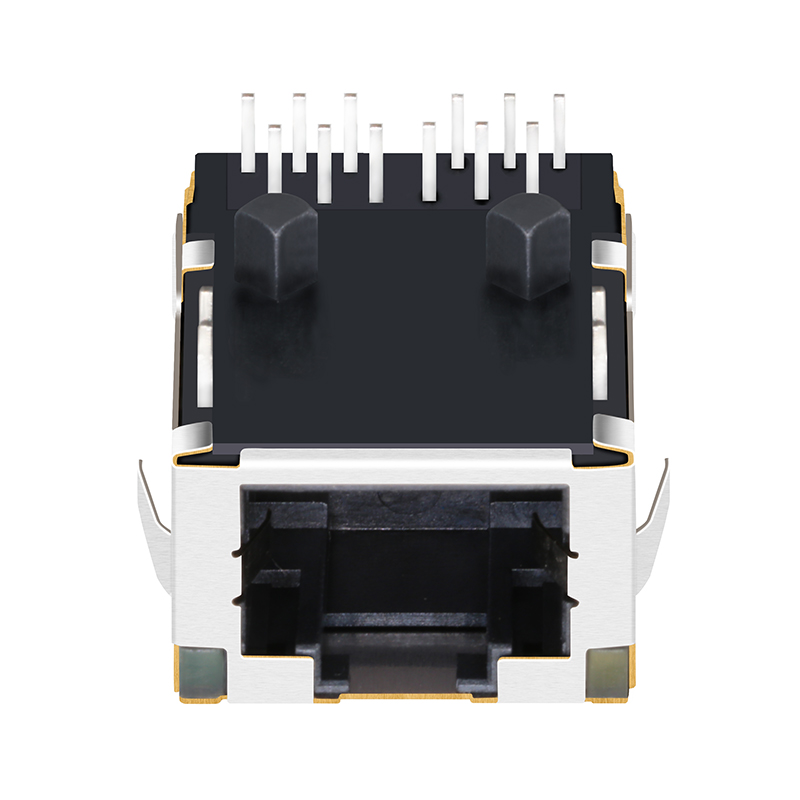

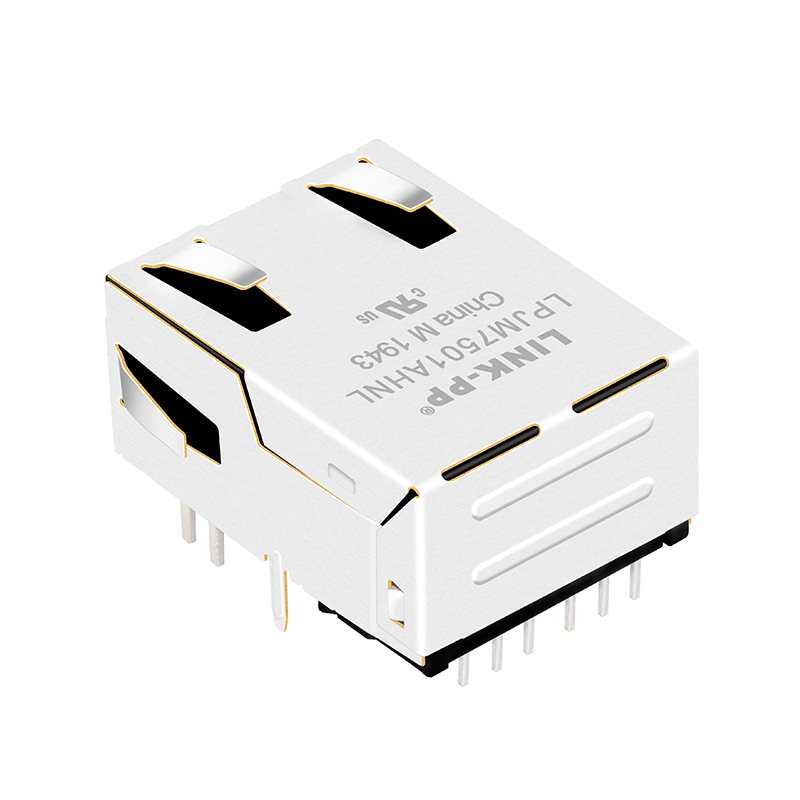

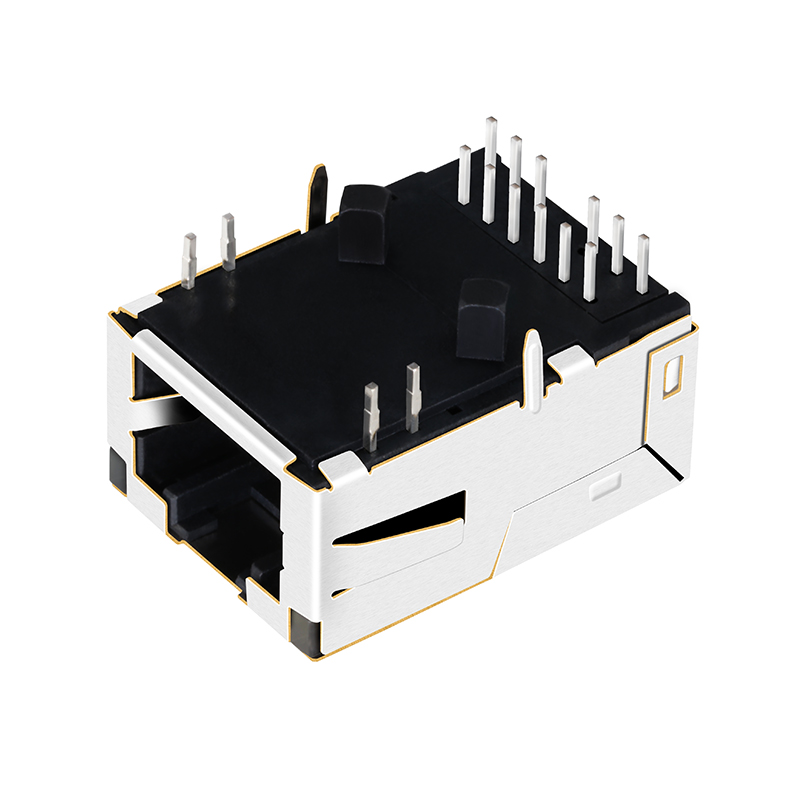

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
1 / 5
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector

Send Inquiry

Product Description

Tab Up Shield 1 Port RJ45 Jack
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJM7501AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 5G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product details
Product range details
Technical drawing 1 Technical drawing 2 Technical drawing 3 Technical drawing 4 Technical drawing 5 Technical drawing 6
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we supply more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory view 1 Factory view 2 Factory view 3
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees are covered by the buyer.
What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your custom requirements.
What is your advantage?
We have 19 years of professional production experience and have partnered with major industry leaders for many years.
