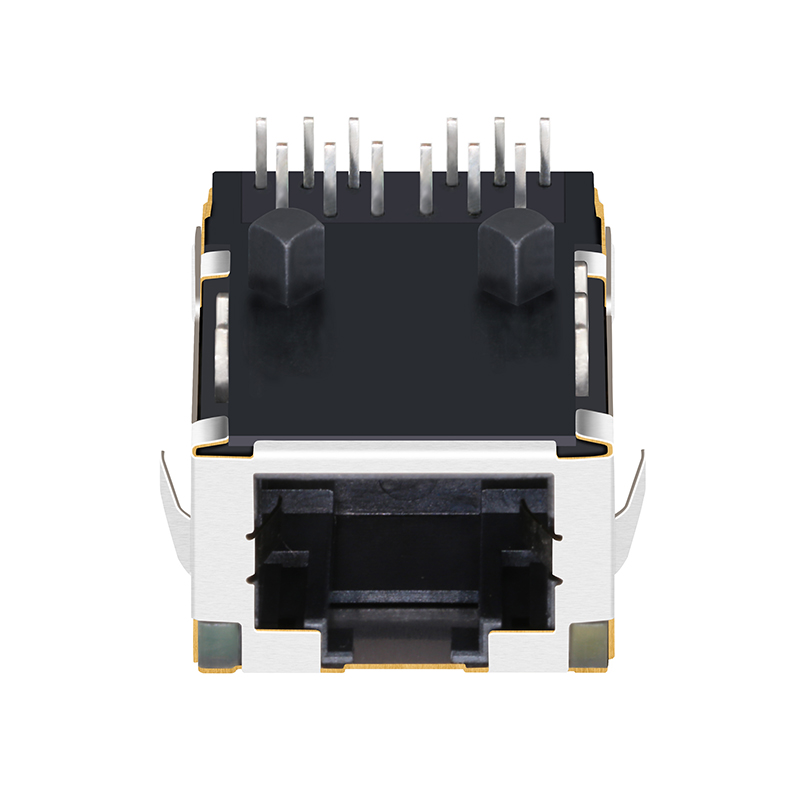

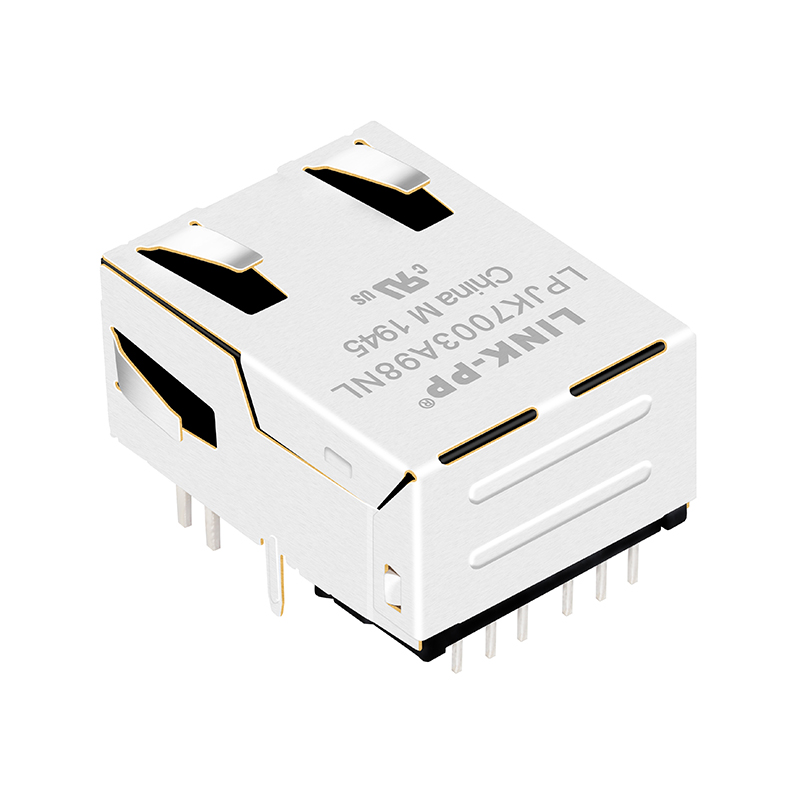

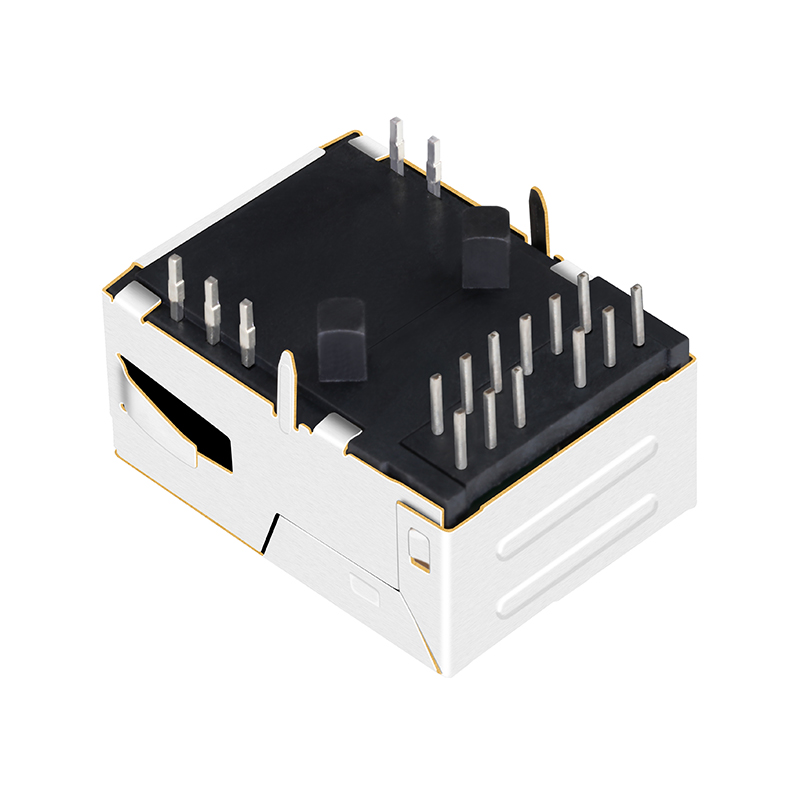

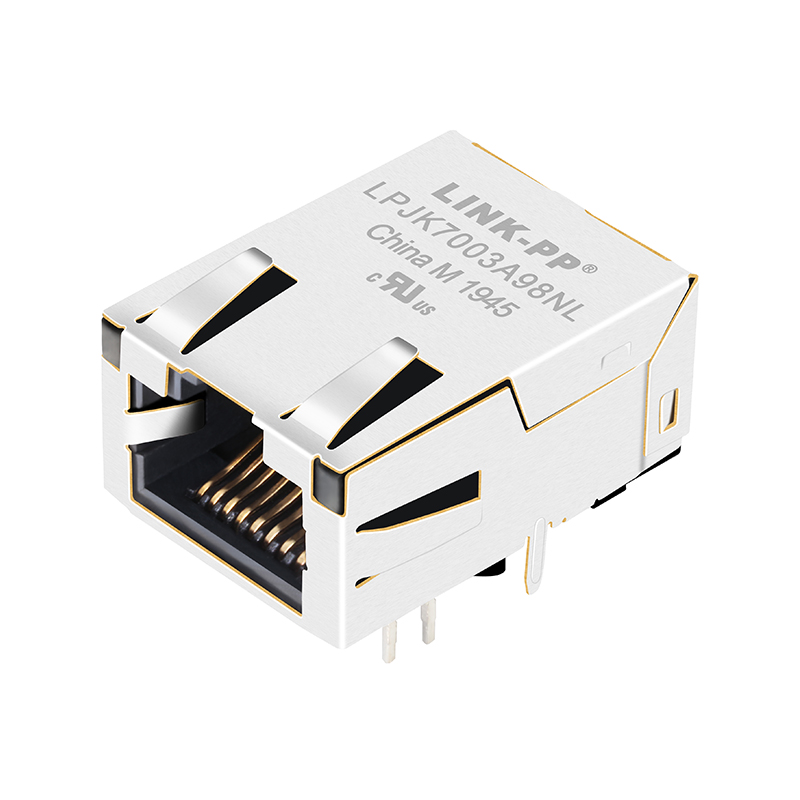

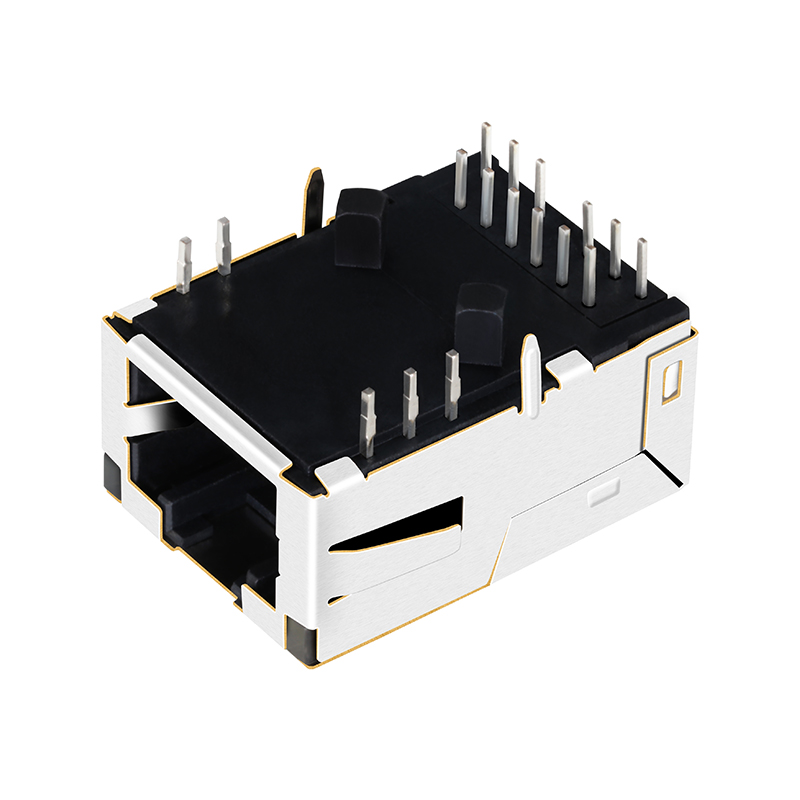

J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
1 / 5
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds
J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds

J0G-0001NL 10/100/1000 Base-t Tab up Ethernet Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet RJ45 Connectors Overview
J0G-0001NL 10/100/1000 Base-t Tab Up Ethernet Low Profile RJ45 Connector With Leds
Products Description
ItemRJ45 Female Connector
Part NumberLPJK7003A98NL
Compatible WithJ0G-0001NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchUp
Cores per Port8
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Technical Dimensions
Product Range Catalog Overview
Product Categories Grid
Product Diagram 1 Product Close-up View Product Detailed View
Schematics Illustration Production Display Quality Standard Verification
Industrial Package Specifications
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Plant Interior Automated Production Machinery Testing Equipment Setup
FAQ
1Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
3What is your delivery time?
We have items ready to ship for stock products, and it takes 15-30 days for mass production.
4What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5Can you accept OEM/ODM orders?
Yes, please contact us directly so that we can proceed with a detailed discussion regarding your requirements.
6What is your advantage?
We have 19 years of professional manufacturing experience and have partnered with global industry leaders for many years.
