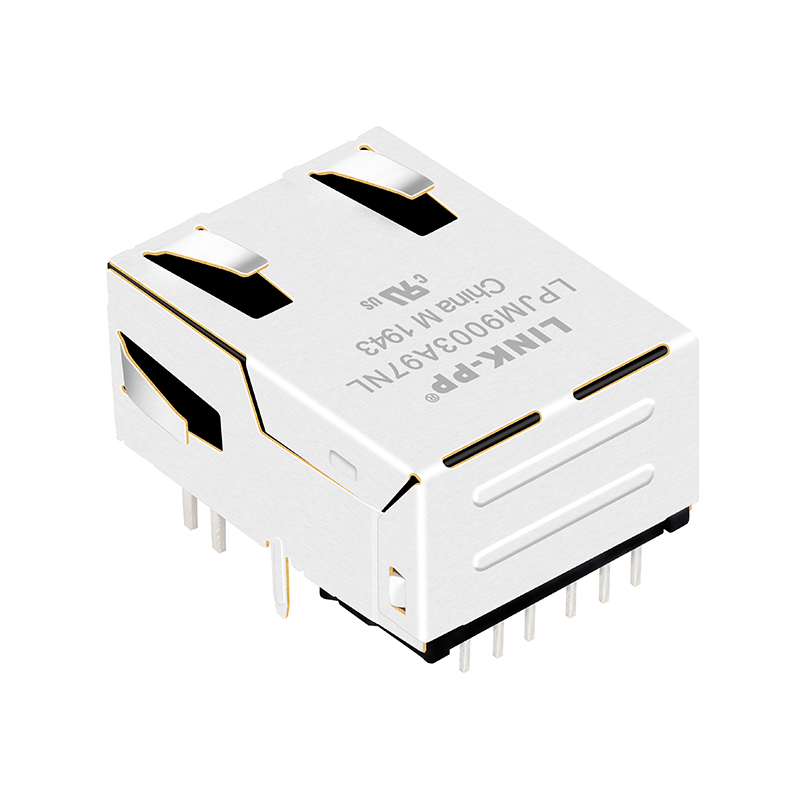

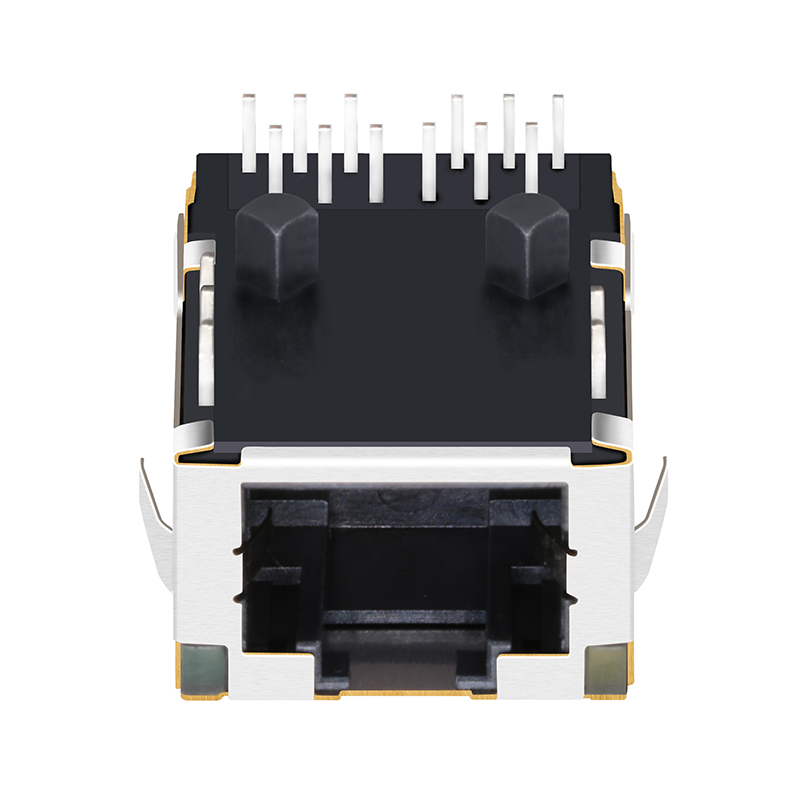

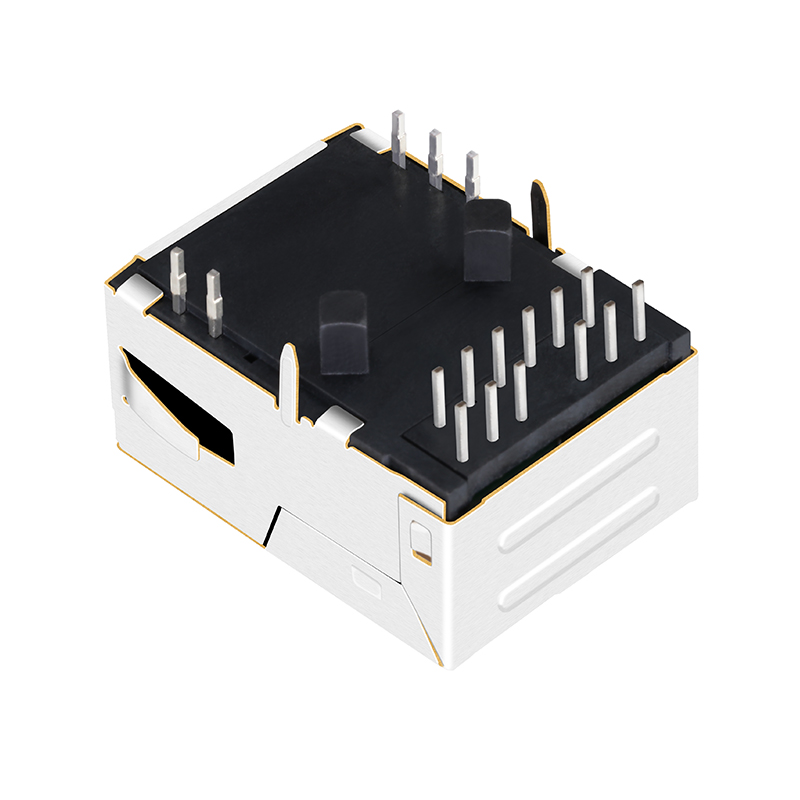

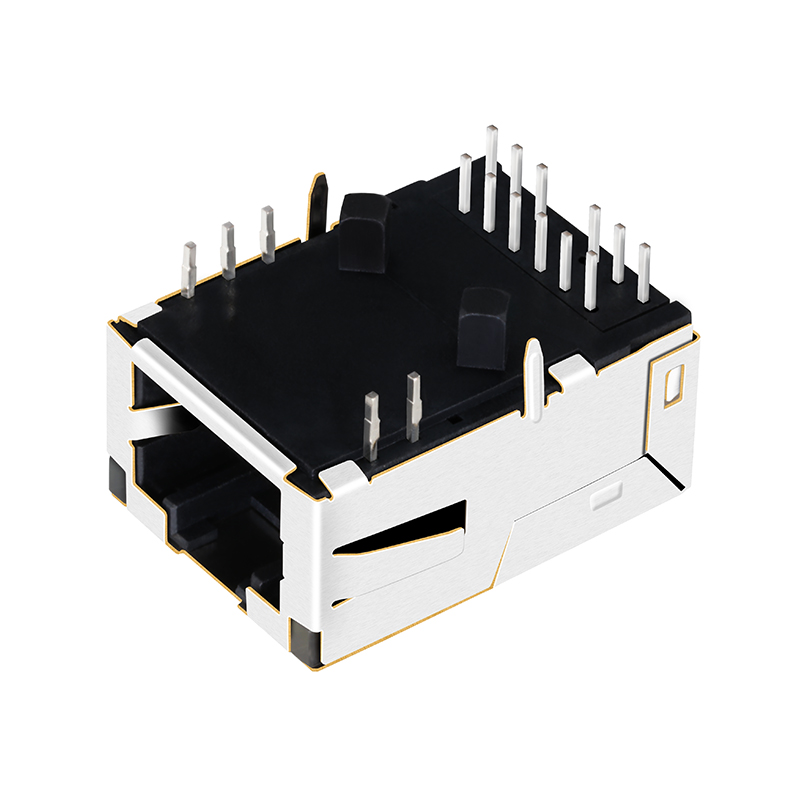

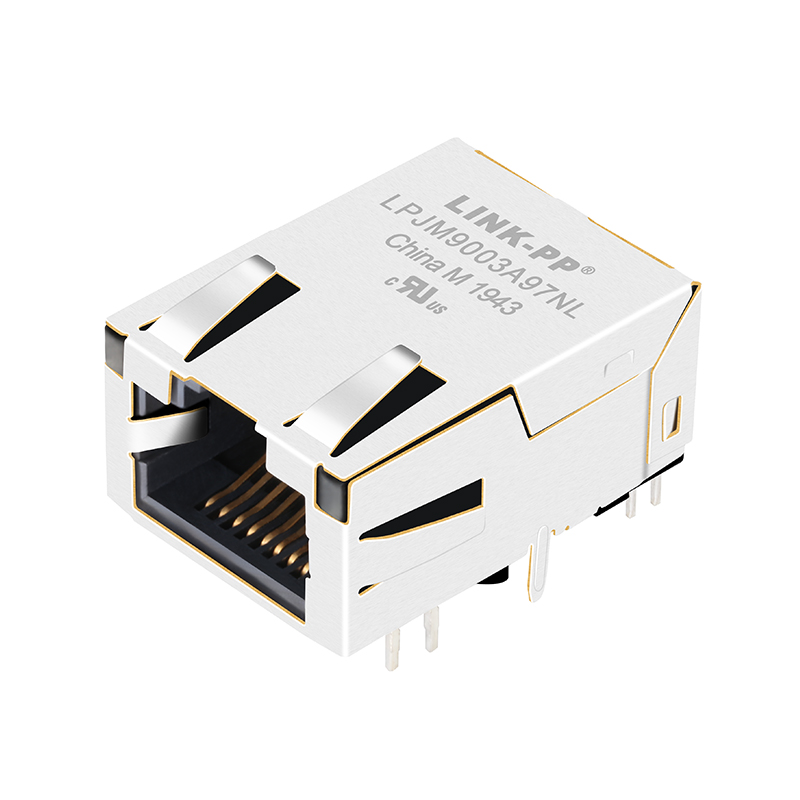

Tab Up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Products Description
Item RJ45 Female Connector
Part Number LPJM9003A97NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram Details
Discover More Related Product Range Below
Product Range Selection
Product Feature 1
Product Feature 2
Product Showcase 1
Product Showcase 2
Technical Specifications Overview
Quality Standard 1
Quality Standard 2
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers worldwide.
Production Facility 1
Production Facility 2
Production Facility 3
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
Ready items in stock are prepared for immediate shipment, while mass production typical lead time is 15-30 days.
4. What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so that we can have a detailed discussion on custom solutions.
6. What is your advantage?
We possess over 19 years of dedicated production experience and have partnered with major global industry leaders for many years.
