Product Description

Surface Mount 10 Pin 16 Pin SMT Magnetic Led Pcb Rj45 Female Connector Jack
SMT Magnetic RJ45 Female Connector Overview
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SMT
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

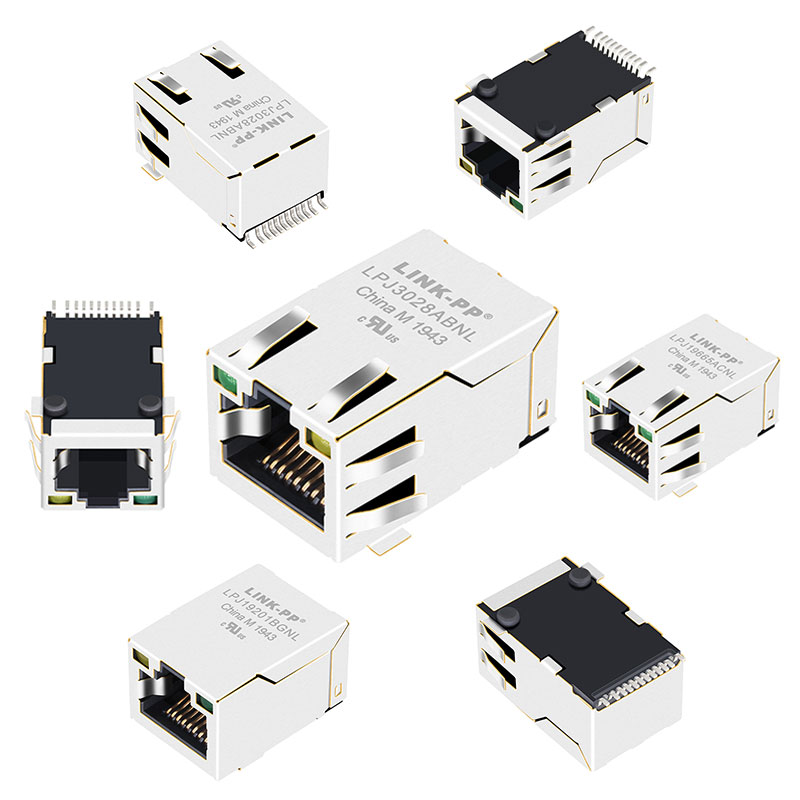

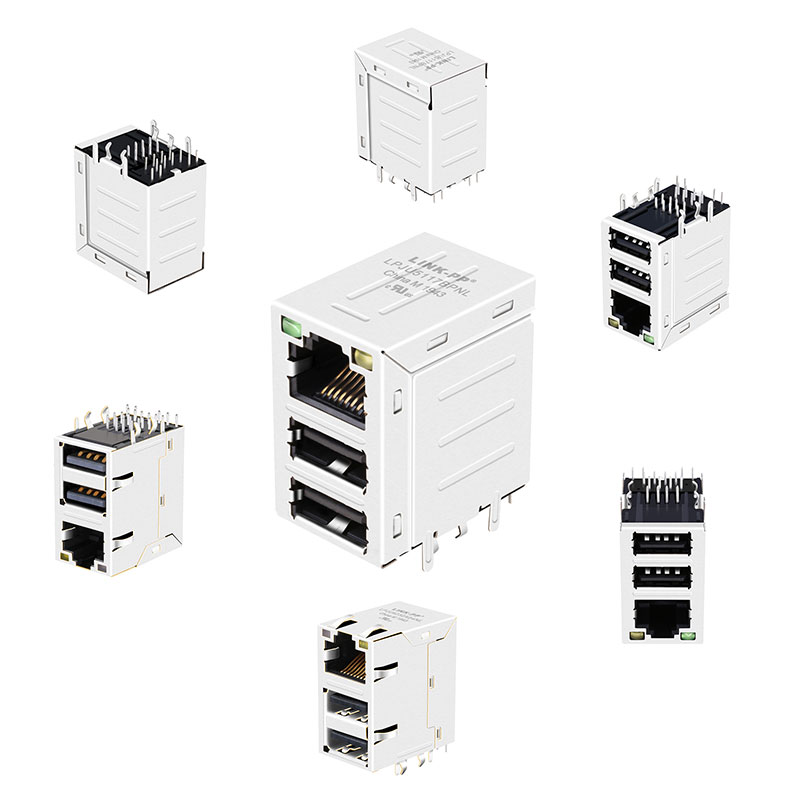

Product View 1
Product View 2
Product View 3
Product View 4

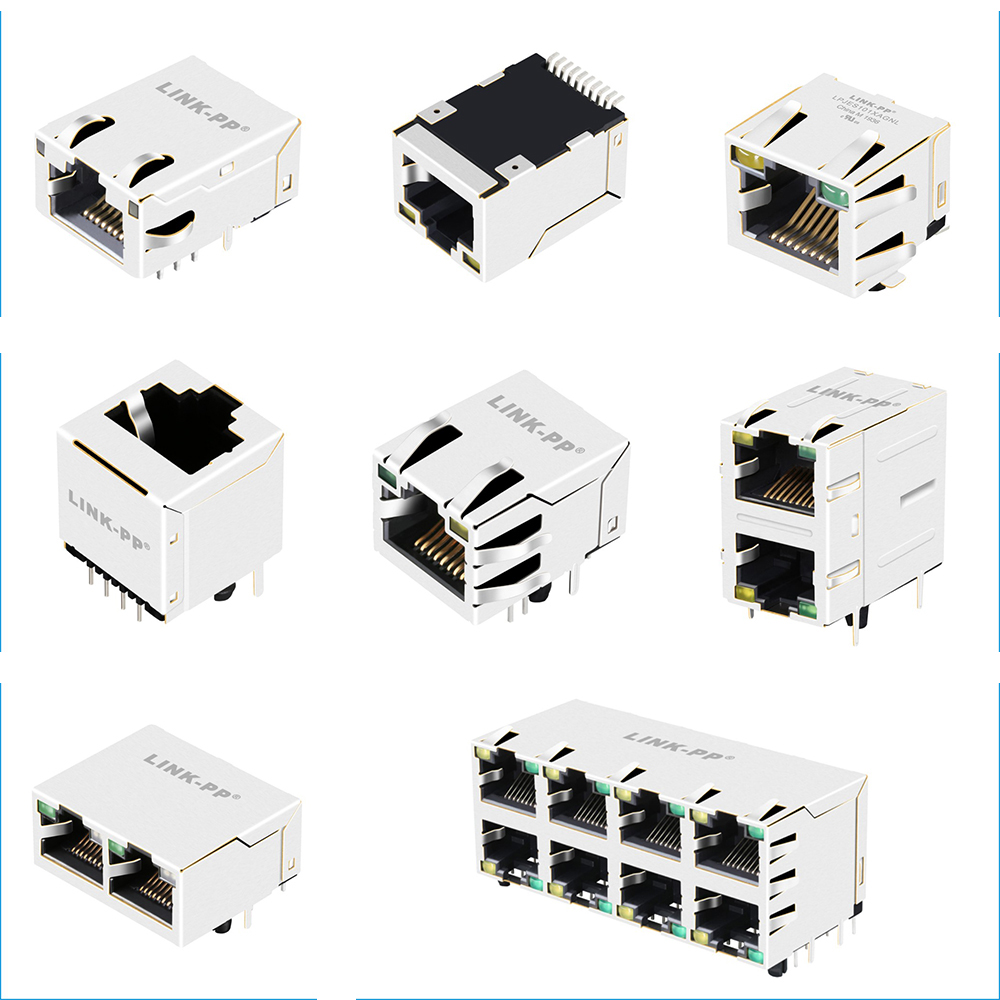

Product Layout Styles
Connection Options
Product Detailed Specification Diagram
Dimensional Specs
PCB Layout Recommendations
Electrical Characteristics Graph
Schematic Diagram
Manufacturing Specifications
Company Profile
