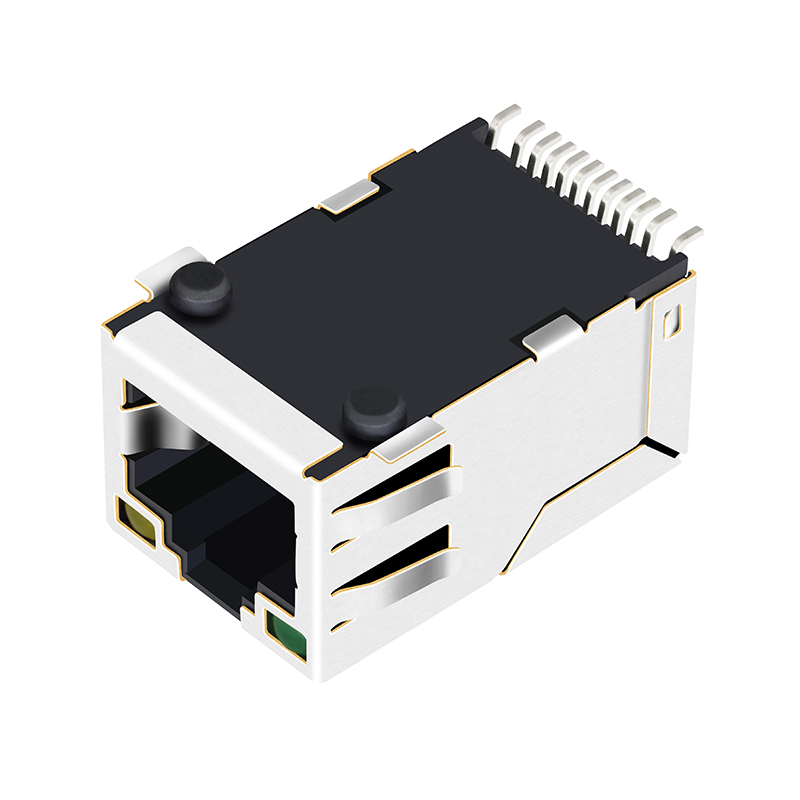

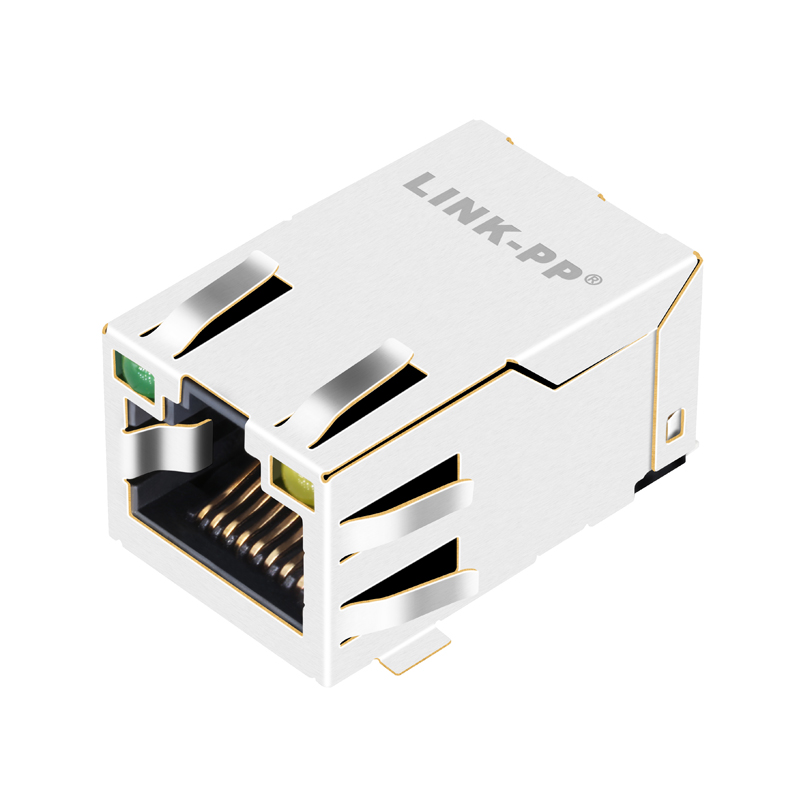

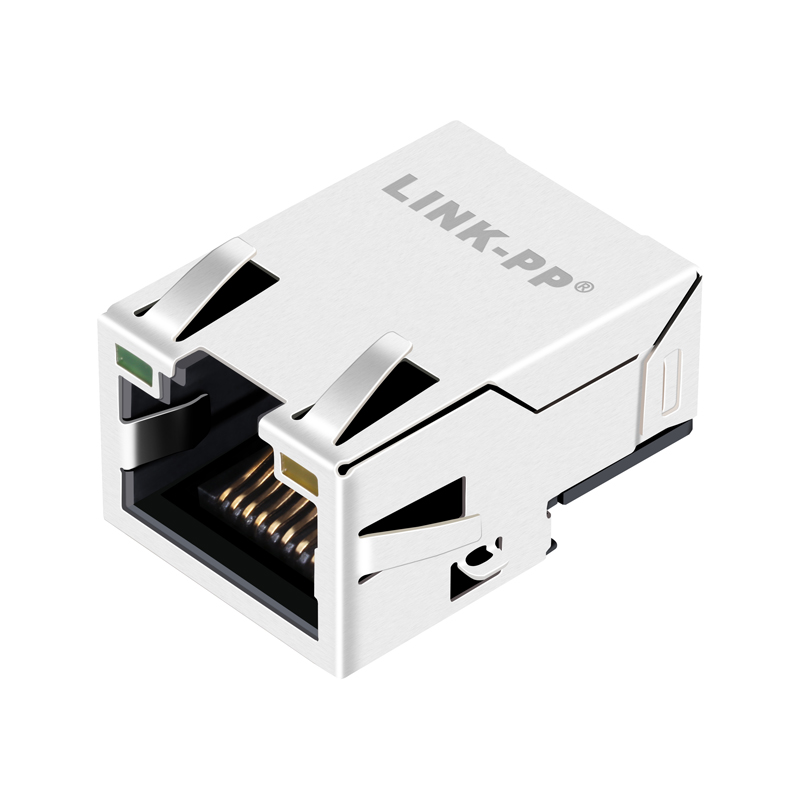

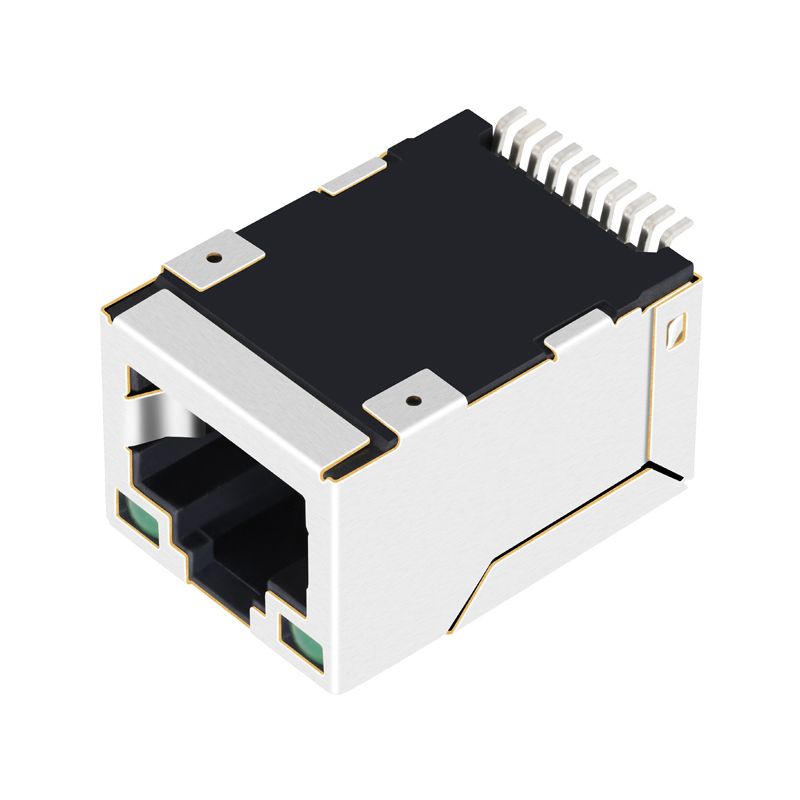

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Product Description

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

item	value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Package details: Tray, Carton size: 34.5*34.5*27cm, G.W./carton: 6.9kg, Qty/carton: 550pcs, SPQ: 110pcs, N.W/pcs: 0.013kg

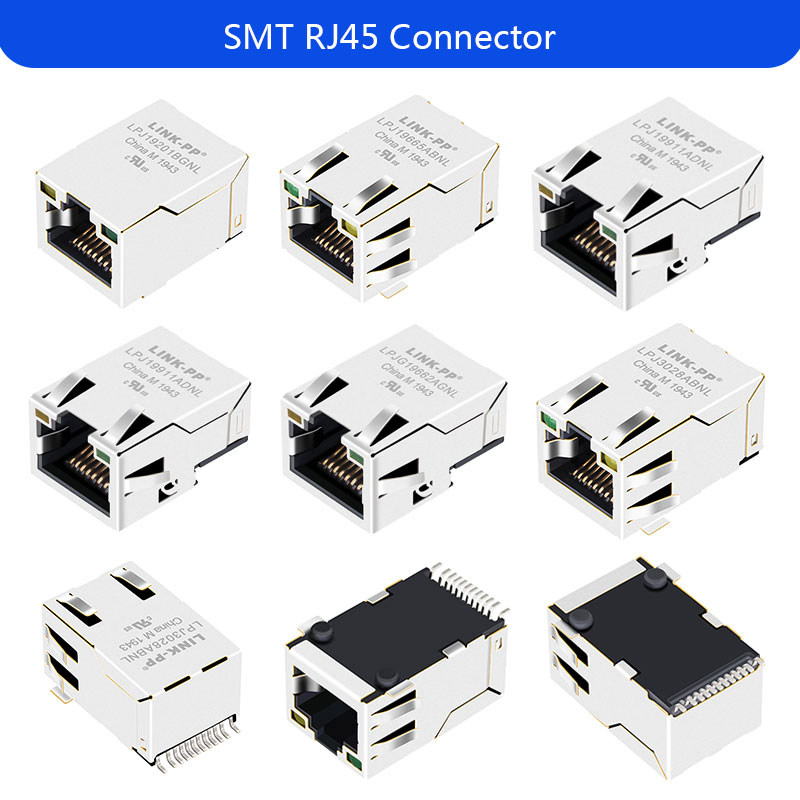

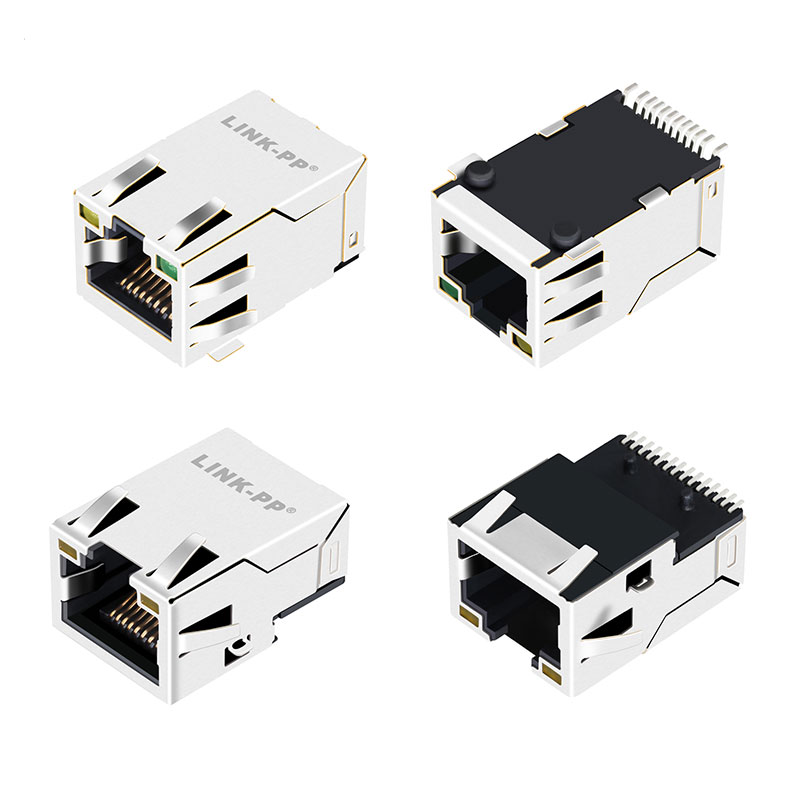

Product Showcase

Frequently Asked Questions

How is the product quality guaranteed?

We always run a pre-production sample test before starting mass production, followed by a strict final inspection prior to shipment.

What products are available for purchase?

We offer a wide range of components including RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

What are the manufacturing certifications and capabilities?

We are a specialized manufacturer of RJ45 connectors and lan transformers with 19 years of experience. Our facilities are certified by SGS, ISO9001:2008, UL, REACH, and CE. We operate with a staff of over 2,600 and maintain a productive capacity of 30,000K units per week.

What delivery terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.

What payment currencies and types are supported?

We accept payments in USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Supported payment methods include T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.

What languages are supported by the service team?

Our support team is capable of communicating in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
