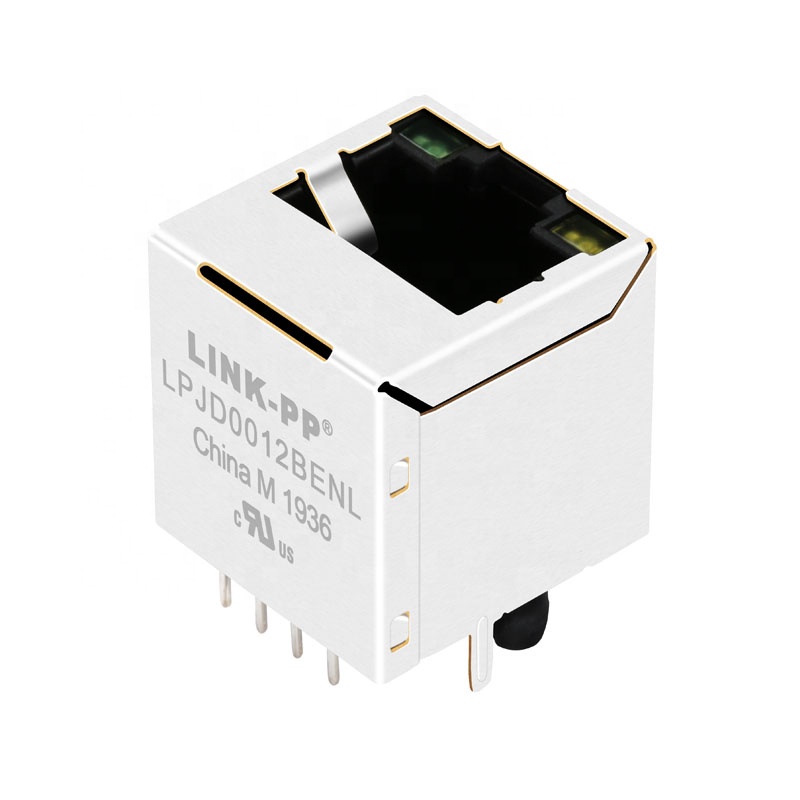

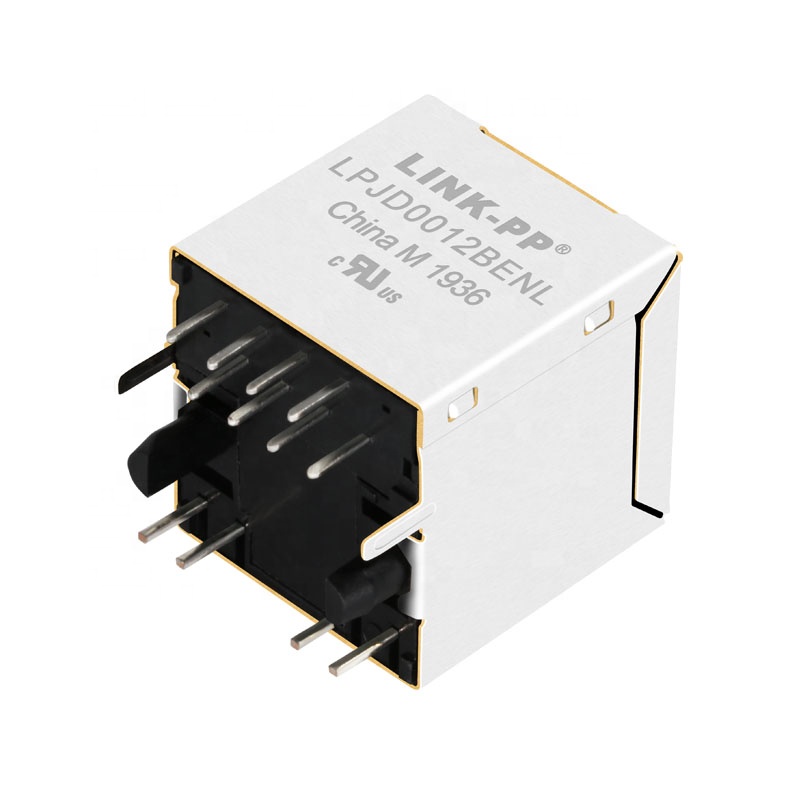

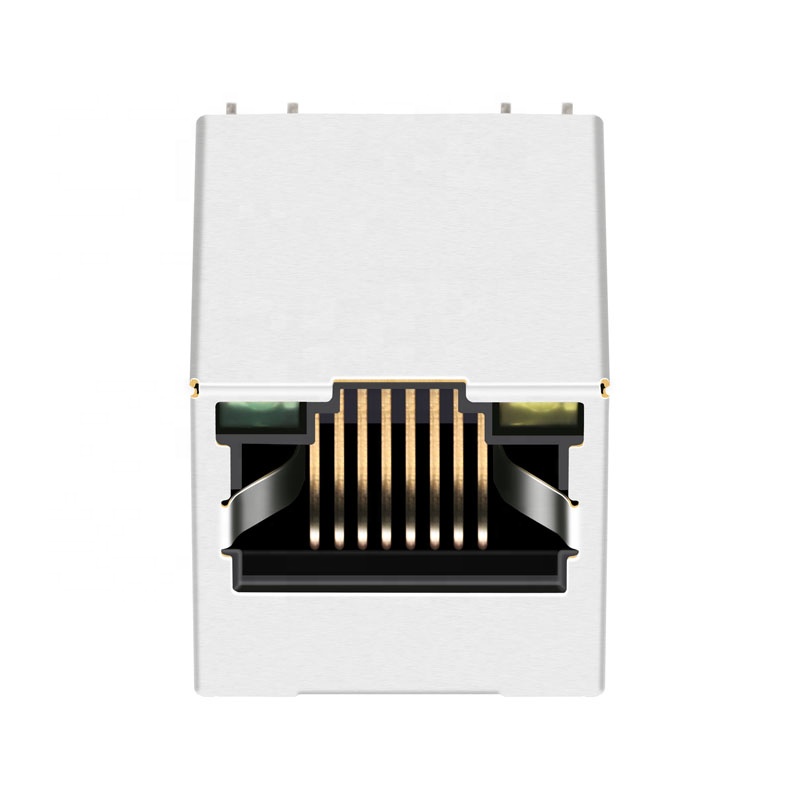

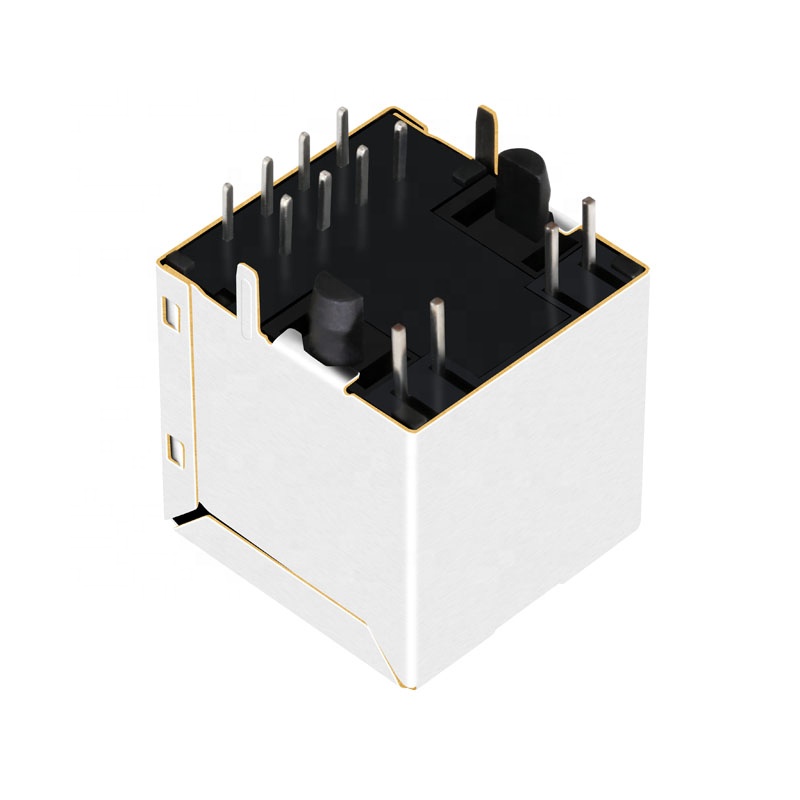

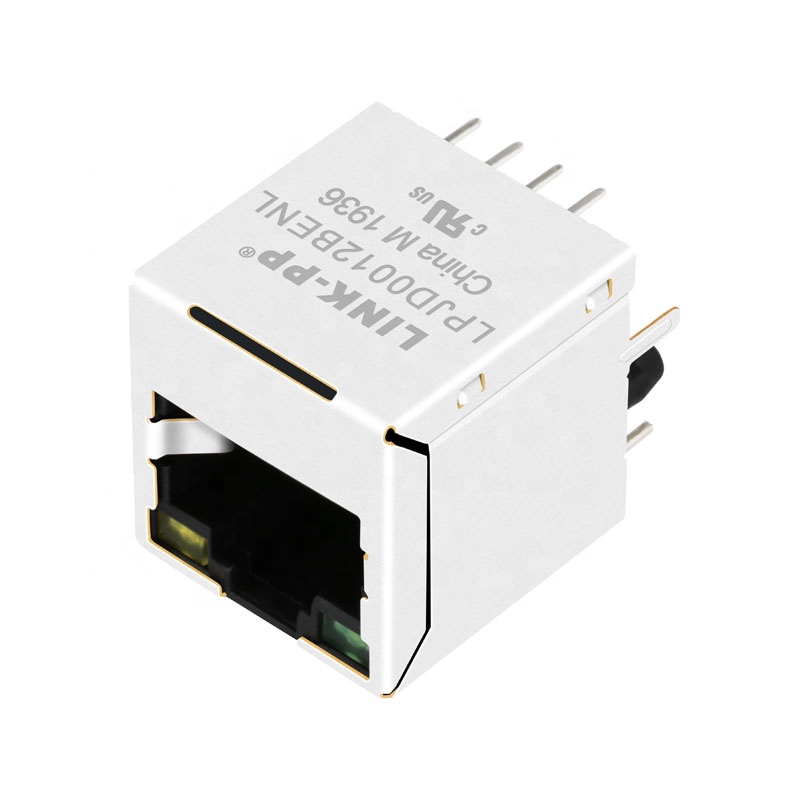

| Item | RJ45 Female Connector |
| Part Number | LPJD0012BENL |
| Compatible With | 51F-1203GYD2NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T Post |
| Temperature | 0°C to 70°C / -40°C to 85°C |
| Bst Circuit | Yes |
| AutoMDIX | Yes |
| Contact Mating Area Plating | Gold 6u" / 15u" / 30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
