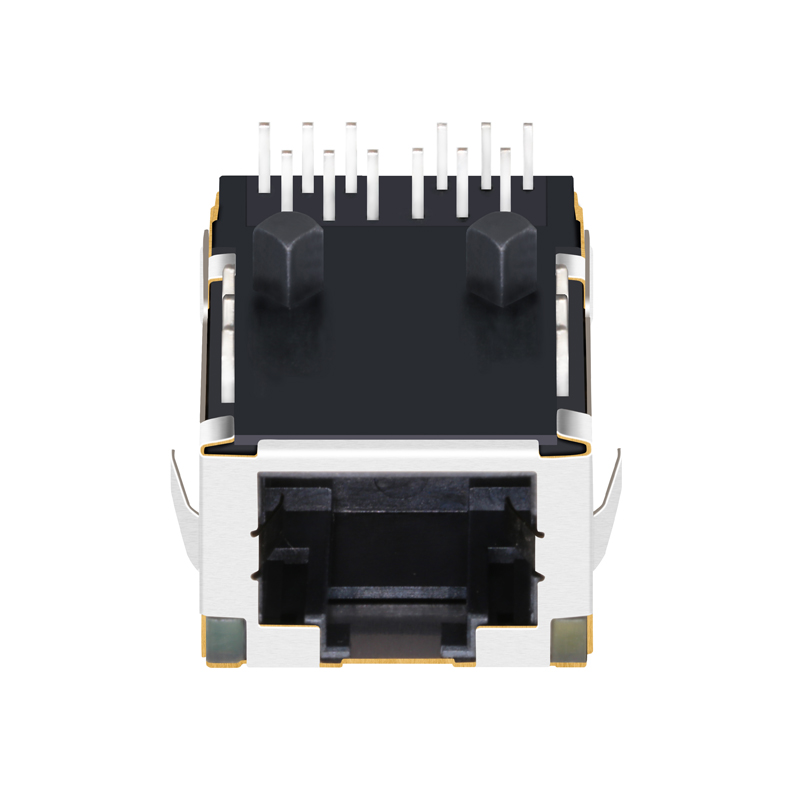

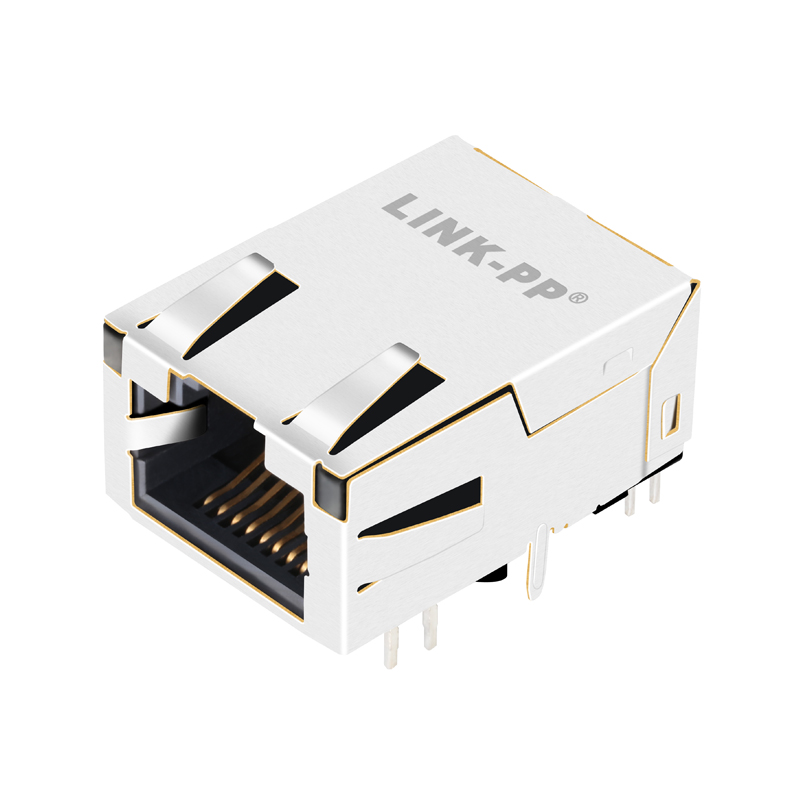

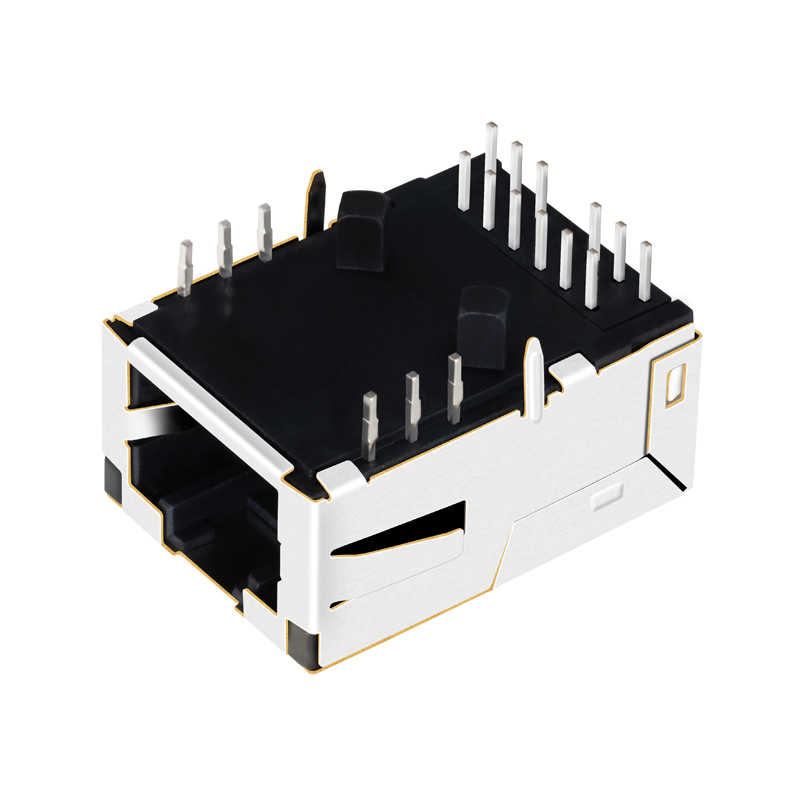

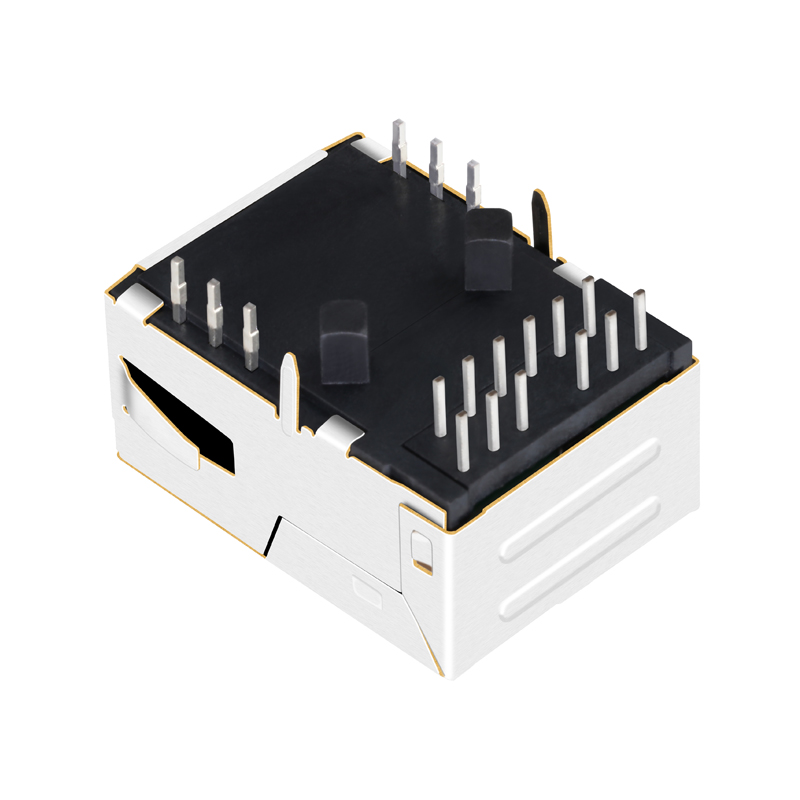

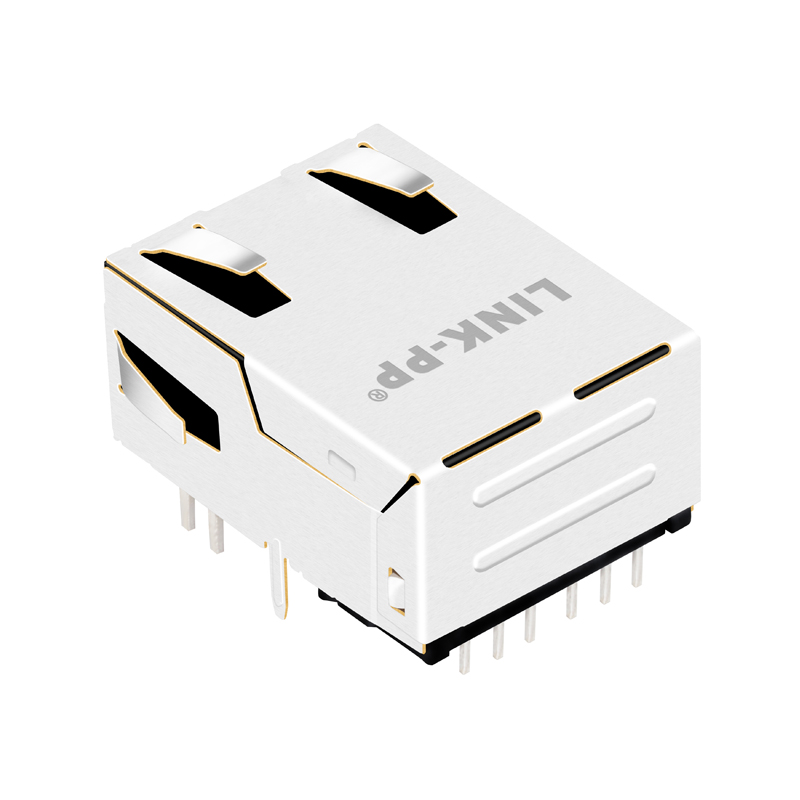

Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
1 / 5
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43

Single Port Low Profile RJ45 Modular Jack L829-1J1T-43

Send Inquiry

Product Description

Modular Jack Overview
Single Port Low Profile RJ45 Modular Jack L829-1J1T-43
Products Description
Item RJ45 Female Connector
Part Number L829-1J1T-43
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange&Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
