Product Description

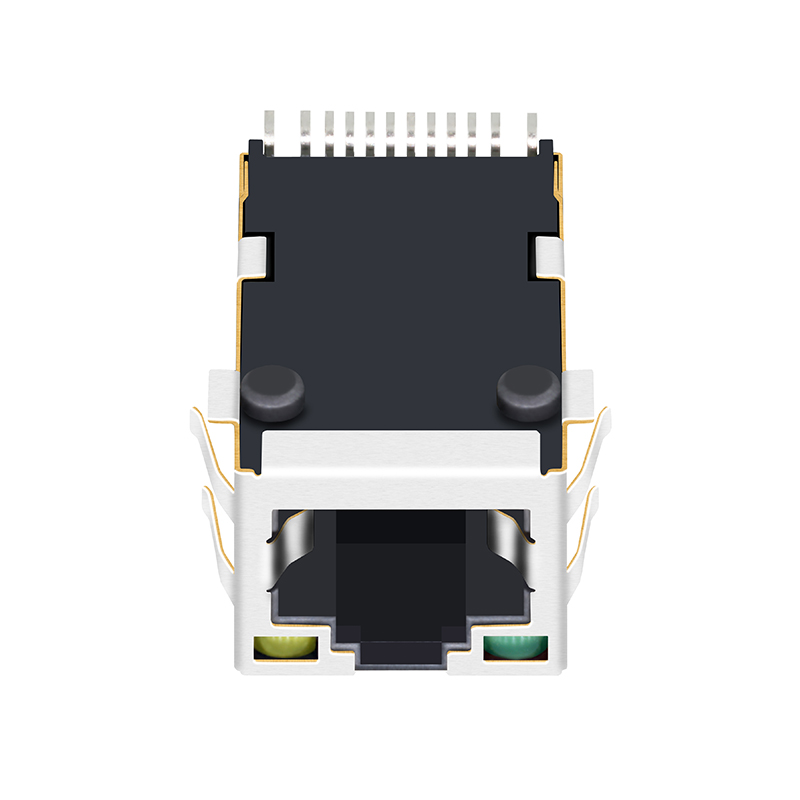

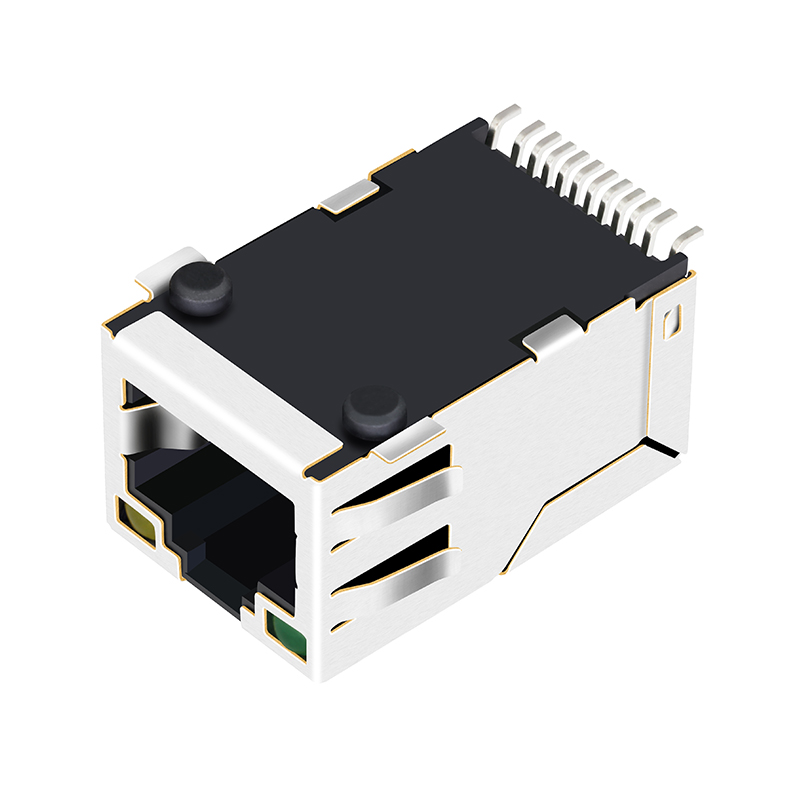

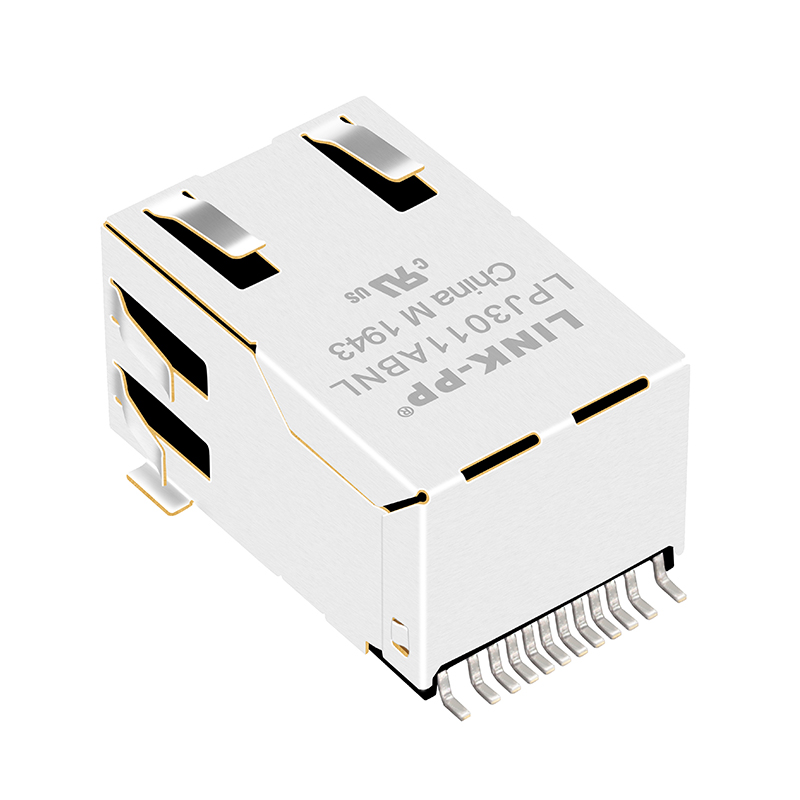

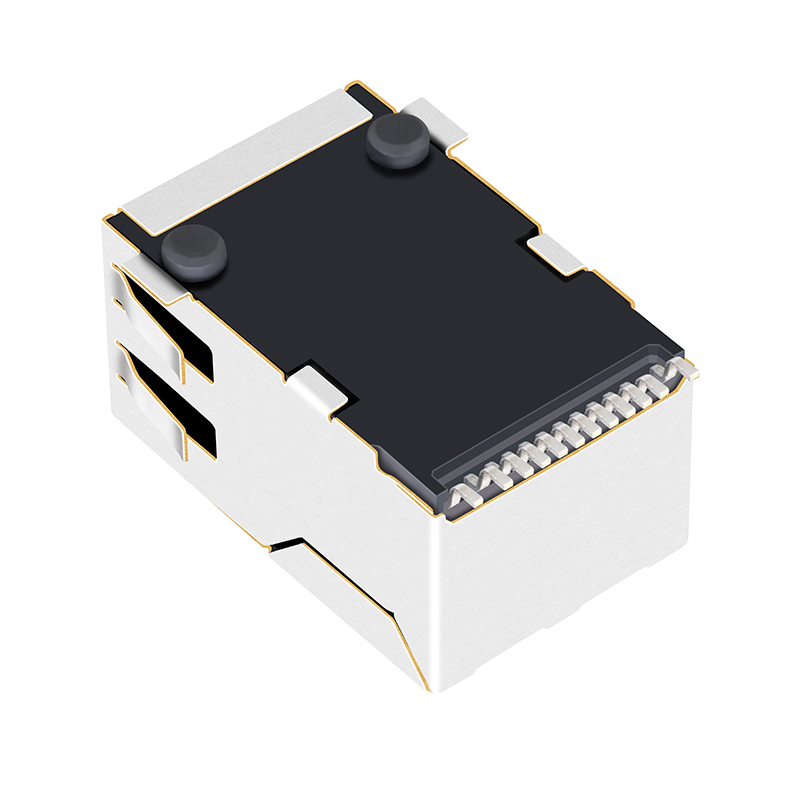

JB0-1002NL 10/100 Base-t Tab Up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led
Product Categories Overview
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

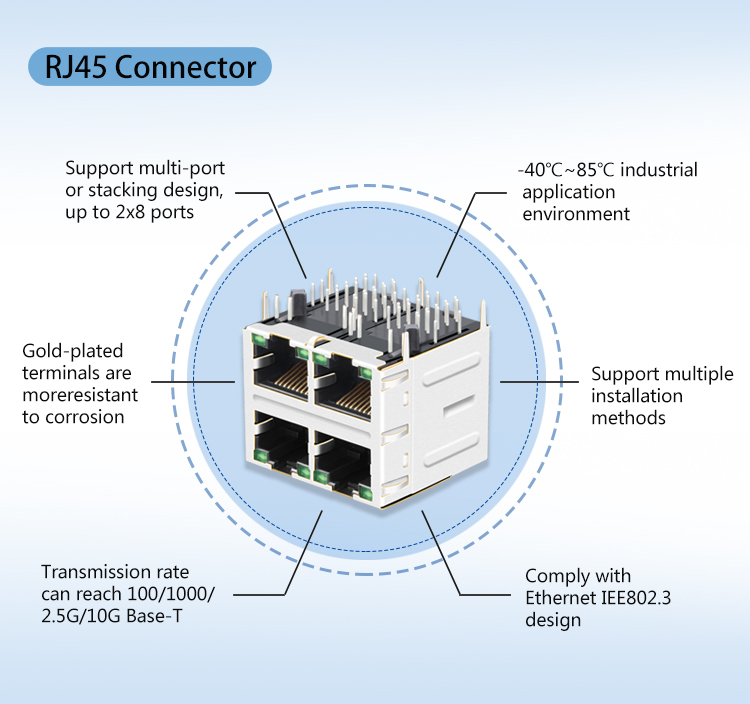

Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Product Options Mapping
Technical Layout 1
Technical Layout 2
Technical Layout 3
Technical Layout 4
Technical Layout 5
Technical Layout 6
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping fees covered by the buyer.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM orders. Please send your requirements to us for a detailed discussion.
What is your advantage?
We have 19 years of professional production experience and have been a trusted partner for industry-leading global brands for many years.
