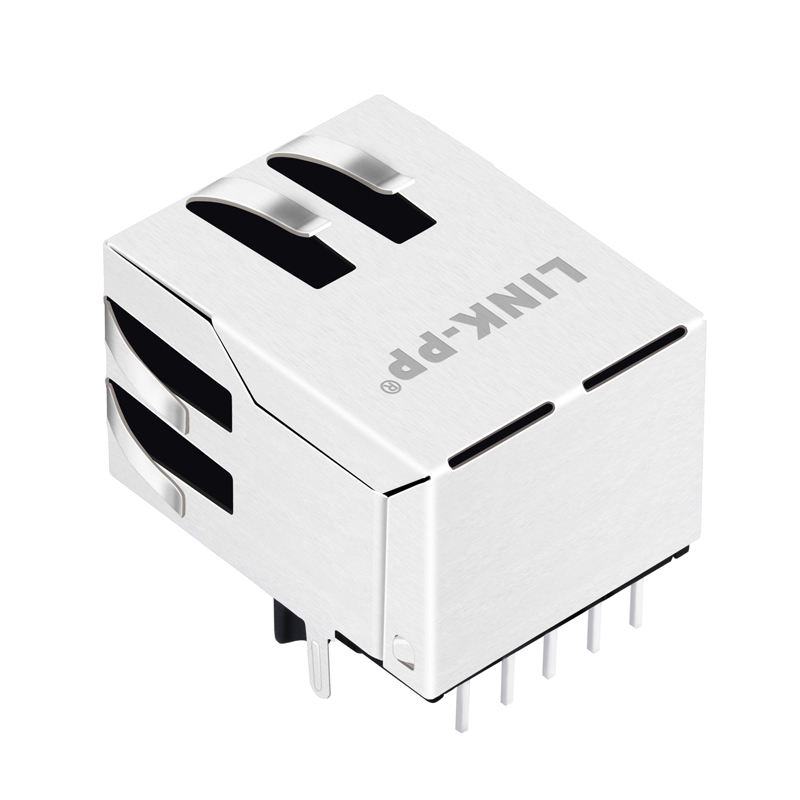

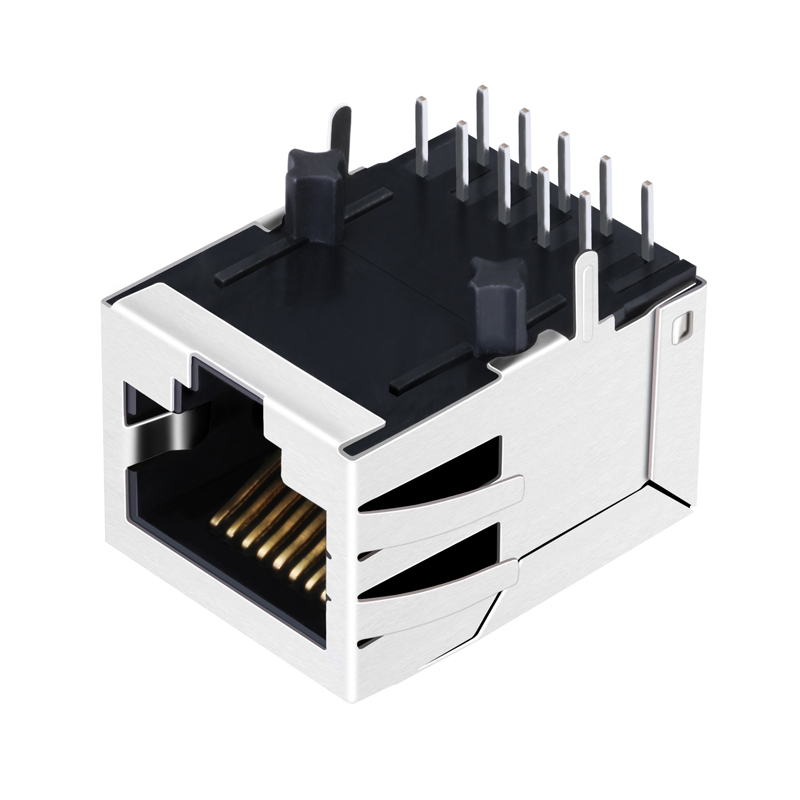

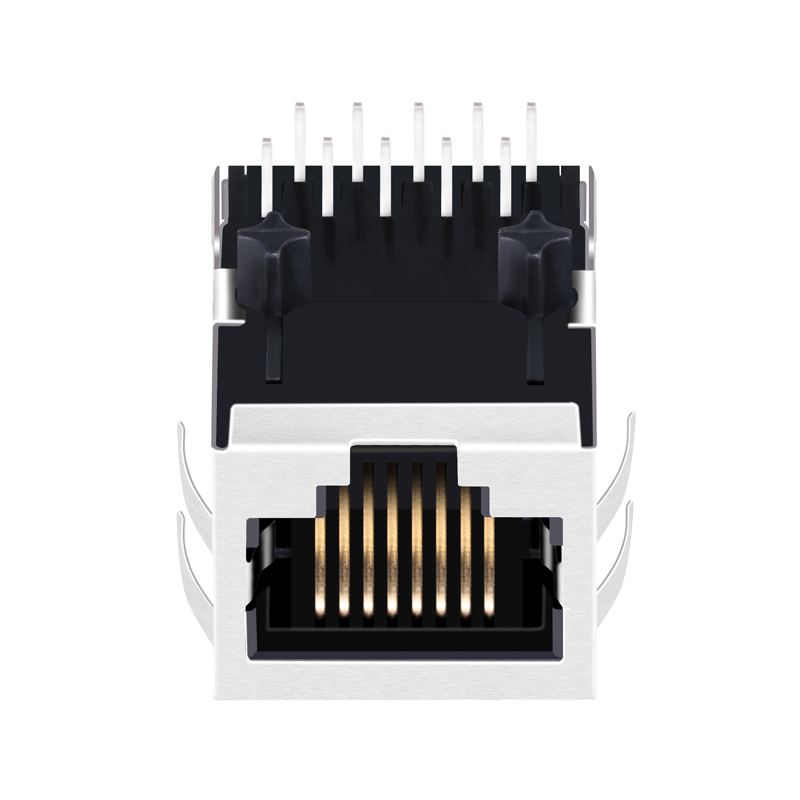

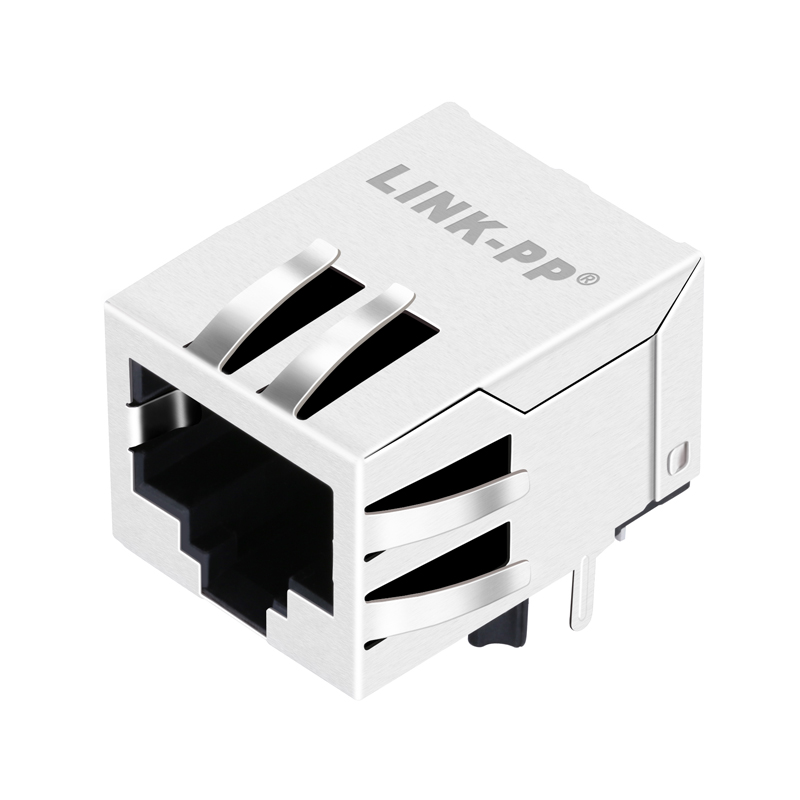

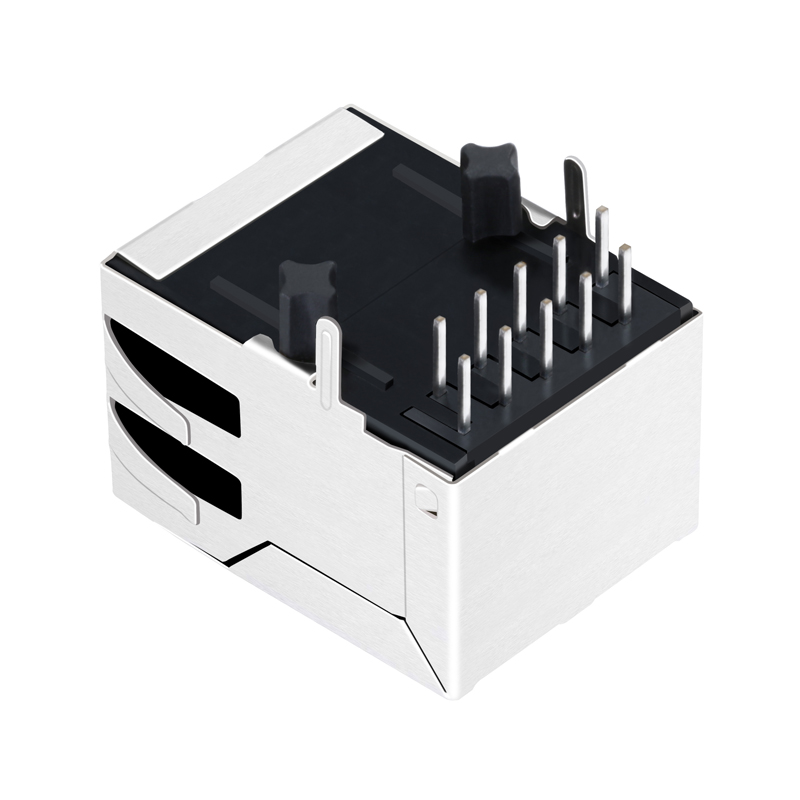

RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
1 / 5
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector

RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector

Send Inquiry

Product Description

PCB Connector Types
RJ-001TC1 RJP-003TC1 RJPLB-203TC1 Tab Down Without LEDs Cat5 Network RJ45 PCB Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number RJ-001TC1 RJP-003TC1 RJPLB-203TC1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Dimensions Drawing
PCB Layout Recommendations
Circuit Schematic Details
Electrical Specifications Chart
