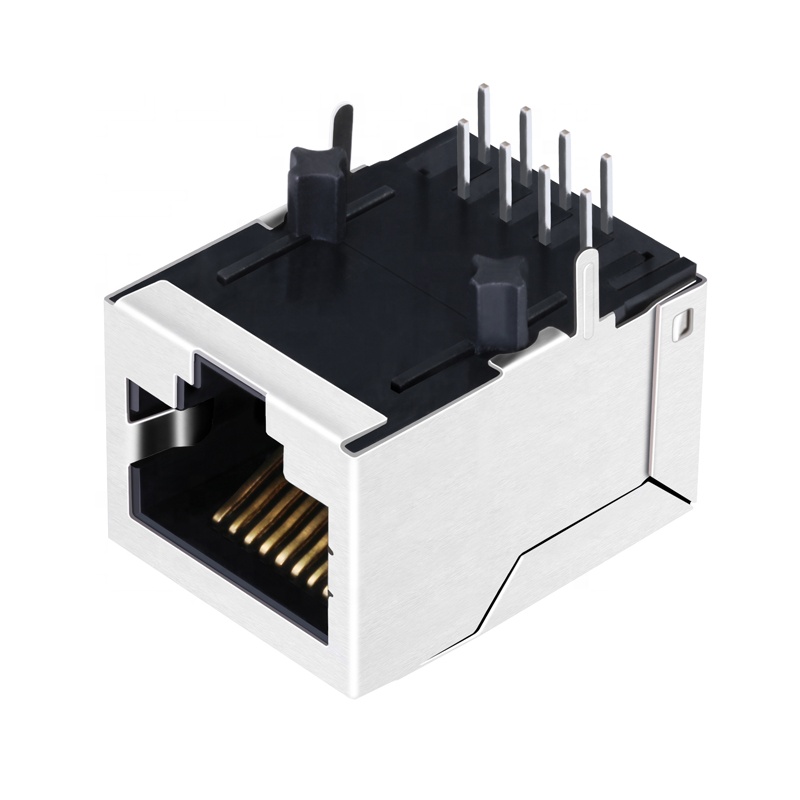

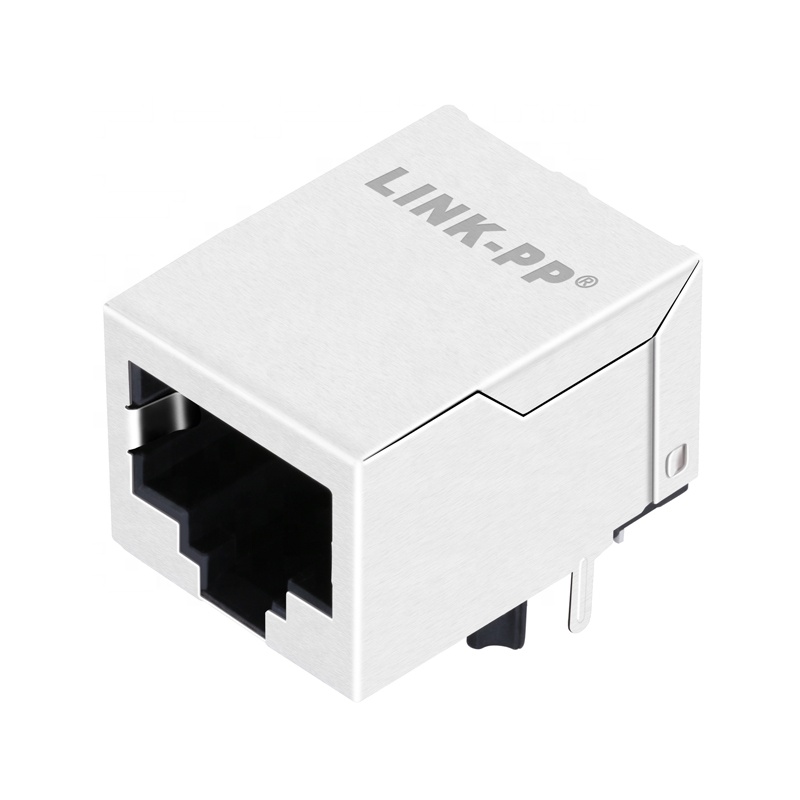

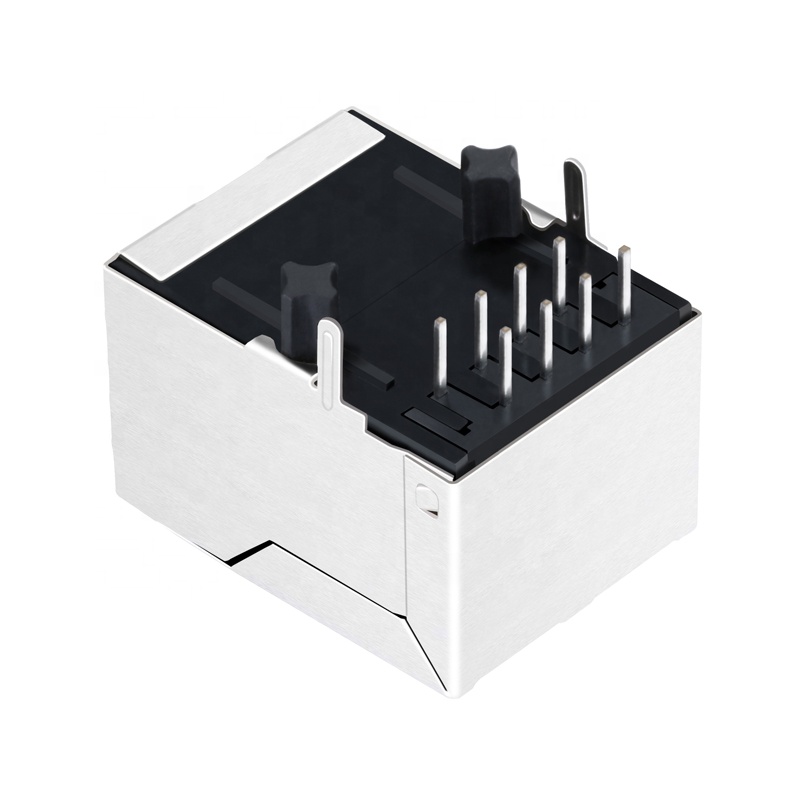

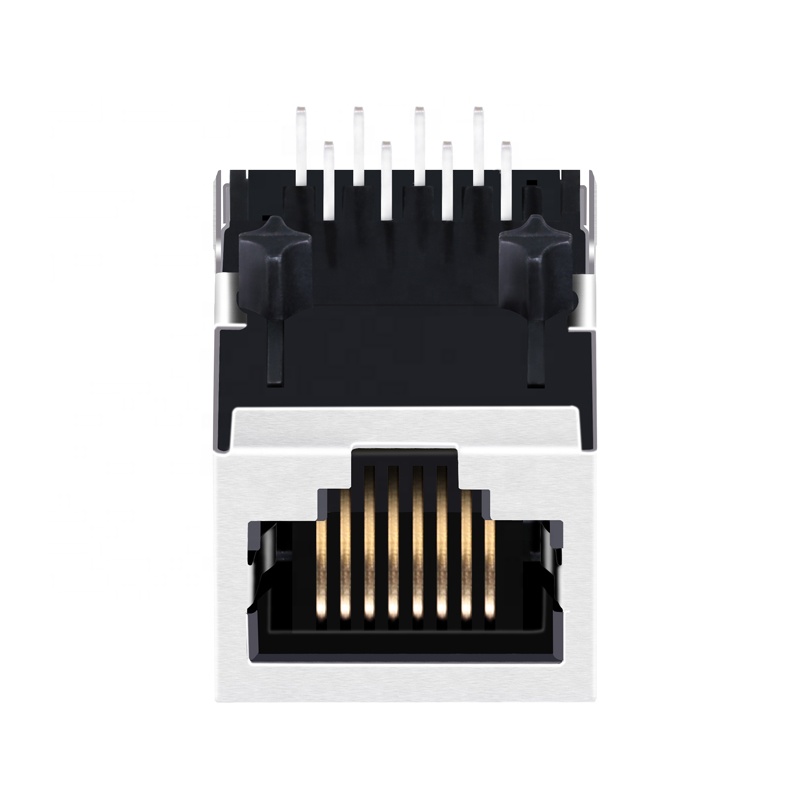

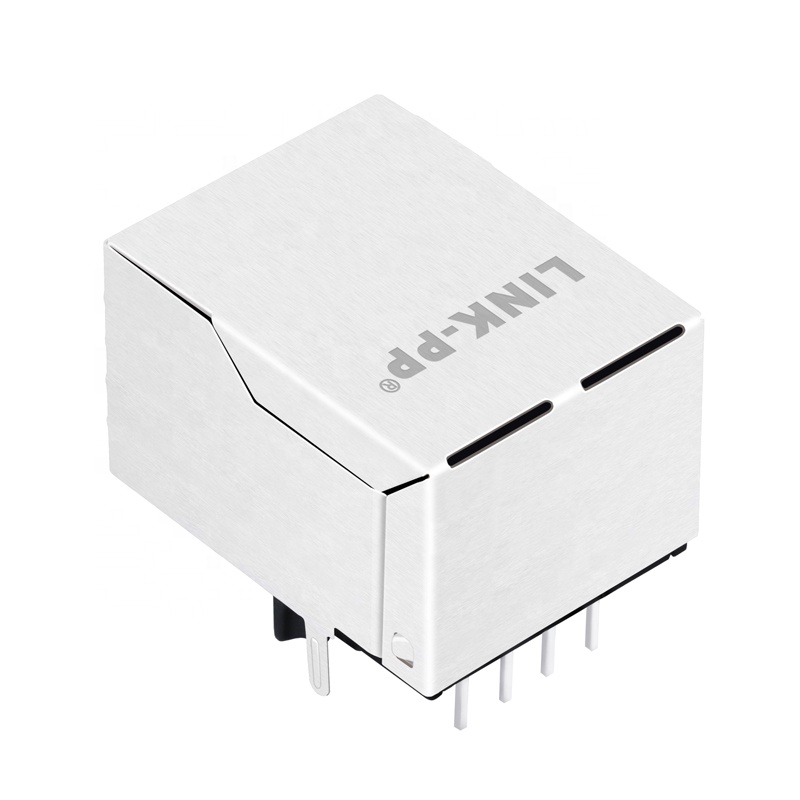

| Item | RJ45 Female Connector |
| Bothhand Part Number | 1470648-1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Without |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you would be responsible for the shipping fee.
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send us an inquiry with your requirements so we can proceed with a detailed discussion.
We have 19 years of production experience and have served as a reliable partner to leading global companies for many years.
