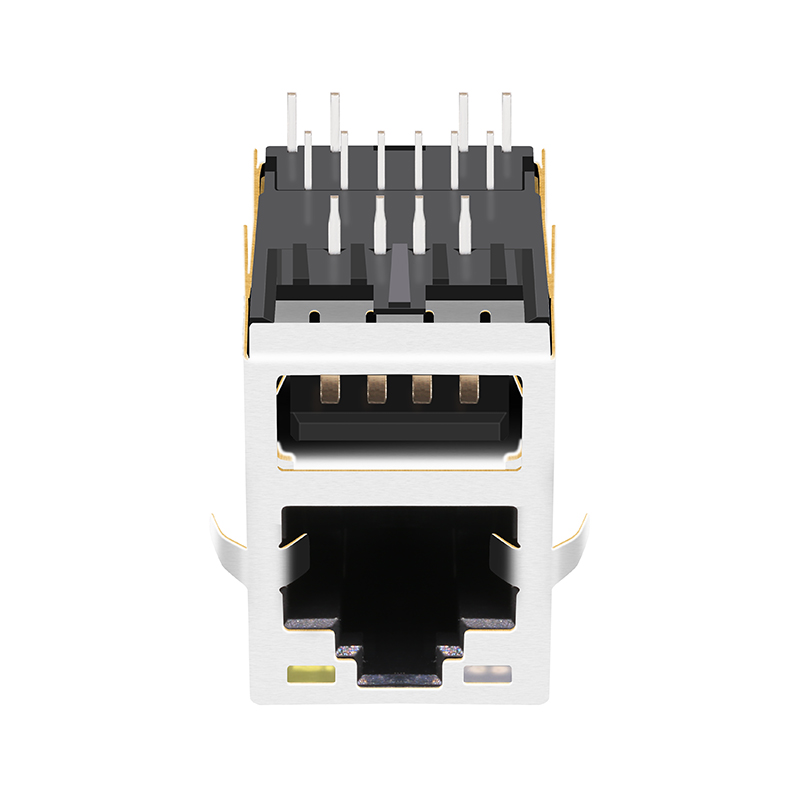

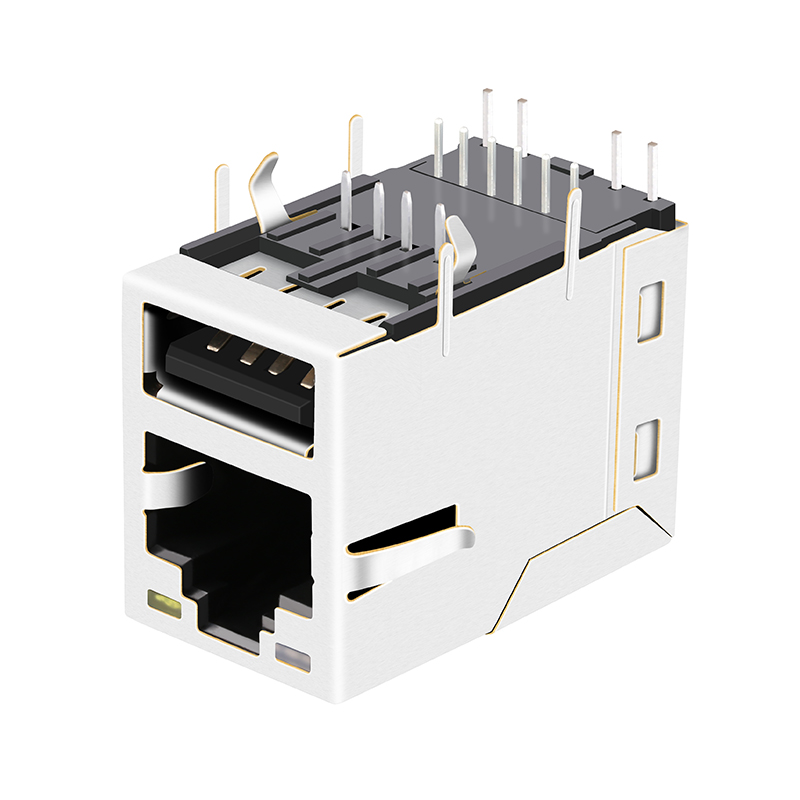

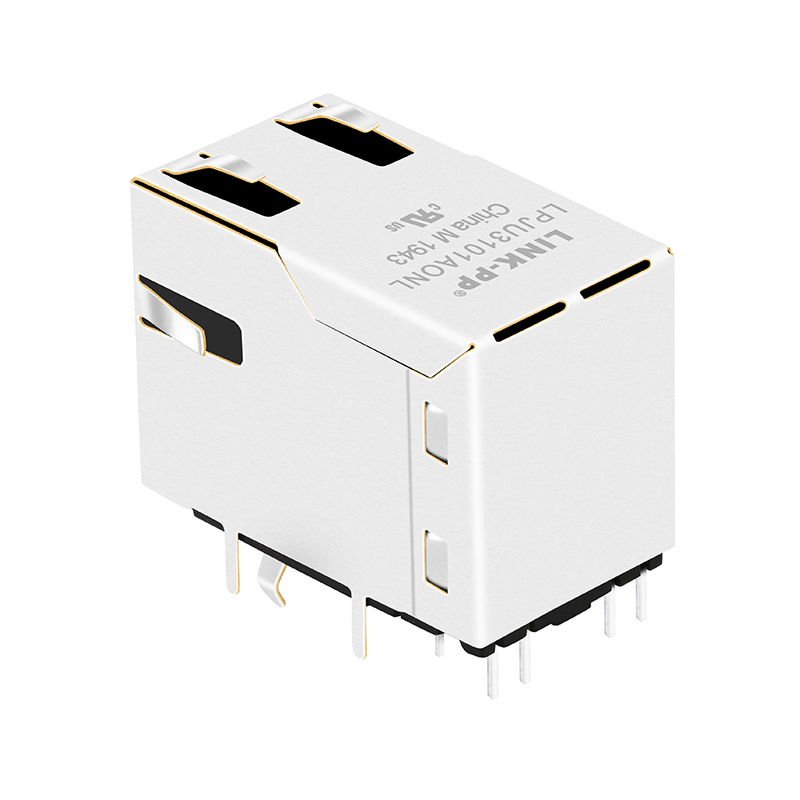

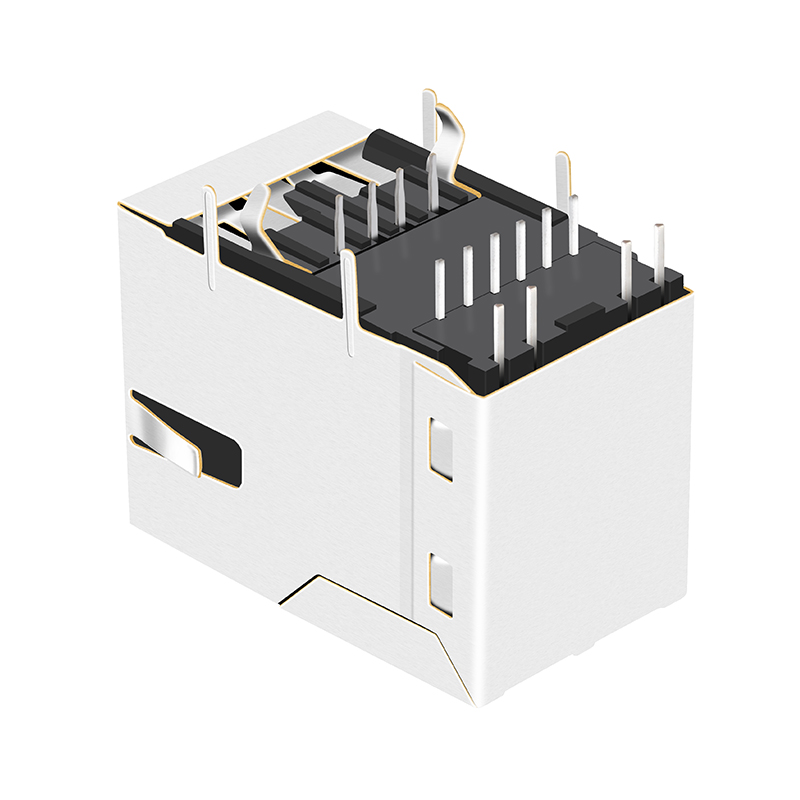

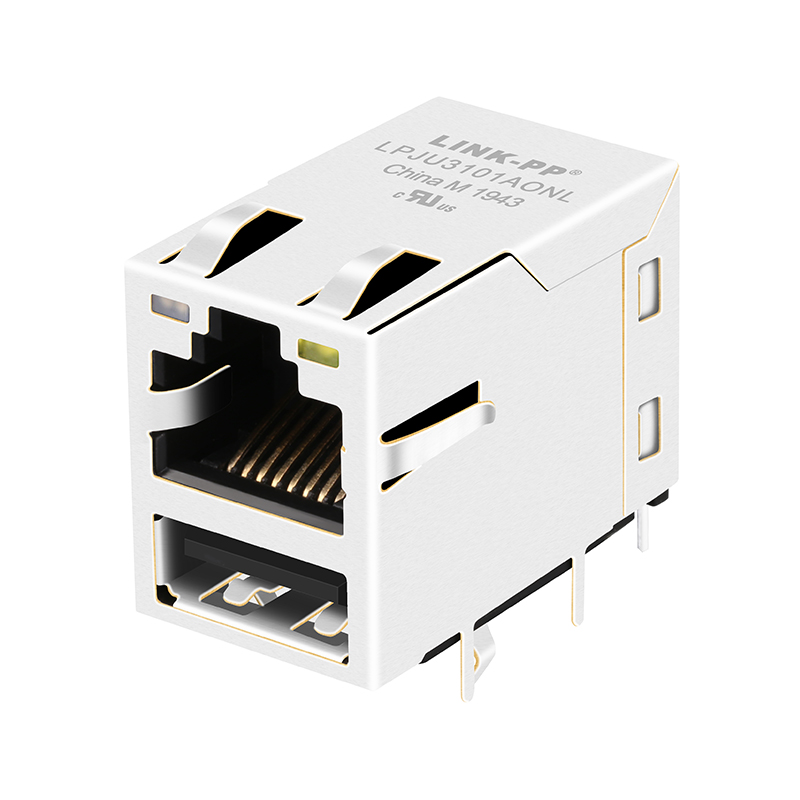

MIC24U1C-6131W-LF3 RU3-261A1D11 RC-122C09-015 RJ45 Magjack Connector with Single USB
Products Description
Item RJ45 Female Connector
Manufacturer Part Number LPJU3101AONL
Cross Part Number GTI07-30113
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Feature Overview
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.

Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our commitment to excellence will convince you to build a long-term partnership with us.
Factory Facility 1
Factory Facility 2
Factory Facility 3
Factory Facility 4
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, producing items such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are covered by the buyer.
3. What is your delivery time?
We have items ready to ship for stock orders, and it takes 15-30 days for mass production orders.
4. What after-sales service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your detailed requirements so we can proceed with a discussion.
6. What is your main advantage?
We have 19 years of production experience and serve as a trusted partner for major global electronic system integration companies.
