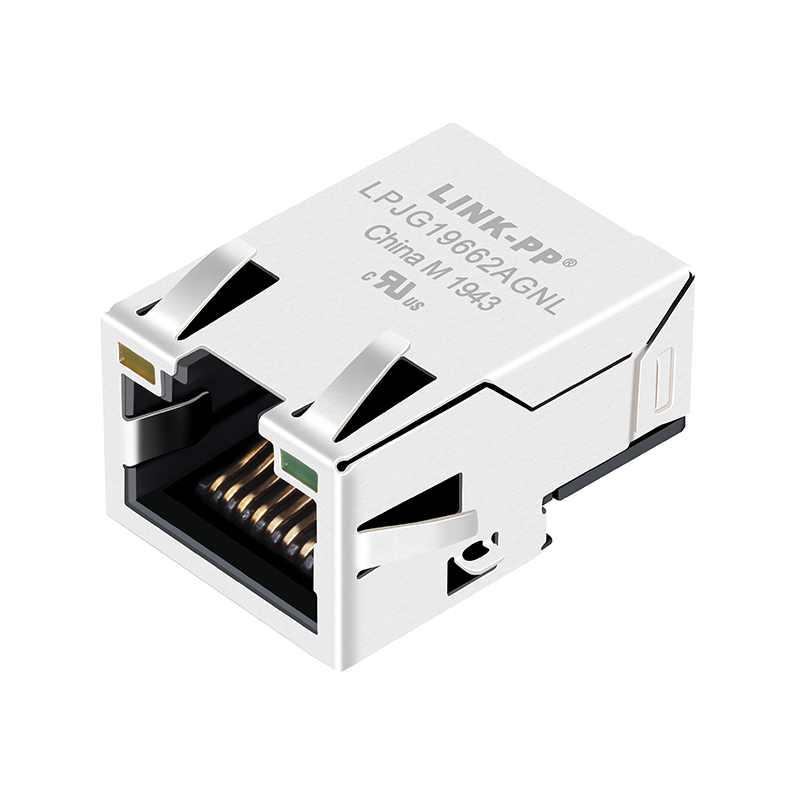

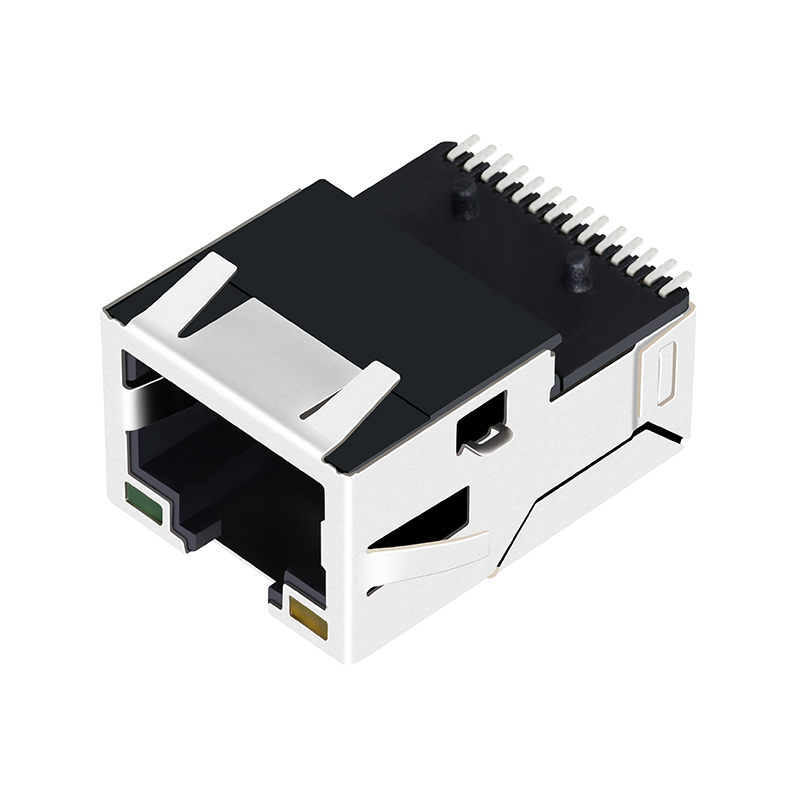

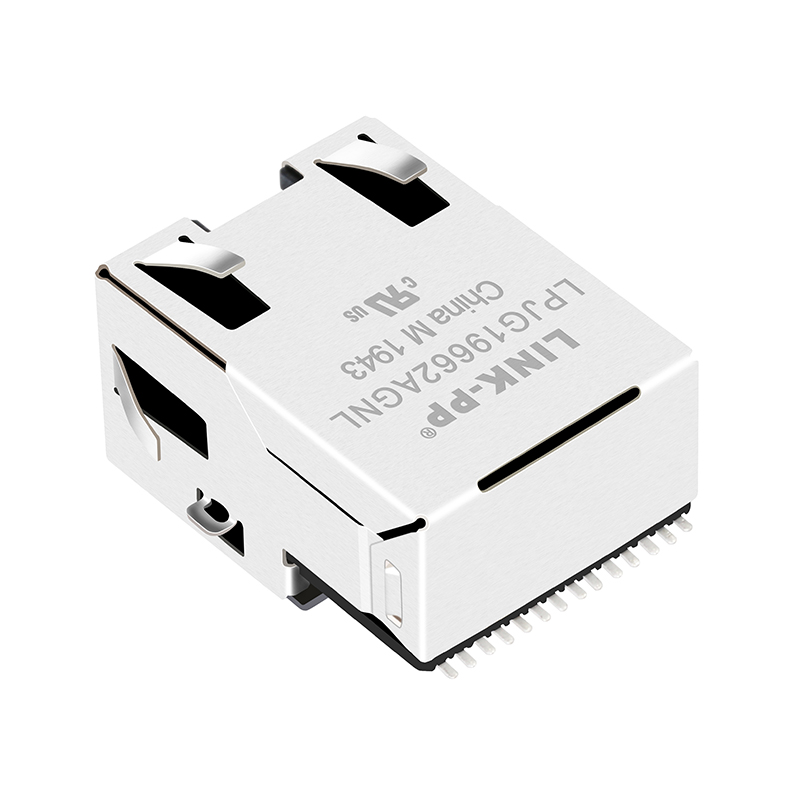

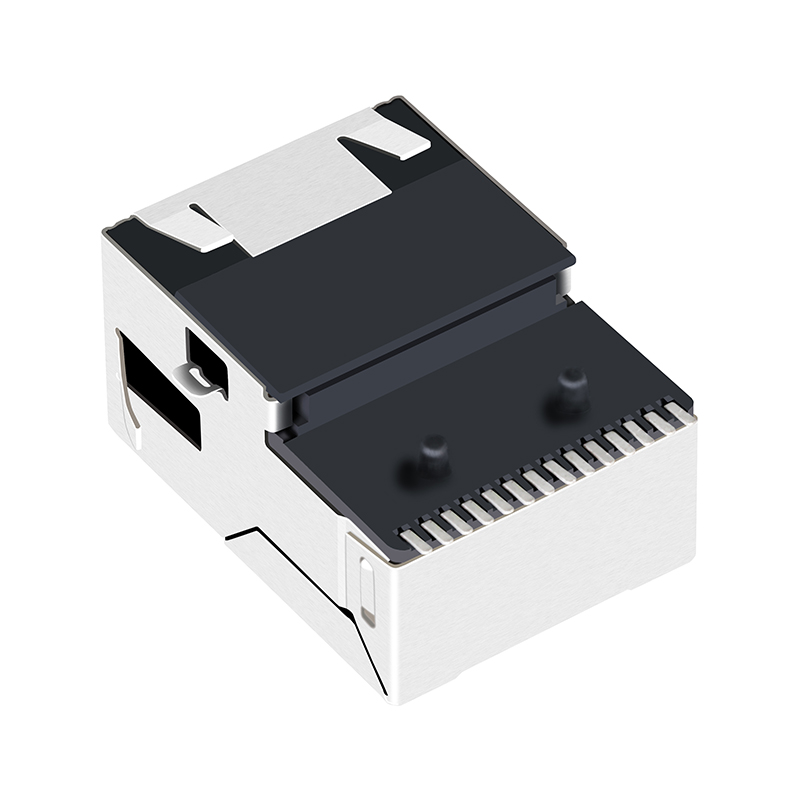

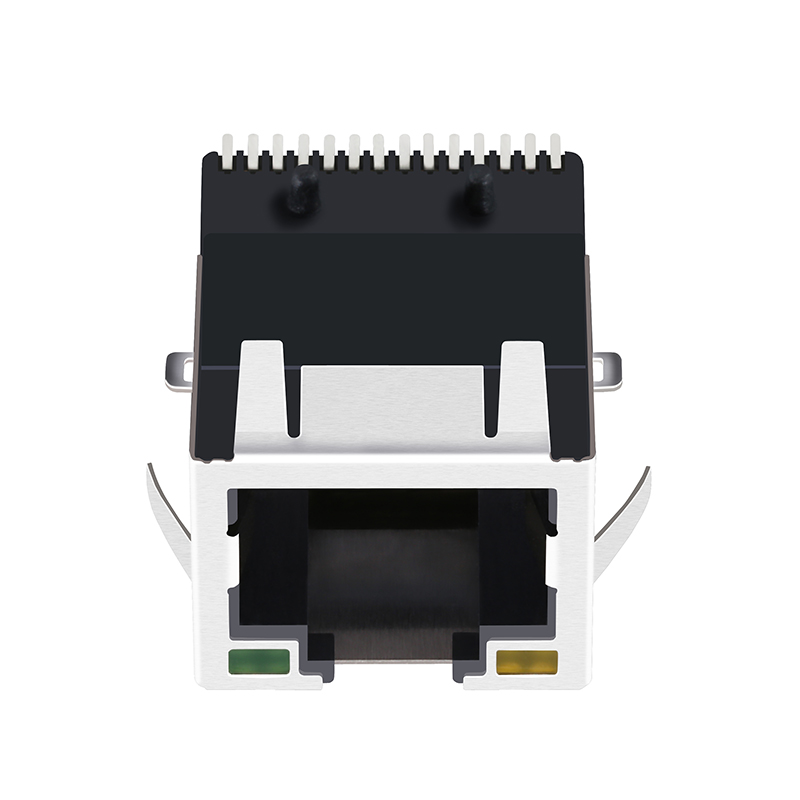

| Item | RJ45 Female Connector |
| Part Number | LPJG19662AGNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 180° Angle |
| PCB Mount Angle | Side Entry |
| Shield EMI Tabs | With |
| LED Option | Yellow/Green |
| PCB | FR4 |
| PCB Retaining Post | T Post |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | Gold 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
