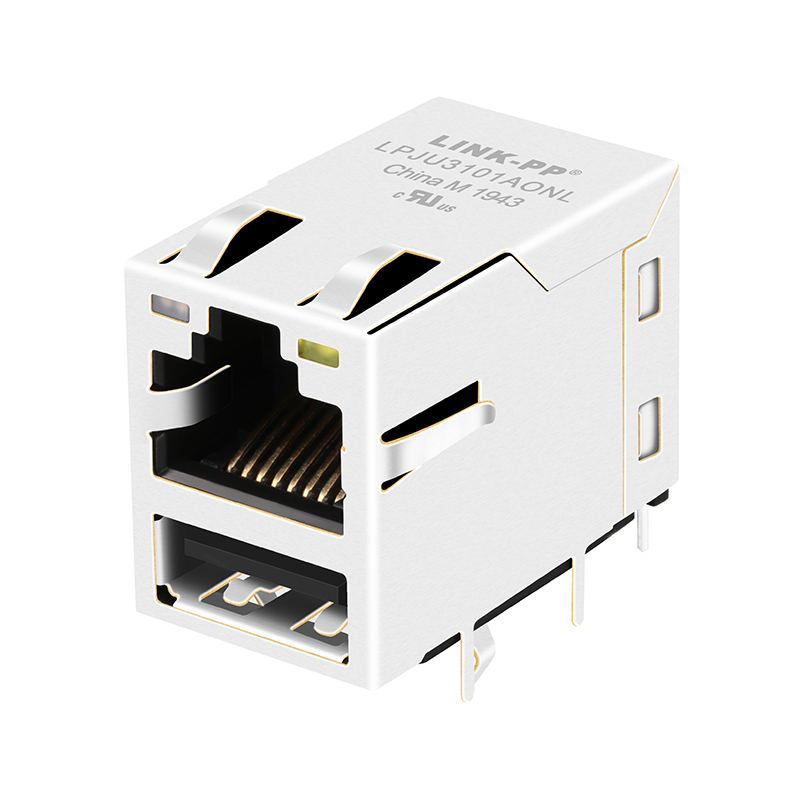

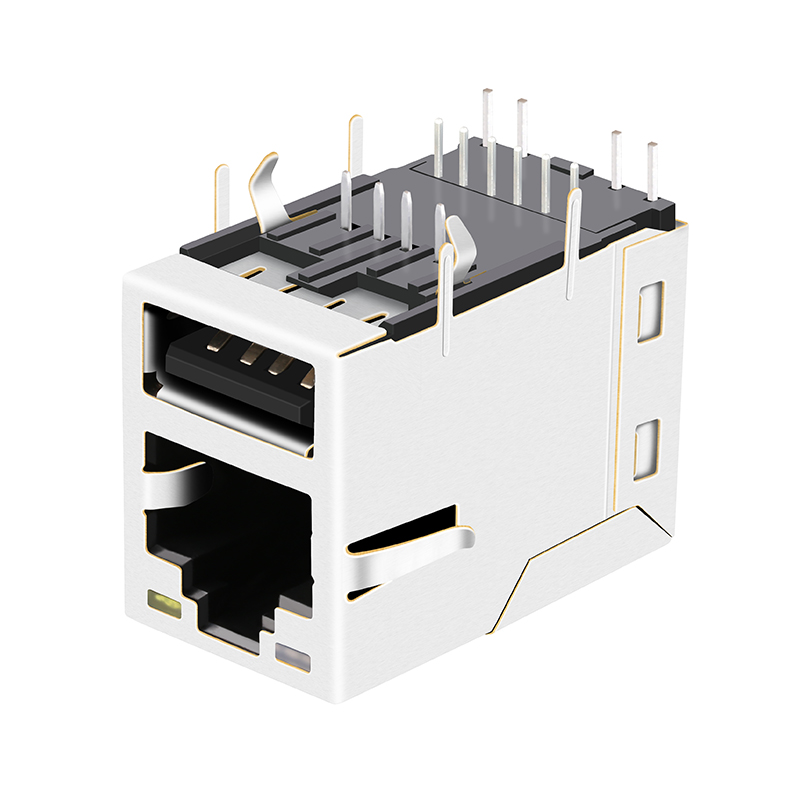

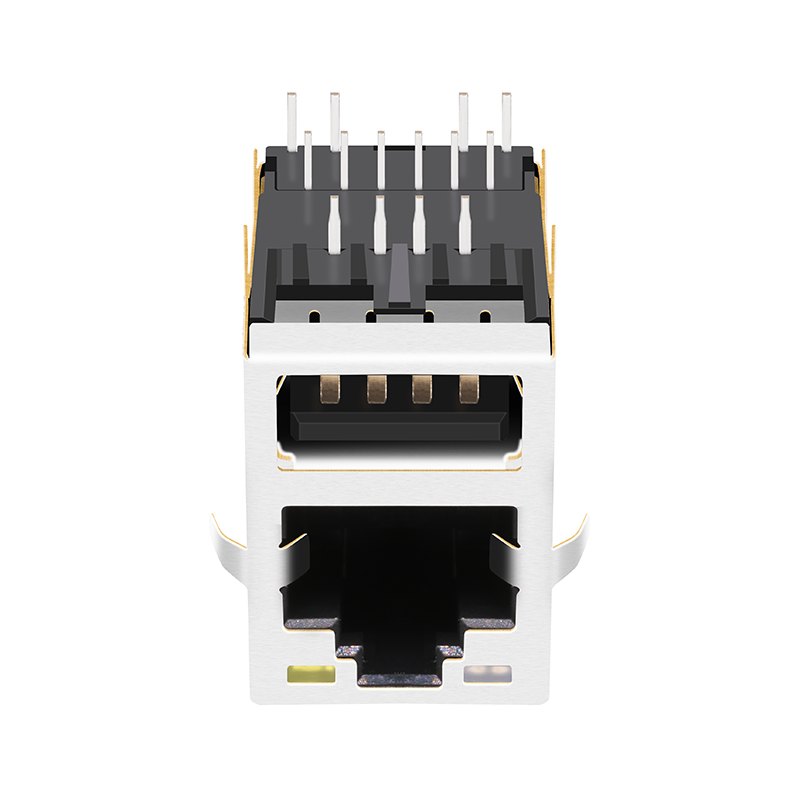

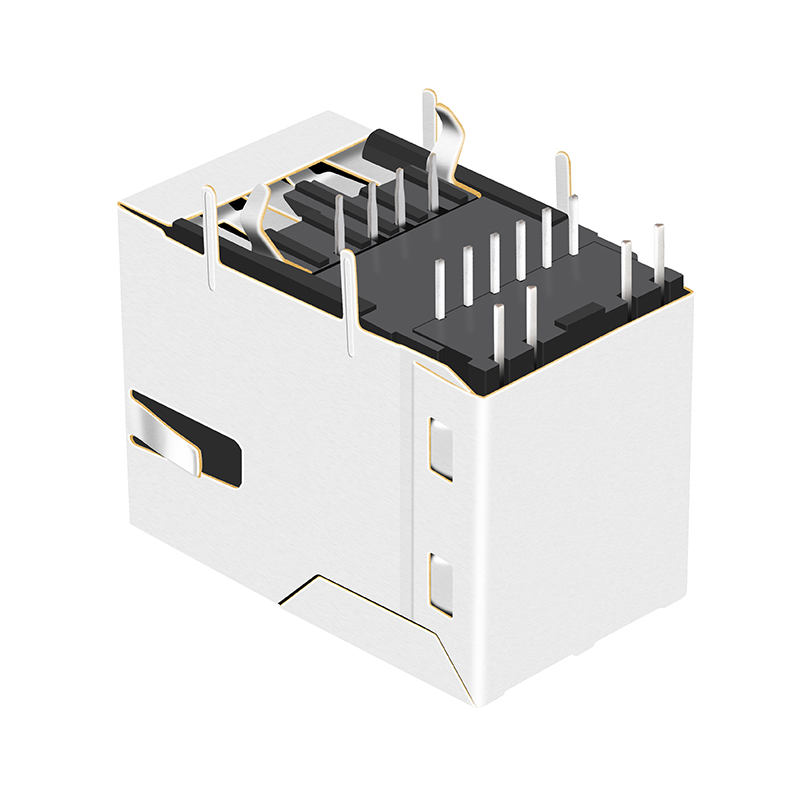

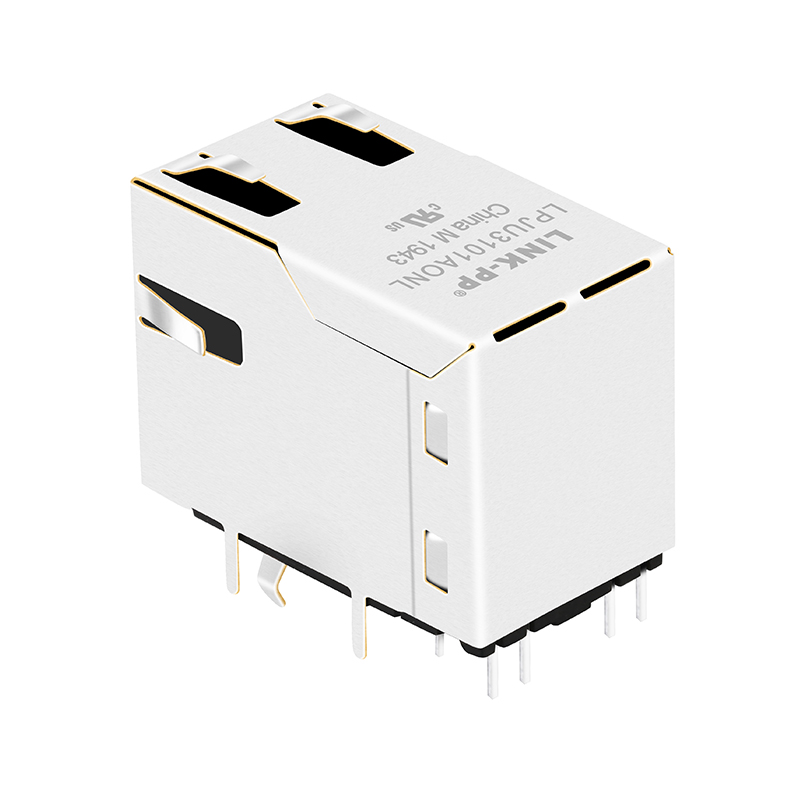

8211-1X1T-36-F 10/100 Base-T RJ45 Female Connector With Single USB

Products Description

Item	RJ45 Female Connector
Part Number	LPJU3101AONL
Compatible Part Number	43F-1201DYD2NL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port With 1 USB
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Orange&Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0°C TO 70°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C
