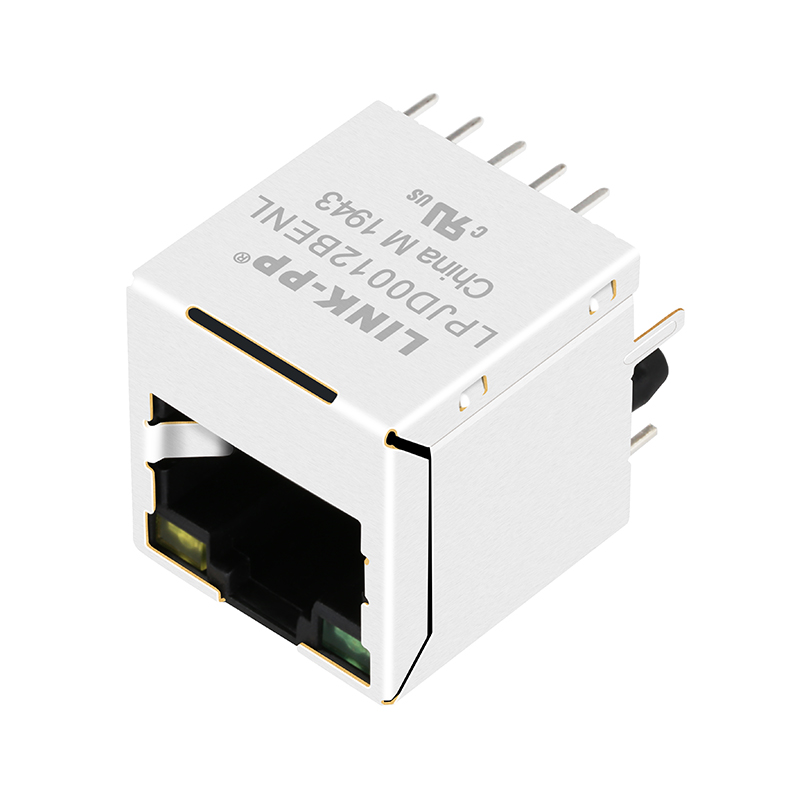

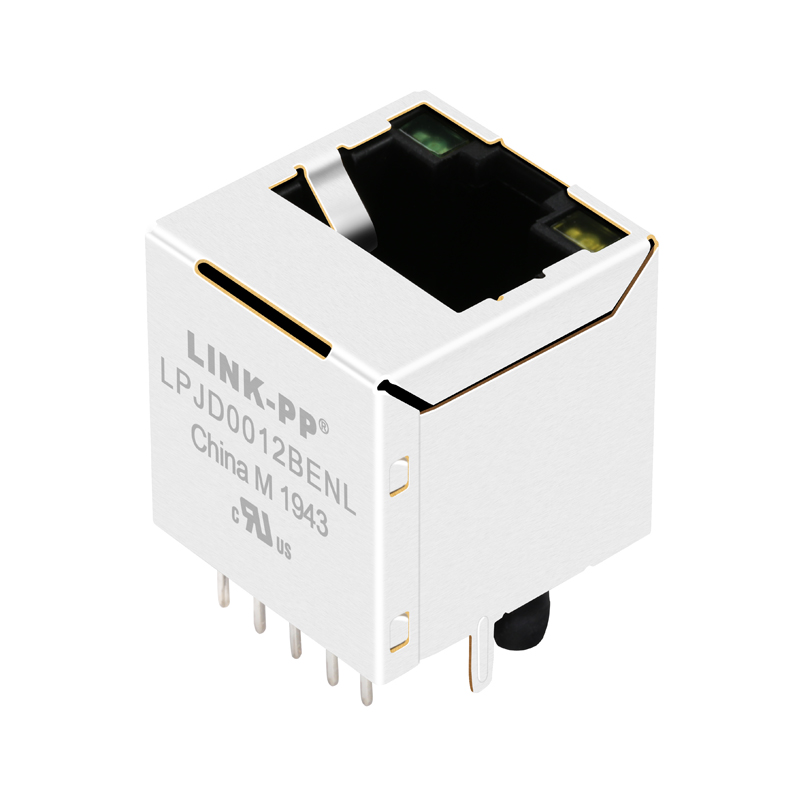

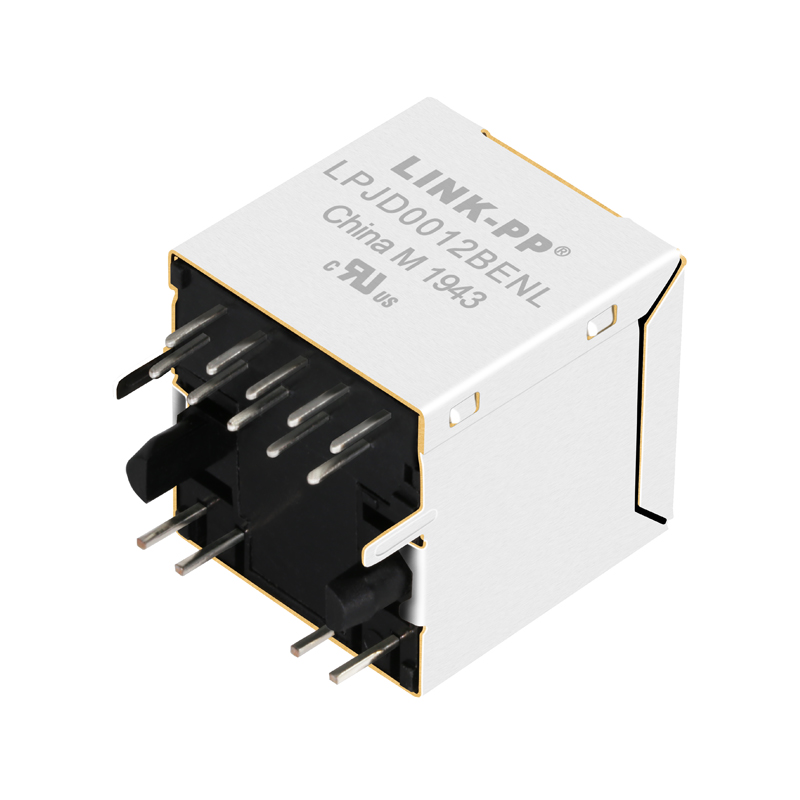

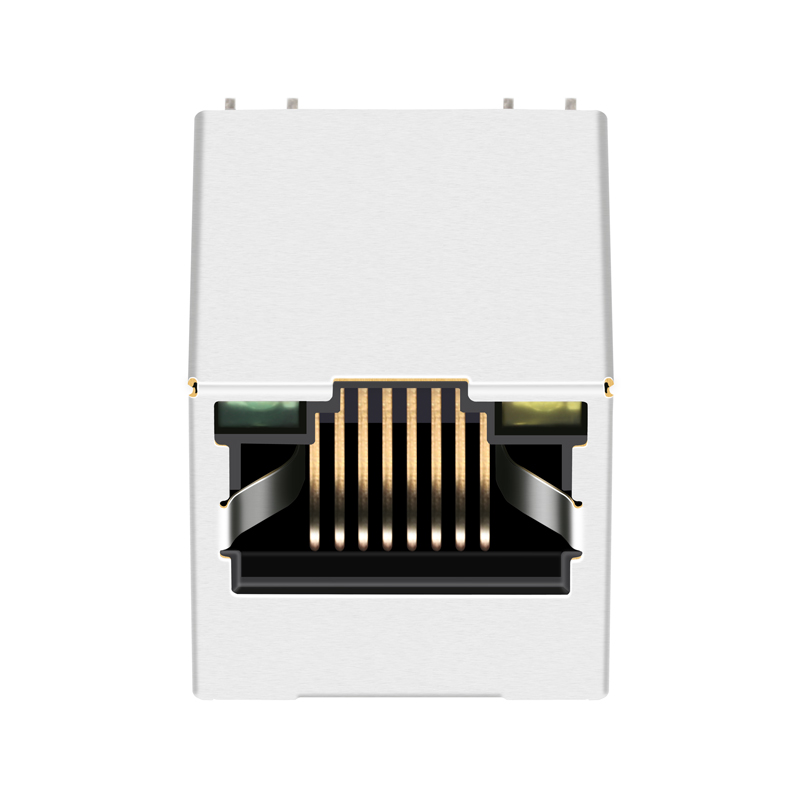

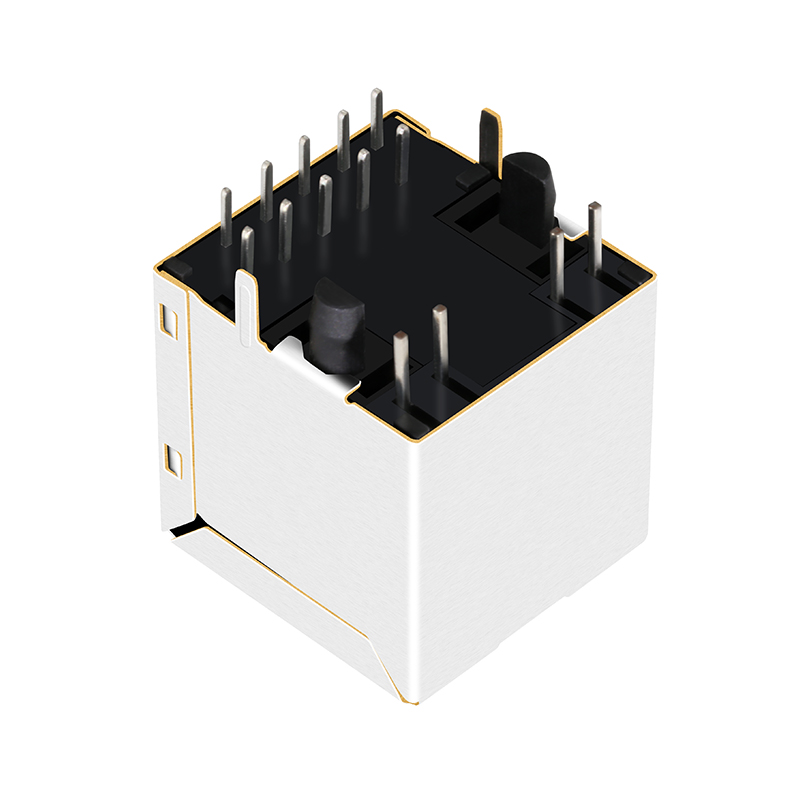

SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

Product Description

RJ45 Connector Overview
SI-46001-F 10 / 100Base-T 8P8C Vertical RJ45 Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number SI-46001-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Connector Drawing 1
Connector Drawing 2
Product View 1
Product View 2
Product View 3
Product View 4
⚙ View below related product categories for more specifications.
Product Lineup Map
Contact Banner
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Production Process 5
Production Process 6
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Environment
Testing Laboratory
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping fees covered by the customer.
What is your delivery time?
Ready-to-ship for in-stock products, and 15-30 days for mass production.
What after-service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can proceed with a detailed discussion.
What is your advantage?
We bring over 19 years of dedicated production experience and have partnered with leading global enterprises for many years.
