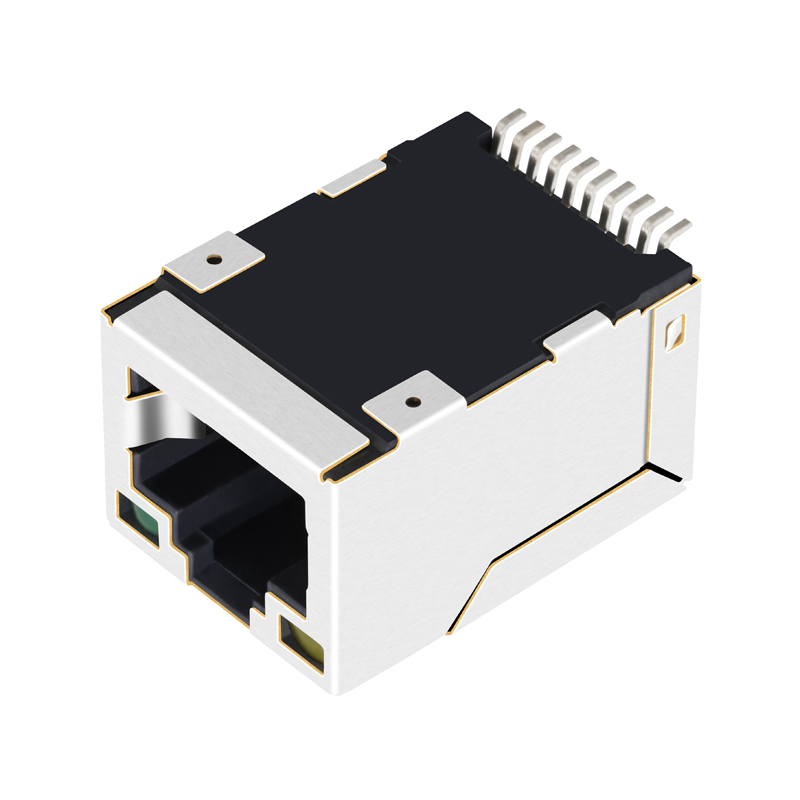

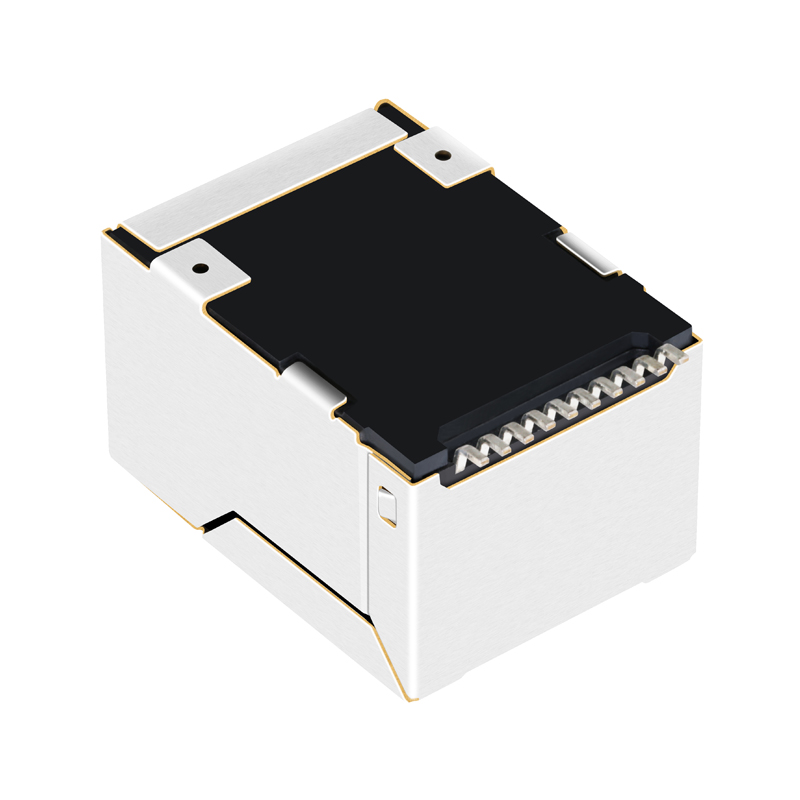

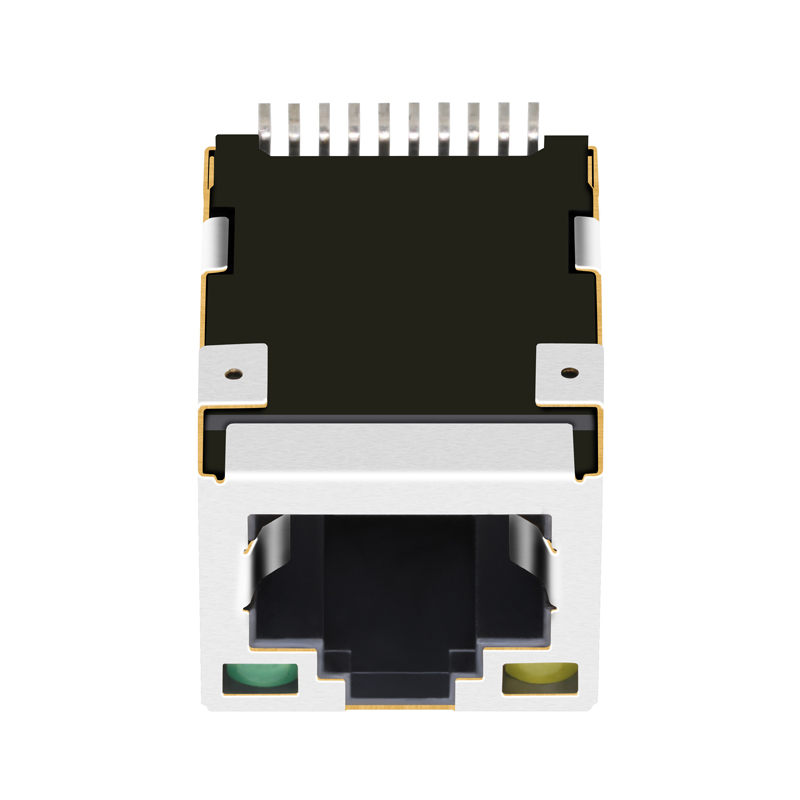

GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
1 / 5
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

Send Inquiry

Product Description

Ethernet RJ45 Connector Overview
GE5T3013-LC Tab Up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
Products Description
Item RJ45 Female Connector
Link-PP Part Number LPJ19201BGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Angle View 1
Product Angle View 2
Product Detail Dimensions
Product Technical Specifications
Product Classifications
Product Classification Matrix
Factory Machine 1
Factory Machine 2
Production Process 1
Production Process 2
Testing Equipment 1
Testing Equipment 2
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Warehouse and Stock
Production Team
FAQ
Q 1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping cost.
Q 3. What is your delivery time?
Items currently in stock are ready to ship, while mass production orders typically take 15-30 days.
Q 4. What after-service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q 5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiry to us so we can proceed with a detailed discussion.
Q 6. What is your advantage?
We possess 19 years of professional production experience and have been a trusted partner to leading global enterprises for many years.
