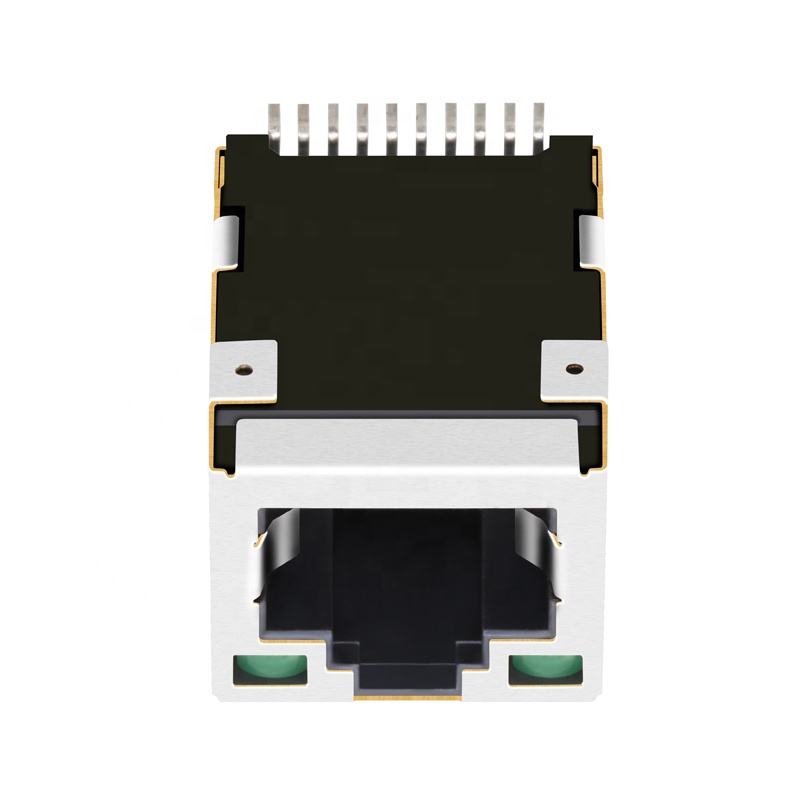

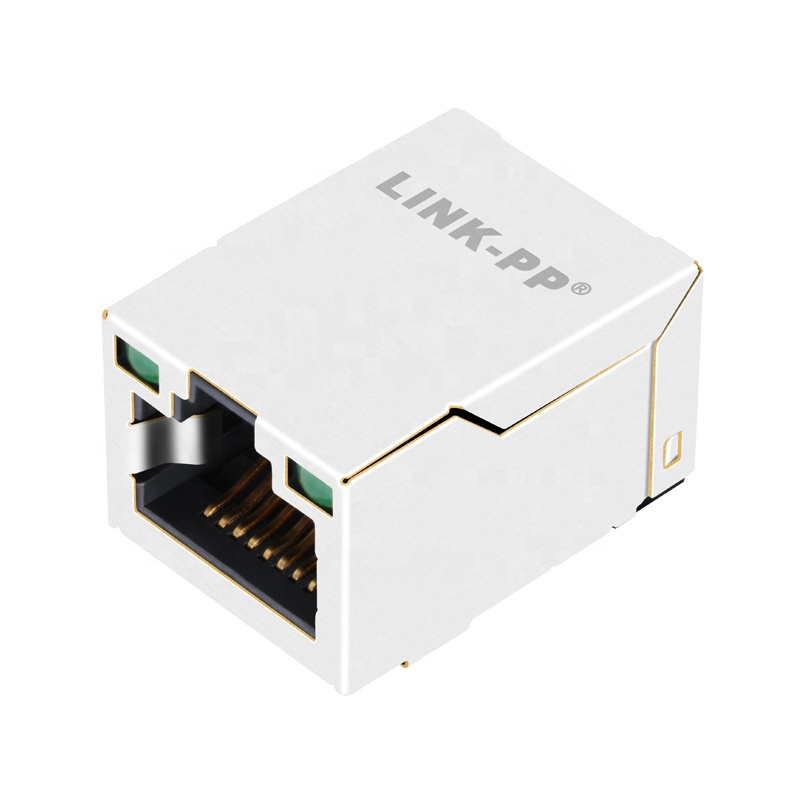

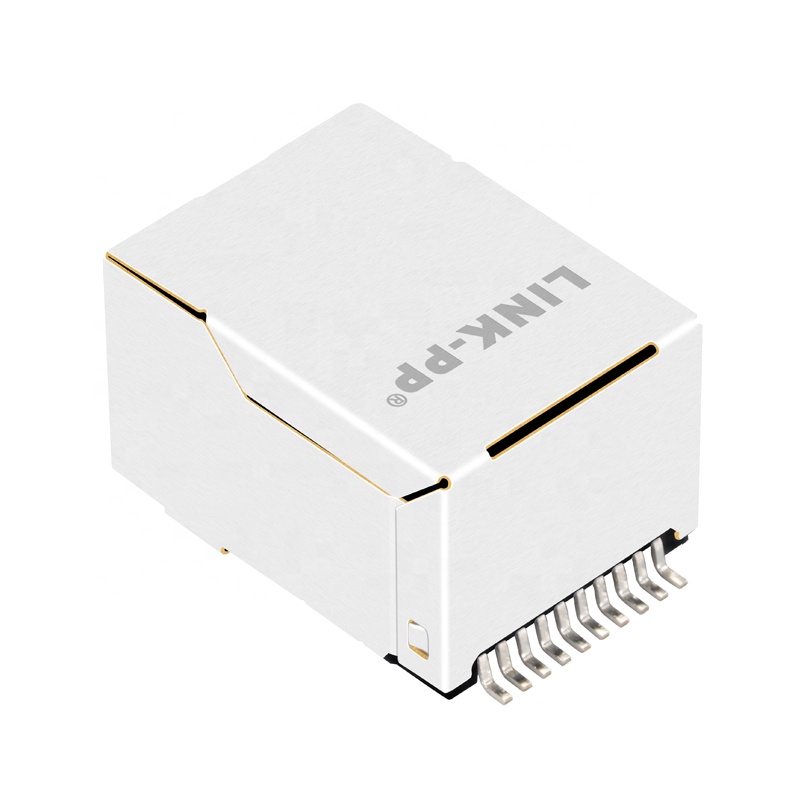

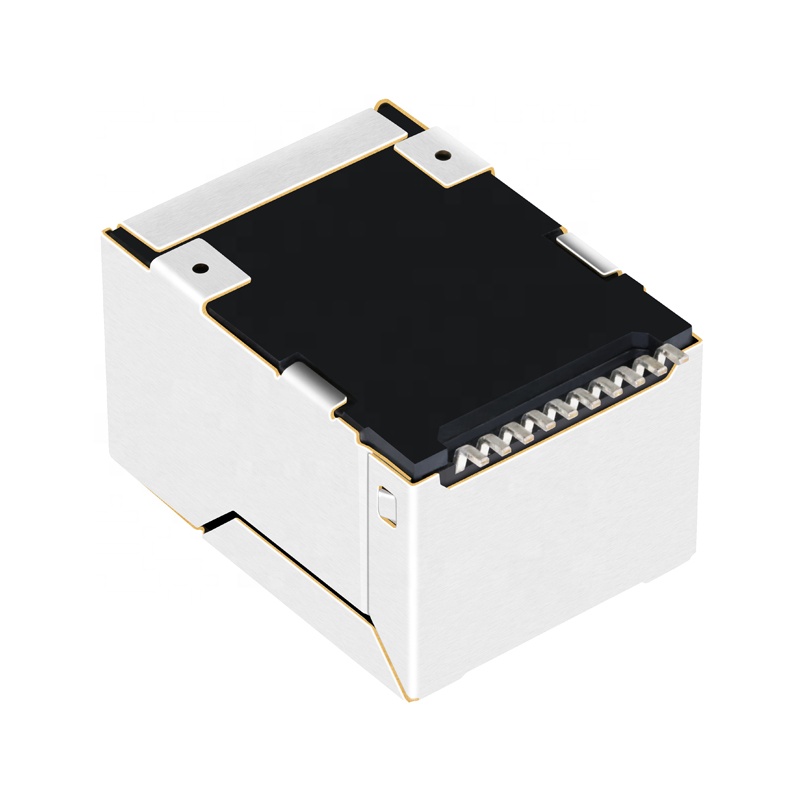

ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
1 / 5
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack

ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack

Send Inquiry

Product Description

RJ45 Connector and SFP Cage Series
ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL with Leds 100 Base-T Shielded SMT RJ45 8P8C Jack
Products Description
Item RJ45 Female Connector
Part Number LPJ19201BGNL
Bothhand Part Number ARSM11-3652I JXD6-0002NL 49F-1201YGD2NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
SMT RJ45 Connector Dimensional Drawing
SMT RJ45 Jack Circuit Schematic
RJ45 Connector Side View
RJ45 Connector Front View
RJ45 Connector Bottom Pins View
RJ45 Connector Packaging View
RJ45 Connector Categorization Chart
Product Quality Verification
Automated Testing Equipment
Production Workshop Row
Quality Control Inspection
Advanced Manufacturing Process
Factory Warehouse Inventory
High Precision Molding Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Corporate Building
Product Assembly Line
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for paying the shipping fee.
Q What is your delivery time?
We have items ready to ship for stock orders, and mass production orders typically take 15 to 30 days.
Q What after-service support do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q Do you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can discuss the specific requirements in detail.
Q What is your primary advantage?
We possess 19 years of professional production experience and have maintained strategic partnerships with global industry leaders for many years.
