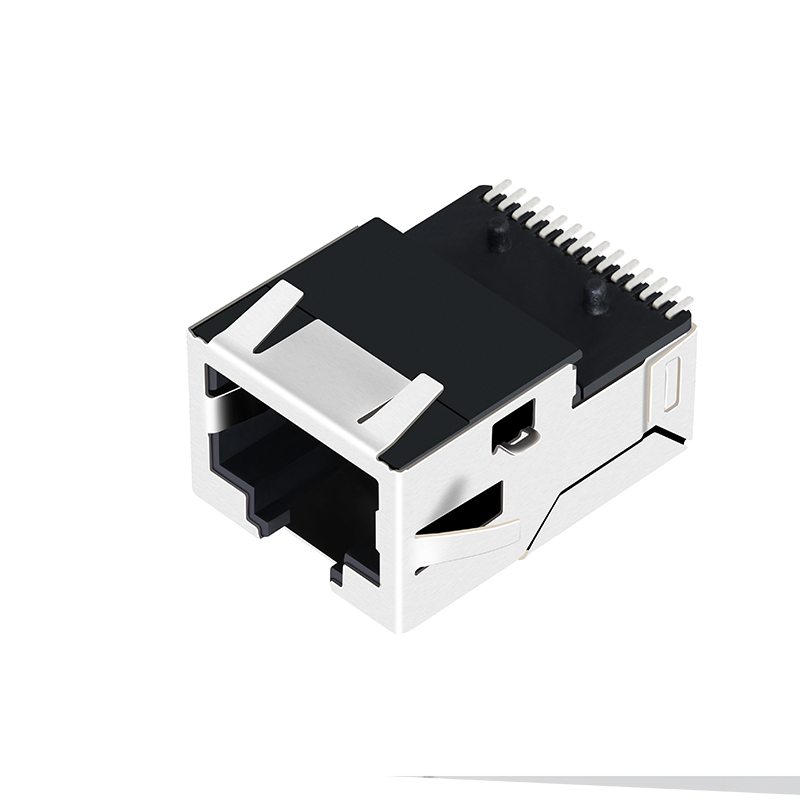

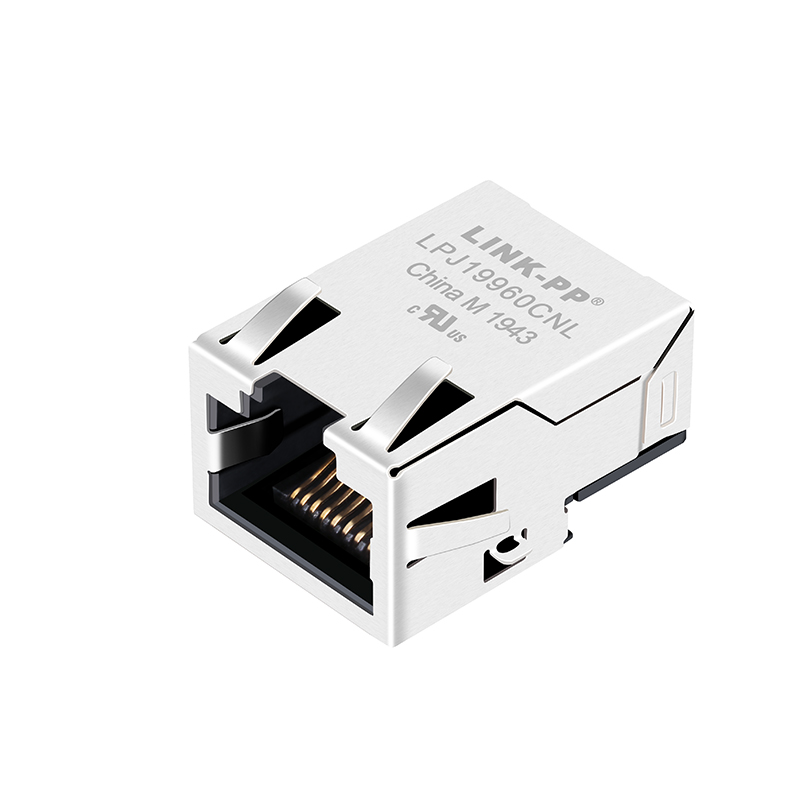

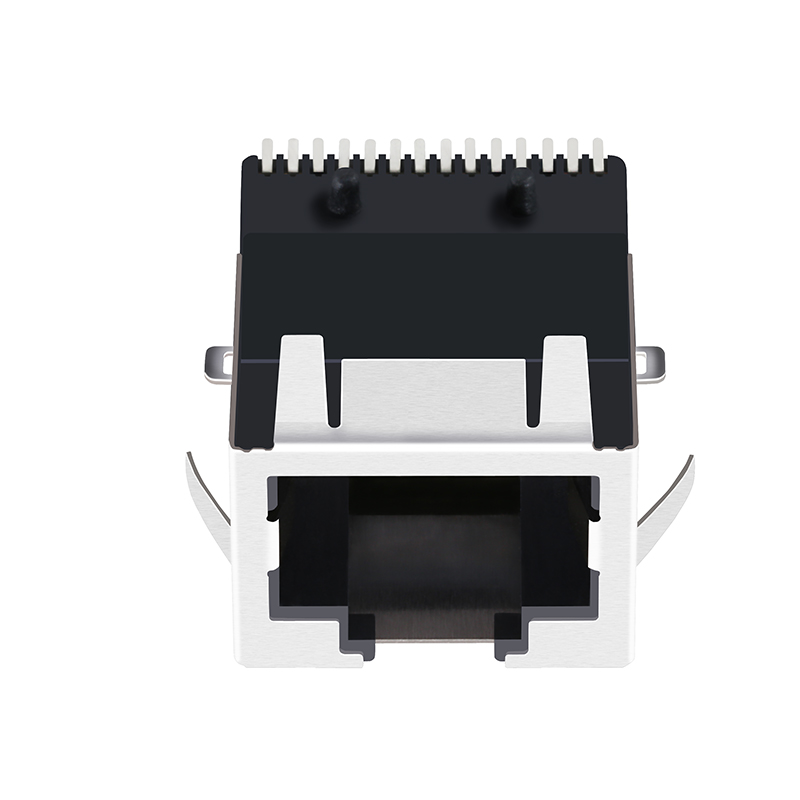

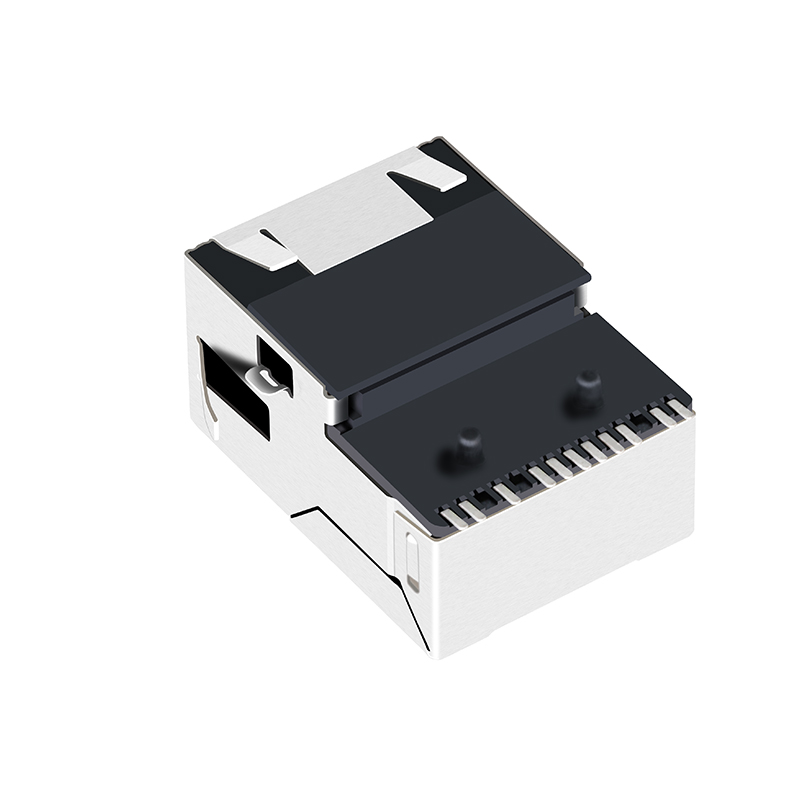

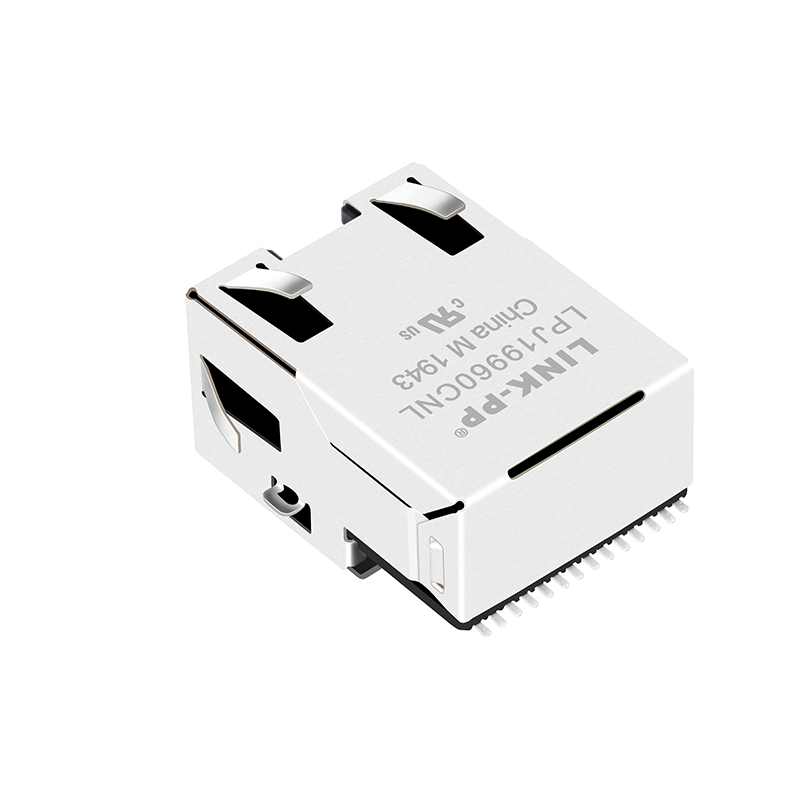

With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector

1 / 5

With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJ19960CNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃/-40℃ TO 85℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Specification and Material Compliance Sheet

Company Profile

Established in 1997, the manufacturer is a professional designer and producer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the company is a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to delivering world-class Ethernet RJ45 connectors and LAN transformers.

FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

4. What after-service can you offer?

One year guarantee period and we offer 24-hour technical support online.

5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

19 years of production experience and long-term partnerships with leading global technology enterprises.
