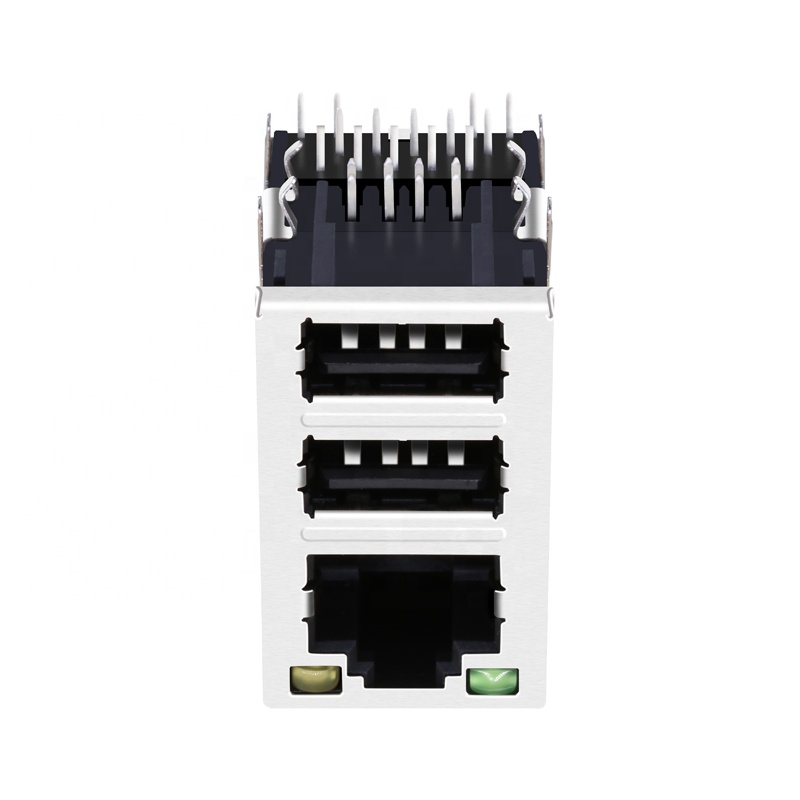

45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack With Dual USB

Product Description

Product Presentation
Magnetic RJ45 Connector Jack
45F-10101DYD2NL JW0-0009NL C893-1AX1-E1 Magnetic RJ45 Connector Jack with Dual USB
Products Description
Item RJ45 Female Connector
Part Number LPJU5009B28NL
Cross Reference Part Number C893-1AX1-E1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With Dual USB
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Categories Overview
Lan Transformer Diagram
Send Inquiry To Get Latest Price List
Product Details View 1

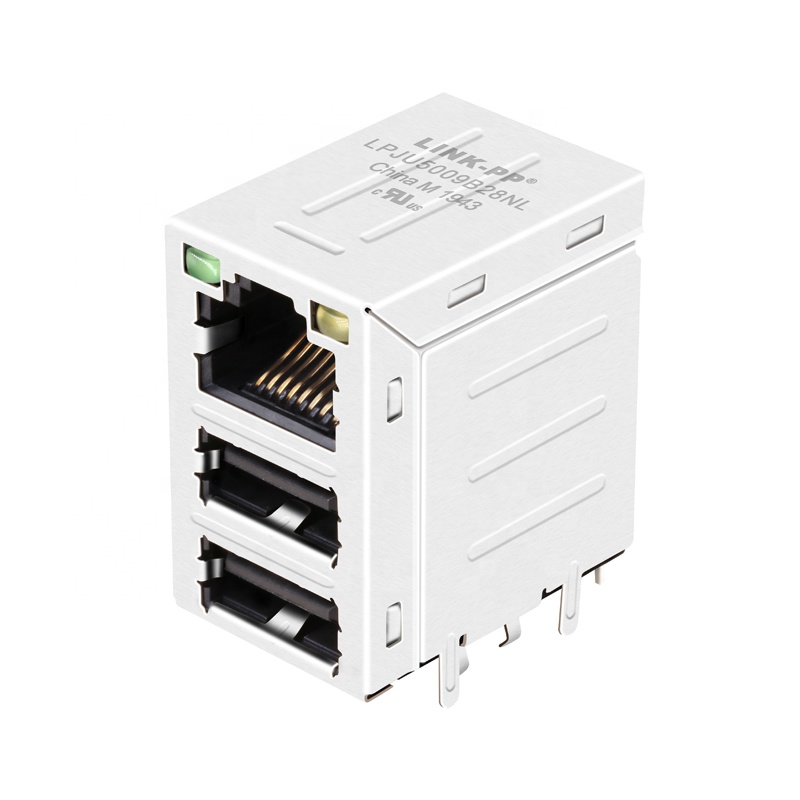

Product Details View 2
Product Details View 3

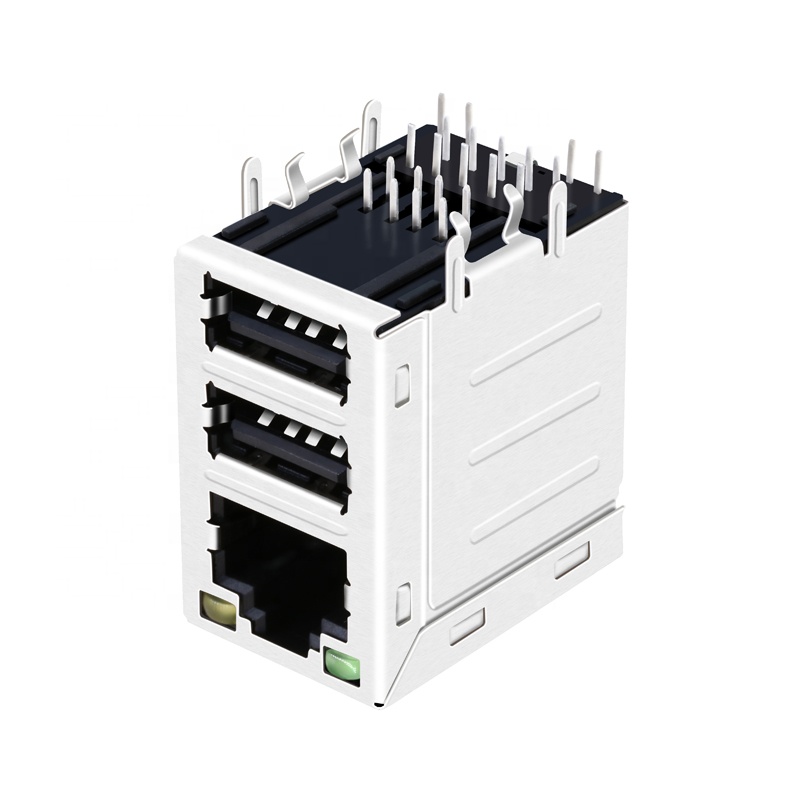

Product Details View 4
Product Details View 5

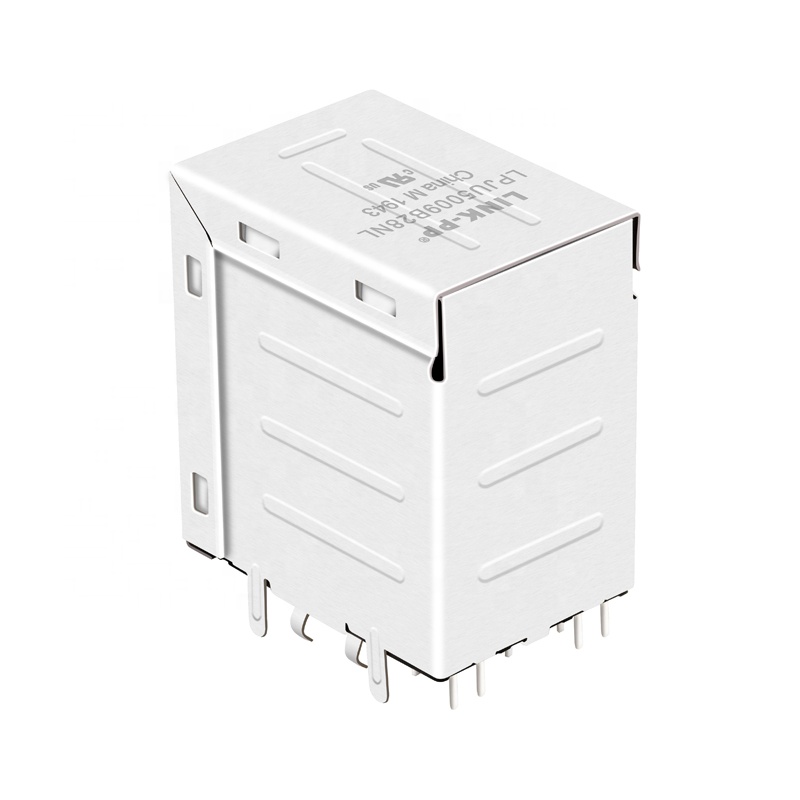

Product Details View 6
Product Details View 7
Product Feature Highlight
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. The company owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components alongside strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter; RJ45 connector with 10/100/1000M magnetic; T1/E1, T3/DS3/E3/STS-1 interface line transformer; ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We export our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions for customers' unique requirements.
Factory Overview 1
Factory Overview 2
Production Facility 1
Production Facility 2
FAQ
Q1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by your side.
Q3. What is your delivery time?
We are ready to ship immediately for stock items, and it takes 15-30 days for mass production orders.
Q4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5. Can you accept OEM/ODM orders?
Yes, please send your specific requirements and inquiries to us so we can proceed with a detailed discussion.
Q6. What is your main advantage?
We have over 19 years of manufacturing and production experience, serving as a trusted partner for global industry leaders for many years.
